Model

MWB-36780B

Retain This

Manual for

Reference

110624

OWNER'S

MANUAL

MARCY®BENCH

W/80LB WEIGHT SET

MWB-36780B

IMPEX®INC.

2801 S. Towne Ave., Pomona, CA 91766

Tel: (800) 999-8899 Fax: (626) 961-9966

www.impex-fitness.com

[email protected]

TABLE OF CONTENTS

BEFORE YOU BEGIN...................................................................................…. 1

IMPORTANT SAFETY NOTICES..................................................................…. 2

HARDWARE IDENTIFIER.....…....................................................................…. 4

ASSEMBLY INSTRUCTIONS........................................................................…. 5

EXPLODED DIAGRAM………………………………………………………………. 12

PARTS LIST...............................................................................................……. 13

WARRANTY.................................................................................................…. 14

ORDERING PARTS.......................................................................................… 14

BEFORE YOU BEGIN

Thank you for selecting the MARCY MWB-36780B Bench w/80lb weight set

by IMPEX®INC. For your safety and benefit, read this manual carefully

before using the machine. As a manufacturer, we are committed to provide

you complete customer satisfaction. If you have any questions, or find there

are missing or damaged parts, we guarantee you complete satisfaction

through direct assistance from our factory. To avoid unnecessary delays,

please call our TOLL-FREE customer service number. Our Customer

Service Agents will provide immediate assistance to you.

Toll-Free Customer Service Number

1-800-999-8899

Mon. - Fri. 9 a.m. - 5 p.m. PST

www.impex-fitness.com

[email protected]

IMPORTANT SAFETY NOTICE

PRECAUTIONS

This exercise machine is built for optimum safety. However, certain precautions apply

whenever you operate a piece of exercise equipment. Be sure to read the entire manual

before you assemble or operate your machine. In particular, note the following safety

precautions:

1. Keep children and pets away from the machine at all times. DO NOT leave

children unattended in the same room with the machine.

2. Only one person at a time should use the machine.

3. If the user experiences dizziness, nausea, chest pain, or any other abnormal

symptoms, STOP the workout at once. CONSULT A PHYSICIAN IMMEDIATELY.

4. Position the machine on a clear, leveled surface. DO NOT use the machine near water

or outdoors.

5. Keep hands and feet away from all moving parts.

6. Always wear appropriate workout clothing when exercising. DO NOT wear robes or

other clothing that could become caught in the machine. Running or aerobic shoes are

also required when using the machine.

7. Use the machine only for its intended use as described in this manual. DO NOT use

attachments not recommended by the manufacturer.

8. Do not place any sharp object around the machine.

9. Disabled person should not use the machine without a qualified person or physician in

attendance.

10. Before using the machine to exercise, always do stretching exercises to properly warm

up.

11. Never operate the machine if the machine is not functioning properly.

12. A spotter is recommended during exercise.

CARE AND MAINTENANCE

1. Lubricate moving parts with WD-40 or light oil periodically.

2. Inspect and tighten all parts before using the machine.

3. The machine can be cleaned using a damp cloth and mild non-abrasive detergent.

DO NOT use solvents.

4. Maximum weight capacity on the uprights: 200 lbs.

5. Maximum user’s weight: 300 lbs.

6. Maximum weight capacity on the leg developer: 100 lbs.

7. Assembled Dimension: 65” x 54” x 50”

WARNING: BEFORE BEGINNING ANY EXERCISE PROGRAM, CONSULT YOUR

PHYSICIAN. THIS IS ESPECIALLY IMPORTANT FOR INDIVIDUALS OVER THE AGE

OF 35 OR PERSONS WITH PRE-EXISTING HEALTH PROBLEMS. READ ALL

INSTRUCTIONS BEFORE USING ANY FITNESS EQUIPMENT. IMPEX INC. ASSUMES

NO RESPONSIBILITY FOR PERSONAL INJURY OR PROPERTY DAMAGE

SUSTAINED BY OR THROUGH THE USE OF THIS PRODUCT.

SAVE THESE INSTRUCTIONS.

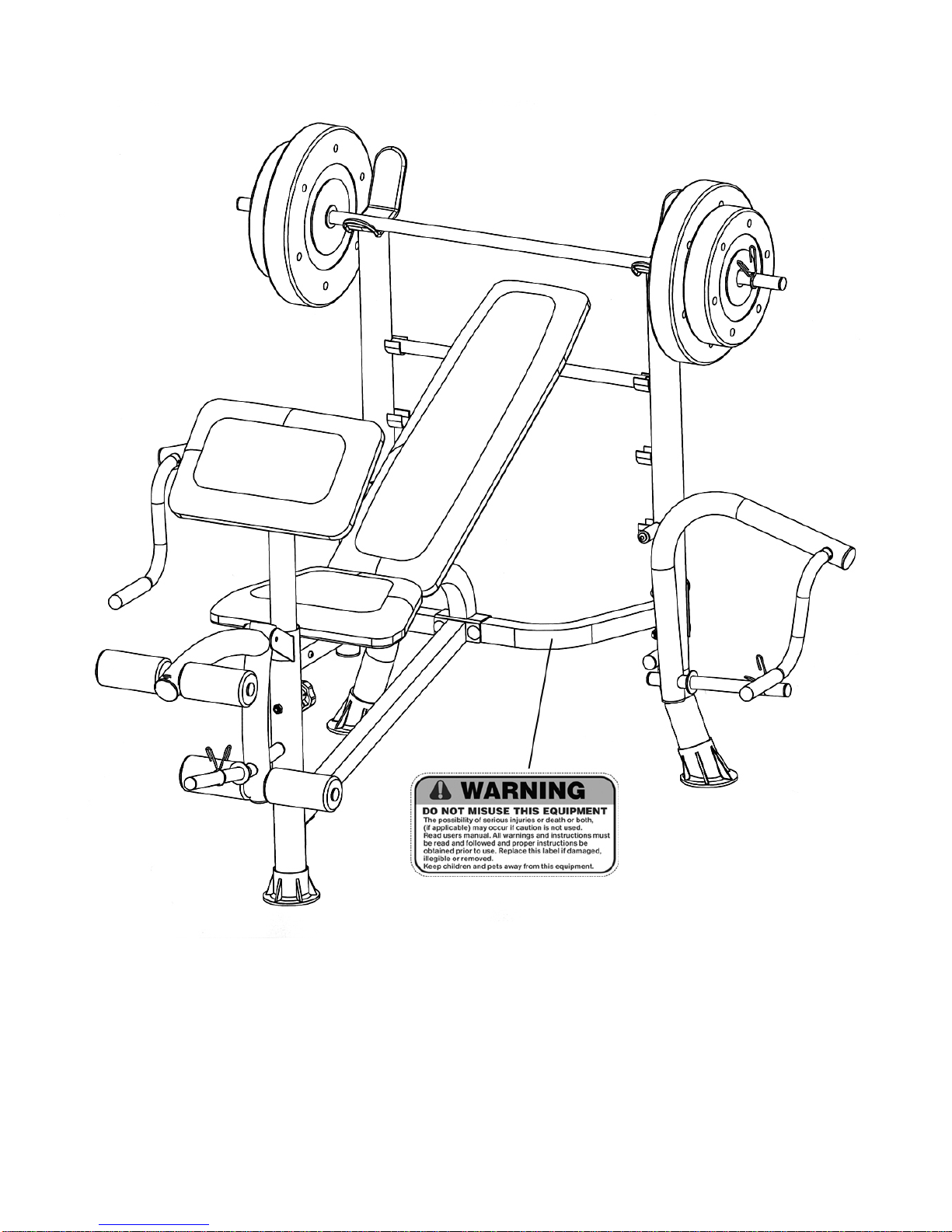

WARNING LABEL PLACEMENT

The Warning Label shown here has been placed on the Cross Brace. If the label is missing or illegible, please

call customer service at 1-800-999-8899 for replacement. Apply the label in location shown.

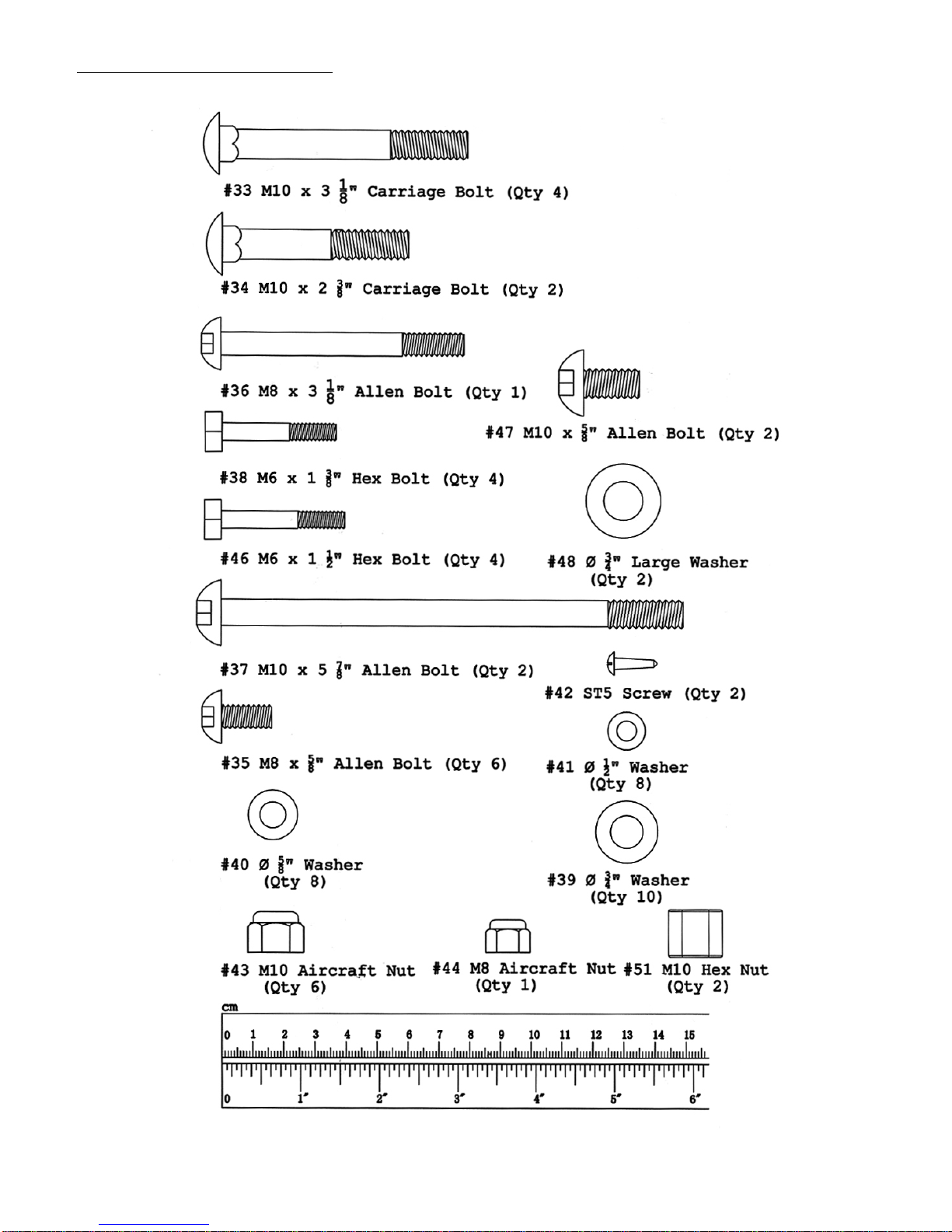

HARDWARE IDENTIFIER

NOTE: The following parts are not drawn to scale. Please use your own ruler to measure the size.

ASSEMBLY INSTRUCTION

Tools Required for Assembling the Machine: Two Adjustable Wrenches and Allen

Wrenches

NOTE: It is strongly recommended that two or more people assemble this machine

to avoid possible injury.

STEP 1 (See Diagram 1)

A.) Bench should be placed on flat surface. The incline or decline of surface should

be limited to a 3% or less for best performance and safety.

B.) Do not tighten Nuts and Bolts until instructed to do so.

C.)Install the two Upright End Caps (#17) onto the bottom of the Right & Left Upright

Beams (#1 & #2). Secure each Cap with a ST5 Screw (#42).

D.)Connect the two Upright Beams by a Cross Brace (#4) in the Mid-span. Secure them

with two M10 x 3 1/8” Carriage Bolts (#33), one Curved Bracket (#12), two ¾”

Washers (#39), and two M10 Aircraft Nuts (#43) on each end of the Cross Brace.

E.) Place the Backrest Adjustment Bar (#32) onto the selected slots on the Upright Beams

to obtain desired incline for the Backrest. DIAGRAM 1

STEP 2 (See Diagram 2)

A.) Do not tighten Nuts and Bolts until instructed to do so.

B.) Install a Front Leg End Cap (#20) onto the bottom of Front Leg (#5). Attach the Front

Leg to the Main Seat Support (#3). Secure it with three M8 x 5/8” Allen Bolts (#35) and

three Ø 5/8” Washers (#40).

C.)Attach the Main Seat Support (#3) to the Cross Brace (#4). Attach the Main Seat

Stabilizer (#9) to the Main Seat Support. Align the holes. Secure the Main Seat

Support, Main Stabilizer, and Cross Brace together with two M10 x 2 3/8” Carriage

Bolts (#34), two Ø ¾” Washers (#39), and two M10 Aircraft Nuts (#43).

D.)Attach the other end of Main Seat Stabilizer (#9) to the Front Leg (#5). Secure it with

one M8 x 5/8” Allen Bolt (#35) and Ø 5/8” Washer (#40).

E.) Securely tighten all Nuts and Bolts previously installed. DIAGRAM 2

STEP 3 (See Diagram 3)

A.) Attach the Leg Developer (#7) to the Front Leg (#5). Secure it with one M8 x 3 1/8”

Allen Bolt (#36), two Ø 5/8” Washers (#40), and one M8 Aircraft Nut (#44).

B.) Insert two Foam Tubes (#11) halfway through the holes on the Leg Developer. Push

four Foam Rolls (#28) onto the Tubes from both sides.

C.) Attach a Spring Clip (#19) to the weight post on Leg Developer.

DIAGRAM 3

STEP 4 (See Diagram 4)

A.) Attach the Backrest Supports (#10) onto both ends of the pivot on the Main Seat Support

(#3). Place the other end rest against the Backrest Adjustment Bar (#32).

B.) Place the Backrest Board (#31) onto the Backrest Supports. Secure it with four M6 x 1 ½”

Hex Bolts (#46) and Ø ½” Washers (#41).

C.)Place the Seat Pad (#30) onto the Main Seat Support. Secure it with four M6 x 1 3/8” Hex

Bolts (#38) and Ø ½” Washers (#41). DIAGRAM 4

STEP 5 (See Diagram 5)

A.) Attach the Arm Curl Pad (#29) to the Arm Curl Stand (#6). Secure it with

two M8 x 5/8” Allen Bolts (#35) and Ø 5/8” Washers (#40).

B.) Insert the Arm Curl Stand into the top opening on the Front Leg. Secure it

with a M10 x 2 5/8” Lock Knob (#45).

C.)When using Leg Developer, remove the Arm Curl Stand from the Front Leg.

DIAGRAM 5
