Impex MD-2100 Bedienungsanleitung

NOTE:

Please read all instructions

carefully before using this

product

Safety Notice

Hardware Identifier

Assembly Instruction

Parts List

Warranty

Ordering Parts

Model

MD-2100

Retain This

Manual for

Reference

08-25-05

OWNER'S

MANUAL

APEX

POWER TOWER

MD-2100

IMPEX INC.

14777 DON JULIAN RD., CITY OF INDUSTRY, CA 91746

Tel: (800) 999-8899 Fax: (626) 961-9966

www.impex-fitness.com

[email protected]

TABLE OF CONTENTS

BEFORE YOU BEGIN...................................................................................... 1

IMPORTANT SAFETY NOTICES..................................................................... 2

HARDWARE IDENTIFIER.....…....................................................................... 4

ASSEMBLY INSTRUCTIONS........................................................................... 5

EXPLODED DIAGRAM……………………………………………………………… 9

PARTS LIST...................................................................................................... 10

WARRANTY.................................................................................................…. 11

ORDERING PARTS.......................................................................................… 11

BEFORE YOU BEGIN

Thank you for selecting the APEX POWER TOWER MD-2100 by IMPEX

INC. For your safety and benefit, read this manual carefully before using

the machine. As a manufacturer, we are committed to provide you

complete customer satisfaction. If you have any questions, or find there

are missing or damaged parts, we guarantee you complete satisfaction

through direct assistance from our factory. To avoid unnecessary delays,

please call our TOLL-FREE customer service number. Our Customer

Service Agents will provide immediate assistance to you.

Toll-Free Customer Service Number

1-800-999-8899

Mon. - Fri. 9 a.m. - 5 p.m. PST

www.impex-fitness.com

[email protected]m

IMPORTANT SAFETY NOTICE

PRECAUTIONS

This exercise machine is built for optimum safety. However, certain precautions apply

whenever you operate a piece of exercise equipment. Be sure to read the entire manual

before you assemble or operate your machine. In particular, note the following safety

precautions:

1. Keep children and pets away from the machine at all times. DO NOT

leave children unattended in the same room with the machine.

2. Only one person at a time should use the machine.

3. If the user experiences dizziness, nausea, chest pain, or any other abnormal

symptoms, STOP the workout at once. CONSULT A PHYSICIAN IMMEDIATELY.

4. Position the machine on a clear, leveled surface. DO NOT use the machine

near water or outdoors.

5. Keep hands away from all moving parts.

6. Always wear appropriate workout clothing when exercising. DO NOT wear

robes or other clothing that could become caught in the machine. Running

or aerobic shoes are also required when using the machine.

7. Use the machine only for its intended use as described in this manual. DO

NOT use attachments not recommended by the manufacturer.

8. Do not place any sharp object around the machine.

9. Disabled person should not use the machine without a qualified person or

physician in attendance.

10. Before using the machine to exercise, always do stretching exercises to

properly warm up.

11. Never operate the machine if the machine is not functioning properly.

CARE AND MAINTENANCE

1. Inspect and tighten all parts before using the machine.

2. The machine can be cleaned using a damp cloth and mild non-abrasive detergent.

DO NOT use solvents.

3. Maximum User’s Weight: 300 lbs.

WARNING: BEFORE BEGINNING ANY EXERCISE PROGRAM, CONSULT YOUR

PHYSICIAN. THIS IS ESPECIALLY IMPORTANT FOR INDIVIDUALS OVER THE

AGE OF 35 OR PERSONS WITH PRE-EXISTING HEALTH PROBLEMS. READ ALL

INSTRUCTIONS BEFORE USING ANY FITNESS EQUIPMENT. IMPEX INC.

ASSUMES NO RESPONSIBILITY FOR PERSONAL INJURY OR PROPERTY

DAMAGE SUSTAINED BY OR THROUGH THE USE OF THIS PRODUCT.

SAVE THESE INSTRUCTIONS.

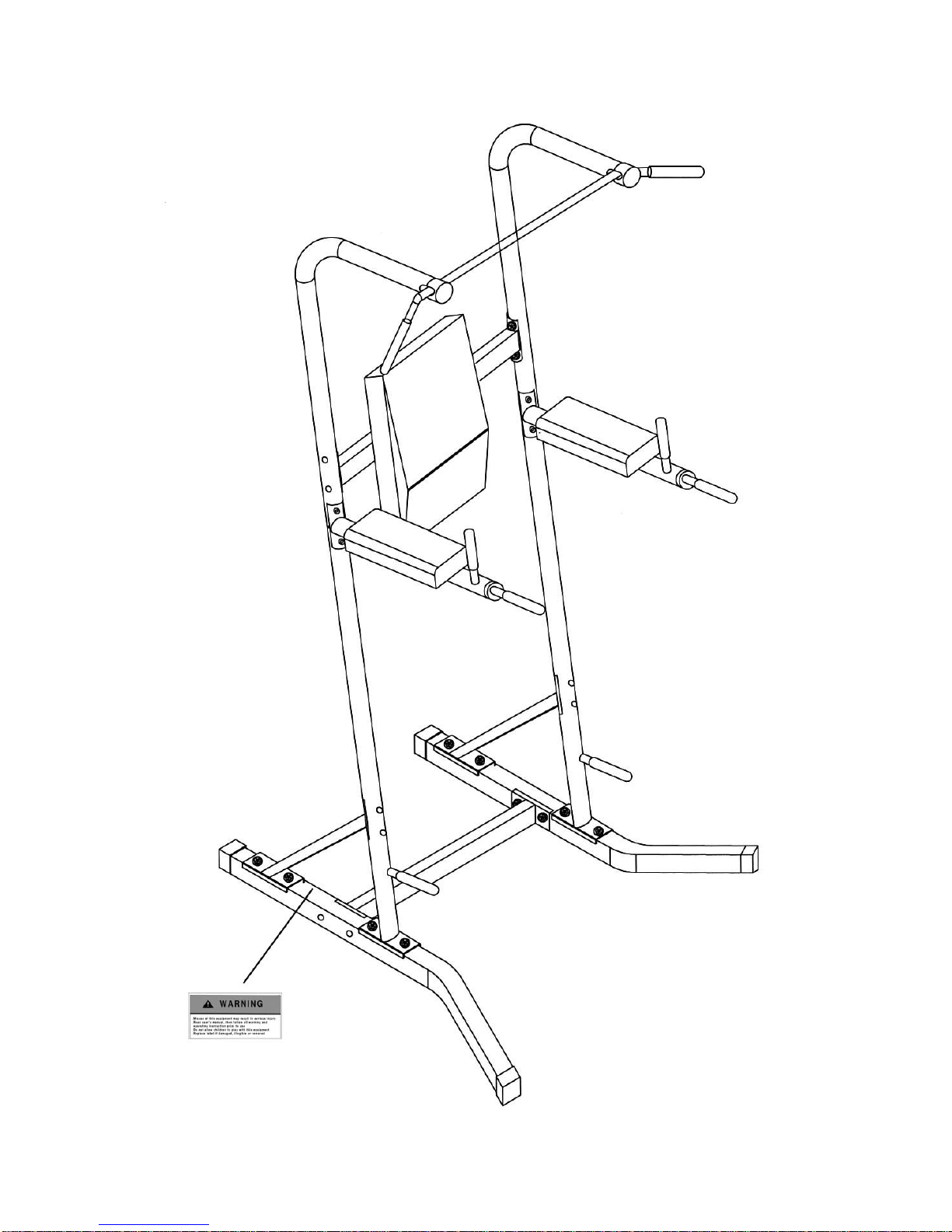

WARNING LABEL REPLACEMENT

The Warning Label shown here has been placed on the Base Frame. If the label is missing or illegible,

please call customer service at 1-800-999-8899 for replacement. Apply the label in location shown.

HARDWARE PACK

ASSEMBLY INSTRUCTION

Tools Required Assembling the Machine: Two Adjustable Wrenches and Allen Wrenches

NOTE: It is strongly recommended two or more people assembling this machine to avoid

possible injury.

STEP 1 (See Diagram 1)

A.) Connect the Left and Right Base Frame (#1 & #2) with the Stabilizer (#3) in the mid-span.

Secure each end with two M10 x 2 ½” Carriage Bolts (#16), ∅¾” Washers (#14), and M10

Aircraft Nuts (#15). Do NOT tighten the Nuts and Bolts yet.

B.) Attach a Lower Upright Beam (#5) onto the Right Stabilizer (#2). Secure it with two M10 x 2 ½”

Carriage Bolts (#16), ∅¾” Washers (#14), and M10 Aircraft Nuts (#15). Repeat the same

procedure to install the other side. DIAGRAM 1

STEP 2 (See Diagram 2)

A.) Attach a Diagonal Support (#4) to the Lower Upright Beam (#5) and the Right Base Frame

(#2). Secure it to the Lower Upright Beam with two M10 x 3” Carriage Bolts (#17), Ø ¾”

Bent Washers (#18), and M10 Aircraft Nuts (#15). Secure it to the Right Base Frame with

two M10 x 2 ½” Carriage Bolts (#16), Ø ¾” Washers (#14), and M10 Aircraft Nuts (#15).

B.) Attach an Upper Upright Beam (#6) onto the right Lower Upright Beam (#5). Attach a Dip

Support (#9) to the Lower Upright Beam. Align the holes and secure them with two M10 x

3” Carriage Bolts (#17), Ø ¾” Bent Washers (#18), and M10 Aircraft Nuts (#15).

C.)Attach a Vertical Handle (#8) to the Dip Support. Secure it with one M10 x 1” Allen Bolt

(#27) and Ø 1” Bent Washer (#20).

D.)Repeat the above procedures A, B, & C to install the other side.

E.) Connect the two Upright Beams with a Cross Brace (#7) in the middle. Make sure the

“longer” side of the welded bracket faces downward. Secure each side with two M10 x 3”

Carriage Bolts (#17), ∅¾” Bent Washers (#18) and M10 Aircraft Nuts (#15). Do NOT

tighten all the Nuts and Bolts yet.

DIAGRAM 2

STEP 3 (See Diagram 3)

A.) Attach the Chin-up Bar (#10) to the top opening on the two Upper Upright Beams. Secure

the Chin-up Bar to each opening with one M8 x 1 5/8” Allen Bolt (#23) and Ø ½” Bent

Washer (#30). Cover each opening with an Upright Beam End Cap (#26).

B.) Attach the two Arm Pads (#12) onto the Dip Supports. Secure each Arm Pad with two M8 x

2 ¾” Allen Bolts (#13) and Ø 5/8” Bent Washers (#22).

C.)Attach the Backrest Board (#11) to the Cross Brace (#7). Secure it with two M8 x ¾” Allen

Bolts (#25) and Ø 5/8” Washers (#24).

D.)Securely tighten all Nuts and Bolts previously installed.
