User guide

1 . S A F E T Y IN S T R U C T I O N S –Secur i t y

IMPORTANT!

CAUTION: Before performing the procedures in this document, read and follow the safety instructions and

important regulatory information in your Safety, Environmental, and Regulatory Information document.

This manual contains important instructions that you should follow during installation and maintenance of the UPS and

batteries. Please read all instructions before operating the equipment and save this manual for future reference.

1.1 UPS Location Warnings:

Install your UPS indoors, away from excess moisture or heat, direct sunlight, dust and conductive contaminants.

Install your UPS in a structurally sound area. Your UPS is extremely heavy; take care when moving and lifting the unit.

Only operate your UPS at indoor temperatures between 32°F and 104°F (between 0°C and 40°C).

Leave adequate space around all sides of the UPS for proper ventilation.

Do not install the UPS near magnetic storage media, as this may result in data corruption.

Do not mount unit with its front or rear panel facing down (at any angle). Mounting in this manner will seriously inhibit

the unit's internal cooling, eventually causing product damage not covered under warranty.

1.2 Connection Warnings:

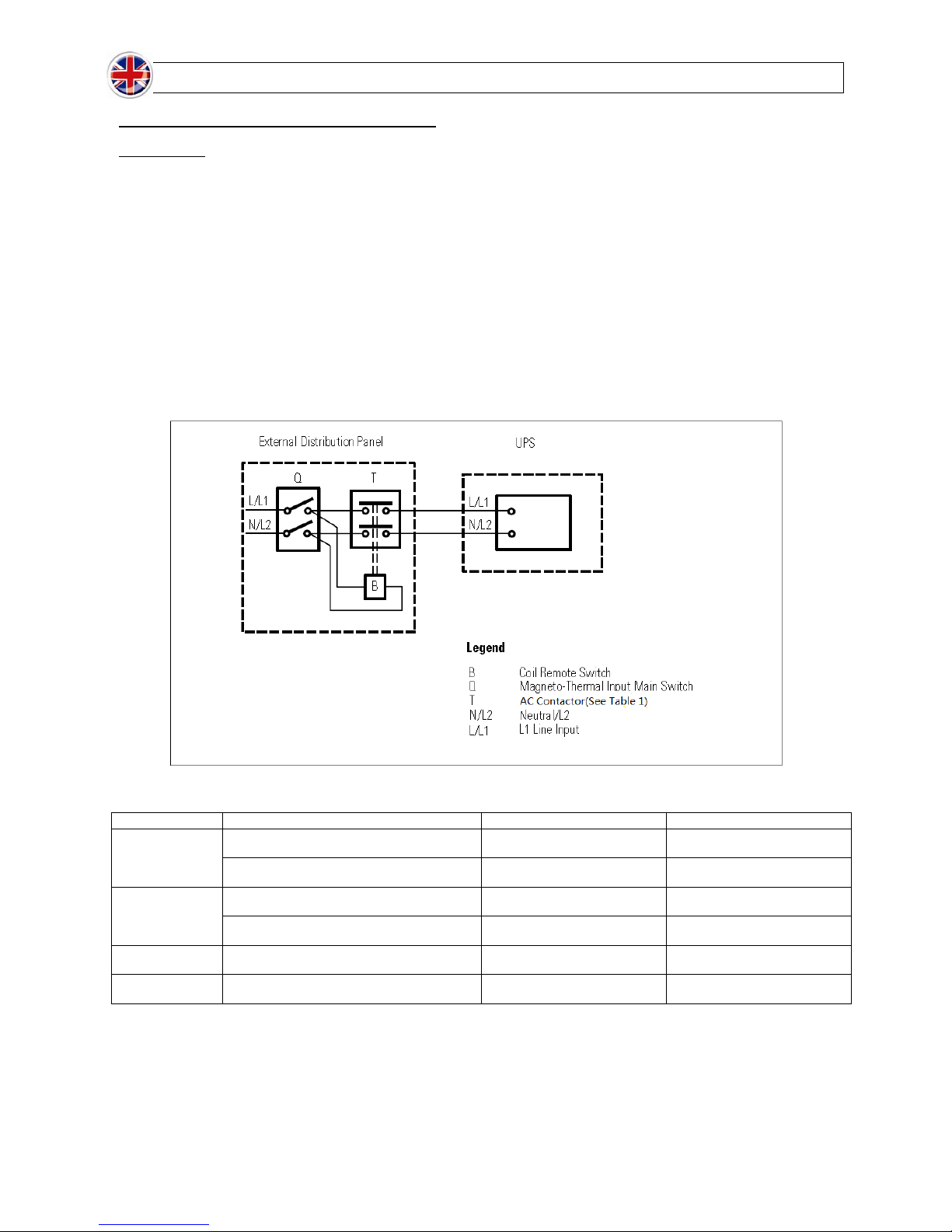

There is no standard feedback protection inside, please isolate the UPS before working according to this circuit.

The following table lists AC contactor that can be used as back feed protection devices.

Table 1:

Module type

Manufacturer

Type

Rating

5 K

Tianshui 213 Electrical Apparatus Co.,Ltd

GSC1(CJX4-d)-4011

220Vac,40A

LS Industrial systems Co.,Ltd.

GMC(D)-32

600Vac,45A

6 K

Tianshui 213 Electrical Apparatus Co.,Ltd

GSC1(CJX4-d)-4011

220Vac,40A

LS Industrial systems Co.,Ltd.

GMC(D)-32

600Vac,45A

8 K

Tianshui 213 Electrical Apparatus Co.,Ltd

GSC1(CJX4-d)-6511

220Vac,65A

10 K

Tianshui 213 Electrical Apparatus Co.,Ltd

GSC1(CJX4-d)-6511

220Vac,65A

This UPS should be connected with TN earthing system

The power supply for this unit must be single-phase rated in accordance with the equipment nameplate. It also must

be suitably grounded

Use of this equipment in life support applications where failure of this equipment can reasonably be expected to cause

the failure of the life support equipment or to significantly affect its safety or effectiveness is not recommended. Do not

use this equipment in the presence of a flammable anesthetic mixture with air, oxygen or nitrous oxide.

Connect your UPS power module’s grounding terminal to a grounding electrode conductor.

The UPS is connected to a DC energy source (battery). The output terminals may be live when the UPS is not

connected to an AC supply.

INFOSEC UPS SYSTEM - 4, rue de la Rigotière - 44700 Orvault - FRANCE - www.infosec-ups.com

Hot Line –Tel + 33 (0)2 40 76 15 82 - Fax + 33 (0)2 40 94 29 51 - [email protected] –05 13 AA 59 206 14

1.3 Maintenance Warnings

Service and repair should be done only by trained personnel. During any service work to the UPS, it should be turned

off or manually bypassed. Note that potentially lethal voltages exist within this unit as long as the battery supply is

connected.

Your UPS power module and battery module(s) do not require routine maintenance. Do not open them for any reason.

There are no user-serviceable parts inside.

Even after the unit is disconnected from the mains, components inside the UPS system are still connected to the

battery packs which are potentially dangerous.

Before carrying out any kind of service and/or maintenance, disconnect the batteries and verify that no current is

present and no hazardous voltage exists in the terminals of high capacity capacitor such as BUS-capacitors.

Fuses should be replaced only by factory authorized personnel. Blown fuses should be replaced only with fuses of the

same number and type.

Verify that no voltage between the battery terminals and the ground is present before maintenance or repair. In this

product, the battery circuit is not isolated from the input voltage. Hazardous voltages may occur between the battery

terminals and the ground.

1.4 About batteries:

Do not operate your UPS without connecting it to an external battery module.

Batteries can present a risk of electrical shock and burn from high short-circuit current. Observe proper precautions.

a) Remove watches, rings, or other metal objects

b) Use tools with insulated handles.

c) Wear rubber gloves and boots.

d) Do not lay tools or metal parts on top of batteries.

e) Disconnect charging source prior to connecting or disconnecting battery terminals.

f) Determine if battery is inadvertently grounded. If inadvertently grounded, remove source from ground. Contact with any

part of a grounded battery can result in electrical shock. The likelihood of such shock can be reduced if such grounds are

removed during installation and maintenance (applicable to equipment and remote battery supplies not having a grounded

supply circuit).

Do not dispose of the batteries in a fire. Do not open the UPS or batteries. The batteries must be rightly deposed

according to local regulation.

Do not short or bridge the battery terminals with any object.

Unplug and turn off the UPS before performing battery replacement.

Battery replacement should be performed only by authorized service personnel using the same number and type of

batteries (Sealed Lead-Acid). Use tools with insulated handles. The batteries are recyclable.

Do not open or mutilate the batteries. Released electrolyte is harmful to the skin and eyes, and may be toxic.

Do not connect or disconnect battery module(s) while the UPS is operating from the battery supply.

1.5 Standards

* Safety

Safety Conformance: IEC/EN 62040-1,UL1778 (4th Edition)

Safety Markings :, cTUVus, CE

* EMI

Conducted Emission...............................:IEC/EN 62040-2

Category C3

Radiated Emission..................................:IEC/EN 62040-2

Category C3

*EMS

ESD.........................................................:IEC/EN 61000-4-2

Level 4

RS........................................................ ...:IEC/EN 61000-4-3

Level 3

EFT......................................................... :IEC/EN 61000-4-4

Level 4

SURGE................................................... :IEC/EN 61000-4-5

Level 4

CS........................................................... :IEC/EN 61000-4-6

Level 3

Power-frequency Magnetic field.............. :IEC/EN 61000-4-8

Level 4

Low Frequency Signals............................:IEC/EN 61000-2-2

Warning: This is a product for commercial and industrial application in the second

environment-installation restrictions or additional measures may be needed to prevent

disturbances.

INFOSEC UPS SYSTEM - 4, rue de la Rigotière - 44700 Orvault - FRANCE - www.infosec-ups.com

Hot Line –Tel + 33 (0)2 40 76 15 82 - Fax + 33 (0)2 40 94 29 51 - [email protected] –05 13 AA 59 206 14

CE conformity:

This logo means that the 220V/230V/240V HV product answers to the EMC and LVD standards (regarding

to the regulation associated with the electric equipment voltage and the electromagnetic fields).

This logo means that the product is approved by the TUV sud, tested to UL1778

Important

An UPS belongs to the electronic and electrical equipment category. At the end of its useful life it must be

disposed of separately and in an appropriate manner.

This symbol is also affixed to the batteries supplied with this device, which means they too have to be

taken to the appropriate place at the end of their useful life.

Contact your local recycling or hazardous waste centre for information on proper disposal of the used

battery.

INFOSEC UPS SYSTEM - 4, rue de la Rigotière - 44700 Orvault - FRANCE - www.infosec-ups.com

Hot Line –Tel + 33 (0)2 40 76 15 82 - Fax + 33 (0)2 40 94 29 51 - [email protected] –05 13 AA 59 206 14

2. I N S T AL L A T IO N A N D S E T U P

NOTE: Before the installation of the unit, please inspect it. Be sure that nothing inside the package is damaged. Please keep

the original package in a safe place for future use.

NOTE: There are two different types of E6 LCD RT EVOLUTION UPS: standard and long-run models. Please refer to the

following table.

NOTE: In this manual, isolation transformer unit will simply be referred to as ISO Bank.

Model No.

Type

Model No.

Type

E6 LCD RT Evolution TX 5 KVA

Standard

E6 LCD RT Evolution TX 5 KVA S

Long-run

E6 LCD RT Evolution TX 6 KVA

E6 LCD RT Evolution TX 6 KVA S

E6 LCD RT Evolution TX 8 KVA

E6 LCD RT Evolution TX 8 KVA S

E6 LCD RT Evolution TX 10 KVA

E6 LCD RT Evolution TX 10 KVA S

2.1 Rear panel view

E6 LCD RT EVOLUTION

5000/6000/8000/10000

ISO Bank Rear Panel Overlook

INFOSEC UPS SYSTEM - 4, rue de la Rigotière - 44700 Orvault - FRANCE - www.infosec-ups.com

Hot Line –Tel + 33 (0)2 40 76 15 82 - Fax + 33 (0)2 40 94 29 51 - [email protected] –05 13 AA 59 206 14

ISO Bank Output Terminal

Diagram : Connection between Battery Pack and UPS

1 - RS-232 communication port

2 - USB communication port

3 - EPO (Emergency Power Off) connector

4 - Share current port (for parallel function)

5 - Parallel port (for parallel function)

6 - Intelligent slot

7 - EMBS (External Maintain Bypass Switch) port

8 - Cooling fan

9 - External battery connector

10 - Input circuit breaker

11 - Input/Output terminal

12 - Input terminal

13 - Ground

14 - Output terminal

15 - Battery pack output circuit breaker

16 - ISO bank output terminal

17 - ISO bank input

18 - ISO bank output 1

19 - ISO bank output 2

Note: Keep the EPO connector closed for UPS normal operation. To activate EPO function, please remove the jumper.

INFOSEC UPS SYSTEM - 4, rue de la Rigotière - 44700 Orvault - FRANCE - www.infosec-ups.com

Hot Line –Tel + 33 (0)2 40 76 15 82 - Fax + 33 (0)2 40 94 29 51 - [email protected] –05 13 AA 59 206 14

WARNING: The EPO, RS-232 and USB circuits are IEC 60950 safety extra low voltage (SELV) circuits. This circuit must be

separated from any hazardous voltage circuits by reinforced insulation.

System single line diagram

System single line diagram is demonstrated as picture below:

It’s in closed status for UPS normal operation.

INFOSEC UPS SYSTEM - 4, rue de la Rigotière - 44700 Orvault - FRANCE - www.infosec-ups.com

Hot Line –Tel + 33 (0)2 40 76 15 82 - Fax + 33 (0)2 40 94 29 51 - [email protected] –05 13 AA 59 206 14

2.2 Install the UPS

Rack-mount installation

Step 1

Step 2

Step 1: Attach mounting ears to the side

mounting holes of UPS using the screws provided

and the ears should face forward.

Step 2: Lift the UPS module and slide it into

rack enclosure. Attach the UPS module to

the rack with screws, nuts and washers

(user-provided) through its mounting ears

and into the rack rails.

Tower installation

The UPS system is shipped with four plastic feet and 6 plastic extensions (2 short extension plus 4 long extensions). Those

can be used to tower install the UPS power module in 3U or UPS power module with one battery bank in 6U or UPS module

with ISO bank and one battery bank (9U).

To install in 3U, it’s not necessary to use long extensions.

Step 1

Step 2

Step 3

Assemble two feet and

one short extension

together as one supporter

with 13cm width available.

Another supporter could

be assembled in same

method

Align the two stands

approximately 35cm apart in

step 2.

Then, put UPS module in the

stands as shown in step 3.

Be sure that the LCD of UPS

should be on upper half part

of front panel.

INFOSEC UPS SYSTEM - 4, rue de la Rigotière - 44700 Orvault - FRANCE - www.infosec-ups.com

Hot Line –Tel + 33 (0)2 40 76 15 82 - Fax + 33 (0)2 40 94 29 51 - [email protected] –05 13 AA 59 206 14

To install in 6U, it’s not necessary to use short extensions.

Step 1

Step 2

Step 3

Assemble two feet and two

long extensions together.

Then, one set of plastic

supporter with 26cm width is

done. Another set of

supporter could be

assembled in same way.

Align the two stands

approximately 35cm apart in

step 2.

Then, put UPS module and battery bank

in the stands as shown in step 3. Be

sure that the LCD of UPS should be on

upper half part of front panel. And

assemble these metal plates and M4

screws as shown in step 4.

Install UPS module with ISO bank and one battery bank in 6U

Step 1

Step 2

Step 3

Assemble two feet and three

long extension -s with one

short extension as one tower

stand.

Align the two stands

approximately 35cm apart

Then, put UPS module, ISO bank and

battery bank in the stands. And assem -

ble these metal plates and M4 screws

INFOSEC UPS SYSTEM - 4, rue de la Rigotière - 44700 Orvault - FRANCE - www.infosec-ups.com

Hot Line –Tel + 33 (0)2 40 76 15 82 - Fax + 33 (0)2 40 94 29 51 - [email protected] –05 13 AA 59 206 14

2.3 Setup the UPS

Installation and wiring must be performed in accordance with the local electric laws/regulations and execute the following

instructions by professional personnel.

1) Make sure the mains wire and breakers in the building are enough for the rated capacity of UPS to avoid the

hazards of electric shock or fire.

NOTE: Do not use the wall receptacle as the input power source for the UPS, as its rated current is less than the UPS’s

maximum input current. Otherwise the receptacle may be burned and destroyed.

2) Switch off the mains switch in the building before installation.

3) Turn off all the connected devices before connecting to the UPS.

4) Prepare wires based on the following table:

Model

Wiring spec (AWG/mm²)

Input

Output

Battery

Ground

5KRT(S)

8 / 6

10 / 6

8 / 6

6KRT(S)

8 / 6

10 / 6

8 / 6

8KRT(S)

6 / 10

8 / 6

6 / 10

10KRT(S)

6 / 10

8 / 6

6 / 10

NOTE 1: The cable for 5KRT(S) and 6KRT(S) should be able to withstand over 40A current. It is recommended to

use 10AWG/6mm² or thicker wire for safety and efficiency.

NOTE 2: The cable for 8KRT(S) and 10KRT(S) should be able to withstand over 63A current. It is recommended to

use 8AWG/10mm² or thicker wire for safety and efficiency.

NOTE 3: The selections for color of wires should be followed by the local electrical laws and regulations.

NOTE 4: External battery wires must use reinforced insulation or double insulated wire.

5) Remove the terminal block cover on the rear panel of UPS, Then connect the other wires according to the following

terminal block diagrams:

6) Connect the earth wire first when making wire connection. Disconnect the earth wire last when making wire

disconnection!

Terminal Block wiring diagram of UPS

Terminal Block wiring diagram of 5K S /6K S & 8K S /10K S ISO BANK

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Sprachen:

Andere INFOSEC UPS Handbücher

INFOSEC

INFOSEC E6 LCD-RT Bedienungsanleitung

INFOSEC

INFOSEC Z1 Zenergy Cube 400 Bedienungsanleitung

INFOSEC

INFOSEC E4 LCD Pro Series Bedienungsanleitung

INFOSEC

INFOSEC Z4 B-box 500 VA Bedienungsanleitung

INFOSEC

INFOSEC Z1 Zenergy Cube 400 VA Bedienungsanleitung

INFOSEC

INFOSEC Zenergy Station 2000 Bedienungsanleitung

INFOSEC

INFOSEC PFS 5 GE Bedienungsanleitung

INFOSEC

INFOSEC SMART LINE 1000 VA Bedienungsanleitung

INFOSEC

INFOSEC E6 LCD RT EVOLUTION (S) 1000 Bedienungsanleitung

INFOSEC

INFOSEC PFS Tel 1 GE Bedienungsanleitung

INFOSEC

INFOSEC E6 LCD 3000 RT Bedienungsanleitung

INFOSEC

INFOSEC XP OFFICE 1000 VA Bedienungsanleitung

INFOSEC

INFOSEC HERO PRO DUAL PLUG 700 Bedienungsanleitung

INFOSEC

INFOSEC X4 RM PLUS Series Bedienungsanleitung

INFOSEC

INFOSEC X2 LCD Touch FR/SCHUKO 500 Bedienungsanleitung

INFOSEC

INFOSEC E4 LCD 3000 Bedienungsanleitung

INFOSEC

INFOSEC E3 Pro RT Bedienungsanleitung

INFOSEC

INFOSEC E3 LCD-RT Bedienungsanleitung

INFOSEC

INFOSEC E4 Value Series Bedienungsanleitung

INFOSEC

INFOSEC Mod5T Bedienungsanleitung

INFOSEC

INFOSEC XP PRO 1600 VA Bedienungsanleitung

INFOSEC

INFOSEC E6 LCD 10K TM RM Bedienungsanleitung

INFOSEC

INFOSEC X4 SINUSRT Bedienungsanleitung

INFOSEC

INFOSEC Zen-X Series Bedienungsanleitung

Beliebte UPS Handbücher anderer Marken

Pylontech

Pylontech Victron & Pylontech US5000 Bedienungsanleitung

Tecnoware

Tecnoware EVO DSP PLUS MM 6.8 Bedienungsanleitung

Mecer

Mecer ME-1000-WTU Bedienungsanleitung

Mustek

Mustek PowerMust 530(B) Plus Installations- und Betriebshandbuch

Emerson

Emerson Liebert NXL series Bedienungsanleitung

MAKELSAN

MAKELSAN BOXER SERIES Bedienungsanleitung

Block

Block PC-0524-400-0 Bedienungsanleitung

CyberPower

CyberPower CP585LCD Bedienungsanleitung

Eaton

Eaton 3S Montageanleitung

CyberPower

CyberPower Office Tower Series UPS 1000 Bedienungsanleitung

CyberPower

CyberPower BM100 Bedienungsanleitung

Best Power

Best Power 610 Bedienungsanleitung

Best Power

Best Power Unity/I UT3K Bedienungsanleitung

Mustek

Mustek PowerMust 400 Offline Bedienungsanleitung

Xantrex

Xantrex Trace 512 UR-UPS Bedienungsanleitung

Forza

Forza SL-1501UL Bedienungsanleitung

LEGRAND

LEGRAND keor 310081 Bedienungsanleitung

ABB

ABB Conceptpower DPA 500 Bedienungsanleitung
