Ingersoll-Rand 335SG4A Bedienungsanleitung

47146626

Edition 2

July 2011

Save These Instructions

Product Information

Air Die Grinders

Models 335SG4A and 325SG4A

2 47146626_ed2

4

7

5

32

1

9

48h

6

24h

10

8h

PMAX

8

6

PMAX

(Dwg. 16573164)

13

2567910

IR # - NPT IR # - BS inch (mm) NPT IR # IR # IR # cm3

C38331-800 C383C1-810 3/8 (10) 1/4 MSCF32 10 67 2

47146626_ed2 3

Product Safety Information

Intended Use:

SG series die grinders are designed for close-quarter work in the metal fabricating

industry, shipyards, pipe fabrication, die and mold manufacturing and limited space

applications. They are particularly good where conduits, pipes, ducts etc. pass through

bulkheads or frames. These small grinders are very ecient at grinding weld bead and

leaving a ne nish.

For Additional information refer to Air Die Grinder Product Safety Information Manual

Form 47146659.

Manuals can be downloaded from www.ingersollrandproducts.com.

Product Specications

Model(s)

Free

Speed Collet Size Power hp

(kW)

Sound Level dB (A)

(ISO15744)

Vibration (m/s)

(ISO28927)

rpm † Pressure (Lp) ‡ Power (Lw) Level *K

325SG4A 25000 1/4” (6 mm) 1/3 77.8 88.8 5.2 3.3

335SG4A 35000 1/4” (6 mm) 1/3 80.8 91.8 4.3 2.4

† KpA = 3dB measurement uncertainty

‡ KwA = 3dB measurement uncertainty

* K = Vibration measurement uncertainty

Installation and Lubrication

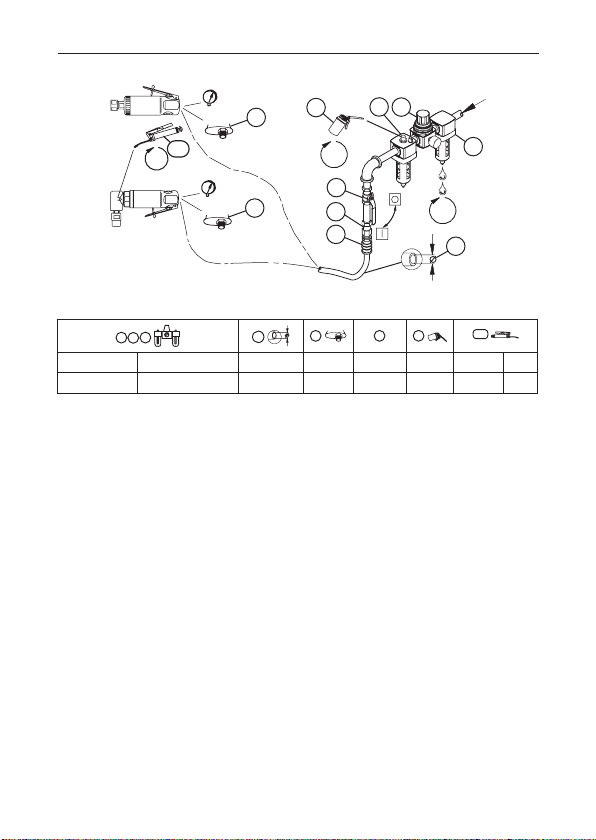

Size air supply line to ensure tool’s maximum operating pressure (PMAX) at tool inlet. Drain

condensate from valve(s) at low point(s) of piping, air lter and compressor tank daily. Install a

properly sized Safety Air Fuse upstream of hose and use an anti-whip device across any hose

coupling without internal shut-o, to prevent hose whipping if a hose fails or coupling

disconnects. See drawing 16573164 and table on page 2. Maintenance frequency is shown in

circular arrow and dened as h=hours, d=days, and m=months of actual use. Items identied as:

1. Air lter 6. Thread size

2. Regulator 7. Coupling

3. Lubricator 8. Safety Air Fuse

4. Emergency shut-o valve 9. Oil

5. Hose diameter 10. Grease

Parts and Maintenance

When the life of the tool has expired, it is recommended that the tool be disassembled,

degreased and parts be separated by material so that they can be recycled.

Tool repair and maintenance should only be carried out by an authorized Service Center.

Refer all communications to the nearest Ingersoll Rand Oce or Distributor.

www.ingersollrandproducts.com

© 2011 Ingersoll-Rand Company
