Before using your new product, please read these instructions to prevent any damage.

4.1 Cu. Ft. Bottom Mount

Compact Refrigerator

NS-CFBM41SS1/NS-CFBM41SS1-C

USER GUIDE

www.insigniaproducts.com

Contents

IMPORTANT SAFEGUARDS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Grounding requirement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Package contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Refrigerator parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Installing your refrigerator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Before using your refrigerator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Finding a suitable location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Providing correct ventilation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Connecting power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Reversing the door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

Leveling your refrigerator. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

Using your refrigerator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

Turning on your refrigerator for the first time. . . . . . . . . . . . . . . . . . . . . . . .13

Setting the thermostat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

Adjusting the shelf . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

Adjusting the door racks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

Removing the crisper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

Maintaining your refrigerator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

Cleaning your refrigerator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

Defrosting your refrigerator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

Shutting down your refrigerator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

Moving your refrigerator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

Tips on saving energy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

ONE-YEAR LIMITED WARRANTY - INSIGNIA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

4.1 Cu. Ft. Bottom Mount Compact Refrigerator

www.insigniaproducts.com

IMPORTANT SAFEGUARDS

WARNING

1Read these instructions.

2Keep these instructions.

3Heed all warnings.

4Follow all instructions.

5Do not use your refrigerator near water.

6Clean only with a damp cloth.

7Do not block any ventilation openings. Install in accordance with the

manufacturer’s instructions.

8Do not install near any heat sources, such as radiators, heat registers, stoves, or

other apparatus (including amplifiers) that produce heat.

9Do not defeat the safety purpose of the polarized or grounding-type plug. A

polarized plug has two blades with one wider than the other. A grounding

type plug has two blades and a third grounding prong. The wide blade or the

third prong are provided for your safety. If the provided plug does not fit into

your outlet, consult an electrician for replacement of the obsolete outlet.

10 Protect the power cord from being walked on or pinched, particularly at plugs,

convenience receptacles, and the point where it exits from your refrigerator.

11 Do not attempt to modify or extend the power cord of your refrigerator.

12 Unplug your refrigerator during lightning storms or when it will not be used

for long periods of time.

13 Make sure that the available AC power matches the voltage requirements of

your refrigerator.

14 Do not handle the plug with wet hands. This could result in an electric shock.

15 Unplug the power cord by holding the plug, never by pulling the cord.

16 Turn off your refrigerator before unplugging it.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

This symbol indicates that dangerous voltage constituting a risk of

electric shock is present within your refrigerator.

This symbol indicates that there are important operating and

maintenance instructions in the literature accompanying your

refrigerator.

4www.insigniaproducts.com

17 Refer all servicing to qualified service personnel. Servicing is required when

your refrigerator has been damaged in any way, such as the power-supply

cord or plug is damaged, liquid has been spilled or objects have fallen into

your refrigerator, your refrigerator has been exposed to rain or moisture, does

not operate normally, or has been dropped.

18 To reduce the risk of fire or electric shock, do not expose your refrigerator to

rain, moisture, dripping, or splashing, and no objects filled with liquids should

be placed on top of it.

19 Do not use extension cords or ungrounded (two prong) adapters. If the power

cord is too short, have a qualified electrician install an outlet near your

refrigerator. Use of an extension cord can negatively affect your refrigerator’s

performance.

20 Your refrigerator is not intended for use by persons (including children) with

reduced physical, sensory, or mental capabilities, or lack of experience and

knowledge, unless they have been given supervision or instruction

concerning use of your refrigerator by a person responsible for their safety.

21 Children should be supervised to ensure that they do not play with your

refrigerator.

22 If the power cord is damaged, it must be replaced by the manufacturer, its

service agent, or similarly qualified person, in order to avoid a hazard.

23 In order to avoid electric shock, lamp replacement shall be operated by the

manufacturer's designated service agency or qualified personnel, and before

operation, unplug the power cord and wear personal protection.

WARNING

Electric Shock Hazard

Failure to follow these instructions can result in electric shock, fire, or death.

1WARNING–Keep ventilation openings, in both your refrigerator enclosure and

the built-in structure, clear of obstruction.

2WARNING–Do not touch the interior of your refrigerator with wet hands. This

could result in frostbite.

3WARNING–Do not use mechanical devices or other means to accelerate the

defrosting process, other than those recommended by the manufacturer.

4WARNING–Do not use electrical appliances inside the food storage

compartment of the refrigerator, unless they are of the type recommended by

the manufacturer.

5WARNING–Do not damage the refrigerant circuit when handling, moving, or

using your refrigerator.

6WARNING–DANGER—Never allow children to play with, operate, or crawl

inside your refrigerator.

Risk of child entrapment. Before you throw away your old refrigerator:

• Take off the door.

• Leave the shelves in place so that children may not easily climb inside.

7Unplug your refrigerator before carrying out user maintenance on it.

8If a component part is damaged, it must be replaced by the manufacturer, its

service agent, or similar qualified persons in order to avoid a hazard.

4.1 Cu. Ft. Bottom Mount Compact Refrigerator

www.insigniaproducts.com

9Follow local regulations regarding disposal of your refrigerator due to

flammable refrigerant and gas. All refrigeration products contain refrigerants,

which under the guidelines of federal law must be removed before disposal. It

is the consumer's responsibility to comply with federal and local regulations

when disposing of this product.

10 Your refrigerator is intended to be used in household and similar

environments.

11 Do not store or use gasoline or any flammable liquids inside or in the vicinity

of your refrigerator.

Grounding requirement

Your refrigerator must be grounded. Your refrigerator is equipped with a cord

having a grounding wire with a grounding plug. The plug must be inserted into an

outlet that is correctly installed and grounded.

Incorrect use of the grounding plug can result in a risk of electric shock. Consult a

qualified electrician or service person if the grounding instructions are not

completely understood, or if doubt exists as to whether your refrigerator is

correctly grounded. See Connecting power on page 9.

Features

• 4.1 cu. ft. (.11 cu. m) storage capacity provides space for all your essentials

• Two shelves (one adjustable) help organize your items

• Separate lower freezer compartment stores frozen snacks, entrees, and more

• Two adjustable feet allow for better placement

Package contents

• 4.1 Cu. Ft. Bottom Mount Compact Refrigerator

• User Guide

6www.insigniaproducts.com

Dimensions

Refrigerator parts

Outside

44.9 in. (114 cm)

16.9 in. (43 cm)

18.5 in. (47 cm)

19.5 in. (49.5 cm)

Top hinge

Refrigerator door

Freezer door handle

Freezer door

Leveling feet

4.1 Cu. Ft. Bottom Mount Compact Refrigerator

www.insigniaproducts.com

Inside

Installing your refrigerator

Before using your refrigerator

• Remove the exterior and interior packaging.

• Wash the inside with a damp, warm cloth and a baking soda solution (two

tablespoons in a quart of water), then wipe dry with a dry cloth. Do this

periodically to keep your refrigerator looking new.

Finding a suitable location

• Place your refrigerator on a floor that is strong enough to support it when fully

loaded.

• Do not install your refrigerator on carpeting or a rug.

• Your refrigerator is designed to be free standing and should not be recessed or

built-in.

• Do not install your refrigerator in a garage or any other outside installation.

• Level your refrigerator using the leveling feet. If you do not level your

refrigerator, the door may not close or seal correctly, causing cooling, frost,

and moisture problems. Turn the leveling feet clockwise to raise or

counterclockwise to lower a side.

• If you locate your refrigerator next to a fixed wall, allow sufficient space on the

hinge side for the door to swing open.

• Position your refrigerator away from direct sunlight and sources of heat, such

as a stove, heater, or radiator. Direct sunlight may affect the acrylic coating and

heat sources may increase electrical consumption. Extremely cold

temperatures may also prevent your refrigerator from performing correctly.

CAUTION: Your refrigerator is not designed for a recessed installation.

Shelf

Thermostat dial/interior light

Leveling feet

Bottle racks

Crisper cover

Vegetable crisper

Freezer shelf

Upper door rack

Freezer drawer

Lower door rack

8www.insigniaproducts.com

• Avoid locating your refrigerator in moist areas.

• Your refrigerator is designed to operate in a temperature range of 50° F (10° C)

and 109° F (43° C). If you operate your refrigerator outside this temperature

range, your refrigerator may not work correctly.

Providing correct ventilation

Allow at least 7.9 in. (20.1 cm) between the left and right sides of your refrigerator

and surrounding walls and at least 2 in. (5.1 cm) between the back and top of your

refrigerator and the surrounding wall and ceiling.

2 in. (5.1 cm)

7.9 in.

(20.1 cm)

7.9 in.

(20.1 cm)

4.1 Cu. Ft. Bottom Mount Compact Refrigerator

www.insigniaproducts.com

Connecting power

Check your local power source. Your refrigerator requires a 115 V, 60 Hz power

supply.

Use a receptacle that accepts the grounding prong. The power cord is equipped

with a 3-prong (grounding) plug which mates with a standard 3-prong

(grounding) wall outlet to minimize the possibility of electric shock hazard from

your refrigerator.

Notes:

Make sure that:

• The power outlet accepts a 3-prong grounding plug. The third prong on the

power cord plug grounds your refrigerator to minimize the possibility of

electric shock. Do not modify the power plug.

• You do NOT plug anything else into the same power outlet as your

refrigerator. You may overload the circuit which can cause a fire.

• You do NOT use an extension cord. If your refrigerator is too far from the

power outlet, move your refrigerator or have a electrician install a plug closer

to your refrigerator.

• The power outlet cannot be turned off with a switch or pull string.

3-prong receptacle

Receptacle box cover3-prong plug

Grounding lead

Grounding adapter Receptacle box cover

Screw

Receptacle

3-prong plug and outlet Grounding adapter

10 www.insigniaproducts.com

Reversing the door

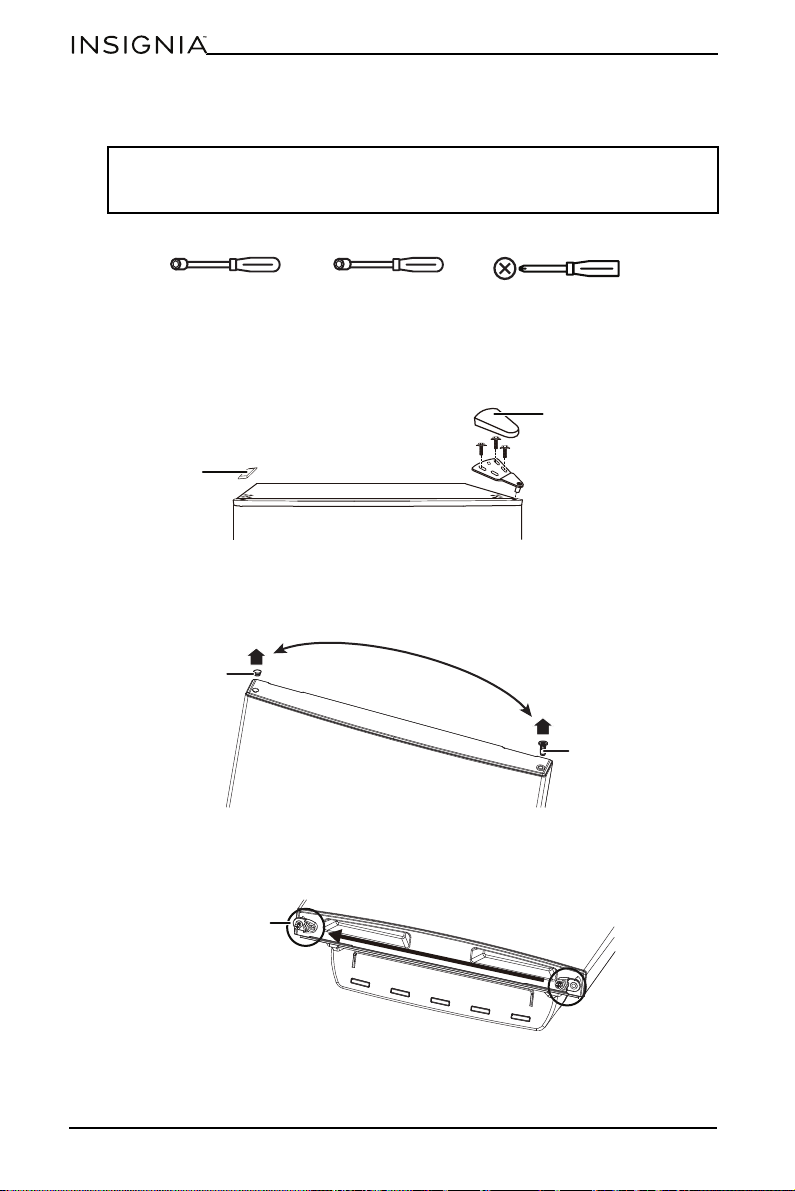

You need the following tools to reverse the door:

1Remove the hinge cover and the three screws that secure the hinge to the top

right of the refrigerator compartment. Remove the screw hole covers on the

top left side.

2Lift the refrigerator door up and remove it.

3Move the door bushing from the right side of the door to the left, then move

the plastic hole cover from the left side of the door to the right.

4Remove the screw that secures the door stop to the bottom right side of the

refrigerator door. Use the screw to secure the door stop to the bottom left side

of the door.

CAUTION: If you lay your refrigerator on its back or side for any length of time,

wait for six hours after you stand it up again before you plug it in. Otherwise,

you may damage internal components.

8mmnutdriver Phillips screwdriver

5mmnutdriver

Hinge cover and screws

Screw covers

Plastic hole cover

Door bushing

Door stop

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Insignia Kühlschrank Handbücher

Insignia

Insignia NS-CF43SS7 Bedienungsanleitung

Insignia

Insignia NS-EWF01-2 Bedienungsanleitung

Insignia

Insignia NS-RBM92WH9-C Bedienungsanleitung

Insignia

Insignia NS-CF43SS9 Bedienungsanleitung

Insignia

Insignia NS-RTM18BS8 Bedienungsanleitung

Insignia

Insignia NS-RTM10BK0 Bedienungsanleitung

Insignia

Insignia NS-BC1ZSS9 Bedienungsanleitung

Insignia

Insignia NS-CFR32RD1 Bedienungsanleitung

Insignia

Insignia NS-RTM18WH8Q Bedienungsanleitung

Insignia

Insignia NS-CF44GD2 Bedienungsanleitung

Insignia

Insignia NS-RFD21CXSS0 Bedienungsanleitung

Insignia

Insignia NS-RTM10BK2 Bedienungsanleitung

Insignia

Insignia NS-CF26BK6 Bedienungsanleitung

Insignia

Insignia NS-CF31SS6 Bedienungsanleitung

Insignia

Insignia NS-RTM12SS7L Bedienungsanleitung

Insignia

Insignia NS-UZ17WH0 Bedienungsanleitung

Insignia

Insignia NS-RBM10BK8 Bedienungsanleitung

Insignia

Insignia NS-RTM10BK8 Bedienungsanleitung

Insignia

Insignia NS-RBM18SS0-C Bedienungsanleitung

Insignia

Insignia NS-RTM18BK8L Bedienungsanleitung

Insignia

Insignia NS-UZ17WH0 Bedienungsanleitung

Insignia

Insignia NS-RFD21SS7 Bedienungsanleitung

Insignia

Insignia NS-CF12V33BK1 Bedienungsanleitung

Insignia

Insignia NS-RTM21SS7 Bedienungsanleitung

Beliebte Kühlschrank Handbücher anderer Marken

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Bedienungsanleitung

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Bedienungsanleitung

Sharp

Sharp SJ-BA31IEXW2-EU Bedienungsanleitung

CORBERO

CORBERO CC2300MCW Bedienungsanleitung

KitchenAid

KitchenAid 2205264 Bedienungsanleitung

Stengel

Stengel KU 1101 A++ Bedienungsanleitung

NEFF

NEFF KI181 Series Bedienungsanleitung

Hoshizaki

Hoshizaki Reach-In Bedienungsanleitung

Amana

Amana ASD2524VES00 Bedienungsanleitung

BOMANN

BOMANN KGC 213 Bedienungsanleitung

Danby

Danby DAR044A1SLDD Montageanleitung

Samsung

Samsung RF323TE Bedienungsanleitung

Beko

Beko CSA31022 Bedienungsanleitung

IKEA

IKEA FROSTIG C 185 E Bedienungsanleitung

Electrolux

Electrolux ER 6821 D Bedienungsanleitung

True

True TS-28 Bedienungsanleitung

Frigidaire

Frigidaire FSC23R5DW9 Bedienungsanleitung

Beko

Beko LSP4579W Bedienungsanleitung
