Before using your new product, please read these instructions to prevent any damage.

USER GUIDE

21 Cu. Ft. Top Mount

Refrigerator

NS-RTM21SS7/NS-RTM21BS8

www.insigniaproducts.com

Contents

IMPORTANT SAFETY INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Grounding requirement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Package contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Main components. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Setting up your refrigerator. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Before using your refrigerator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Finding a suitable location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Leveling your refrigerator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Providing proper ventilation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Providing a proper power supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Using your refrigerator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Setting the refrigerator temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Reversing the door position . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

Preparing to reverse the door position . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

Determining which method to use to reverse the door position . . . . .10

Reversing the door position - Method A. . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

Reversing the door position - Method B. . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

Installing the optional ice maker (sold separately) . . . . . . . . . . . . . . . . . . . . . . .27

Maintaining your refrigerator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27

Defrosting the freezer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27

Shutting down your refrigerator - long vacations (several months) . . . . . . .27

Moving your refrigerator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28

Tips on saving energy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29

Error codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31

ONE-YEAR LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32

21 Cu. Ft. Top Mount Refrigerator

www.insigniaproducts.com

IMPORTANT SAFETY

INSTRUCTIONS

WARNING

1Read these instructions.

2Keep these instructions.

3Heed all warnings.

4Follow all instructions.

5Do not use this appliance near water.

6Clean only with a damp cloth.

7Do not block any ventilation openings. Install in accordance with the

manufacturer's instructions.

8Do not install near any heat sources such as radiators, heat registers, stoves, or

other apparatus (including amplifiers) that produce heat.

9Do not defeat the safety purpose of the polarized or grounding-type plug. A

polarized plug has two blades with one wider than the other. A grounding

type plug has two blades and a third grounding prong. The wide blade or the

third prong are provided for your safety. If the provided plug does not fit into

your outlet, consult an electrician for replacement of the obsolete outlet.

10 Protect the power cord from being walked on or pinched particularly at plugs,

convenience receptacles, and the point where they exit from the appliance.

11 Do not attempt to modify or extend the power cord of this appliance.

12 Unplug this appliance during lightning storms or when it will not be used for

long periods of time.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

This symbol indicates that

dangerous voltage constituting a

risk of electric shock is present

within your refrigerator.

This symbol indicates that there

are important operating and

maintenance instructions in the

literature accompanying your

refrigerator.

NS-RTM21SS7/NS-RTM21BS8

www.insigniaproducts.com

13 Make sure that the available AC power matches the voltage requirements of

this appliance.

14 Do not handle the plug with wet hands. This could result in an electric shock.

15 Unplug the power cord by holding the plug, never by pulling the cord.

16 Do not turn the appliance on or off by plugging or unplugging the power

cord.

17 Turn off the appliance before unplugging it.

18 Refer all servicing to qualified service personnel. Servicing is required when

the appliance has been damaged in any way, such as the power-supply cord

or plug is damaged, liquid has been spilled or objects have fallen into the

appliance, the appliance has been exposed to rain or moisture, does not

operate normally, or has been dropped.

19 To reduce the risk of fire or electric shock, do not expose this appliance to rain,

moisture, dripping, or splashing, and no objects filled with liquids should be

placed on top of it.

WARNING

Electric Shock Hazard

Failure to follow these instructions can result in electric

shock, fire, or death.

1WARNING–Keep ventilation openings in the appliance

enclosure or in the built-in structure clear of obstruction.

2WARNING–Do not touch the interior of the chiller

compartment with wet hands. This could result in frost bite.

3WARNING–Do not use mechanical devices or other means to accelerate the

defrosting process, other than those recommended by the manufacturer.

4WARNING–Do not damage the refrigerant circuit.

5WARNING–Do not use electrical appliances inside the food storage

compartment of the appliance, unless they are of the type recommended by

the manufacturer.

6WARNING–Never allow children to play with, operate, or crawl inside the

refrigerator.

Risk of child entrapment. Before you throw away your old refrigerator or

freezer:

1) Take off the doors

2) Leave the shelves in place so that children may not easily climb inside

7Unplug the refrigerator before carrying out user maintenance on it.

8This appliance is not intended for use by persons (including children) with

reduced physical, sensory, or mental capabilities, or lack of experience and

knowledge, unless they have been given supervision or instruction

concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the

appliance.

9If a component part is damaged, it must be replaced by the manufacturer, its

service agent, or similar qualified persons in order to avoid a hazard.

21 Cu. Ft. Top Mount Refrigerator

www.insigniaproducts.com

10 Dispose of the refrigerator according to local regulations as the refrigerator

contains flammable gas and refrigerant.

11 Follow local regulations regarding disposal of the refrigerator due to

flammable refrigerant and gas. All refrigeration products contain refrigerants,

which under the guidelines of federal law must be removed before disposal. It

is the consumer's responsibility to comply with federal and local regulations

when disposing of this product.

12 This refrigerator is intended to be used in household and similar

environments.

13 Do not store or use gasoline or any flammable liquids inside or in the vicinity

of this refrigerator.

14 Do not use extension cords or ungrounded (two prong) adapters with this

refrigerator. If the power cord is too short, have a qualified electrician install an

outlet near the refrigerator.

15 If the supply cord is damaged, it must be replaced by the manufacturer, its

service agent, or a similarly qualified person in order to avoid a hazard.

Grounding requirement

This appliance must be grounded. This appliance is equipped with a cord having a

grounding wire with a grounding plug. The plug must be inserted into an outlet

that is properly installed and grounded.

Improper use of the grounding plug can result in a risk of electric shock. Consult a

qualified electrician or service person if the grounding instructions are not

completely understood, or if doubt exists as to whether the appliance is properly

grounded.

NS-RTM21SS7/NS-RTM21BS8

www.insigniaproducts.com

Features

• 21 cubic foot capacity

• Electronic control

• Glass spill-safe shelves (2)

• Humidity-controlled crisper drawers

•LEDlighting

• Frost free

Package contents

• 21 Cu. Ft. top mount refrigerator

•Hingekit

• User Guide

Main components

Glass shelves

Crispers

Leveling feet

Freezer door

racks

Butter keeper

Refrigerator

control panel

with LED

Door racks

Wire shelf

Glass crisper cover

21 Cu. Ft. Top Mount Refrigerator

www.insigniaproducts.com

Setting up your refrigerator

Before using your refrigerator

1Remove the interior packing.

2Let the refrigerator stand upright for approximately four hours before

connecting it to power. This reduces the possibility of a malfunction in the

cooling system from improper handling during transportation.

3Clean the interior surface with lukewarm water using a soft cloth.

4Wait for approximately 24 hours after the thermostat has been set before

placing any food in your refrigerator.

Finding a suitable location

• This refrigerator is designed to be free standing only, and should not be

recessed or built-in.

• Place your refrigerator on a floor that is strong enough to support the

refrigerator when it is fully loaded.

• Locate the refrigerator in your home or garage away from direct sunlight

because it may affect the acrylic coating and heat sources may increase

electrical consumption. To ensure optimal performance, install in areas with

an ambient temperature between 41°F (5°C) and 109°F (42.8°C).

• Avoid locating the refrigerator in moist areas.

• The refrigerator door must be able to swing fully open.

Leveling your refrigerator

• It is very important for the refrigerator to be level. If the refrigerator is not

leveled during installation, the doors may not close or seal properly, causing

cooling, frost, or moisture problems.

• To level your refrigerator, rotate the leveling feet clockwise (to raise) the

refrigerator or counter-clockwise (to lower).

Providing proper ventilation

Place the refrigerator at least five inches from the wall to ensure proper airflow to

the compressor. Do not place the refrigerator near any heat sources, such as a

heater or stove, as this may put a strain on the compressor.

Providing a proper power supply

Check your local power source. This refrigerator requires a 110V-120V, 60Hz power

supply.

Note: Having someone push against the top of the refrigerator helps to take

some weight off the leveling foot, making it easier to adjust.

NS-RTM21SS7/NS-RTM21BS8

www.insigniaproducts.com

Use a receptacle that accepts the grounding prong. The power cord is equipped

with a 3-prong (grounding) plug which mates with a standard 3-prong

(grounding) wall outlet to minimize the possibility of electric shock hazard from

this refrigerator.

Notes:

• The refrigerator should always be plugged into its own individual electrical

outlet which has a voltage rating that matches the rating plate.

• Never unplug your refrigerator by pulling on the power cord. Always grip the

plug firmly and pull straight out from the outlet.

3-prong receptacle

Receptacle box cover3-prong plug

Grounding lead

Grounding adapter Receptacle box cover

Screw

Receptacle

Using a 3-prong plug and

outlet

Using a grounding

adapter

21 Cu. Ft. Top Mount Refrigerator

www.insigniaproducts.com

Using your refrigerator

Setting the refrigerator temperature

• The first time you turn the refrigerator on, the control panel LEDs turn on for

three seconds, then displays the current setting (default = 3). Your refrigerator

runs continuously for several hours until it reaches the preset temperature.

After your refrigerator is fully cooled, you can adjust the temperature up or

down to your personal preference.

• To temporarily suspend cooling in the refrigerator and freezer, press and hold

the SET button for three seconds. The STANDBY LED turns on and cooling is

turned off. Press the SET button again to cancel standby mode and resume

cooling.

# ITEM DESCRIPTION

1SETbutton Press to change the refrigerator setting from 1 (cold) to 5

(coldest).

2LED indicators Light to show the current refrigerator setting.

3STANDBY LED Lights to indicate when the refrigerator is in standby mode

(refrigerator and freezer are turned off ).

Notes:

• If the refrigerator is unplugged or loses power, you must wait three to five

minutes before restarting it. If you attempt to restart before this time delay,

the refrigerator will not start.

• Large amounts of food will lower the cooling efficiency of the refrigerator.

• If you choose to change the thermostat setting, adjust it by one increment at

a time. Allow 24 hours for the temperature to stabilize between adjustments.

NS-RTM21SS7/NS-RTM21BS8

www.insigniaproducts.com

Reversing the door position

Based on the location where you plan to use your refrigerator, you may find it

more convenient to reverse the position of the door, to have it open from right to

left instead of left to right.

Determining which method to use to reverse the door position

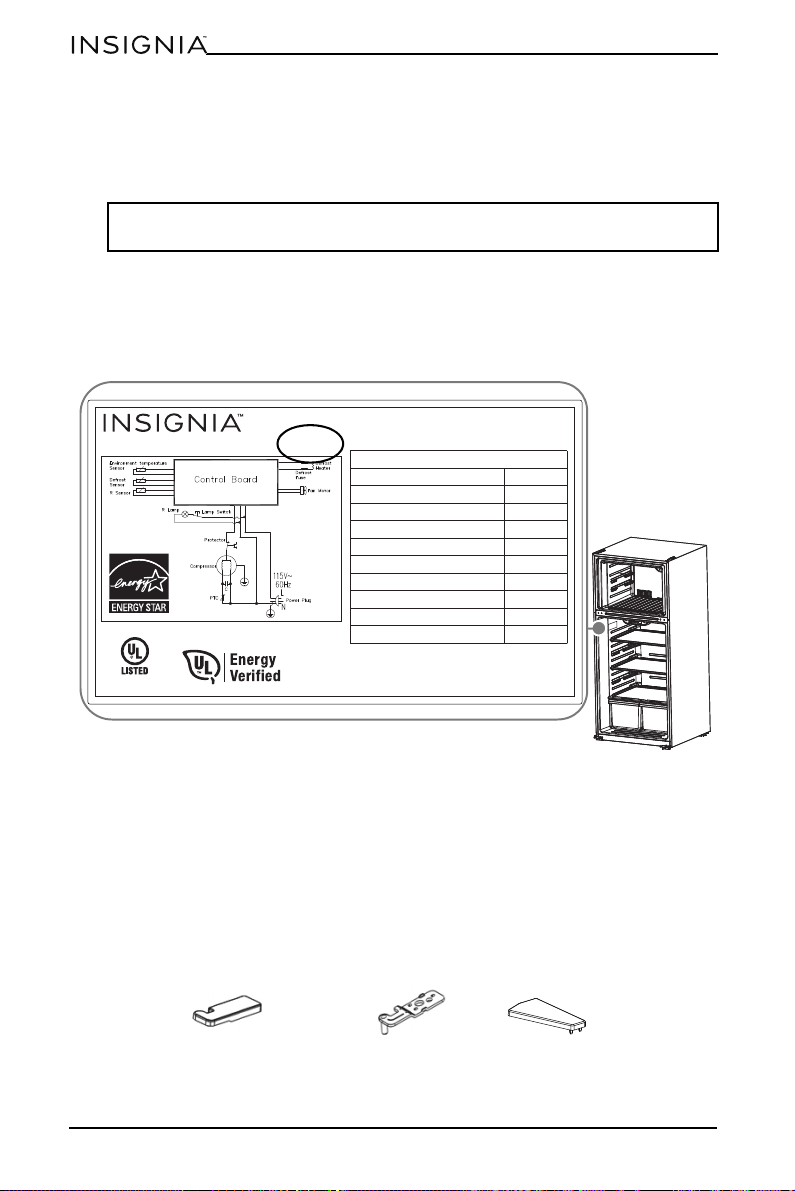

Please check the version number of your refrigerator on the rating label located

on the left side of the refrigerator compartment. For Rev A or B, please refer to

Method A for door reversing. For Rev C, please refer to Method B for door

reversing.

Preparing to reverse the door position

You will need: A standard screwdriver, a Phillips screwdriver, and the included

Allen wrench.

• Make sure that your refrigerator is unplugged and empty.

• Have someone available to assist you in the process.

• Keep all of the parts you remove to reuse them later.

Reversing the door position - Method A

Parts included with the hinge kit:

CAUTION: To avoid injury to yourself or your property, we recommend that

someone assist you during the door reversal process.

SPECIFICATIONS

DESIGN PRESSURE

HIGH SIDE / LOW SIDE

REFRIGERANT / AMOUNT

RATED VOLTAGE

RATED FREQUENCY

RATED CURRENT

DEFROST POWER

NET WEIGHT

FOAMING AGENT

W x D x H

260W

Cyclopentane

198.4Ibs(90kg)

32.8x32.3x66.2 in

(83.4x82x168.1 cm)

250psig / 110psig

R600a, 2.47Oz(70g)

AC115V

60Hz

MODEL: NS-RTM21SS7 Rev: C

SERIAL NO.: 17D07C00001

Household Refrigerator

Made in China Insignia Service 1-877-467-4289 (U.S. and Canada)6M43 NS

HOUSEHOLD REFRIGERATOR

Left top hinge cover Top left hinge Cover

Andere Handbücher für NS-RTM21SS7

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Insignia Kühlschrank Handbücher

Insignia

Insignia NS-RTM10BK8 Bedienungsanleitung

Insignia

Insignia NS-RFD21CXSS0 Bedienungsanleitung

Insignia

Insignia NS-CF43SS7 Bedienungsanleitung

Insignia

Insignia NS-RBM18SS0-C Bedienungsanleitung

Insignia

Insignia NS-CF12V17BK1 Bedienungsanleitung

Insignia

Insignia NS-RTM10WH7 Bedienungsanleitung

Insignia

Insignia NS-RTM20SS3 Bedienungsanleitung

Insignia

Insignia NS-CF33BK3 Bedienungsanleitung

Insignia

Insignia NS-CFR45M3 Bedienungsanleitung

Insignia

Insignia NS-CF33SS8 Bedienungsanleitung

Insignia

Insignia NS-RTM18BS8 Bedienungsanleitung

Insignia

Insignia NS-CFBM41SS1 Bedienungsanleitung

Insignia

Insignia NS-UZ17WH0 Bedienungsanleitung

Insignia

Insignia NS-CF26BK6 Bedienungsanleitung

Insignia

Insignia NS-RSS26SS0 Bedienungsanleitung

Insignia

Insignia NS-RTM10BK2 Bedienungsanleitung

Insignia

Insignia NS-RBM92WH9-C Bedienungsanleitung

Insignia

Insignia NS-CF17BK9 Bedienungsanleitung

Insignia

Insignia NS-RBM10WH7 Bedienungsanleitung

Insignia

Insignia NS-CF30SS9-C Bedienungsanleitung

Insignia

Insignia NS-CFR23BB1 Bedienungsanleitung

Insignia

Insignia NS-RBM92BK9 Bedienungsanleitung

Insignia

Insignia NS-CF17BK9-C Bedienungsanleitung

Insignia

Insignia NS-RFD21SS7 Bedienungsanleitung

Beliebte Kühlschrank Handbücher anderer Marken

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Bedienungsanleitung

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Bedienungsanleitung

Sharp

Sharp SJ-BA31IEXW2-EU Bedienungsanleitung

CORBERO

CORBERO CC2300MCW Bedienungsanleitung

KitchenAid

KitchenAid 2205264 Bedienungsanleitung

Stengel

Stengel KU 1101 A++ Bedienungsanleitung

NEFF

NEFF KI181 Series Bedienungsanleitung

Hoshizaki

Hoshizaki Reach-In Bedienungsanleitung

Amana

Amana ASD2524VES00 Bedienungsanleitung

BOMANN

BOMANN KGC 213 Bedienungsanleitung

Danby

Danby DAR044A1SLDD Montageanleitung

Samsung

Samsung RF323TE Bedienungsanleitung

Beko

Beko CSA31022 Bedienungsanleitung

IKEA

IKEA FROSTIG C 185 E Bedienungsanleitung

Electrolux

Electrolux ER 6821 D Bedienungsanleitung

True

True TS-28 Bedienungsanleitung

Frigidaire

Frigidaire FSC23R5DW9 Bedienungsanleitung

Beko

Beko LSP4579W Bedienungsanleitung
