USER MANUAL –EN

IN 20215 Recumbent inSPORTline Moriston RMB

2

CONTENTS
SAFETY INSTRUCTIONS....................................................................................................................... 3
IMPORTANT NOTES.............................................................................................................................. 4
PRODUCT DECSRIPTION..................................................................................................................... 4
TECHNICAL SPECIFICATIONS............................................................................................................. 5
ASSEMBLY ............................................................................................................................................. 5
CONSOLE............................................................................................................................................. 12
DIAGRAM.............................................................................................................................................. 15
PARTS LIST.......................................................................................................................................... 16
ADVANTAGES OF RECUMBTION....................................................................................................... 17
MAINTENANCE .................................................................................................................................... 17
STORAGE............................................................................................................................................. 18
IMPORTANT NOTICE........................................................................................................................... 18
ENVIRONMENT PROTECTION ........................................................................................................... 18
TERMS AND CONDITIONS OF WARRANTY, WARRANTY CLAIMS................................................. 18



SAFETY INSTRUCTIONS

•Read the manual carefully and keep it for future references.

•To ensure the best safety of the exerciser, regularly check it on damages and worn parts.

•If you pass on this exerciser to another person or if you allow another person to use it, make

sure that that person is familiar with the content and instructions in these instructions.

•Only one person should use the exerciser at a time.

•Before the first use and regularly make sure that all screws, bolts and other joints are properly

tightened and firmly seated.

•Before you start your work-out, remove all sharp-edged objects around the exerciser.

•Only use the exercise for your work-out if it works flawlessly.

•Any broken, worn or defective part must immediately be replaced and/or the exerciser must no

longer be used until it has been properly maintained and repaired.

•Parents and other supervisory persons should be aware of their responsibility, due to

situations which may arise for which the exerciser has not been designed and which may

occur due to children’s natural play instinct and interest in experimenting.

•If you do allow children to use this exerciser, be sure to take into consideration and assess

their mental and physical condition and development, and above all their temperament.

Children should use the exerciser only under adult supervision and be instructed on the

correct and proper use of the exerciser. The exerciser is not a toy.

•Make sure there is sufficient free space around the exerciser when you set it up.

•To avoid possible accidents, do not allow children to approach the exerciser without

supervision, since they may use it in a way for which it is not intended due to their natural play

instinct and interest in experimenting.

•Please note that an improper and excessive work-out may be harmful to your health.

•Please note that levers and other adjustment mechanisms are not projecting into the area of

movement during the work-out.

•When setting up the exerciser, please make sure that the exerciser is standing in a stable way

and that any possible unevenness of the floor is evened out.

•No adjustable part may protrude and limit user movement.

•Always wear appropriate clothing and shoes which are suitable for your work-out on the

exerciser. The clothes must be designed in a way so that they will not get caught in any part of

the exerciser during the work-out due to their form (for example, length). Be sure to wear

appropriate shoes which are suitable for the work-out, firmly support the feet and which are

provided with a non-slip sole.

•Be sure to consult a physician before you start any exercise program. He may give you proper

hints and advice with respect to the individual intensity of stress for you as well as to your

work-out and sensible eating habits.

•Class –SC according to 957 for professional and commercial use

•Max. weight limit: 150 kg

WARNING! A system for monitoring heart rate may not be accurate. Overloading during

training may cause serious injury or death. If you feel any discomfort, immediately stop the

exercise!

IMPORTANT NOTES

•Assemble the exerciser as per assembly instructions and be sure to only use the structural

parts provided with the exerciser and designed for it. Prior to the assembly, make sure the

contents of the delivery is complete by referring to the parts list of the assembly and operating

instructions.

•The general rule is that exercisers and training devices are no toys. Therefore, they must only

be used by properly informed or instructed persons.

•Stop your work-out immediately in case of dizziness, nausea, chest pain or any other physical

symptoms. In case of doubt, consult your physician immediately.

•Children, disabled and handicapped persons should use the exercise only under supervision

and in presence of another person who may give support and useful instructions.

•Be sure that your body parts and those of other persons are never close to any moving parts

of the exerciser during its use.

•When adjusting the adjustable parts, make sure they are adjusted properly and note the

marked, maximum adjusting position, for example of the saddle support, respectively.

•Do not work out immediately after meals!

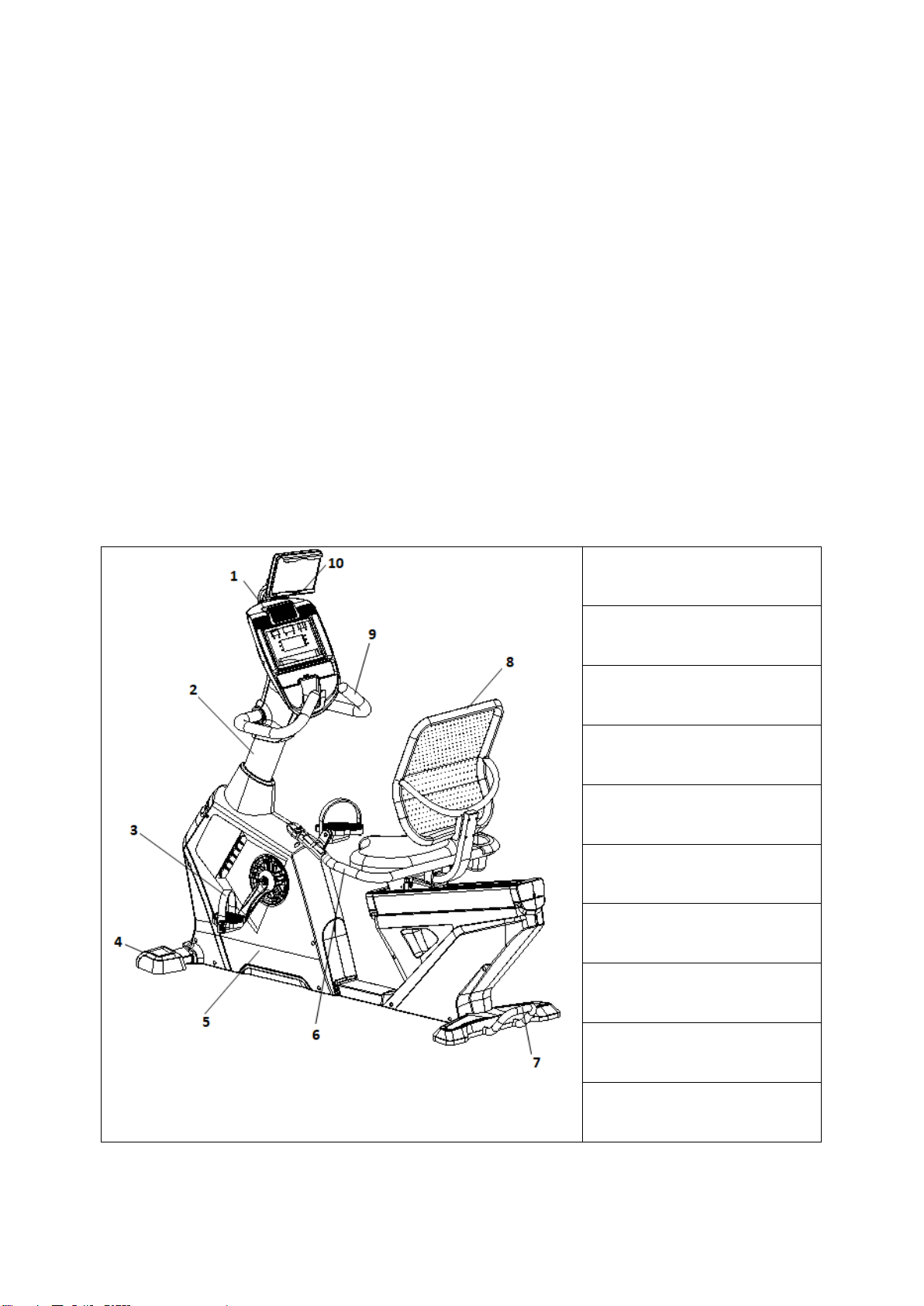

PRODUCT DECSRIPTION

1. Console

2. Middle post

3. Pedals

4. Front stabilizer

5. Main frame

6. Handles with pulse

sensor

7. Rear stabilizer

8. Backrest

9. Handlebars

10. Tablet holder

TECHNICAL SPECIFICATIONS

Type

OMA-R11

Unfolded dimension

1615 x 710 x 1390

Maximal load capacity

150 kg

Speed ratio

308:30

Load Wheel

Φ245/15 kg

Resistance

0-20

ASSEMBLY

PREPARATION

No.

Name

Specification

Qty

Allen screw

M10×20

Allen screw

M12x70 (12.9 degree)

Allen screw

M8×15

Allen screw

M8×35

Allen screw

M6×10

Allen screw

ST4×16

Flat washer

Φ10

Spring washer

Φ10

Wrench

14×17×75

Allen key

5×40×110

Allen screw

M8×20

Allen screw

M10×110×20

Allen screw

M6×15

Allen screw

M6×35

Screw

M5×15

Flat washer

Φ8

Spring washer

Φ8

Allen key

6×66×140

Wrench

t4.0×110x32

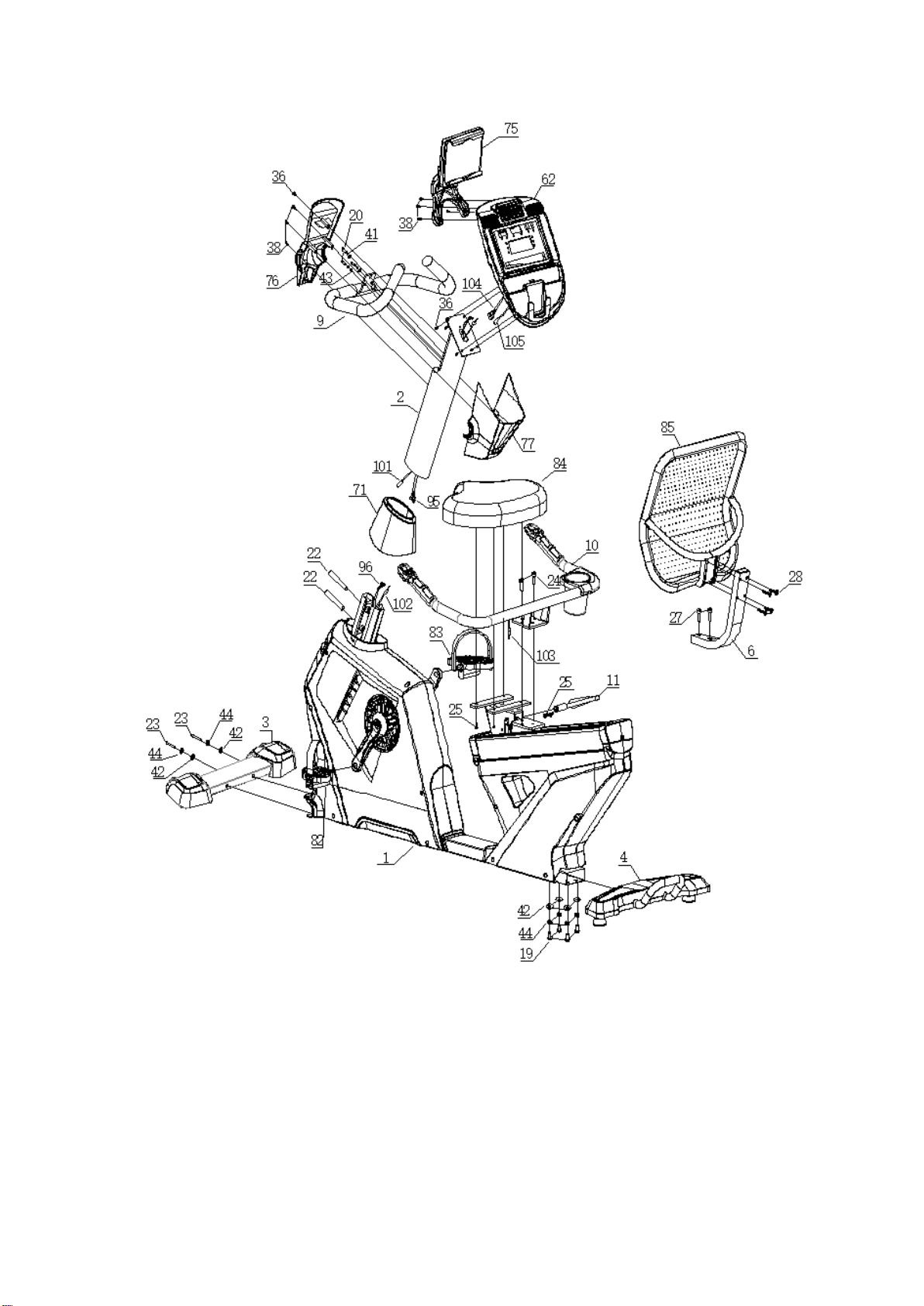

Prepare all parts and tools for clean and free space.

Follow each step of the procedure carefully.

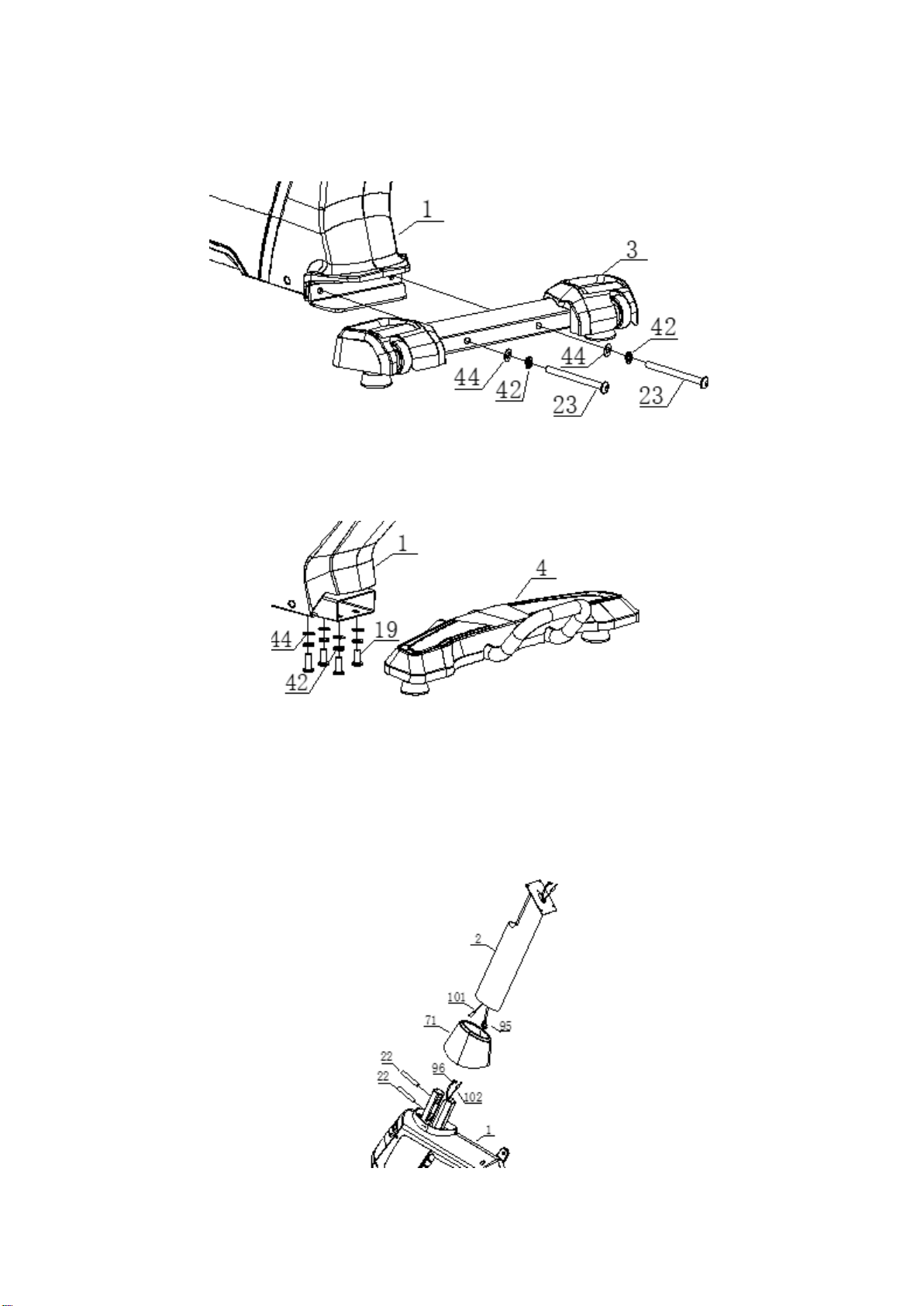

STEP 1

Attach the front stabilizer (3) to the main frame (1) using a flat washer (44), spring washer (42) and

screw (23).

STEP 2

Attach the rear stabilizer (4) to the main frame (1) using a flat washer (44), spring washer (42), and

screw (19).

STEP 3

Tighten the screw (22) to the main frame (1).

Connect the communication cables (96, 101) with the pulse cables from the handlebars (95, 102) from

the middle post (2) and the main frame (1).

Attach the cover (71) to the middle post (2) and then fasten the post to the main frame (1) with the

screw (22).

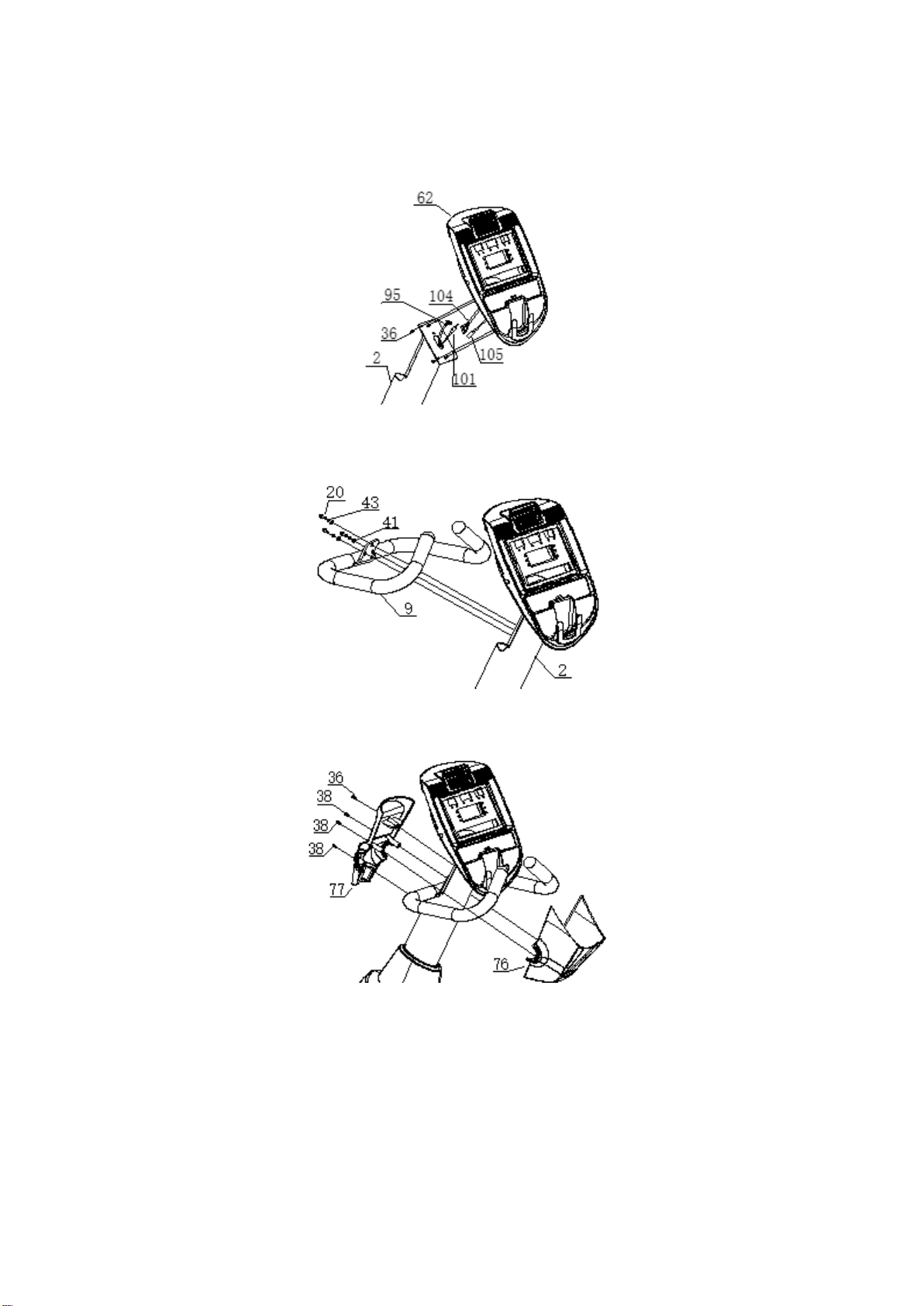

STEP 4

Connect the communication cables (95, 104) to the handle pulse cables (101, 105).

Attach the console (62) to the middle post (2) with the screws (36).

STEP 5

Attach the handlebars (9) to the middle post (2) using a flat washer (41), spring washer (43) and screw

(20).

STEP 6

Attach the handle grips (77, 76) to the middle pillar (2) with the screw (38 and 36).

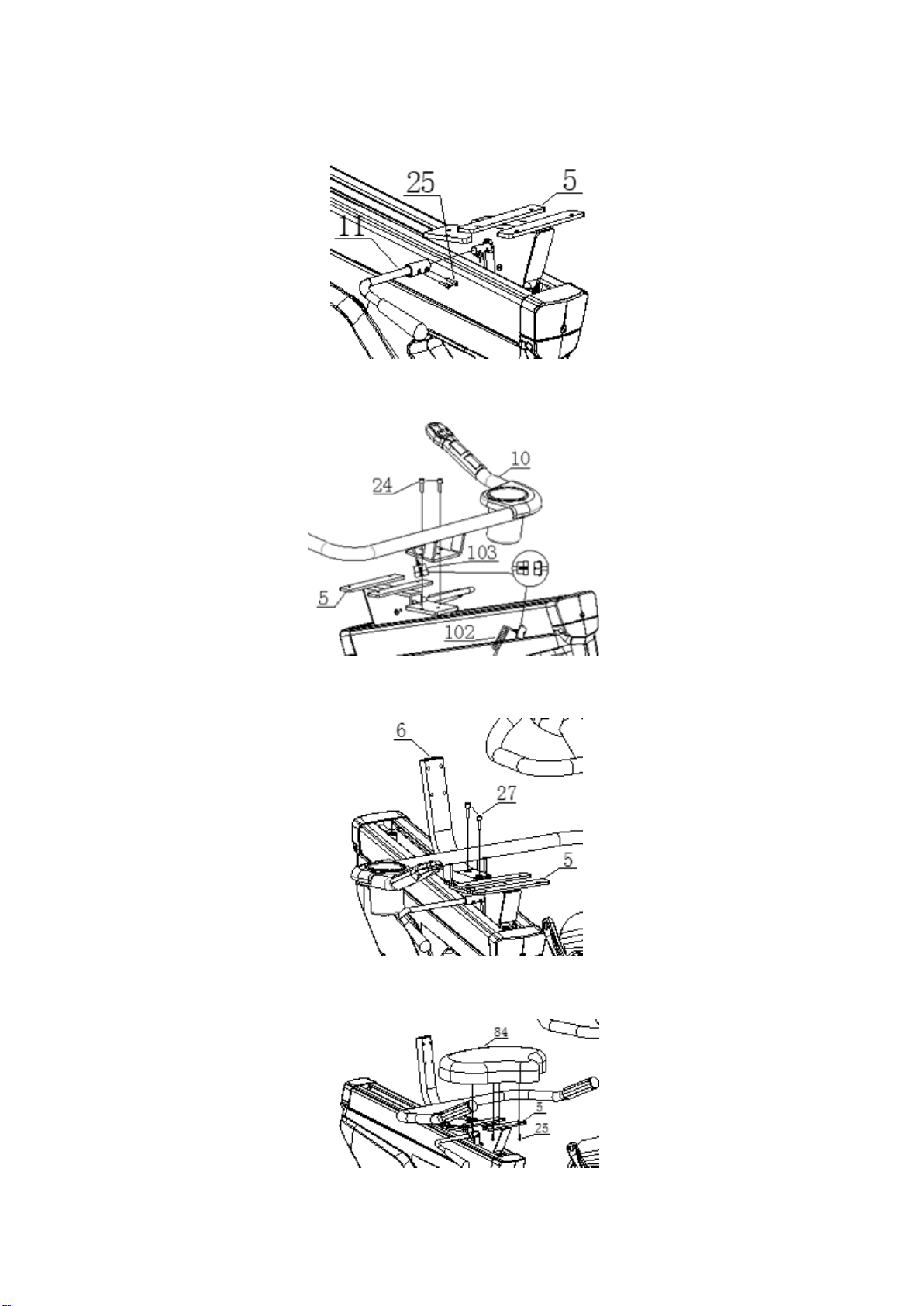

STEP 7

Attach the brake assembly (11) to the seat bracket (5) with the screws (25).

STEP 8

Attach the handlebars (10) to the handle holder (5) with the screws (24).

STEP 9

Attach the backrest support (6) to the seat bracket (5) using the screws (27).

STEP 10

Attach the seat (84) to the seat support (5) with the screws (25).

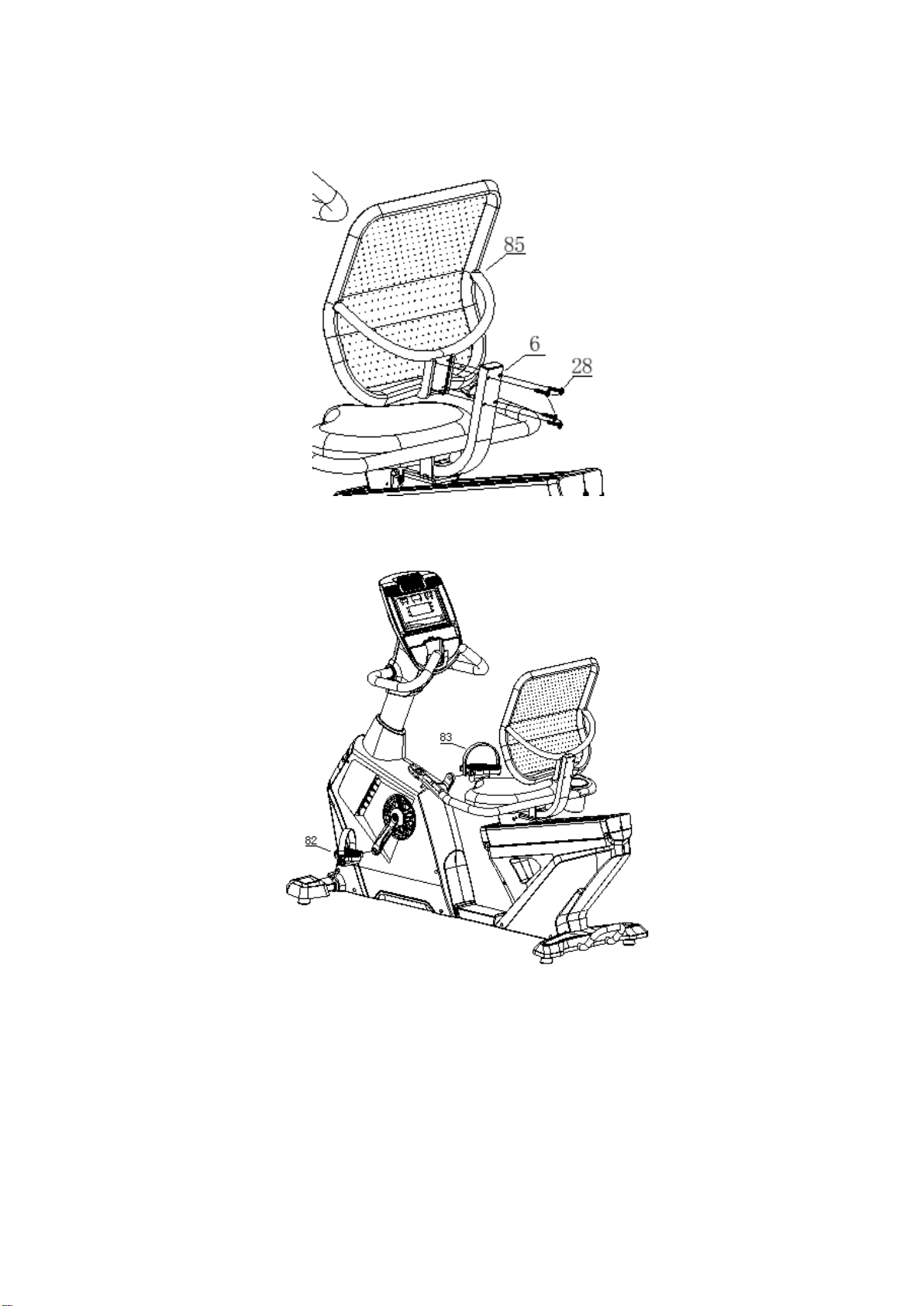

STEP 11

Attach the backrest (85) to the backrest support (6) with screws (28).

STEP 12

Attach the L (82) and R (83) pedal to the main frame.
