Intel® Xeon® Processor

Specification Update

January 2007

Document Number: 249678-057

Notice: The Intel®Xeon® processor may contain design defects or errors known as errata which

may cause the product to deviate from published specifications. Current characterized errata are

documented in this specification update.

2Intel® Xeon® Processor Specification Update

INFORMATION IN THIS DOCUMENT IS PROVIDED IN CONNECTION WITH INTEL®PRODUCTS. EXCEPT AS PROVIDED IN INTEL'S TERMS

AND CONDITIONS OF SALE FOR SUCH PRODUCTS, INTEL ASSUMES NO LIABILITY WHATSOEVER, AND INTEL DISCLAIMS ANY EXPRESS

OR IMPLIED WARRANTY RELATING TO SALE AND/OR USE OF INTEL PRODUCTS, INCLUDING LIABILITY OR WARRANTIES RELATING TO

FITNESS FOR A PARTICULAR PURPOSE, MERCHANTABILITY, OR INFRINGEMENT OF ANY PATENT, COPYRIGHT, OR OTHER

INTELLECTUAL PROPERTY RIGHT.

Intel products are not intended for use in medical, life saving, life sustaining, critical control or safety systems, or in nuclear facility applications.

Intel may make changes to specifications and product descriptions at any time, without notice.

Designers must not rely on the absence or characteristics of any features or instructions marked “reserved” or “undefined.” Intel reserves these for

future definition and shall have no responsibility whatsoever for conflicts or incompatibilities arising from future changes to them.

Contact your local Intel sales office or your distributor to obtain the latest specifications and before placing your product order.

Copies of documents which have an ordering number and are referenced in this document, or other Intel literature may be obtained by calling

1-800-548-4725 or by visiting Intel's website at http://developer.intel.com/design/litcentr.

Intel®, the Intel® logo, Pentium®, Pentium® III Xeon™, Celeron, Intel® NetBurst™ and Intel® Xeon™ are trademarks or registered trademarks of

Intel® Corporation or its subsidiaries in the United States and other countries.

*Other names and brands may be claimed as the property of others.

Intel® Xeon® Processor Specification Update 3

Contents

Revision History .................................................................................................................5

Preface...............................................................................................................................9

Identification Information..................................................................................................10

Mixed Steppings in DP Systems......................................................................................18

Summary Table of Changes.............................................................................................20

Errata................................................................................................................................27

Specification Changes......................................................................................................51

Specification Clarifications ...............................................................................................53

Documentation Changes..................................................................................................56

4Intel® Xeon® Processor Specification Update

Intel® Xeon® Processor Specification Update 5

Revision History

Version Description Date

-001 • Initial release. May 2001

-002 • Added errata P27-P28. June 2001

-003 • Updated erratum P25. June 2001

-004 • Added RCPPS, RCPSS, RSQRTPS and RSQRTSS instruction

specification clarification. July 2001

-005 • Added errata P29-P32.

• Added Unused outputs specification clarifications. August 2001

-006 • Added errata P33-34.

• Production mark update to include 2D matrix. September 2001

-007 • Added 2 GHz frequency, D0 stepping and FC-BGA package

information.

• Added DP Platform Population Matrix.

• Updated Summary of Errata table with applicable “Fixed” & “No Fix”

errata plans.

• Updated errata P32.

October 2001

-008 • Added Erratum P35.

• Updated Summary of Errata Table with latest errata status.

• Added Documentation Changes P1-P5.

November 2001

-009 • Added errata P36 and P37.

• Added Documentation Change P6.

• Updated Summary Tables with latest errata and documentation

changes.

December 2001

-010 • Added Documentation Changes P7-P11.

• Added errata P38-P44.

• Added new processor with Processor Signature=0F24h B0 Step.

• Added new S-spec processors to Processor ID and DP Matrix tables.

• Added new package markings (Figs 3, 4) for 512KB Cache processor.

January 2002

-011 • Corrected 3 mislabeled S-Spec Table parts. January 2002

-012 • Added erratum P45 to Processor ID Table. February 2002

-013 • Added errata P46 and P47.

• Added Documentation Changes P1-P6.

• Minor changes to “Fix” descriptions.

April 2002

-014 • Added PWRGOOD Specification Change.

• Added errata P48.

• Updated errata P11.

• Added Specification Changes P1-P3.

• Added Documentation Changes P1-P3.

• Added new S-specs SL687 and SL65T to Processor ID table.

• Updated datasheet name to 2.40 GHz.

May 2002

6Intel® Xeon® Processor Specification Update

Revision History

-015 • Added erratum P49.

• Updated errata P24, P40 status.

• Added Document Changes P1-P2.

June 2002

-016 • Added new erratum P50.

• Added new Documentation Changes P3-P12.

• Edited Summary of Errata Table erratum P40 to Plan Fix.

• Minor edits to processor markings.

July 2002

-017 • Edited DP Matrix table.

• Updated the Summary of Errata table w C1 Step info. August 2002

-018 • Added errata P51, P52. Edited erratum P14.

• Added Documentation Changes P3-P24.

• Added Specification Clarification P1.

• Added new C1 S-specs to Processor ID Info table.

September 2002

-019 • Edited erratum P35.

• Removed erratum previously numbered P52 as not applicable. Added

new erratum P52.

• Added Documentation Changes P25-P32.

October 2002

-020 • Added erratum P53.

• Added new Specification Change P1.

• Added new Specification Clarification P2.

• Deleted old Documentation Changes.

• Deleted old Specification Changes

• Added new Processor (Intel®Xeon®Processor with 533 MHz Front

Side Bus.

• Added new processor with Processor Signature=0F27h C1 Step.

• Added New S-specs to the processor ID table.

• All References to CPUID are now renamed Processor Signature.

November 2002

-021 • Added reference to IA-32 Intel® Architecture Software Developer’s

Manual.December 2002

-022 • Added erratum 054-055. January 2003

-023 • Added new errata P56, P57.

• Added boxed processors S-Specs for 400 MHz FSB with the

frequencies: 1.80, 2, 2.20 and 2.40 GHz.

February 2003

-024 • Added new errata P58 and P59.

• Updated previous errata fixing status, P55.

• Updated the name of the datasheet reference.

• Added S-Spec #SL6RR, SL6GH.

March 2003

-025 • Updated previous errata P55 and P58. April 2003

-026 • Added Specification Clarification P1-P4.

• Added Low Voltage Intel®Xeon®Processor Specifications. May 2003

-027 • Added erratum P60.

• Updated Sections with Low Voltage Intel®Xeon®Processor

Datasheets.

• Updated erratum P53.

June 2003

Version Description Date

Intel® Xeon® Processor Specification Update 7

Revision History

-028 • Added new Processor Intel®Xeon®Processor with 1-MB L3 Cache

with Processor Signature=0F25H (M0 Stepping).

• Added New S-specs to the processor ID table for 0F25H (M0 Stepping)

and 0F29h (D1 Stepping).

• Added new processor with Processor Signature=0F29H (D1 Stepping).

• Updated DP Platform Population Matrix for the Intel®Xeon®Processor

to include 0F25H and 0F29H.

• Removed Specification Clarification P3.

• Updated erratum P30 – Title Correction.

July 2003

-029 • Updated errata P54 and P56. August 2003

-030 • Added erratum P64.

• Updated erratum P9, P22, P39. September 2003

-031 • Added new Processor - Intel®Xeon®Processor with 1-MB L3 Cache

at 3.20 GHz with Processor Signature=0F25H (M0 Stepping).

• Added New S-specs - Intel®Xeon®Processor with 1-MB L3 Cache at

3.20 GHz.

October 2003

-032 • Added erratum P65.

• Removed Specification Clarification P4.

• Added S-spec SL74T.

October 2003

-033 • Added erratum P66.

• Updated erratum P65. November 2003

-034 • Added Specification Clarification P3. December 2003

-035 • Added new Processor Intel®Xeon®Processor with 2-MB L3 Cache

with Processor Signature=0F25H (M0 Stepping). February 2004

-036 • Added errata P67 and P68.

• Added Specification Change P1. March 2004

-037 • Updated errata P26 and P66. April 2004

-038 • Updated errata P10 and P48.

• Added erratum P69.

• Added S-spec numbers SL7D5, SL7DG, SL7D4, and SL7DF to

Processor ID table.

May 2004

-039 • Added errata P70, P71, P72. June 2004

-040 • Updated affected documents listed under Preface, Specification

Changes, Specification Clarifications, and Documentations Changes. July 2004

-041 • Added erratum P73.

• Updated erratum P54. August 2004

-042 • Updated erratum 72 in the Errata Summary Table. August 2004

-043 • Added errata P74-P75. September 2004

-044 • Added erratum P76. September 2004

-045 • Added errata P77-P79. October 2004

-046 • Added erratum P80. November 2004

-047 • Added erratum P81. December 2004

-048 • Added Specification Clarification P2. April 2005

-049 • Updated related documents list July 2005

-050 • Added Erattum P82.

• Updated codes used in summary table. October 2005

Version Description Date

8Intel® Xeon® Processor Specification Update

Revision History

-051 • Updated erratum P53 and added erratum P83. January 2006

-052 • Updated links to Software Developers Manuals. Added s-spec SL8TJ. March 2006

-053 • Added S-specs SL8TK, SL8TL, SL8SE and SL8TH. April 2006

-054 • Updated Summary Table of Changes.

• Updated the Software Developer Manual Name. October 2006

-055 • Made changes to the DP Platform Population Matrix. November 2006

-056 • Updated Summary Table of Changes. December 2006

-057 • Updated Summary Table of Changes. January 2007

Version Description Date

Intel® Xeon® Processor Specification Update 9

Preface

This document is an update to the specifications contained in the documents listed in the following

Affected Documents/Related Documents table. It is a compilation of device and document errata

and specification clarifications and changes, and is intended for hardware system manufacturers

and for software developers of applications, operating system, and tools.

Information types defined in the Nomenclature section of this document are consolidated into this

update document and are no longer published in other documents. This document may also contain

information that has not been previously published.

Affected/Related Documents

Nomenclature

S-Spec Number is a five-digit code used to identify products. Products are differentiated by their

unique characteristics, e.g., core speed, L2 cache size, package type, etc., as described in the

processor identification information table. Care should be taken to read all notes associated with

each S-Spec number.

Errata are design defects or errors. Errata may cause the Intel®Xeon®processor’s behavior to

deviate from published specifications. Hardware and software designed to be used with any given

stepping must assume that all errata documented for that stepping are present on all devices.

Specification Changes are modifications to the current published specifications. These changes

will be incorporated in the next release of the specifications.

Specification Clarifications describe a specification in greater detail or further highlight a

specification’s impact to a complex design situation. These clarifications will be incorporated in

the next release of the specifications.

Documentation Changes include typos, errors, or omissions from the current published

specifications. These changes will be incorporated in the next release of the specifications.

Document Title Document Number

Intel®Xeon®Processor at 1.40 GHz, 1.50 GHz, 1.70 and 2 GHz Datasheet 249665

Intel®Xeon®Processor with 512 KB L2 Cache at 1.80 GHz to 3.0 GHz Datasheet 298642

Intel®Xeon®Processor with 533 MHz Front Side Bus at 2 GHz to 3.20 GHz Datasheet 252135

Low Voltage Intel®Xeon®Processor at 1.60 GHz, 2.0 GHz, and 2.4 GHz Datasheet 273766

Intel® 64 and IA-32 Intel® Architectures Software Developer’s Manual, Volumes 1, 2A,

2B, 3A, and 3B 253665, 253666,

253667,253668and

253669,

respectively

10 Intel® Xeon® Processor Specification Update

Identification Information

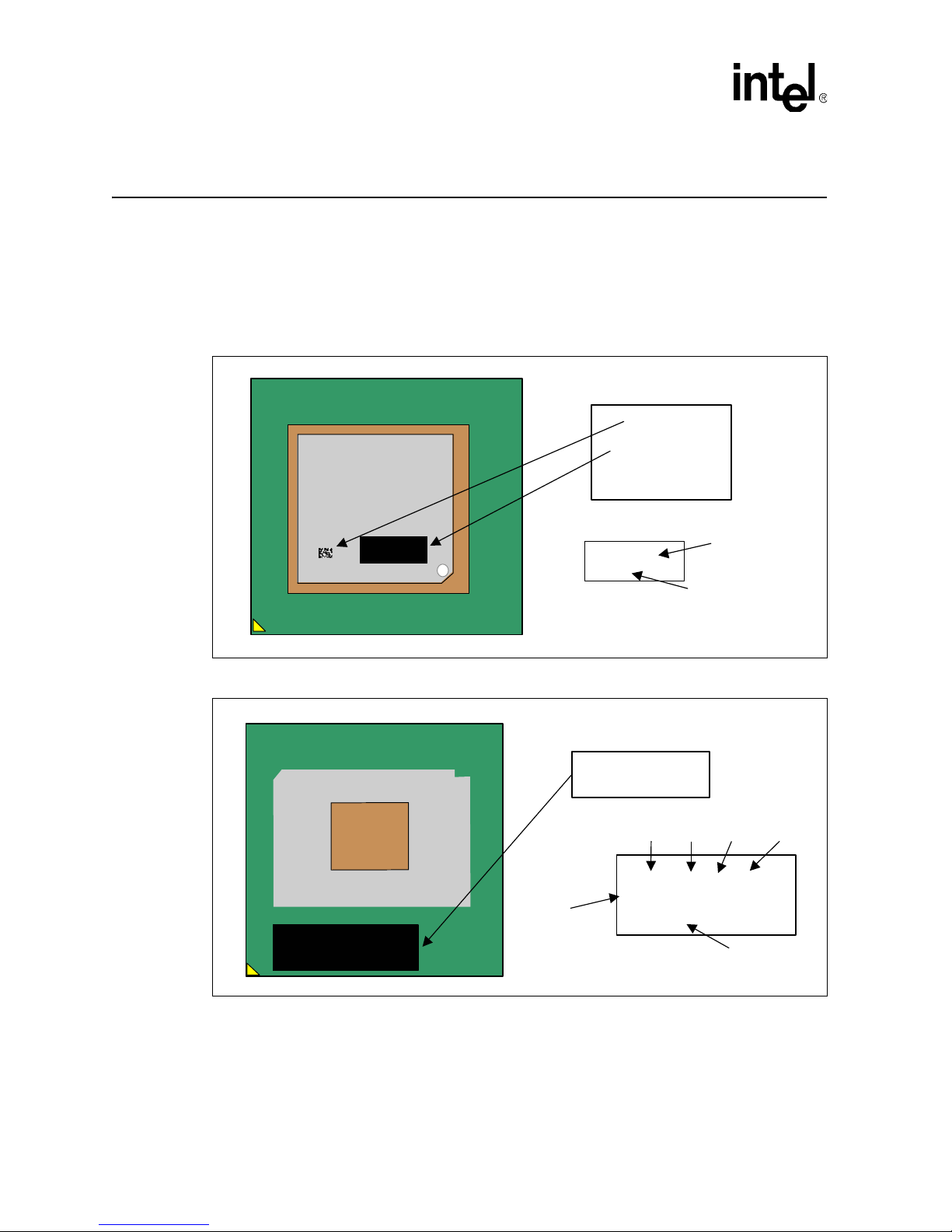

Intel®Xeon®Processor Markings, 256-KB Cache (603-pin

Interposer INT-mPGA Package)

Figure 1. Top Side Processor Marking

Figure 2. Bottom Side Processor Marking

Intel® Xeon™

i(m) ©’01

D0096109

0032

2D Matrix

Dynamic Laser

Mark Area

ATPO Mark

(8 Characters)

Serial Number

Mark

(4 digits)

1700DP/256/400/1.7V

SL56N COSTA RICA

C0096109 -0021

Dynamic Laser

Mark Area

Speed / Cache / Bus / Voltage

FPO – Serial #

(13 Characters)

S-Spec

Country of

Assy

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Intel Computerhardware Handbücher

Intel

Intel RMS25PB080 Installationshandbuch

Intel

Intel 5148LV - Xeon Dual Core Active H Bedienungsanleitung

Intel

Intel RS3FC044 Bedienungsanleitung

Intel

Intel P8700 - Core 2 Duo Processor Bedienungsanleitung

Intel

Intel BX80605I5760 Bedienungsanleitung

Intel

Intel NUC7i5BNH Bedienungsanleitung

Intel

Intel NUC 8 Business Betriebsanleitung

Intel

Intel Core 2 Quad Q9400 Referenzhandbuch

Intel

Intel DG45ID - CARACTERISTIQUES TECHNIQUES Konfigurationshandbuch

Intel

Intel Pentium II Montage- und Bedienungsanleitung

Intel

Intel NetStructure ZT 5504 Bedienungsanleitung

Intel

Intel E6700 - Core 2 Duo Dual-Core Processor Leitfaden

Intel

Intel 5100 Series Bedienungsanleitung

Intel

Intel E5420 - CPU XEON QUAD CORE 2.50GHZ FSB1333MHZ 12M LGA771 HALOGEN FREE... Bedienungsanleitung

Intel

Intel NUC7CJYHN Bedienungsanleitung

Intel

Intel I/O Processor Bedienungsanleitung

Intel

Intel LGA1155 SOCKET - THERMAL MECHANICAL S AND DESIGN GUIDELINES... Bedienungsanleitung

Intel

Intel 7512 Bedienungsanleitung

Intel

Intel MFS5520VI - Multi-Flex Server Compute Module Bedienungsanleitung

Intel

Intel LF80537GF0484M - Cpu Core 2 Duo T7400 2.16Ghz Fsb667Mhz 4Mb Fcpga6... Bedienungsanleitung

Intel

Intel UPI-C42 Bedienungsanleitung

Intel

Intel Xeon Phi Bedienungsanleitung

Intel

Intel CELERON PROCESSOR P4505 - ADDENDUM Bedienungsanleitung

Intel

Intel BX80571E7500 - Core 2 Duo 2.93 GHz Processor Betriebsanleitung

Beliebte Computerhardware Handbücher anderer Marken

EMC2

EMC2 VNX Series Betriebsanleitung

Panasonic

Panasonic DV0PM20105 Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric Q81BD-J61BT11 Bedienungsanleitung

Gigabyte

Gigabyte B660M DS3H AX DDR4 Bedienungsanleitung

Raidon

Raidon iT2300 Bedienungsanleitung

National Instruments

National Instruments PXI-8186 Bedienungsanleitung

Hauppauge

Hauppauge WinTV-HVR-2250 Bedienungsanleitung

Kontron

Kontron CP6002 Bedienungsanleitung

Manhattan

Manhattan 702843 Bedienungsanleitung

Aphex

Aphex 230 Bedienungsanleitung

AMD

AMD Phenom II Betriebshandbuch

dbx

dbx Zone Pro 1260 Bedienungsanleitung

Galaxy

Galaxy GHDX2-2430S-24F4D Bedienungsanleitung

Kontron

Kontron DIMM-PC/MD Bedienungsanleitung

ST X-NUCLEO-SAFEA1B Betriebsanleitung

STEINWAY LYNGDORF

STEINWAY LYNGDORF SP-1 Bedienungsanleitung

Advantech

Advantech ASMB-935 Series Bedienungsanleitung

Jupiter

Jupiter RAM PACK Bedienungsanleitung
