Chapter 1

Overview

his chapter provides an overview of the FLIK and installation guide.

1.1 General Description

With the rapidly-rising demand in today’s AI and compute-intensive applications,

Terasic’s FLIK (FPGA Client Innovation Kit) is a compact, all-in-one, adaptable

accelerator purpose-design to accelerate critical workloads such as data analysis,

deep learning, and machine learning algorithms directly on laptops or everything

portable! With a form factor slightly larger than a 2.5" external hard drive. It can be

placed vertically or horizontally to blend into various size-demanding environment.

FLIK takes advantage of the powerful Intel Arria 10 FPGAto enable higher speed data

processing. The kit is armed with 8GB DDR4-2133 on-board memory, providing around

4GB data transfer via PCIe Gen 3 interface between FPGA and laptops or host PC via

Thunderbolt™ 3 port. Also, with a form factor slightly larger than a 2.5" external hard

drive and closely packed in an aluminum body with advanced thermal solution, FLIK

takes care of the heat dissipation dynamically and is adaptable to various

size-demanding environment.

FLIK fully supports Intel Open VINO™ toolkit, Intel Acceleration Stack, and OpenCL in

both Linux and Windows versions. Our clients can achieve highest computing

performance, adaptability and lowest cost across broadest range of AI and deep

learning workloads.

1.2 Package Content

Figure 1-1 shows the package content of the FLIK kit.

FLIK Getting

Started Guide

www.terasic.com

April 30, 2020

Figure 1-1 FLIK Kit Content

1. FLIK

2. Thounderbolt3 Cable

3. FLIK Quick Start Guide

4. Power DC Adapter(12V)

5. AC Power Cord

1.3 FLIK View

Figure 1-2 shows the front and rear views of the FLIK. There are five color LED in front

panel. The five color LED indicate the status of FLIK. Table 1-1 shows the LED

indication meanings. There are a thunderbolt 3 port and a 12V DC input Jack on the

rear of FLIK.

FLIK Getting

Started Guide

www.terasic.com

April 30, 2020

Figure 1-2 FLIK View

Table 1-1 Front Color LED Indication

Front Color LED

Description

Green

FLIK is power on but not connected to Host PC.

Dark Blue

FLIK is just connected to the Host PC

Light Blue and Dark

Blue

FLIK is connected to the Host PC and show the power

consumption status. More Light Blue means more power

is consumed.

Red

FPGA power is shut down due to over temperature.

Orange

FPGA power is shut down due to power consumption

exceeds expectation.

Gray

FPGA power is shut down due to FPGApower

consumption exceeds expectation.

Yellow

FLIK is disconnected and will be auto shutdown in 60

seconds.

1.4 Block Diagram

Figure 1-3 shows the block diagram of the FLIK board.

FLIK Getting

Started Guide

www.terasic.com

April 30, 2020

Figure 1-3 Block diagram of the FLIK

1.5 Key Features

The following hardware is implemented on the FLIK board:

FPGA

Intel Arria ® 10 FPGA 10AX115N3F40E2SG

FPGA Configuration

On-Board USB Blaster II via Thunderbolt 3 Port

AS x4 configuration via QSPI Flash

Clock System

50MHz and 100MHz Oscillators

Programmable clock generators Si5340

Memory

Two Independent DDR4 banks, 4GB 1066MHz for each.

1024Mb QSPI Flash

FLIK Getting

Started Guide

www.terasic.com

April 30, 2020

Communication Ports

Thunderbolt 3 Port x1

PCIe Gen3x4 via Thunderbolt 3 Port

USB Blaster II port via Thunderbolt 3 Port

System Monitor and Control

FPGA Temperature Monitor

Board Temperature Monitor

Power Monitor

Auto Fan Speed Control

Auto Shutdown when temperature or power are abnormal.

LED Indication

Power Source

12V DC Input

1.6 Software Package and Manual

The FLIK Kit includes three software packages, as shown in Table 1-2. The software

packages are prepared for C/C++, OpenCL, and RTL developers. Table 1-3 shows the

documents provided by the FLIK Kit. The table also recommends manuals that

developers should study.

Table 1-2 Software Packages

Software Package

Required Programming Skill for FPGA

OpenVINO BSP

C/C++

OpenCL BSP

OpenCL

RTL Example Designs

RTL Coding

Table 1-3 Software Packages

Manual\Developer

OpenVINO

Developer

OpenCL

Developer

RTL

Developer

Quick Stat Guide

√

Getting Started Guide (Windows or Linux )

√

OpenVINO Development Guide

√

FLIK Getting

Started Guide

www.terasic.com

April 30, 2020

OpenCL User Manual

√

RTL Development Guide

√

1.7 Power On FLIK

There is no power SWITH on FLIK. Plug in 12V DC to FLIK will directly power on the

FLIK (See Figure 1-4). When FLIK is power on without connected to the Host PC, the

Font Panel Color LED is Green as shown in Figure 1-5.

Figure 1-4 Plug the DC 12V power to the FLIK

FLIK Getting

Started Guide

www.terasic.com

April 30, 2020

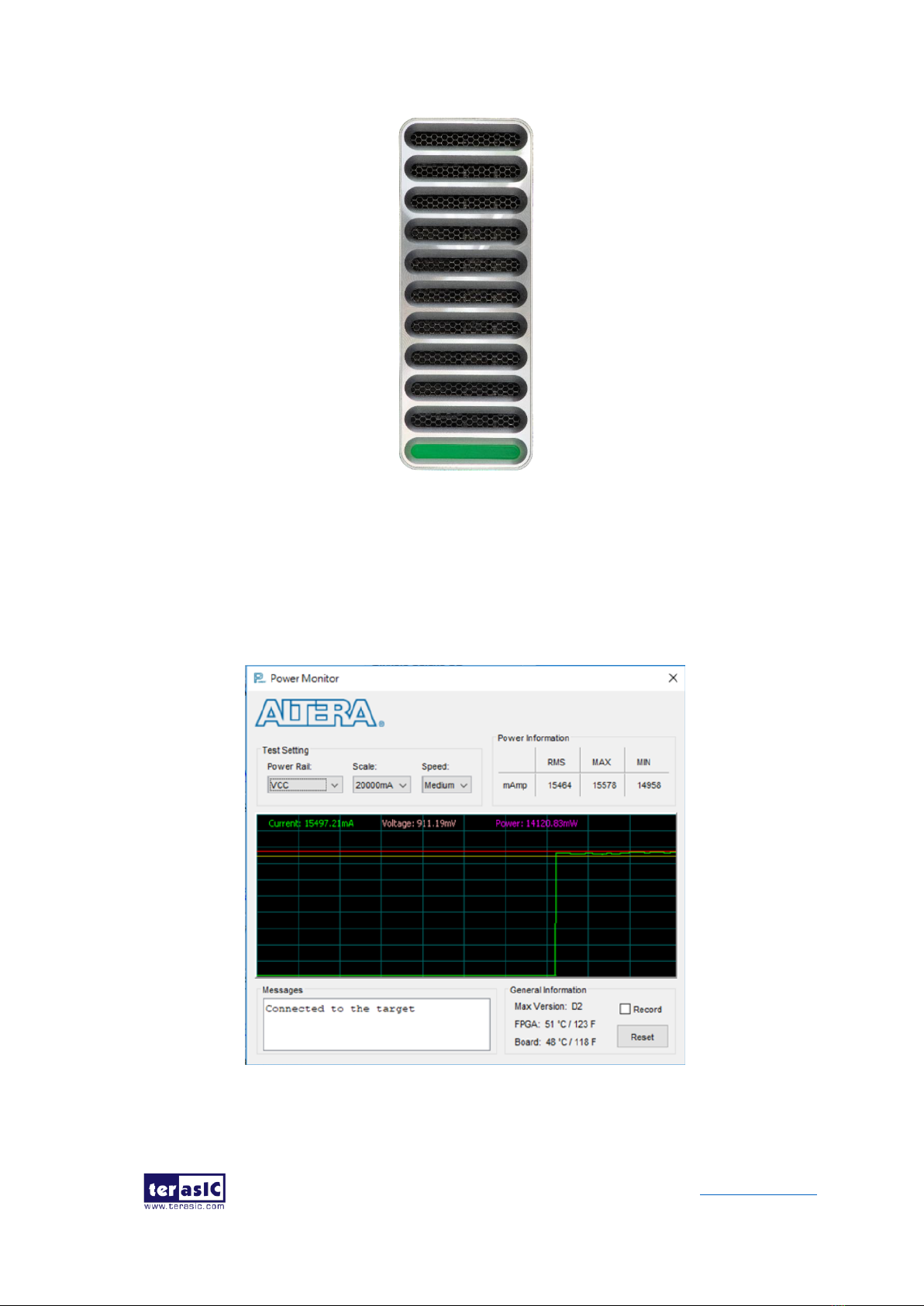

Figure 1-5 RGB Status LED when Power up

1.8 Power Monitor Utility

The FLIK Kit includes a Power Monitor Software which can be used to monitor the

power and temperature status of the FLIK, as shown in Figure 1-6. For more detailed

information, please check Chapter 4 : Power Monitor Setup.

Figure 1-6 Power Monitor
