Intel NUC 7 Bedienungsanleitung

User Guide for NUC7CJYH, NUC7PJYH

Intel® NUC Kit NUC7CJYH

Intel® NUC Kit NUC7PJYH

User Guide

User Guide for NUC7CJYH, NUC7PJYH

Before You Begin

CAUTIONS

The procedures in this user guide assume familiarity with the general terminology associated with

personal computers and with the safety practices and regulatory compliance required for using

and modifying electronic equipment.

Disconnect the computer from its power source and from any telecommunications link or network before

performing any of the procedures described in this guide. Failure to disconnect power,

telecommunications links, or networks before you open the computer or perform any procedures can

result in personal injury or equipment damage. Some circuitry on the board can continue to operate

even though the front panel power button is off.

Follow these guidelines before you begin:

•Always follow the steps in each procedure in the correct order.

•Set up a log to record information about your computer, such as model, serial numbers,

installed options, and configuration information.

•Electrostatic discharge (ESD) can damage components. Perform the procedures described in

this chapter only at an ESD workstation using an antistatic wrist strap and a conductive foam

pad. If such a station is not available, you can provide some ESD protection by wearing an

antistatic wrist strap and attaching it to a metal part of the computer chassis.

Installation Precautions

When you install and test the Intel NUC, observe all warnings and cautions in the installation

instructions.

To avoid injury, be careful of:

•Sharp pins on connectors

•Sharp pins on circuit boards

•Rough edges and sharp corners on the chassis

•Hot components (such as SSDs, processors, voltage regulators, and heat sinks)

•Damage to wires that could cause a short circuit

Observe all warnings and cautions that instruct you to refer computer servicing to qualified

technical personnel.

Observe Safety and Regulatory Requirements

If you do not follow these instructions, you increase your safety risk and the possibility of

noncompliance with regional laws and regulations.

User Guide for NUC7CJYH, NUC7PJYH

This guide tells you how to:

•

Install and remove memory

•

Install a 2.5” drive

•

Install a VESA mount bracket

•

Connect power

•

Install an operating system

•

Install the latest device drivers and software

Open the Intel NUC Chassis

To open the Intel NUC chassis, follow these steps:

1. With a screwdriver unscrew the four corner screws on the bottom cover of the chassis and lift the

cover.

Installing and Removing Memory

Intel NUC Kits NUC7CJYH and NUC7PJYH have two 260-pin DDR4 SO-DIMM sockets. Be sure to select

memory modules that meet these requirements:

•1.2V low voltage memory

•2400 MHz SO-DIMMs

•Non-ECC

Find compatible memory modules in the Intel®Product Compatibility Tool:

•NUC7CJYH

•NUC7PJYH

User Guide for NUC7CJYH, NUC7PJYH

NOTE

If you plan to install only one memory module, install it in the lower memory

socket.

To install memory, follow these steps:

1. Observe the precautions in "Before You Begin" on page 2.

2. Turn off all peripheral devices connected to the computer. Turn off the computer and

disconnect the power cord.

3. Remove the computer’s bottom chassis cover.

4. Align the small space at the bottom edge of the memory module with the key in the socket.

5. Insert the bottom edge of the module at a 45 degree angle into the socket (A).

6. When the module is inserted, push down on the outer edge of module until the retaining

clips snap into place (B). Make sure the clips are firmly in place (C).

To remove a SO-DIMM, follow these steps:

1. Observe the precautions in "Before You Begin" on page 2.

2. Turn off all peripheral devices connected to the computer. Turn off the computer and disconnect

the power cord.

3. Remove the computer’s bottom chassis cover.

4. Gently spread the retaining clips at each end of the memory socket, which causes the module to

pop out of the socket (C).

5. Holding the module by the edges, lift it away from the socket, and store it in an anti-static package.

6. Reinstall and reconnect any parts you removed or disconnected to reach the memory sockets.

7. Replace the computer’s cover and reconnect the power cord.

Install a 2.5” SSD or Hard Drive

The Intel NUC Kits NUC7CJYH and NUC7PJYH support a 2.5” Solid State Drive (SSD) or Hard Disk Drive

(HDD).

Find compatible 2.5” drives in the Intel®Product Compatibility Tool:

•NUC7CJYH

•NUC7PJYH

User Guide for NUC7CJYH, NUC7PJYH

1. Slide the new 2.5” drive into the drive bay, ensuring the SATA connectors are fully seated into the

connectors of the SATA daughter card (A).

2. Secure the drive into the drive bay with the two small silver screws that were included in the box (B).

Set the drive bay bracket down inside the chassis (C).

User Guide for NUC7CJYH, NUC7PJYH

Close the Chassis

After all components have been installed, close the Intel NUC chassis (using an electric or battery

operated screw driver can damage the NUC).

Attach and Use the VESA Bracket (Optional)

Follow these instructions to attach and use the VESA mount bracket:

1. Using the four small black screws that were included in the box, attach the VESA bracket to the

back of the monitor or TV.

User Guide for NUC7CJYH, NUC7PJYH

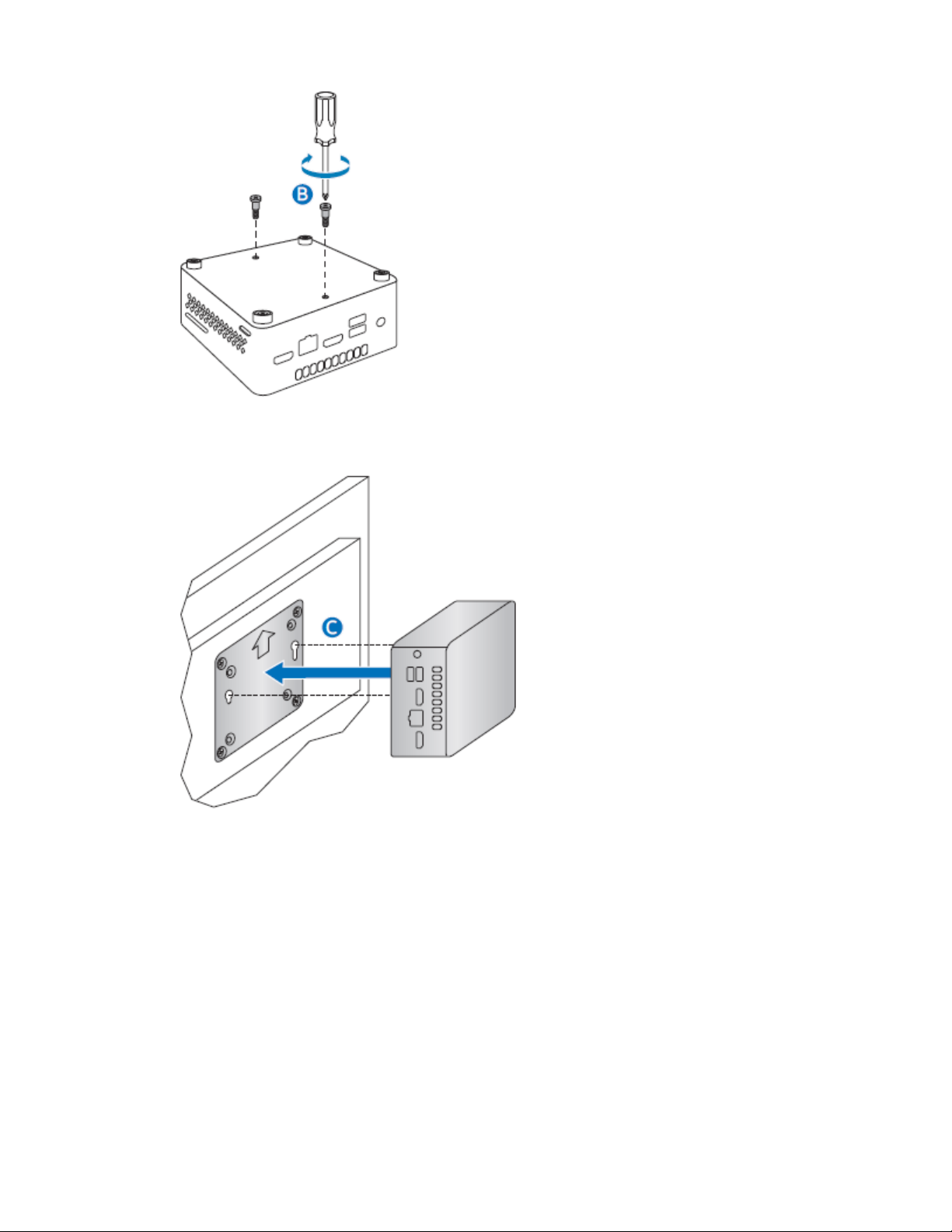

2. Attach the two slightly larger black screws to the bottom chassis cover of the Intel NUC.

3. Slide the Intel NUC onto the VESA mount bracket.

User Guide for NUC7CJYH, NUC7PJYH

Connect Power

Each Intel NUC model includes either a region-specific AC power cord or no AC power cord (only the power

adapter).

Product codes

Power cord type

BOXNUC7CJYH

BOXNUC7PJYH

No power cord included. An AC power cord needs to be purchased

separately. Power cords are available at many Internet sites for use in

multiple countries. The connector on the power adapter is a C5 type

connector.

BOXNUC7CJYH1

BOXNUC7PJYH1

US power cord included.

BOXNUC7CJYH2

BOXNUC7PJYH2

EU power cord included.

BOXNUC7CJYH3

BOXNUC7PJYH3

UK power cord included.

BOXNUC7CJYH4

BOXNUC7PJYH4

Australia/New Zealand power cord included.

BOXNUC7CJYH5

BOXNUC7PJYH5

India power cord included.

BOXNUC7CJYH9

BOXNUC7PJYH9

Japan/Taiwan power cord included.

Connect AC power.

User Guide for NUC7CJYH, NUC7PJYH

Install an Operating System

Refer to Supported Operating Systems for a list of Intel-validated Windows* operating systems, as well

as versions of Linux that have been reported as compatible by Intel NUC owners.

Refer to Operating System Installation for system requirements and installation steps.

Install the Latest Device Drivers and Software

Here are the options for keeping device drivers current:

•Allow the Intel® Driver & Support Assistant (Intel® DSA) to detect out-of-date drivers

•Manually download drivers, BIOS, and software from Download Center:

oNUC7CJYH

oNUC7PJYH

The following device drivers and software are available.

•Intel® Chipset Device Software

•Intel® UHD Graphics

•Intel® Wireless

•Intel® Bluetooth

•Intel® Trusted Execution Engine

•Intel® Serial I/O

•Intel® GNA Scoring Accelerator

•Realtek* Gigabit Ethernet

•Realtek* Card Reader

•Realtek* High Definition Audio

•ITE Tech* Consumer Infrared

•Intel® Software Guard Extensions
