NANO 150N

WIRELESS

USB ADAPTER

USER MANUAL

MODEL 525336

INT-525336-UM-0212-01

CONTENTS

1 Introduction .............................................................................................................. 1

1.1 Features....................................................................................................................................1

1.2 Specifications............................................................................................................................1

2 Installation Procedure ..............................................................................................3

3 Configuration Utility ................................................................................................. 9

3.1 Utility Overview .........................................................................................................................9

3.2 Available Network ...................................................................................................................10

3.3 General ...................................................................................................................................11

3.4 Profile......................................................................................................................................12

3.4.1 Configure the Profile................................................................................. 13

3.5 Status......................................................................................................................................16

3.6 Statistics..................................................................................................................................16

3.7 Wi-Fi Protect Setup (WPS) .....................................................................................................17

3.8 Software AP ............................................................................................................................20

3.8.1 AP Properties Setting ............................................................................... 21

3.8.2 AP Advanced............................................................................................ 21

3.8.3 AP Statistics............................................................................................. 22

3.8.4 ICS .......................................................................................................... 22

1 Introduction

Thank you for purchasing the INTELLINET NETWORK SOLUTIONS™ Nano 150N Wireless USB

Adapter, Model 525336.By following the simple steps in this user manual, you will soon be able to

enjoy the helpful features listed below.

1.1 Features

• Connects your netbook, laptop or desktop PC to a wireless network

• Fits discretely into your netbook or laptop USB port

• Ideal for streaming HD-quality video, online gaming, downloading large files and making VoIP calls

• Low-profile design allows you to leave the adapter connected even when on the go

• High transfer data rate –up to 150 Mbps

• Complies with IEEE 802.11b/g and is upward compatible with 802.11n

• Supports WMM (Wi-Fi Multimedia) for increased multimedia data throughput

• Easily secure your network connection with Wi-Fi Protected Setup (WPS)

• Supports WEP (64/128 bit), WPA and WPA2 data encryption

• Supports the most popular operating systems: Windows XP, Vista and Windows 7

• Supports Hi-Speed USB 2.0/1.1 interface

• Supports Software AP function (turns your wireless client into a wireless access point)

• Three-Year Warranty

1.2 Specifications

Standards

• IEEE 802.11b (11 Mbps Wireless LAN)

• IEEE 802.11g (54 Mbps Wireless LAN)

• IEEE 802.11e (QoS Enhancement WMM)

• Upward compatible to IEEE 802.11n (150 Mbps Wireless LAN)

General

• Interface: Hi-Speed USB 2.0

• Chipset: Realtek RTL8188CUS

• Frequency band: 2.4000 –2.483 GHz (Industrial Scientific Medical Band)

• Modulation technologies:

-802.11b: Direct Sequence Spread Spectrum (DSSS): DBPSK, DQPSK, CCK

-802.11g: Orthogonal Frequency Division Multiplexing (OFDM): BPSK, QPSK, 16QAM, 64QAM

-802.11n: Orthogonal Frequency Division Multiplexing (OFDM): BPSK, QPSK, 16QAM, 64QAM

• Security:

-64/128-bit WEP data encryption

-WPA and WPA2

-Cisco CCX

• Transmit power:

-150 Mbps, 14 dBm +/-1.5 dBm

-54 Mbps, 15 dBm +/-1.5 dBm

-11 Mbps, 17 dBm +/-1.5 dBm

• Certification: FCC Class B, CE

LEDs

• Link/Activity

Environmental

• Dimensions: 7 (H) x 15 (W) x 17.4 (L) mm (0.27 x 0.6 x 0.66 in.)

• Weight: 0.14 kg (0.3 lbs.)

• Operating temperature: 0 –40°C (32 –104°F)

• Operating humidity: 10 –90% RH, non-condensing

• Storage temperature: -20 –60°C (-4 –149°F)

System Requirements

• Notebook or Desktop PC with Pentium 300 MHz-compatible processor or higher

• Windows XP, Vista and Windows 7

• Available Hi-Speed USB 2.0 port

Package Contents

• Nano 150N Wireless USB Adapter

• Quick install guide

• Setup CD with user manual

2 Installation Procedure

Before you proceed with the installation, note the following.

Note1: The following installation was operated under Windows XP. (Procedures are similar for

Windows 2000/Vista/7.)

Note2: If you have installed the Wireless PC Adapter driver and utility before, uninstall the old

version first.

I. Install the Driver and Utility

A. Insert the installation CD in your CD-ROM drive. Execute the “Setup.exe” program.

B. Select a setup language and click “OK” to proceed.

C. Click “Next” to go to the next step.

D. When you see the following screen, click “Install”to begin the installation.

E. The system starts to install the driver and utility.

F. Click “Finish” to complete the driver and utility installation.

II. Connect to a Wireless Access Point

A. To start configuring the adapter, double-click the icon in the system tray or right-click the icon and

select “Open configuration utility.”

B. The utility of the adapter is displayed. Click the “Available Network” tab and double-click on the

wireless access point you want to connect to.

C. Input the security setting and click “OK” to start the network connection.

* Use Windows Zero Configuration on Windows Vista / 7:

A. With Windows Vista / 7, you can use Windows Zero Configuration to connect to a wireless access

point.

Click “Start,” then click “Control Panel.”Click “Network and Internet”in the Control Panel.

B. Click “Connect to a network”under “Network and Sharing Center.”

C. Click the access point you want to use if it’s shown, then click “Connect.”

D. If it’s an unnamed access point (i.e.,the SSID of this wireless access point is hidden), you’ll be

prompted to input its name, and the name must be identical to the SSID setting of the wireless

access point you’re connecting to.

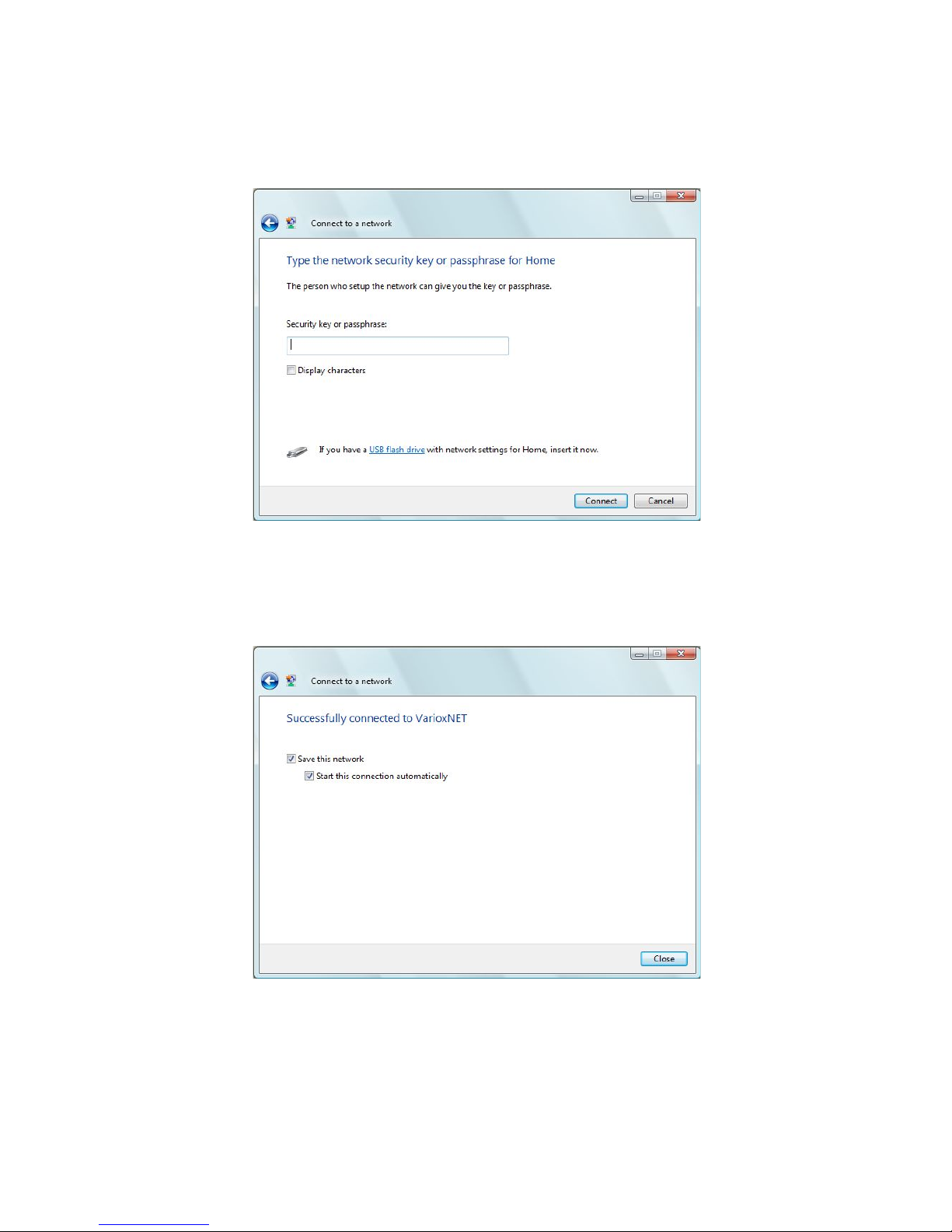

E. If the access point is protected by an encryption method, you need to input its security or

passphrase here. It must match the encryption setting on the access point.

F. If you can see the screen below, the connection between your computer and wireless access point

has been successfully established. Click “Close”to start the network connection.
