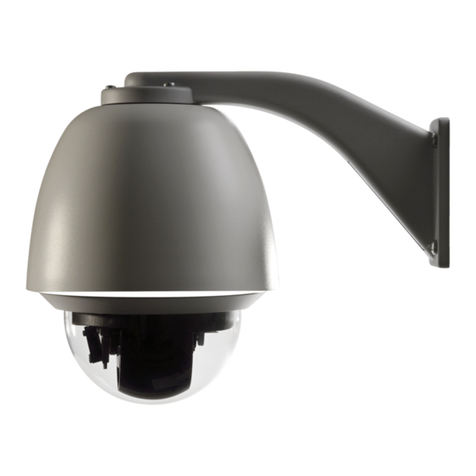

TruVision IP Camera

Configuration Manual

Firmware 4.X

P/N 1072627A-EN • REV 1.0 • ISS 11APR13

2013 UTC Fire & Security Americas Corporation, Inc.

Interlogix is part of UTC Climate Controls & Security, a unit of United

Technologies

Trademarks and

patents

he TruVision and Interlogix names and logos are trademarks of

United Technologies.

Other trade names used in this document may be trademarks or

registered trademarks of the manufacturers or vendors of the

respective

products.

Manufacturer

UTC Fire & Security Americas Corporation, Inc.

2955 Red Hill Avenue, Costa Mesa, CA 92626

-5923, USA

Authorized EU manufacturing representative:

UTC Fire & Security B.V.

Kelvinstraat 7, 6003 DH Weert, The Netherlands

Contact information

For contact information

, see www.interlogix.com or

www.utcfssecurityproducts.eu

Customer suppor

w.interlogix.com/customer-support

TruVision IP Camera Configuration Manual i

Content

Chapter 1 Introduction 3

Checking your web browser security level 3

Accessing the camera over the internet 5

Overview of the camera web browser 5

Chapter 2 Camera configuration 8

Configuration 8

Local configuration 9

Defining the system time 11

Configuring network settings 12

Defining recording parameters 15

Configuring the video image 17

Defining how information is displayed 19

Adding extra overlay text 21

Configuring privacy mask 22

Motion detection alarms 22

Tamper-proof alarms 24

Exception alarms 25

Configuring alarm input and output 26

Snapshot parameters 27

Configuring NAS settings 28

Formatting the storage devices 29

Defining a recording schedule 29

Defining RS-232 settings 31

Defining RS-485 settings 32

Chapter 3 Camera management 33

User management 33

Defining RTSP Authentication 35

Restoring default settings 36

Importing/Exporting Configuration file 36

Upgrading the firmware 36

Rebooting the camera 37

Chapter 4 Camera operation 38

Logging on and off 38

Live view mode 38

Playing back recorded video 39

Searching event logs 42

Operating PTZ control 44

ii TruVision IP Camera Configuration Manual

TruVision IP Camera Configuration Manual 3

Chapter 1

Introduction

This manual explains how to configure the camera over the network with a web

browser.

TruVision IP cameras can be configured and controlled using Microsoft Internet

Explorer (IE) and other browsers. The procedures described use Microsoft

Internet Explorer (IE) web browser.

Checking your web browser security level

When using the web browser interface, you can install ActiveX controls to

connect and view video using Internet Explorer. However, you cannot download

data, such as video and images due to the increased security measure.

Consequently you should check the security level of your PC so that you are able

to interact with the cameras over the web and, if necessary, modify the Active X

settings.

Configuring IE ActiveX controls

You should confirm the ActiveX settings of your web browser.

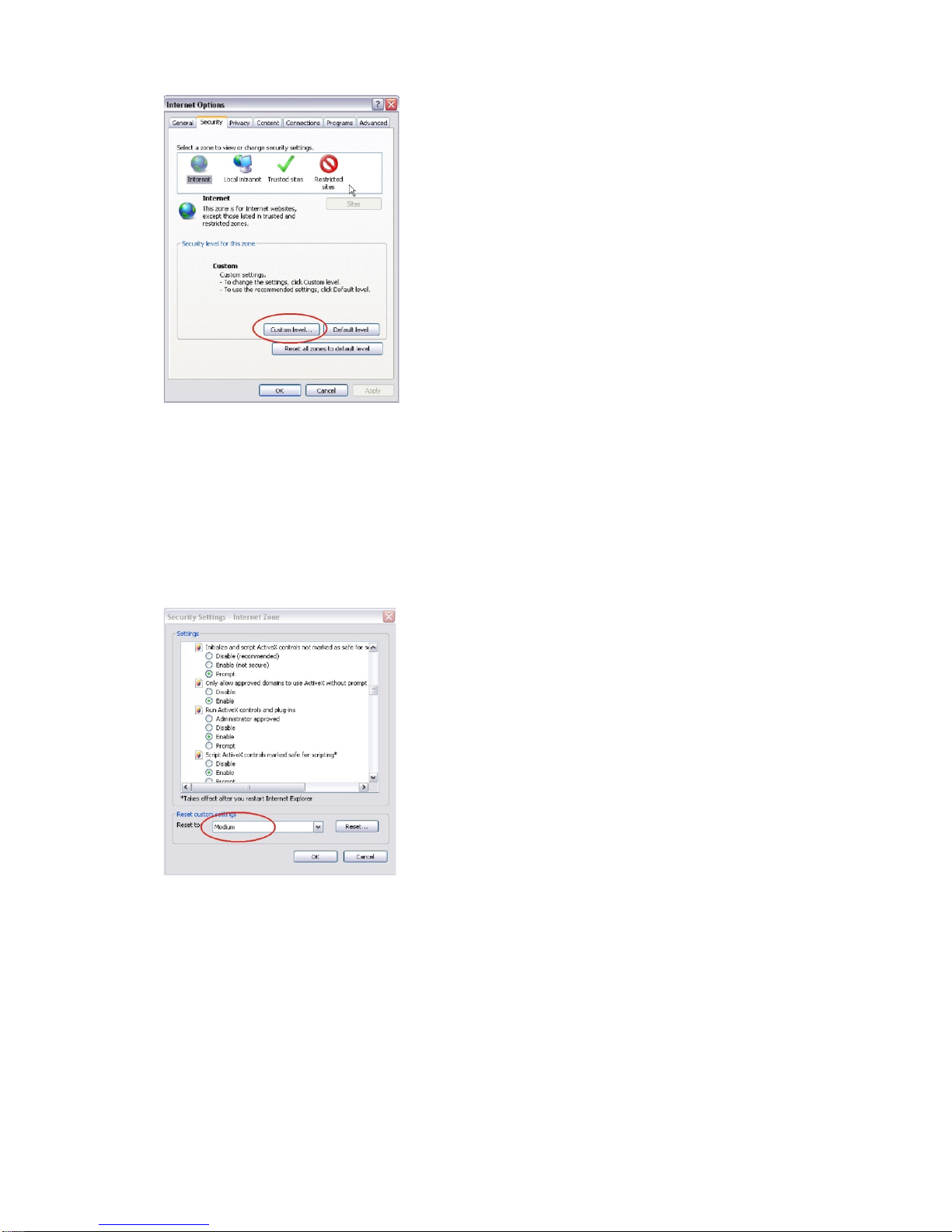

To change the web browser’s security level:

1. In Internet Explorer click Internet Options on the Tools menu.

2. On the Security tab, click the zone to which you want to assign a web site

under “Select a web content zone to specify its security settings”.

3. Click Custom Level.

0BChapter 1: Camera operation

4 TruVision IP Camera Configuration Manual

4. Change the ActiveX controls and plug-ins options that are signed or

marked as safe to Enable. Change the ActiveX controls and plug-ins

options that are unsigned to Prompt or Disable. Click OK.

- or -

Under Reset Custom Settings, click the security level for the whole zone in

the Reset To box, and select Medium. Click Reset.

Then click OK to the Internet Options Security tab window.

5. Click Apply in the Internet Options Security tab window.

Windows Vista and 7 users

Internet Explorer for Windows Vista and Windows 7 operating systems have

increased security measures to protect your PC from any malicious software

being installed.

To have complete functionality of the web browser interface with Windows Vista

and Windows 7, do the following:

• Run the Browser interface as an administrator in your workstation

0BChapter 1: Camera operation

TruVision IP Camera Configuration Manual 5

• Add the camera’s IP address to your browser’s list of trusted sites

To add the camera’s IP address to Internet Explorer’s list of trusted sites:

1. Open Internet Explorer.

2. Click Tools, and then Internet Options.

3. Click the Security tab, and then select the Trusted sites icon.

4. Click the Sites button.

5. Clear the “Require server verification (https:) for all sites in this zone box.

6. Enter the IP address in the “Add this website to the zone” field.

7. Click Add, and then click Close.

8. Click OK in the Internet Options dialog window.

9. Connect to the camera for full browser functionality.

Accessing the camera over the internet

Use the web browser to access and configure the camera over the internet.

It is recommended that you change the administrator password once the set up

is complete. Only authorized users should be able to modify camera settings.

See “User management” on page 33 for further information.

To access the camera online:

1. In the web browser enter the camera’s IP address (default is 192.168.1.70).

Use the tool, TruVision Device Finder, enclosed on the CD to find the IP

address of the camera.

The Login dialog box appears.

Note: Ensure that the Active X controls are enabled.

2. Enter your user name and password.

User name: admin

Password: 1234

3. Click Login. The web browser window appears in live view mode.

Overview of the camera web browser

The camera web browser lets you view, record, and play back recorded videos

as well as manage the camera from any PC with Internet access. The browser’s

easy-to-use controls give you quick access to all camera functions. See Figure 1

on page 6.

0BChapter 1: Camera operation

6 TruVision IP Camera Configuration Manual

If there is more than one camera connected over the network, open a separate

web browser window for each individual camera.

Figure 1: Web browser interface

Table 1: Overview of the web browser interface

Item

Name

Description

1. Live view Click to view live video.

2. Playback Click to play back video.

3. Log Click to search for event logs. There are three main types:

Alarm, Exception and Operation.

4. Configuration Click to display the configuration window for setting up the

camera.

5. Current user Displays current user logged on.

6. Logout Click to log out from the system. This can be done at

anytime.

7. PTZ controls Direction actions, zoom, focus, iris, light and wiper control.

Note: Direction actions, lighter and wiper control can be

used if the camera supports RS-485 and external pan/tilt

unit, light or wiper is installed.

8. Viewer View live video. Time, date and camera name are displayed

here.

9. Start/stop live view Click to start/stop live view.

10. Capture Click to take a snapshot of the video. The snapshot will be

saved to the default folder in JPEG format.

11. Start/stop recording Click to record live video.

12. Digital Zoom Click to enable digital zoom.

0BChapter 1: Camera operation

TruVision IP Camera Configuration Manual 7

Item

Name

Description

13. Two-way audio Turn on/off microphone.

14. Audio Adjust volume.

TruVision IP Camera Configuration Manual 8

Chapter 2

Camera configuration

This chapter explains how to configure the cameras through a web browser.

Once the camera hardware has been installed, configure the camera’s settings

through the web browser. You must have administrator rights in order to

configure the cameras over the internet.

The camera web browser lets you configure the camera remotely using your PC.

Web browser options may vary depending on camera model. The camera is

configured using on-screen display (OSD) menus, which are in English only.

There are two main folders in the configuration panel:

Local configuration

Configuration

Configuration

Use the Configuration panel to configure the server, network, camera, alarms,

users, transactions and other parameters such as upgrading the firmware. See

Figure 2 and Table 2 below for descriptions of the configuration folders available.
