Interlogix TruVision TVB-4409 Handbuch

TruVision HD-TVI 5MPX

Camera Installation and

Configuration Manual

P/N 1073359-EN • REV B • ISS 18AUG17

2017 United Technologies Corporation.

Interlogix is part of UTC

Climate, Controls & Security, a unit of United

Technologies Corporation.

Trademarks and

patents

rade names used in this document may be trademarks or registered

trademarks of the manufacturers or vendors of the respective products.

Manufacturer

Interlogix

2955 Red Hill Avenue, Costa Mesa, CA 92626

-5923, USA

Authorized EU manufacturing representative:

UTC Fire & Security B.V.

Kelvinstraat 7, 6003 DH Weert, The Netherlands

Certification

FCC compliance

Class A:

This equipment has been tested and found to comply with the limits

for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits

are designed to provide reasonable protection against harmful interference

when the equipment is operated i

n a commercial environment. This equipment

generates, uses, and can radiate radio frequency energy and, if not installed

and used in accordance with the instruction manual, may cause harmful

interference to radio communications. Operation of this equipment

in a

residential area is likely to cause harmful interference in which case the user

will be required to correct the interference at his own expense.

FCC conditions

This device complies with Part 15 of the FCC Rules. Operation is subject to

the followin

g two conditions:

(1) This device may not cause harmful interference.

(2) This Device must accept any interference received, including interference

that may cause undesired operation.

ACMA compliance

Notice!

This is a Class A product. In a domestic environment this product may

cause radio interference in which case the user may be required to take

adequate measures.

Canada

This Class A digital apparatus complies with Canadian ICES

-003.

Cet appareil mumérique de la classe A est conforme à la norme N

MB-003 du

Canada.

European Union

directives

This product and

- if applicable - the supplied accessories too are marked with

"CE" and comply therefore with the applicable harmonized European

standards listed under the EMC Directive 2014/30/EU, the RoHS Di

rective

2011/65/EU.

2012/19/EU (WEEE directive):

Products marked with this symbol cannot be

disposed of as unsorted municipal waste in the European Union. For proper

recycling, return this product to your local supplier upon the purchase of

equivalent

new equipment, or dispose of it at designated collection points. For

more information see: www.recyclethis.info.

Contact information

For contact information, see www.interlogix.com or

www.utcfssecurityproducts.eu.

TruVision HD-TVI 5MPX Camera Installation and Configuration Manual 1

Content

Important information 2

Limitation of liability 2

Advisory messages 2

Introduction 3

Product overview 3

Installation 4

Installation environment 4

Package contents 5

Camera description 9

Mounting the HD-TVI fixed lens bullet camera 11

Mounting the HD-TVI VF motorized lens bullet camera 14

Mounting the HD-TVI fixed lens turret camera 16

Mounting the HD-TVI VF motorized lens turret camera 19

Mounting the HD-TVI VF motorized lens dome camera 23

Programming 25

Call up the camera OSD menu 25

Menu trees 26

TVB-2409/4409 and TVT-2403/4403 cameras 26

TVB-2410/4410, TVT-2404/4404, and TVD-2406/4406 cameras 27

Configuration 28

Output Mode 28

Focus 28

Language 29

Main Menu 29

Specifications 33

2 TruVision HD-TVI 5MPX Camera Installation and Configuration Manual

Important information

Limitation of liability

To the maximum extent permitted by applicable law, in no event will UTCFS be liable

for any lost profits or business opportunities, loss of use, business interruption, loss of

data, or any other indirect, special, incidental, or consequential damages under any

theory of liability, whether based in contract, tort, negligence, product liability, or

otherwise. Because some jurisdictions do not allow the exclusion or limitation of liability

for consequential or incidental damages the preceding limitation may not apply to you.

In any event the total liability of UTCFS shall not exceed the purchase price of the

product. The foregoing limitation will apply to the maximum extent permitted by

applicable law, regardless of whether UTCFS has been advised of the possibility of

such damages and regardless of whether any remedy fails of its essential purpose.

Installation in accordance with this manual, applicable codes, and the instructions of the

authority having jurisdiction is mandatory.

While every precaution has been taken during the preparation of this manual to ensure

the accuracy of its contents, UTCFS assumes no responsibility for errors or omissions.

Advisory messages

Advisory messages alert you to conditions or practices that can cause unwanted

results. The advisory messages used in this document are shown and described below.

WARNING: Warning messages advise you of hazards that could result in injury or loss

of life. They tell you which actions to take or to avoid in order to prevent the injury or

loss of life.

Caution: Caution messages advise you of possible equipment damage. They tell you

which actions to take or to avoid in order to prevent the damage.

Note: Note messages advise you of the possible loss of time or effort. They describe

how to avoid the loss. Notes are also used to point out important information that you

should read.

TruVision HD-TVI 5MPX Camera Installation and Configuration Manual 3

Introduction

Product overview

This is the installation guide for TruVision 5MPX HD-TVI camera models:

HD-TVI fixed lens bullet camera:

TVB-2409 (5MPX Bullet, 3.6 mm lens, PAL)

TVB-4409 (5MPX Bullet, 3.6 mm lens, NTSC)

HD-TVI VF motorized lens bullet camera:

TVB-2410 (5MPX Bullet, 2.8 to 12 mm lens, PAL)

TVB-4410 (5MPX Bullet, 2.8 to 12 mm lens, NTSC)

HD-TVI fixed lens turret camera:

TVT-2403 (5MPX Turret, 2.8 mm lens, PAL)

TVT-4403 (5MPX Turret, 2.8 mm lens, NTSC)

HD-TVI VF motorized lens turret camera:

TVT-2404 (5MPX Turret, 2.8 to 12 mm lens, PAL)

TVT-4404 (5MPX Turret, 2.8 to 12 mm lens, NTSC)

HD-TVI VF motorized lens dome camera:

TVD-2406 (5MPX Dome, 2.8 to 12 mm lens, PAL)

TVD-4406 (5MPX Dome, 2.8 to 12 mm lens, NTSC)

4 Installation and Configuration Manual

Installation

This section provides information on how to install the cameras.

Installation environment

Please keep in mind that there are restrictions/rules when using the HD-TVI 5MPX

cameras with TruVision TVI recorders:

The TVI 5MPX cameras only work with the higher resolution TVI recorders

(TVR 15HD or TVR 45HD, or higher), firmware version 1.1 (or higher)

A maximum number of TVI 5MPX cameras can be supported per TVI recorder

The TVI 5MPX cameras are only supported on specific ports of the TruVision TVI

recorders

Guidelines:

TVR 15HD four-channel recorder, v1.1: Supports a maximum of one TVI 5MPX

camera on BNC port 1

TVR 15HD/TVR 45HD eight-channel recorder, v1.1: Supports up to two TVI 5MPX

cameras on BNC ports 1 and 2

TVR 15HD/TVR 45HD 16-channel recorder, v1.1: Supports up to four TVI 5MPX

cameras on BNC ports 1, 2, 3 and 4

When installing your product, consider these factors:

• Electrical: Install electrical wiring carefully. It should be done by qualified service

personnel. Always use a proper 12 VDC or 24 VAC UL listed Class 2 or CE certified

power supply to power the camera. Do not overload the power cord or adapter.

• Ventilation: Ensure that the location planned for the installation of the camera is

well ventilated.

• Temperature: Do not operate the camera beyond the specified temperature,

humidity or power source ratings. The operating temperature of the camera is

between -40 to +60°C (-40 to +140°F). Humidity is below 90% (non-condensing).

• Moisture: Do not expose the camera to rain or moisture, or try to operate it in wet

areas. Turn the power off immediately if the camera is wet and ask a qualified

service person for servicing. Moisture can damage the camera and also create the

danger of electric shock.

• Servicing: Do not attempt to service this camera yourself. Any attempt to dismantle

this product will invalidate the warranty and may also result in serious injury. Refer

all servicing to qualified service personnel.

• Cleaning: Do not touch the sensor modules with fingers. If cleaning is necessary,

use a clean cloth with some ethanol and wipe the camera gently. If the camera will

not be used for an extended period of time, put on the lens cap to protect the

sensors from dirt.

TruVision HD-TVI 5MPX Camera Installation and Configuration Manual 5

Package contents

Check the package and contents for visible damage. If any components are damaged

or missing, do not attempt to use the unit; contact the supplier immediately. If the unit is

returned, it must be shipped back in its original packaging.

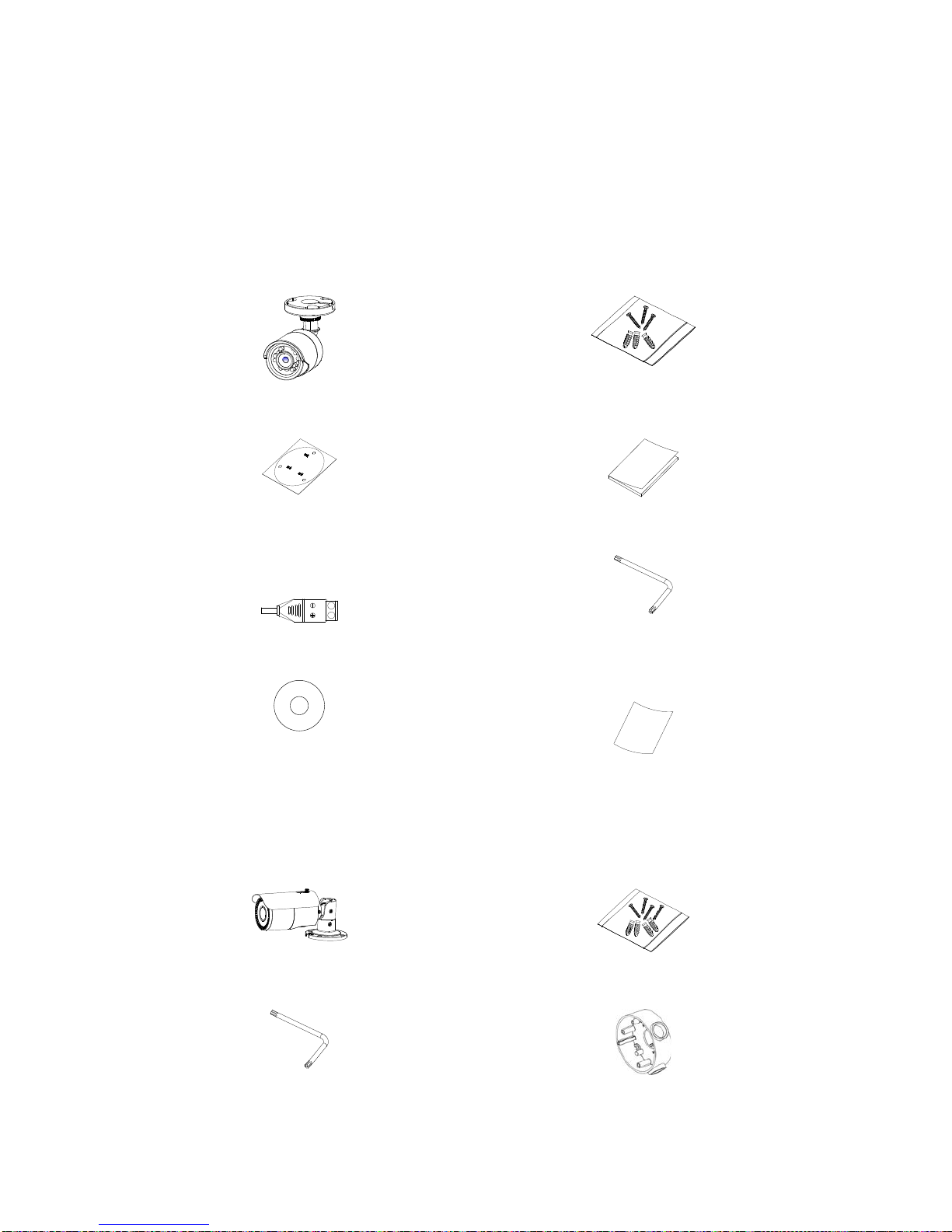

HD-TVI fixed lens bullet camera

Camera with power and video output

cable harness (cables not shown)

3 screws (4 × 25 mm) and 3 anchors

(7.5 × 24.5 mm)

Mounting template

Installation guide

•12 VDC connector: Two terminal

connector with positive and negative

indicators

•Torx wrench

•CD

•Equipment disposal sheet (WEEE

directive)

HD-TVI VF motorized lens bullet camera

Camera with power and video output

cable harness (cables not shown)

4 screws (4 × 25 mm) and 4 (7.5 ×

24.5 mm) anchors

•Torx wrench

•Back box

6 Installation and Configuration Manual

•Video test cable

•4 screws (M4.8 × 18). Used with the

back box

Mounting template

Ceiling Mounting

1:Screw Hole for

Bracket 2:Screw Hole for

Mounting Base

•Plastic G3/4 cable adapter

(mm)

Installation guide

•CD

•Equipment disposal sheet (WEEE

directive)

HD-TVI fixed lens turret camera

Camera with power and video output

cable harness (cables not shown)

•3 screws (4 ×25 mm) and 3 anchors

(7.5 ×24.5 mm)

•12 VDC connector: Two terminal

connector with positive and negative

indicators

Mounting template

•Adapter plate

4 screws (PM6-32 × 10). Used to

attach the turret camera to a 2 gang

electrical box

TruVision HD-TVI 5MPX Camera Installation and Configuration Manual 7

•4 screws (KM4 × 8). Used to attach

the turret camera to the bracket

•3 screws (PM4 × 8). Used to attach

the turret camera to the adapter)

•CD

•Installation guide

•Equipment disposal sheet (WEEE

directive)

HD-TVI VF motorized lens turret camera

Camera with power and video output

cable harness

3 screws (4 ×25 mm) and 3 anchors

(7.5 ×24.5 mm)

4 screws (KM4 x 8). Used to attach

turret camera to bracket

4 screws (PM6-32 × 10). Used to

attach the turret camera to a 2 gang

electrical box

•12 VDC connector: Two-terminal

connector with positive and negative

indicators

3 screws (PM4 x 8). Used to attach

the turret camera to the adapter)

Template

Installation guide

8 Installation and Configuration Manual

•CD

Adapter plate

•Equipment disposal sheet (WEEE

directive)

HD-TVI VF motorized lens dome camera

Camera with power and video output

cable harness

3 screws (4 ×25 mm) and 3 anchors

(7.5 ×24.5 mm)

Template

•Video test cable

•CD

Installation guide

•3 screws (PM4 × 16). Used to install

the camera body on to the dome back

box

•Plastic G3/4 cable adapter

(mm)

•Torx wrench

•Spare rubber insert

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Interlogix IP-Kamera Handbücher

Interlogix

Interlogix TVB-1101 Bedienungsanleitung

Interlogix

Interlogix TruVision TVF-5201 Merkblatt

Interlogix

Interlogix TruVision Line Bedienungsanleitung

Interlogix

Interlogix VC-IP-XP4DN-HR Bedienungsanleitung

Interlogix

Interlogix TruVision Series TVQ-8101 Bedienungsanleitung

Interlogix

Interlogix TruVision Bullet IR TVC-BIR6-SR Bedienungsanleitung

Interlogix

Interlogix TVD-TIR6-MR Bedienungsanleitung

Interlogix

Interlogix UltraSync RS-3230 Merkblatt

Interlogix

Interlogix TVD-2202 Bedienungsanleitung

Interlogix

Interlogix TruVision TVT-2201 Bedienungsanleitung

Interlogix

Interlogix TruVision 6 Series Bedienungsanleitung

Interlogix

Interlogix TruVision TVC-1201 Merkblatt

Interlogix

Interlogix TVB-1101 Merkblatt

Interlogix

Interlogix TruVisioin 12 Series Bedienungsanleitung

Interlogix

Interlogix VD-IP-XP4DNP Bedienungsanleitung

Interlogix

Interlogix TVB-5302 Merkblatt

Interlogix

Interlogix TruVision 11 Series Bedienungsanleitung

Interlogix

Interlogix TruVision TVB2406 Bedienungsanleitung

Interlogix

Interlogix TruVision Open Standards Anleitung zur Verwendung

Interlogix

Interlogix TruVision TVT-2202 Bedienungsanleitung

Interlogix

Interlogix TruVision Line Bedienungsanleitung

Interlogix

Interlogix TVC-5125BE-3 Bedienungsanleitung

Interlogix

Interlogix UltraView IP XP4 Box Day/Night Range Camera Bedienungsanleitung

Interlogix

Interlogix TruVision Line Merkblatt

Beliebte IP-Kamera Handbücher anderer Marken

FLIR

FLIR Exx series Bedienungsanleitung

Avigilon

Avigilon H4A-BO1-IR Bedienungsanleitung

Digital Watchdog

Digital Watchdog DWCA-C128-64 Bedienungsanleitung

ShareTech

ShareTech AV1 Bedienungsanleitung

Ezviz

Ezviz C6C Bedienungsanleitung

Melchioni

Melchioni UCAM 2015 Bedienungsanleitung

Geutebruck

Geutebruck G-Cam/ESD-4630 Bedienungsanleitung

Arecont Vision

Arecont Vision MegaBall AV3146DN-3310-D-LG Bedienungsanleitung

Mitel

Mitel 6800i Series Service-Handbuch

Vitek

Vitek VTC-IR403-212NP Bedienungsanleitung

THOMSON

THOMSON DSC - 323W Bedienungsanleitung

AVer

AVer FB2027 Bedienungsanleitung

ENFORCER

ENFORCER EV-T5105-N2SQ Bedienungsanleitung

Wansview

Wansview NC543 Bedienungsanleitung

Eneo

Eneo MCB-64A0003M0A Bedienungsanleitung

deView electronics

deView electronics CBDNI36F Bedienungsanleitung

Swann

Swann SwannEye Bedienungsanleitung

LevelOne

LevelOne IP CamSecure Bedienungsanleitung
