Interlogix VC-IP-XP4DN-HR Bedienungsanleitung

UltraView IP XP4 Box

Day/Night Range Camera

Quick Start Guide

P/N 1234567A-EN • REV 1.0 • ISS 19DEC12

Interlogix is part of UTC Climate Controls & Security, a unit of

Trademarks and

patents

The UltraView name and logo are trademarks of United

Technologies.

Other trade names used in this document may be trademarks or

registered trademarks of the manufacturers or vendors of the

respective products.

UltraView IP XP4 box day/night range camera 1 EN

Introduction

The UltraView IP XP4 box day/night range camera uses a digital signal

processor (DSP) to process video signals. The video camera includes

a microcontroller to provide high-quality images with high-color

reproduction and sharp pictures.

Product codes:

• UVC-IP-XP4DN-HR

• UVC-IP-XP4DN-HR-P

Package contents

The camera is shipped with the following items:

• The camera assembly

• 1 channel passive video transceiver

• AC power wiring harness

• 150 mm DC jack to terminal adapter

Installation environment

Refer to the user manual for detailed information, but observe these

important requirements:

• Place the camera in a secure location.

• Ensure that the camera is in a well-ventilated area.

• Do not expose the camera to rain or moisture.

Cable requirements

Cable type Requirements

Video 75 ohm RS-59 coaxial cable with BNC ends

Power 24 VAC cable

EN 2 UltraView IP XP4 box day/night range camera

Camera description

Figure 1: Side view of box camera

1. Auto iris lens connector

Video-type auto iris lens

connection:

A. Video (white); B. Power;

C. NC; D. GND (black)

DC-type auto iris lens

connection:

A. Driving coil (+);B. Damping

coil (+); C. Damping coil (-);

D. Driving coil (-)

2. Camera

3. Back focus adjustment

4. Lens (auto iris lens shown.

Manual lens has no cable.)

Not included

5. Back focus lock screw

6. Auto iris lens cable. Not

included

UltraView IP XP4 box day/night range camera 3 EN

Connecting the devices

1. Power LED.

2. Reset button.

Press to reset camera to

factory default settings.

3. Ethernet RJ45 port.

Connect to network devices.

4. DIP switches.

Configure camera settings.

5. Alarm input and output.

Connect to be able to trigger

an alarm at the network

device.

6. Power supply.

Connect 12 VDC or 24 VDC

power supply.

7. Video output.

Connect to a CCTV monitor

Setting the DIP switches

You can set up six camera functions using the DIP switch bank on the

rear of the camera. Figure 2 on page 4 shows the DIP switch layout.

For detailed descriptions on the functions of the DIP switch settings,

please refer to the user manual.

EN 4 UltraView IP XP4 box day/night range camera

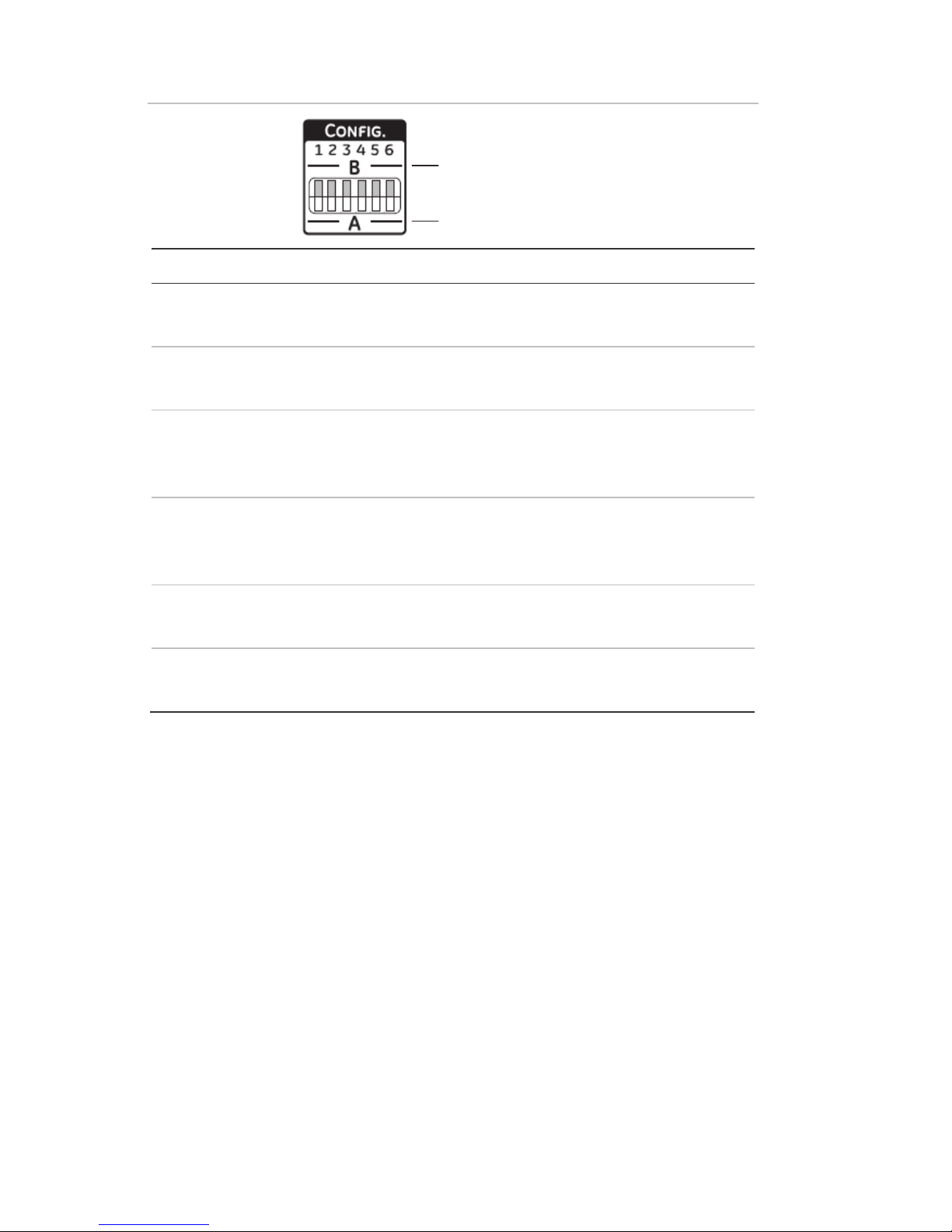

Figure 2: DIP switch layout (rear of camera)

OFF

Switch Description

1. White balance

ON: ATW mode; OFF: PTL mode

2. Backlight compensation

ON: BLC on; OFF: BLC off

3. AI/AE exposure

ON: Auto exposure (AE) mode; OFF: Auto iris (AI)

mode

4. Day/Night setting

ON: Black and white mode; OFF: Auto Day/Night

mode

5. High/Normal Resolution

ON: High resolution; OFF: Normal resolution

6. Flickerless control

ON: Flickerless enabled; OFF: Normal

Accessing the camera over the internet

The camera can be configured using an internet browser such as

Microsoft Internet Explorer (IE).

To access the camera online:

1. Configure your host PC/laptop within the same subnet as the

camera’s default IP address, for example: 10.1.2.10.

2. In the Web browser enter the camera’s default fixed IP address

10.1.2.11. The login dialog box appears.

3. Enter the username and password:

UltraView IP XP4 box day/night range camera 5 EN

Password: admin

4. Click OK. The UltraView box camera’s home page appears.

Overview of the Web browser window

Use the menu toolbar on the top of every screen to access the various

screens for monitoring and configuring the camera. There are five

options:

• Home: Return to the home page.

• Live view: View images in live mode.

• Monitoring: Display information on the health of the device,

system configuration, video ports and network interfaces.

• Administration: Define the network parameters, access rights and

video formats.

• Restart: Restart the device. This is required, for example, to

reboot the system for changes to be implemented. However, if the

network connection is lost as a result of the configuration changes

made, you must reconfigure the camera by pressing the Reset

button on the rear of the camera. The settings return to factory

default.

For detailed descriptions on the functions, please refer to the user

manual.

Contact information

For contact information see our Web site: www.interlogix.com or

www.utcfssecurityproducts.eu.

EN 6 UltraView IP XP4 box day/night range camera
