NS4702-24P-4S-4X

Quick Start Guide

P/N 1072831 • REV 00.01 • ISS 14JUL14

- 2 -

2014 United Technologies Corporation

Interlogix is part of UTC Building & Industrial Systems,

Inc. a unit of

United Technologies Corporation.

Trade

marks and

patents

The

NS4702-24P-4S-4X name and logo are trademarks of United

Technologies.

Other trade names used in this document may be trademarks or

registered trademarks of the manufacturers or vendors of the

respective products.

Manufacturer

Interlogix

3211 Progress Drive, Lincolnton, NC 28092 USA

Authorized EU manufacturing representative:

UTC Climate Controls & Security B.V.,

Kelvinstraat 7, 6003 DH Weert, Netherlands

Intended use

Use this product only for the purpose it was designed for; refer to the

data sheet and user documentation for details. For the latest product

information, contact your local supplier or visit us online

www.interlogix.com.

Certification

FCC compliance

This equipment has been tested and found to comply with the limits

for a Class A digital device, pursuant to part 15 of the FCC Rules.

These limits are designed to provide reason

able protection against

harmful interference when the equipment is operated in a

commercial environment. This equipment generates, uses, and can

radiate radio frequency energy and, if not installed and used in

accordance with the instruction manual, may ca

use harmful

interference to radio communications.

You are cautioned that any changes or modifications not expressly

approved by the party responsible for compliance could void the

user's authority to operate the equipment.

ACMA compliance

Notice!

This is a Class A product. In a domestic environment this

product may cause radio interference in which case the user may be

required to take adequate measures.

Canada

This Class A digital apparatus complies with Canadian ICES

-003.

Cet appareil numérique de l

a classe A est conforme á la norme

NMB

-003du Canada.

European Union

directives

2004/108/EC (EMC Directive):

Hereby, UTC Building & Industrial

Systems, Inc.

declares that this device is in compliance with the

essential requirements and other relevant pro

visions of Directive

2004/108/EC.

Contact Information

For contact information, see

www.interlogix.com

www.utcfssecurityproducts.eu.

- 3 -

Table of Contents

1. PACKAGE CONTENTS................................................................................................................................................ 4

2. REQUIREMENTS.......................................................................................................................................................... 5

3. TERMINAL CONNECTION........................................................................................................................................... 6

4. LOGON TO CONSOLE................................................................................................................................................. 7

5. CONFIGURING IP ADDRESS ...................................................................................................................................... 7

6. STARTING WEB MANAGEMENT.............................................................................................................................. 10

7. SAVING CONFIGURATION........................................................................................................................................ 13

8. RECOVERING BACK TO DEFAULT CONFIGURATION .......................................................................................... 15

9. CUSTOMER SUPPORT.............................................................................................................................................. 16

- 4 -

1. Package Contents

Thank you for purchasing NS4702-24P-4S-4X , L2+ 24-Port 10/100/1000Mbps 802.3at PoE + 4-Port 10G SFP+ Managed Switch

with Hardware Layer3 IPv4/IPv6 Static Routing, NS4702-24P-4S-4X. “Managed Switch” mentioned in this Guide refers to the

NS4702-24P-4S-4X.

Open the box of the Managed Switch and carefully unpack it. The box should contain the following items:

The NS4702-24P-4S-4X Managed Switch x 1

User's Manual CD x 1

Quick Installation Guide x 1

RJ-45 to RS232 Cable x 1

Rubber Feet x 4

Two Rack-mounting Brackets with Attachment Screws x 1

Power Cord x 1

SFP Dust Cap x 8

If any item is found missing or damaged, please contact your local reseller for replacement.

- 5 -

2. Requirements

•Workstations running Windows XP/2003/Vista/7/8/2008, MAC OS X or later, Linux, UNIX, or other platforms are compatible

with TCP/IP protocols.

•Workstations are installed with Ethernet NIC (Network Interface Card)

•Serial Port Connection (Terminal)

The above Workstations come with COM Port (DB9) or USB-to-RS-232 converter.

The above Workstations have been installed with terminal emulator, such as Hyper Terminal included in Windows XP/2003.

Serial cable -- one end is attached to the RS-232 serial port, while the other end to the console port of the Managed Switch.

•Ethernet Port Connection

Network cables -- Use standard network (UTP) cables with RJ-45 connectors.

The above PC is installed with Web Browser and JAVA runtime environment plug-in.

Note: It is recommended to use Internet Explore 8.0 or above to

access the Managed Switch. If the Web interface of the

Managed Switch is not accessible, please turn off the

anti-virus software or firewall and then try it again.

- 6 -

3. Terminal Connection

To configure the system, connect a serial cable to a COM port on a PC or notebook computer and to RJ-45 type of

serial (console) port of the Managed Switch.

Figure 3-1 Managed Switch Console Connectivity

A terminal program is required to make the software connection to the Managed Switch. Windows' Hyper Terminal program may

be a good choice. The Hyper Terminal can be accessed from the Start menu.

1. Click START, then Programs, Accessories and then Hyper Terminal.

2. When the following screen appears, make sure that the COM port should be configured as:

♦

Baud : 115200

♦

Data bits : 8

♦

Parity : None

♦

Stop bits : 1

♦

Flow control : None

Figure 3-2 Hyper Terminal COM Port Configuration

- 7 -

4. Logon to Console

Once the terminal is connected to the device, power on the Managed Switch and the terminal will display “running testing

procedures”. Then, the following message asks to log-in user name and password. The factory default user name and password

are shown as follows and the login screen in Figure 4-1 appears.

Username: admin

Password: admin

Figure 4-1: Managed Switch Console Login Screen

The user can now enter commands to manage the Managed Switch. For a detailed description of the commands,

please refer to the following chapters.

Note:

1. For security reason, please change and memorize the

new password after this first setup.

Only accept command in lowercase letter under console

interface.

5. Configuring IP Address

The Managed Switch is shipped with default IP address shown below.

IP Address: 192.168.0.100

Subnet Mask: 255.255.255.0

To check the current IP address or modify a new IP address for the Switch, please use the procedures as follows:

Show the current IP Address

1. At the “#” prompt, enter “show ip interface brief”.

2. The screen displays the current IP address as shown in Figure 5-1.

- 8 -

Figure 5-1: IP Information Screen

Configuring IP Address

3. At the “#” prompt, enter the following command and press <Enter> as shown in Figure 5-2.

NS4702-24P-4S-4X# configure terminal

NS4702-24P-4S-4X(config)# interface vlan 1

NS4702-24P-4S-4X(config-if-vlan)# ip address 192.168.1.100 255.255.255.

The previous command would apply the following settings for the Managed Switch.

IPAddress:192.168.1.100

Subnet Mask: 255.255.255.0

Figure 5-2: Configuring IP Address Screen

4. Repeat step 1 to check if the IP address is changed.

Store current switch configuration

5. At the “#” prompt, enter the following command and press <Enter>.

# copy running-config startup-config

- 9 -

Figure 5-3: Saving Current Configuration Command Screen

If the IP is successfully configured, the Managed Switch will apply the new IP address setting immediately.

You can access the Web interface of the Managed Switch through the new IP address.

If you are not familiar with the

console command or the

related parameter, enter “help

” anytime in console to

get the help description.

- 10 -

6. Starting Web Management

The following shows how to start up the Web Management of the Managed Switch. Note the Managed Switch is configured

through an Ethernet connection. Please make sure the manager PC must be set on the same IP subnet address.

For example, the default IP address of the Managed Switch is 192.168.0.100, then the manager PC should be set at 192.168.0.x

(where x is a number between 1 and 254, except 100), and the default subnet mask is 255.255.255.0.

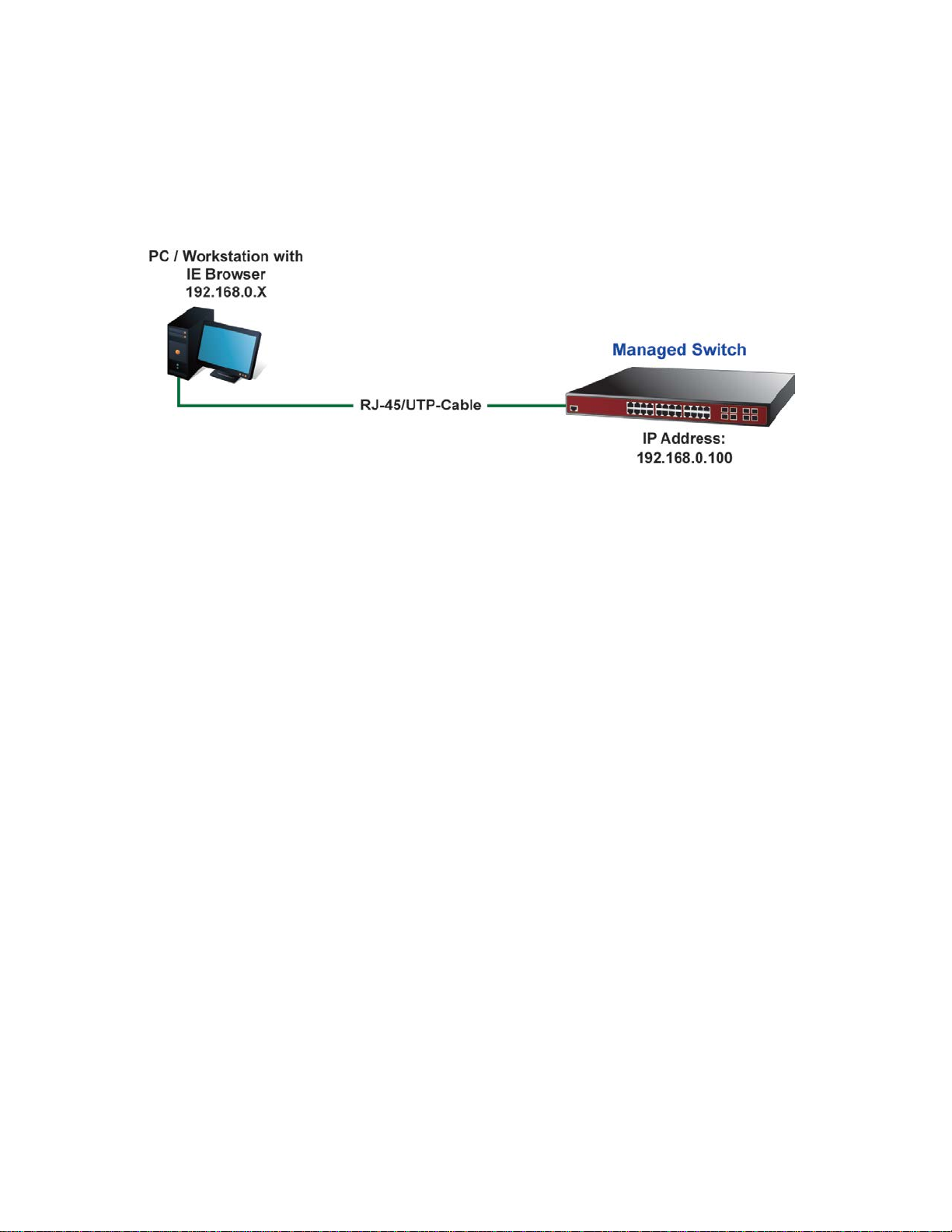

Figure 6-1: IP Management Diagram
