Intermec SF51 Bedienungsanleitung

SF51

Cordless Scanner

Schnurlos-Scanner

Leitor sem Fio

Escáner inalámbrico

Quick Start Guide

Kurzanleitung

Manual de Consulta Rápida

Guía de comienzo rápido

Contents

SF51 Cordless Scanner Quick Start Guide . . . . . . . . . . . . . . 3

Kurzanleitung für den Schnurlos-Scanner SF51 . . . . . . . . . . 9

Manual de Consulta Rápida do Leitor sem Fio SF51 . . . . . 16

Guía de comienzo rápido del escáner inalámbrico SF51 . . . 23

SF51 Cordless Scanner Quick Start Guide

The SF51 Cordless Scanner is a small, rugged handheld scanner

that uses a Bluetooth™ radio for RF communications. The SF51

makes data collection easy and includes these features:

This guide describes how to set basic parameters to start using the

SF51.

Out of the Box

This device contains permanent magnets that

can generate magnetic fields of greater than

10 gauss. Caution should be used by anyone

with a Pacemaker, Implantable Cardioverter

Defibrillator (ICD), or Heart Failure Device.

Check with your doctor for detailed information

before using this device.

Scan button

Magnetic connector

Status light

Intermec

Ready-to-Work

indicator

Scanner

SF51 Cordless Scanner

Belt clip holder

Documentation

Charging the SF51

• Place the SF51 in a 1-bay (Model 074645) or 4-bay (Model

074646) charger. The 1-bay charger is shown below.

The status light on the SF51 turns on to indicate battery charge

status. A fully discharged battery charges in approximately 3

hours. For more information, see the instructions that ship with

the charger.

Connecting the SF51 to a Host Device

You can use Bluetooth radio communications to connect the

SF51 to these host devices:

• Bluetooth enabled Intermec computer

• PC with a USB Bluetooth adapter (P/N 203-771-xxx)

• Other Bluetooth enabled devices that support Serial Port

Profile (SPP)

Before connecting the SF51 to a host device, you need to:

• install EasySet version 5.2 or later on your PC. EasySet is

available on the CD that ships with the SF51.

• note the Bluetooth address of the host device and the SF51.

The SF51 Bluetooth address is located in the upper right

corner of the label on the back of the SF51.

Status

light

To connect to an Intermec computer

1On your PC, start EasySet. Make sure that SF51 is selected as

your product.

2From the EasySet commands window, select Data

transmission settings > Bluetooth Parameters > connect/

disconnect.

3Double-click compose BT address.

4Enter the Bluetooth address of your Intermec computer and

click OK. The bar code appears on the setup sheet.

5Scan the bar code onscreen with the SF51, or print the bar

code setup sheet and scan the bar code. The SF51 beeps once,

the green status light flashes once, and the blue Intermec

Ready-to-Work™ indicator starts blinking.

When the SF51 connects to your Intermec computer, the

SF51 emits a series of beeps from low to high, and the blue

Intermec Ready-to-Work indicator turns on. The SF51 is

ready to scan data.

To connect to a PC with the USB Bluetooth adapter

1Install the USB Bluetooth adapter (P/N 203-771-xxx).

2Connect and pair your SF51 to your host PC.

For more information, see the USB Bluetooth Adapter

Instructions (P/N 074479) that ship with the adapter.

Note: You can also use the Bluetooth Device Utility

or the Bluetooth control panel on your Intermec

computer. For help, see the documentation for your

Intermec computer.

Bluetooth

address

Scanning Bar Codes

1Press the Scan button to turn on the SF51. Once the SF51

establishes a Bluetooth connection, you can scan bar codes.

2Point the SF51 at the bar code label and hold the SF51 at a

slight angle 15 to 25 cm (6 to 10 in) from the label. You can

use one of the test bar codes in the next section.

3Press the Scan button. The red aiming beam turns on.

4If you are scanning a 1D bar code, direct the beam so that it

falls across all bars in the bar code label. If you are scanning a

2D bar code, pass the beam over the bar code label in a steady

sweeping motion. The scanner emits a crackle sound.

When the SF51 successfully reads a bar code label, you hear a

single beep and the status light briefly turns green.

5Release the Scan button.

Using Test Bar Codes

The SF51 ships with these bar code symbologies enabled:

•Code39

•Code128

•UPC/EAN

• PDF417 (only available on the SF51 with PDF version)

To enable more bar code symbologies, see the SF51 Cordless

Scanner User’s Guide (P/N 074474).

*INTERMEC*

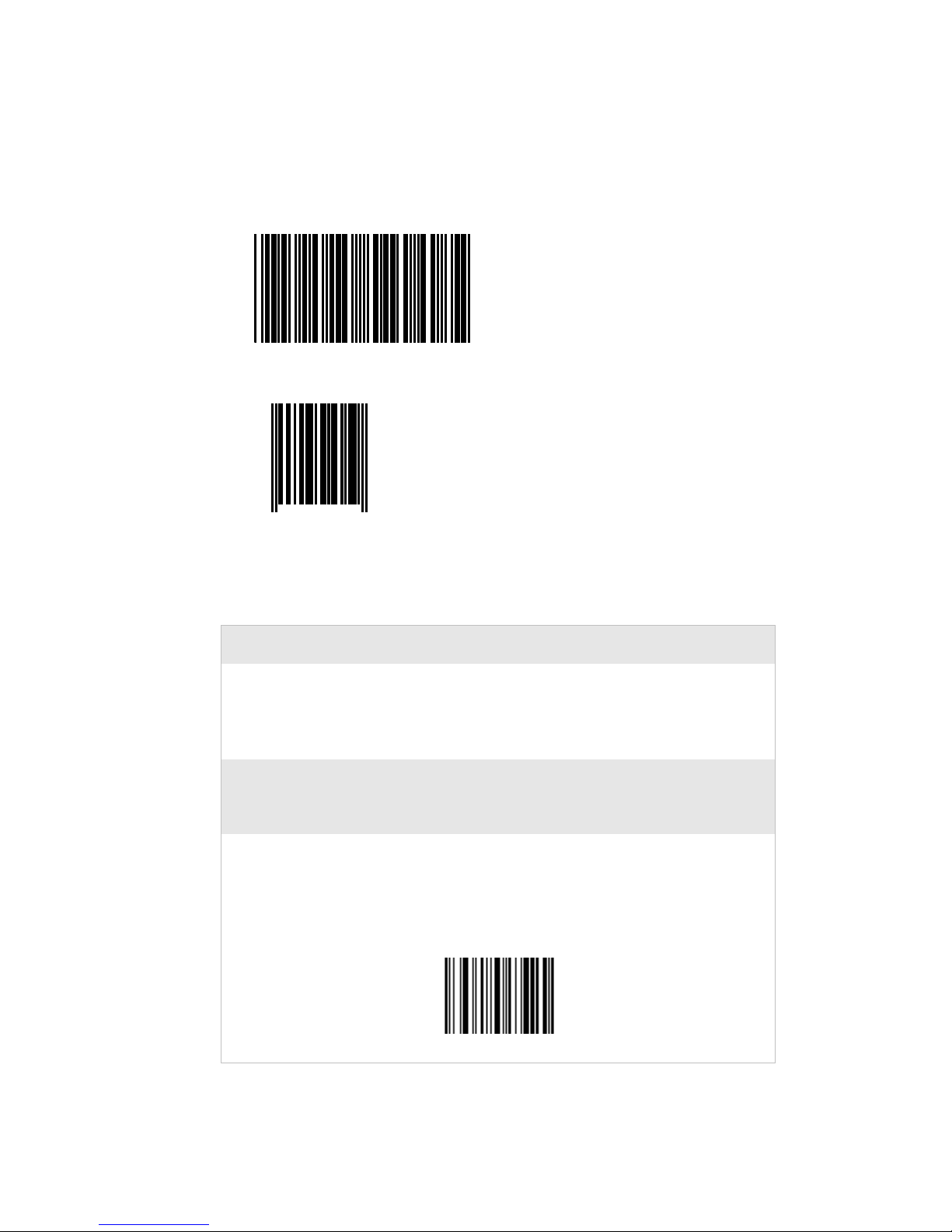

To make sure that your SF51 is working properly

1Start your data collection application.

2Scan one of these test bar codes.

Code 39 Test Bar Code

UPC-E Test Bar Code

The test bar code data should appear in your application.

Troubleshooting

Problem Possible Solution

You scan a bar code, the

status light flashes red for

2 seconds, and the scanner

beeps three times.

The SF51 may not be connected to a host.

Make sure the blue Intermec Ready-to-

Work indicator is on and the SF51 is

linked to your host device.

You press the Scan button,

and the status light turns

on and stays red.

The battery is low. Charge the battery

immediately and try scanning again.

You cannot establish a

Bluetooth connection (the

Intermec Ready-to-Work

indicator is not on).

Scan the following bar code to reset the

scanner to its default configuration and

try establishing a link again. You will need

to reconfigure the SF51.

Administrator Reset to Factory Defaults

\60\08\55\22

*123456*

123456

Useful Bar Codes

These bar codes can be useful if you need to call Intermec

Product Support. Use the Scanner Power Down bar code to turn

off the SF51. Use the other bar codes to get SF51 version and

Bluetooth address information. If you are viewing this document

online, you may be able to scan these bar codes directly onscreen

with your SF51.

Get Product Version

\30\0F\37\20

Get Sub-System Versions

\60\0F\37\23

Get SF51 Bluetooth Address

\60\0F\37\23

Scanner Power Down

\60\08\2A\46

Where to Go From Here

Go to the Intermec web site at www.intermec.com to find

manuals as PDF files. To order accessories and printed

documentation, contact your local Intermec sales representative.

If you have any problems, please visit our Product Support web

site at intermec.custhelp.com.

Patent Information: This product is protected by one or more

patents. Refer to the SF51 Cordless Scanner User’s Guide (P/N

074474) for the list of patents.

Electrical Rating: x5V, 1.5A

Kurzanleitung für den Schnurlos-Scanner SF51

Der Schnurlos-Scanner SF51 ist ein kleiner, robuster

handgehaltender Scanner. Er ist ein bedienungsfreundlicher

Scanner, der ein Bluetooth™-Funkgerät zur HF-Kommunikation

benutzt. Das Modell SF51 vereinfacht die Datenerfassung und

verfügt über folgende Funktionsmerkmale:

Diese Anleitung beschreibt das Festlegen der grundlegenden

Parameter, damit mit dem Gebrauch des Modells SF51 begonnen

werden kann.

Dieses Gerät verfügt über Dauermagnete, die

Magnetfelder mit einer Stärke von mehr als 10

Gauß erzeugen können. Alle Personen mit

Herzschrittmachern, implantierten Cardioverter-

Defi brillatoren (ICD) oder künstlichen

Herzimplantaten müssen besonders vorsichtig

sein. Diese Personen müssen sich von ihrem Arzt

beraten lassen, bevor dieses Gerät verwendet wird.

Scan-Taste

Magnetstecker

Statusleuchte

Kontrollleuchte

„Intermec Ready-

to-Work“

Scanner

Vorsicht

Auspacken

Aufladen des Modells SF51

• Das Modell SF51 in ein Ladegerät mit einem (Modell

074645) oder vier (Modell 074646) Ladesteckplätzen

einsetzen. Das Ladegerät mit einem Ladesteckplatz ist unten

dargestellt.

Die Statusleuchte des Modells SF51 leuchtet auf und weist

dadurch den Ladezustand des Akkus aus. Ein vollständig

entladener Akku wird in etwa 3 Stunden vollständig aufgeladen.

Weitere Informationen sind den Anweisungen des Ladegeräts zu

entnehmen.

Schnurlos-Scanner SF51

Gürtelhalter

Dokumentation

Statusleuchte
