Intermec Scale-

Connected Printers

Important Information

P/N 1-960496-00

Edition 1

January 2001

Read this information

before connecting the printer

to a scale!

Intermec Scale-Connected Printers – Important Information Ed. 1 1

Important Information

This document describes the demands on the printer and scale

implementation. Failure to comply prohibits use of printer with scale

according to the certiﬁcates mentioned below.

This document covers the following types and models of printers:

• Easycoder F4 and Easycoder F2 covered by certiﬁcate No.

0402-MVm030

• Easycoder E4 covered by certiﬁcate No. 0402-MVm031

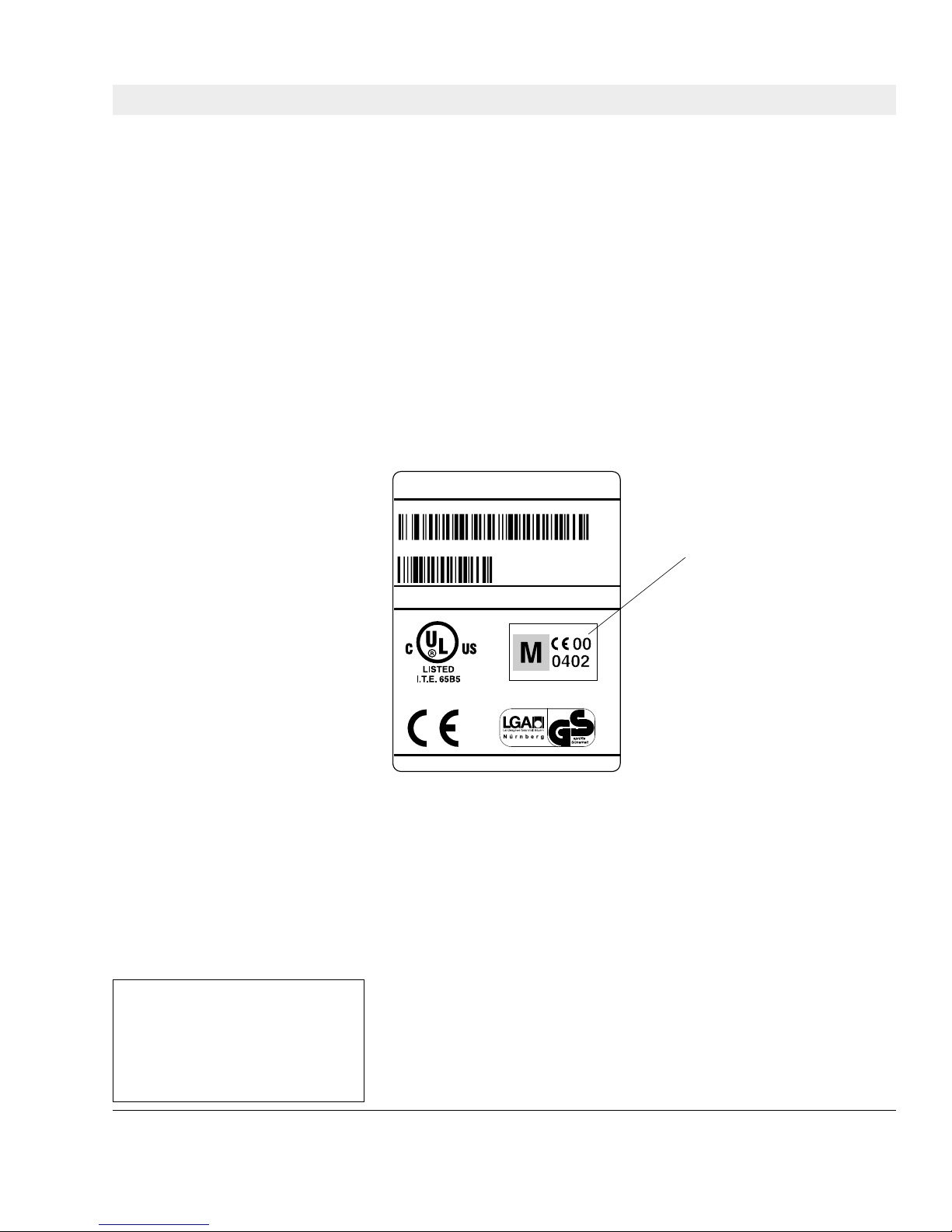

Printers approved for scale-connection can be identiﬁed by a sign

of approval on the machine label on the printer's rear or bottom

plate, for example:

Use of the printer in accordance with Paragraph 8.1 of the European

Standard on metrological aspects of non-automatic weighing

instruments EN 45501:1992 and WELMEC 2.5.

• Essential characteristics

• Functions

• Receiving of weighing data

• Printing weight, price to pay, and price

• Printing bar code

• Printing graphic works

These are the only allowed functions of the printer. Note that, for

instance, calculation of price is to be performed by the scale. The

printer may only act as a non-intelligent printer without any calculus

performed on received data.

Demands on Scale-Connected Printers

Background

Description and

Documentation

EasyCoder F4

Configuration # GF4XXXXXXXX

Serial # 00021

INTERMEC PRINTER AB • MADE IN SWEDEN

100-240V 2-1A 50/60Hz

Sign of Approval

Intermec Scale-Connected

Printers

Important Information

Edition 1, January 2001

Part No. 1-960496-00

Intermec Scale-Connected Printers –Important Information Ed. 12

Important Information

The operating system (ﬁrmware) of the printer is:

EasyCoder F2 and F4: Intermec Fingerprint v7.32 or higher.

EasyCoder E4: Intermec EasyCoder E4 Direct Protocol

v2.01 or higher.

Printing is direct thermal or thermal transfer. With a 4-inch

printhead, a maximum of 104 signs per row with signs height ≥

2 mm. With a 2-inch printhead, a maximum of 52 signs per row

with signs height ≥2 mm.

Conditional parts:

The printer may be equipped with the following protective

interface:

• RS-232 serial communication

The only allowed printing command to be used in the printer is

the Direct Protocol command

LAYOUT RUN

and

LAYOUT INPUT

associated commands.

The printer is connected to the Scale through a RS-232 connection.

With a protected command in the scale, the scale can be ordered

to send a command sequence for each label through the RS-232

interface.

The command sequence sent from the scale for every label is

as follows:

LAYOUT RUN "LAY1" Retrieve already stored format and

read values

<STX>

Value1 Start ﬁlling in the data ﬁelds of the label

Value2

...

ValueN where N is the same number of vari-

ables as in stored layout

<EOT>

PF1 Print one label

The layout recalled is stored in the printer memory. The layout can

beprogrammedthroughtheprinter’sserialorparallelinterfacefrom

a PC and is stored in non-volatile memory (ﬂash, memory card) and

recalled with the

LAYOUT RUN "xxxx"

command.

Software Used

Speciﬁcation of

Hardware and

Operative System

Intermec Scale-Connected Printers –Important Information Ed. 1 3

Important Information

Example of a layout:

LAYOUT INPUT "LAY1"

AN 6:FT "Swiss 721 BT",10

PP 100,170:PT VAR1$

PP 430,170:PT VAR3$

PP 430,40:PT VAR6$

AN 6:PP 100,200:PT "Tara kg"

AN 6:PP 300,200:PT "Netto kg"

AN 6:PP 430,200:PT "USD/kg"

AN 6:PP 430,130:PT "Price USD"

AN 6:PP 430,70:PT "Price "

FT "Swiss 721 Bold BT",12

AN 7:PP 80,380:PT "Article Sample"

AN 6:PP 300,170:PT VAR2$

AN 6:PP 430,100:PT VAR4$

AN 9:PP 430,270:PT VAR8$

FT "Swiss 721 BT",6

AN 7:PP 10,340:PT " "

AN 7:PP 10,320:PT " "

AN 7:PP 10,300:PT " "

AN 4:PP 10,260:PT "Best used as"

AN 4:PP 10,240:PT "prescribed"

BT "EAN13":BF ON

AN 1:PP 25,20:PB VAR9$

AN 7:PP 10,440:PM "INTERMEC"

LAYOUT END

Comments:

is print position

is print text

is print bar code

is select bar code font

is select normal text font

is alignment point, that is, local origin of a bar code or a text

VARn$

is a variable read from the instream of data. It can only be

used in conjunction with the

command.

NOTE!

The printer may NOT use a Fingerprint program to listen at the

port and print the label.

Software Used,

cont.

Intermec Scale-Connected Printers –Important Information Ed. 14

Important Information

Check the correctness of program ﬁles in the printer this way.

For the EasyCoder F2 and F4 family:

To verify the ﬁrmware used in printer, follow the sequence below.

- Connect a PC to the serial port of the printer instead of a scale1.

- Start a terminal program.

- Set PC to 9800 baud, 8 bit, parity none, 1 stop bit.

- Type:

? VERSION$

- Verify the ﬁrmware number shown in the terminal window.

To verify the ﬁles stored in the printer.

- Connect a PC to the serial port of the printer instead of a scale1.

- Start a terminal program.

- Set PC to 9800 baud, 8 bit, parity none, 1 stop bit.

- Type:

FILES

- Checkﬁle size of all layout ﬁles (sufﬁx.LAY).Type:

RUN "cksum

xxx.LAY"

for each layout ﬁle presented by the

FILES

command.

Note size and checksum.

- To examine and verify contents, type:

Copy xxx.LAY, "uart1:"

xxx

is substituted for each filename listed by the

FILES

command.

- This will send a stream of ASCII data to the host screen.

For the EasyCoder E4:

To verify the ﬁrmware used in printer, follow the sequence below.

- If the printer is on, switch it off.

- While powering on, press the <Feed> button on printer’s front.

When printer start ﬂashing the LED, release the button.

- Wait until conﬁguration label has been printed.

- Tap the <Feed> button again to restore printer to normal

operating mode.

- Verify the ﬁrmware number printed on the label.

To verify the ﬁles stored in the printer.

- Connect a PC to the serial port of the printer instead of a scale1.

- Start a terminal program.

- Set PC to 9800 baud, 8 bit, parity none, 1 stop bit.

- Type:

FILES

- Check ﬁle size of all layout ﬁles (sufﬁx .LAY).

- To examine and verify contents, type:

Copy xxx.LAY, "uart1:"

xxx

is substituted for each filename listed by the

FILES

command.

- This will send a stream of ASCII data to the host screen.

Software Identiﬁ-

cation

1/. The printer should always be

switched off while a peripheral

device is connected or discon-

nected.
