ACOUSTIC & ELECTRICAL SPECIFICATIONS:

• Nominal Impedance 8 Ohms

• Max Amp Power 80 Watts*

• Frequency Response 80Hz – 20kHz

• Sensitivity 89dB (2.83V @ 1 meter)

• Crossover Frequency 4000Hz

SYSTEM COMPONENTS:

• Cabinet Control 1X/1Xtreme/One

(Not for Sale)

• Grille Black (C1004X)

Silver (C1004X-S)

• High-Frequency Transducer 1/2" (12.7mm) Titanium-

laminate, shielded (C1002X)

DC Resistance 3.3 Ohms, ±10%

• Low-Frequency Transducer 4" (101.6mm) Shielded

(C1003X)

DC Resistance 2.4 Ohms, ±10%

• Crossover Network (C1006X)

AURAL SWEEP TEST SPECIFICATIONS:

• System Aural Sweep Test 6.0V Input 80Hz to 20kHz

• L.F. Aural Sweep Test 5.0V Input 80Hz to 5kHz

• H.F. Aural Sweep Test 2.83V Input 3kHz to 20kHz

PHYSICAL SPECIFICATIONS:

• Enclosure Dimensions 9" x 6-1/16" x 5-7/16"

(228mm x 155mm x 139mm)

• Weight 10.4 lb/4.7kg (sold in pairs)

WARRANTY:

• Refer to Warranty Statement packed with each product.

* The maximum recommended amplifier power rating will

ensure proper system headroom to allow for occasional

peaks. We do not recommend sustained operation at these

maximum power levels.

Technical Manual

Control®1X/1Xtreme/One

Wall Bracket

Control One – C10034A

Control One SI – C10034S

Customer-Reply Card

Beauty Carton

Control One – C10029A

Control One SI – C10029S

Control 1X – C1007X

Control 1Xtreme –

C10029X or C10031X

Control One C1008A

C1008X

Foamed PS

End Padding

(2)

Limited-Warranty Card

Owner’smanual

visit www.jbl.com

Harman Consumer Group, Inc., 250 Crossways Park Drive, Woodbury, New York 11797

5/08

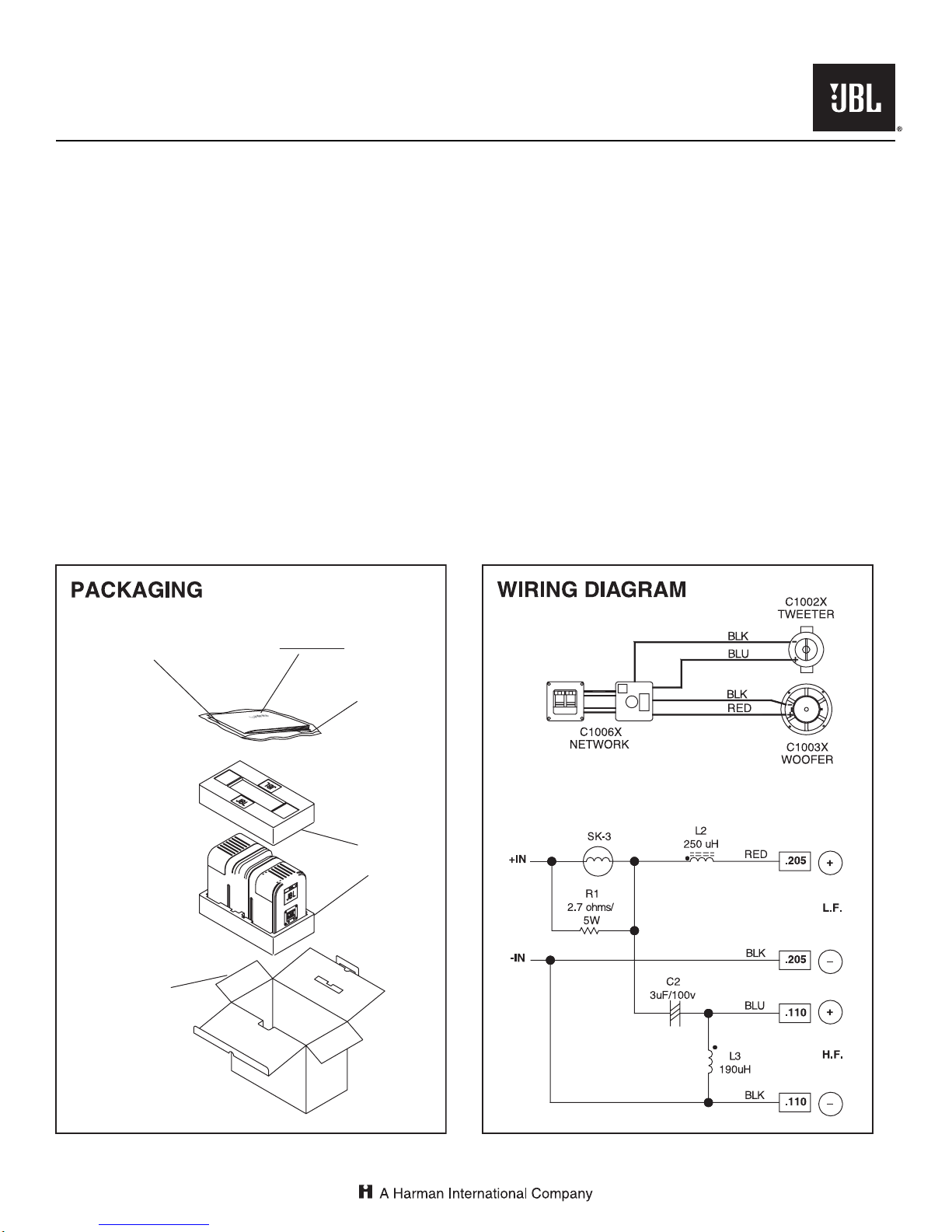

CONTROL 1X/1XTREME/ONE SCHEMATIC

EVA Gasket

Black

C1006X

Crossover Network

Nut, M4x0.7Px3t

mm Zinc-Plated

Nut

M5x0.8mm

Zinc-Plated

Die-Cast Alum.

Safety Ring, Black

Spring

Washer

C1004X

Metal Grille, Black

C1004X-S

Metal Grille, Silver

Tweeter

Diffuser

Control 1X – C1005X

Control 1Xtreme – C10028X

Control One C10028A

Logo Badge

on Grille

Front Baffle

Black

Control 1X/1Xtreme/One

(NOT for SALE)

Grille Holding Ring

Black

C1003X

4-1/2" Woofer

C1002X

Tweeter

Screw

4x8mm

Black-Plated

Screw

T4x35mm

Black-Plated

Screw

3.5x10mm

Black-Plated

Screw

4x18mm

Black-Plated

Control®1X/1Xtreme/One

Technical Manual

Control®1X/1Xtreme/One

EXPLODED VIEW

Harman Consumer Group, Inc., 250 Crossways Park Drive, Woodbury, New York 11797

5/08

TO SERVICE THE CONTROL 1X/1XTREME/ONE

1. Remove the grille.

2. Remove all (6) 1-3/8" Allen-head screws holding the front baffle to the enclosure.

3. Separate the front baffle w/drivers from the enclosure.

DRIVER REMOVAL – Both woofer and tweeter are bonded to the front baffle with adhesive.

Unclip FASTON connectors from both woofer and tweeter.

a) Woofer removal:

Remove all (4) machine screws; rear nut can be held by long-nosed pliers while screws are turned.

Apply heat gun (750°) to area around woofer basket until adhesive softens enough to extract the woofer.

b) Tweeter removal:

Remove both (2) Phillips screws.

Apply heat gun (750°) to area around inside of cavity until adhesive softens enough to extract the tweeter.

After removal, take care not to lose or misplace the small clear plastic diffuser should it become dislodged.

CAUTION: Too much heat applied in one area too long could warp the front baffle.

DRIVER REPLACEMENT

Both woofer and tweeter must have a bead of adhesive applied to the outer rim only upon reassembly.

Silicone sealer or rubber-to-metal cement is recommended.
