Jenn-Air JS42NXFXDE Merkblatt

iNstall

SIDE BY SIDE

BUILTIN REFRIGERATOR

RÉFRIGÉRATEUR ENCASTRÉ

CÔTE À CÔTE

For questions about features, operation/performance, parts, accessories, or service, call:

1-800-JENNAIR (1-800-536-6247) or visit our website at www.jennair.com.

In Canada, call: 1-800-JENNAIR (1-800-536-6247), or visit our website at www.jennair.ca.

Pour des questions à propos des caractéristiques, du fonctionnement/rendement, des pièces, accessoires ou service,

composer le: 1800JENNAIR (1800536-6247) ou visiter notre site Web au www.jennair.com.

Au Canada, composer le: 1800JENNAIR (1800536-6247) ou visiter notre site Web au www.jennair.ca.

W10779523B

TABLE OF CONTENTS

INTRODUCTION

REFRIGERATOR SAFETY .........................................................................3

VARIANTS AND ACCESSORIES

42" MODELS.....................................................................................................4

48" MODELS ....................................................................................................5

INSTALLATION REQUIREMENTS

Tools and Parts...............................................................................................6

Location Requirements...........................................................................7

Electrical Requirements..........................................................................8

Water Supply Requirements................................................................9

Product Dimensions..................................................................................9

Door Swing Dimensions .........................................................................10

Permissible Installation Options........................................................11

Stainless Steel Panel Kit

Installation Requirements.....................................................................11

Custom Wood panel dimensions and installation

requirements ..................................................................................................11

INSTALLATION INSTRUCTIONS

Unpack the Refrigerator.........................................................................12

Move the Refrigerator into House....................................................12

Install Anti-Tip Boards...............................................................................12

Connect the Water Supply ....................................................................13

Plug in Refrigerator....................................................................................15

Install Side Trims...........................................................................................15

Move Refrigerator to Final

Location..............................................................................................................16

Level and Align Refrigerator ................................................................17

Install Base Grille ..........................................................................................17

Complete Installation................................................................................18

TABLE DES MATIÈRES

INTRODUCTION

SÉCURITÉ DU RÉFRIGÉRATEUR........................................................19

VARIANTES ET ACCESSOIRES

MODÈLES DE 42po....................................................................................20

MODÈLES DE 48po...................................................................................21

EXIGENCES D’INSTALLATION

Outils et pièces ..............................................................................................22

Exigences d’emplacement....................................................................23

Spéciﬁcations électriques......................................................................24

Spéciﬁcations de l’alimentation eneau.......................................25

Dimensions du produit............................................................................25

Dimensions pour l’ouverture desportes .....................................26

Options d’installations permises.......................................................27

Exigences d’installation de l’ensemble de panneaux en

acierinoxydable ............................................................................................27

Exigences d’installation et dimensions des panneaux de

boispersonnalisés .......................................................................................27

INSTRUCTIONS D’INSTALLATION

Déballage du réfrigérateur ...................................................................28

Déplacement du réfrigérateur dans le domicile...................28

Installation de planches antibasculement.................................28

Raccordement à la canalisation d’eau ..........................................29

Brancher le réfrigérateur........................................................................31

Installation des garnitures latérales................................................31

Déplacement du réfrigérateur àson emplacement

déﬁnitif................................................................................................................32

Réglage de l’aplomb et alignement du réfrigérateur........33

Installation de la grille de la base......................................................34

Terminer l’installation................................................................................34

INTRODUCTION

REFRIGERATOR SAFETY

You can be killed or seriously injured if you don't immediately

You can be killed or seriously injured if you don't follow

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can

happen if the instructions are not followed.

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety

messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word “DANGER” or “WARNING.”

These words mean:

follow instructions.

instructions.

DANGER

WARNING

Tip Over Hazard

Refrigerator is top heavy and tips easily when not

completely installed.

Keep doors taped closed until refrigerator is

completely installed.

Use two or more people to move and install

refrigerator.

Failure to do so can result in death or serious injury.

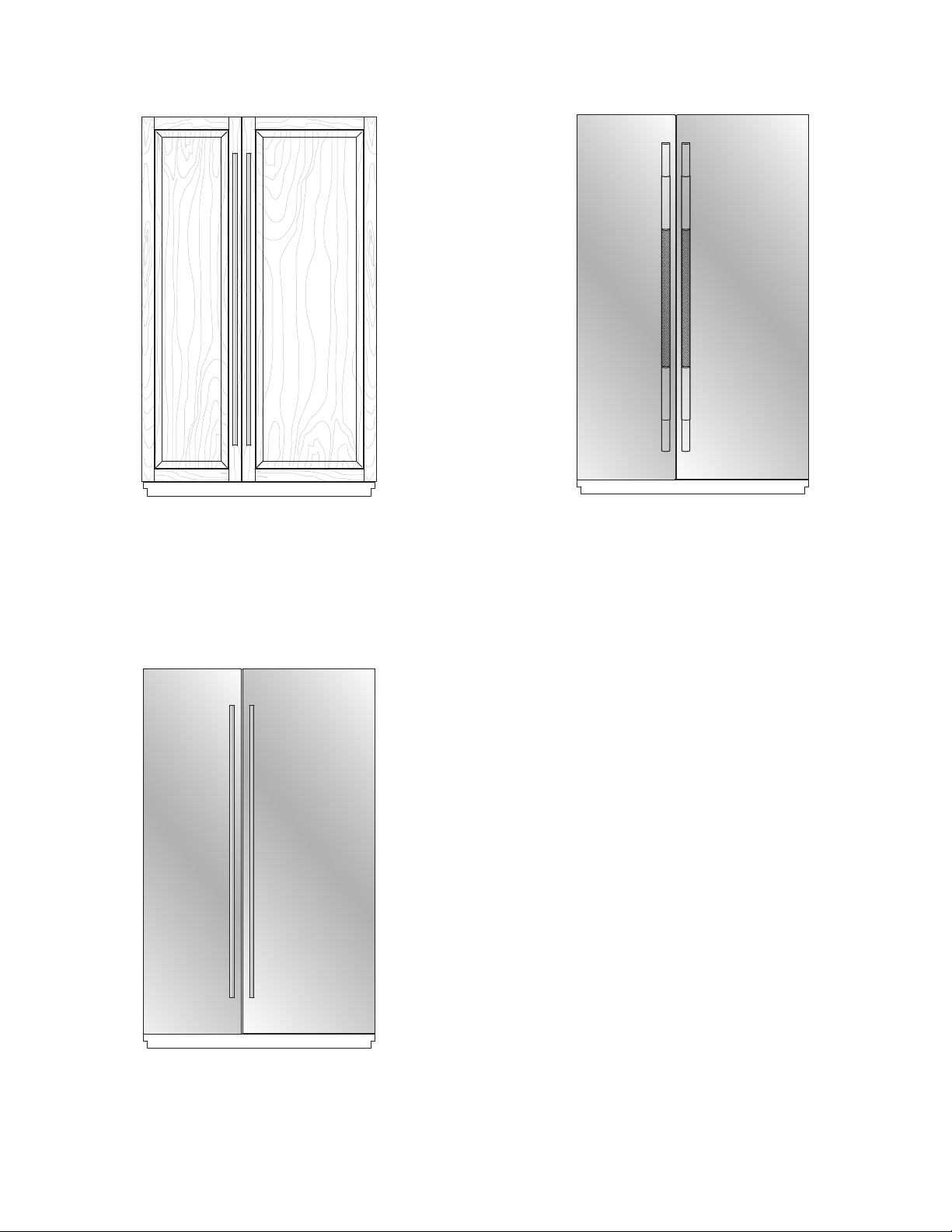

VARIANTS AND ACCESSORIES

42" MODELS

CUSTOMMADE PANEL DESIGN 

Features custom-made panels and custom hardware

provided by the cabinetmaker for a seamless appearance

designed to blend with existing kitchen cabinetry.

Base Model Numbers: JS42NXFXDE

ARMOIRE KIT NUMBER: W10663564

NOIR™ STYLE STAINLESS DESIGN 

Features stainless steel wrapped doors with new NOIR™

handles designed to compliment the JennAir®Euro

kitchen suite or enhance any kitchen decor.

Base Model Numbers: JS42NXFXDE

Panel Kit Model Numbers: JBSFS42NHM

RISE™ STAINLESS DESIGN 

Features stainless steel wrapped doors and RISE™

handles with diamond-etched grip.

Base Model Numbers: JS42NXFXDE

Panel Kit Model Numbers: JBSFS42NHL

ACCESSORIES

All factory parts are available through your JennAir dealer

or by calling JennAir at 1-800-JENNAIR (1-800-536-6247).

In Canada, call 1-800-536-6247.

DOOR HANDLE KITS

For custom wood overlay panels only, handle kits can be

ordered. Follow the kit instructions for installation.

Handle Kits contain two handles per kit.

IMPORTANT : These handle kits are not intended for use

with stainless steel door panel kits.

RISE™ Stainless Steel - W11231243

NOIR™ Stainless Steel - W11194770

ARMOIRESTYLE DOOR PANEL KIT

Refer to the installation instructions that come with the

Armoire kit for custom wood overlay panel dimensions

and installation details.

42" Model - W10663564

48" MODELS

CUSTOMMADE PANEL DESIGN 

Features custom-made panels and custom hardware

provided by the cabinetmaker for a seamless appearance

designed to blend with existing kitchen cabinetry.

Base Model Numbers: JS48NXFXDE

ARMOIRE KIT NUMBER: W10663564

NOIR™ STAINLESS DESIGN 

Features stainless steel wrapped doors with new NOIR™

handles designed to compliment the JennAir®Euro

kitchen suite or enhance any kitchen decor.

Base Model Numbers: JS48NXFXDE

Panel Kit Model Numbers: JBSFS48NHM

RISE™ STAINLESS DESIGN 

Features stainless steel wrapped doors and RISE™

handles with diamond-etched grip.

Base Model Numbers: JS48NXFXDE

Panel Kit Model Numbers: JBSFS48NHL

ACCESSORIES

All factory parts are available through your JennAir dealer

or by calling JennAir at 1-800-JENNAIR (1-800-536-6247).

In Canada, call 1-800-536-6247.

DOOR HANDLE KITS

For custom wood overlay panels only, handle kits can be

ordered. Follow the kit instructions for installation.

Handle Kits contain two handles per kit.

IMPORTANT : These handle kits are not intended for use

with stainless steel door panel kits.

RISE™ Stainless Steel - W11231243

NOIR™ Stainless Steel - W11194770

ARMOIRESTYLE DOOR PANEL KIT

Refer to the installation instructions that come with the

Armoire kit for custom wood overlay panel dimensions

and installation details.

48" Model - W10663565

INSTALLATION REQUIREMENTS

TOOLS AND PARTS

IMPORTANT :

Installer: Leave Installation Instructions with the

homeowner.

Homeowner: Keep Installation Instructions for future

reference. Save these Installation Instructions for the

local electrical inspector’s use.

TOOLS NEEDED:

Gather the required tools and parts before starting

installation. Read and follow the instructions provided

with any tools listed here.

Cordless drill

Drill bits

Adjustable wrenches (2)

Phillips screwdriver

Small level

3/32" hex key (panel kits only)

11/32" nut driver

3/8" and 1/2" open-end wrenches

5/32" and 3/16" hex key

1/4" and 5/16" socket drivers

Tape measure

Utility knife

Tape (painters)

Appliance dolly

PARTS NEEDED:

#8 x 3" (7.6 cm) wood screws (longer screws may be

needed) (6)

2" x 4" x 32" (5 cm x 10 cm x 81 cm) wood boards (2)

Custom wood overlay panels—consult a qualiﬁed

cabinetmaker or carpenter to make the custom wood

panels. See “Custom Wood Overlay Panels” for more

information.

“Panel Kit Installation Requirements” for panel kit

information.

Flexible, codes approved water supply tubing, a

ferrule, a union and a 1/4" (6.35 mm) compression

ﬁtting.

PARTS PROVIDED:

W10141645 (21) W10141189 (8)

W10142233 (4) W10471946 (4)

8281252 (28) 1163283 (24)

W10234194 (2) W10234202 (2)

W10182743 - Left (1)

W10182741 - Right (1)

W10488101 - 42" SxS

W10488113 - 48" SxS

W10744761 - Grille

W10260890 - Left (1)

W10260891 - Right (1) W10234199 (2)

W10667450 (2) W10606812 - 42" SxS (1)

W10740171 - 48" SxS (1)

W10775725 - 42" SxS

W10775726 - 48" SxS W10775727 - 42" SxS

W10775728 - 48" SxS

W10749614 - SxS Freezer

W10755284 - SxS

Refrigerator W10182718 / W10188551 -

48" SxS

W10182717 / W10188549 -

42" SxS

W10234156

Slotted hex-head screw Hex-head pointed screw

Hex-head blunt screw Shoulder washer (use with

hex-head pointed screw)

Phillips-head ﬂat screw Round-head screw

Door Adjustment Pin

(preinstalled) Door Stop Pin

Standard Integrated

Grille Bracket

Panel templates

Fully Integrated

Grille Bracket Filler Board “L” Bracket

Panel top bracket Top Grille Lower Trim

RC Hinge Cover Trim FC Hinge Cover Trim

Handle Side Door Trim

Grille - Bottom / Skirt - Grille

Installation block

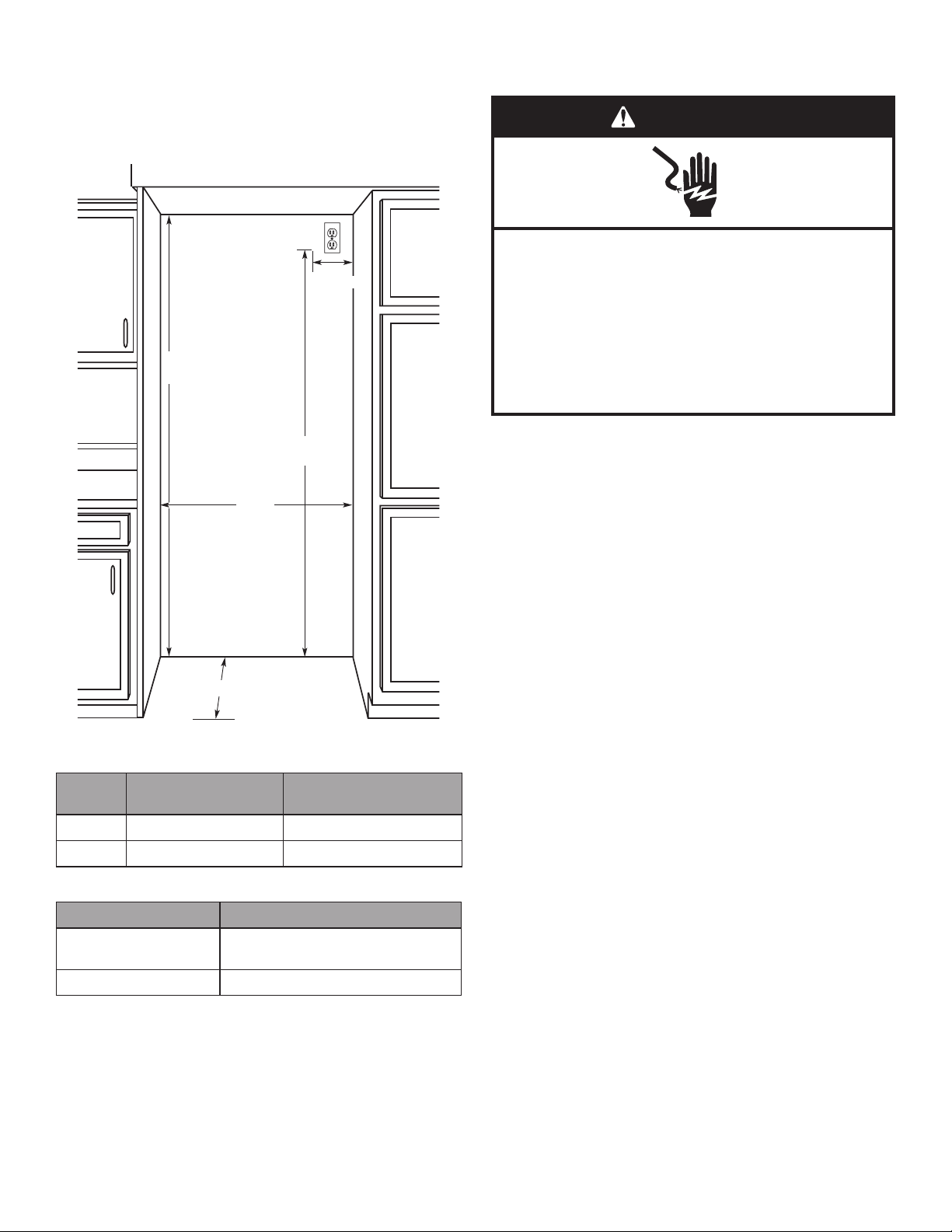

LOCATION REQUIREMENTS

IMPORTANT : This refrigerator is designed for indoor,

household use only.

This appliance is intended to be used in household and

similar applications such as:

Staff kitchen areas in shops, ofﬁces and other working

environments.

Farm houses and by clients in hotels, motels and

other residential type environments.

Bed and breakfast type environments.

Catering and similar non-retail applications.

NOTE : The refrigerator is intended for use in a location

where the temperature ranges from a minimum of

55°F (13°C) to a maximum of 110°F (43°C). The preferred

room temperature range for optimum performance,

which reduces electricity usage and provides superior

cooling, is between 60°F (15°C) and 90°F (32°C). It is

recommended that you do not install the refrigerator

near a heat source, such as an oven or radiator.

Observe all governing codes and ordinances.

It is recommended that you do not install the

refrigerator near an oven, radiator, or other heat

source.

Do not install in a location where the temperature will

fall below 55°F (13°C).

Floor must support the refrigerator weight, more

than 600 lbs (272 kg), door panels and contents of

the refrigerator. Flooring under refrigerator must be

at same level as the room. Face of cabinetry must be

plumb.

Location should permit door to open fully. See “Door

Swing Dimensions.”

Location must permit top grille removal. See

“Opening Dimensions.”

OPENING DIMENSIONS

IMPORTANT :

The width of the opening (Width A), from side to side,

must be as speciﬁed for your model for at least

2" (5.08 cm) back from the face of the cabinet.

NOTE : If your opening does not meet this requirement,

you will need to make modiﬁcations.

A solid sofﬁt or wall cabinet must be installed

84" (213.4 cm) above the ﬂoor. If the solid sofﬁt is

higher than 84" (213.4 cm) or one is not available, then

the refrigerator must be braced.

If anti-tip boards are needed, they must be installed

to the rear wall studs so that the bottom of the

anti-tip board is 84" (213.4 cm) from the ﬂoor. See

“Install Anti-Tip Boards” for more information.

NOTES :

Do not remove the foam gasket from the top of the

compressor cover unless removal is necessary to ﬁt

the unit under a sofﬁt. Removal of the gasket will

cause loss in cooling efﬁciency.

If installing under a solid sofﬁt, after installation raise

the leveling legs so that the gasket is pressed snugly

against the sofﬁt.

A grounded 3 prong electrical outlet should be

located within a speciﬁed number of inches from

the right-hand side cabinets or end panel. See the

chart following the graphic for the number of inches

required for your model. For more information, see

“Electrical Requirements.”

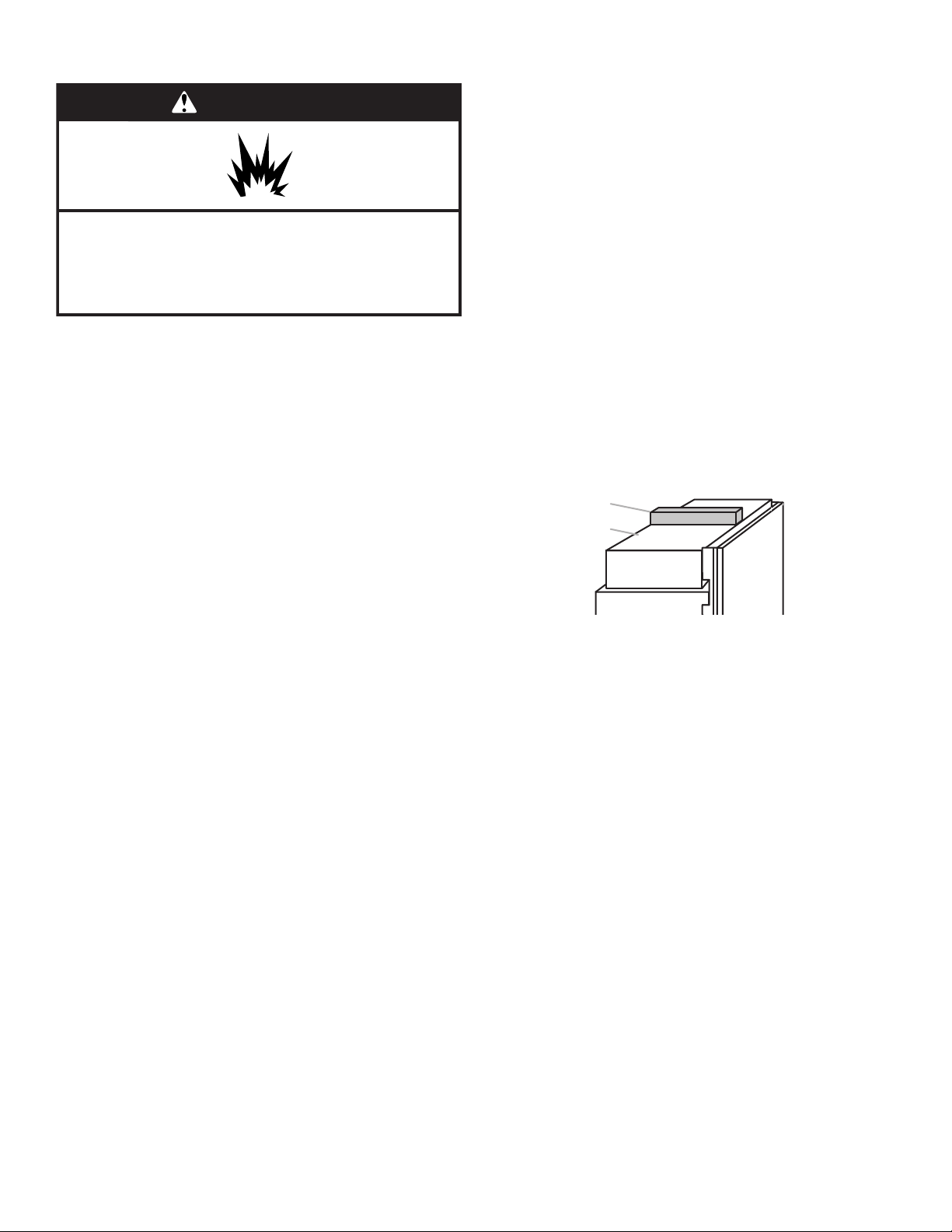

WARNING

Explosion Hazard

Keep flammable materials and vapors, such as

gasoline, away from refrigerator.

Failure to do so can result in death, explosion, or fire.

A. Gasket

B. Compressor cover

The water shutoff should be located in the base

cabinet on either side of the refrigerator or some

other easily accessible area. If the water shutoff valve

is not in the cabinets, the plumbing for the water line

can come through the ﬂoor. See “Water Supply

Requirements” for more information.

MODEL WIDTH A AS

SHOWN ABOVE DIMENSION B AS

SHOWN ABOVE

42 42" (106.7 cm) 7¹⁄₂" (19.1 cm)

48 48" (121.9 cm) 13¹⁄₂" (34.3 cm)

INSTALLATION TYPE DEPTH C AS SHOWN ABOVE

Standard Flush

(new installation) 25" (63.5 cm) minimum

Retroﬁt Installations 24" (60.9 cm) minimum

NOTE : On retroﬁt installations, door panels will not be

ﬂush with adjacent cabinets.

ELECTRICAL REQUIREMENTS

Before you move your refrigerator into its ﬁnal location, it

is important to make sure you have the proper electrical

connection.

If the supply cord is damaged, it must be replaced

by the manufacturer or its service agent or a similar

qualiﬁed person. Do not use a cord that shows cracks or

abrasion damage along its length or at either the plug or

connection end.

RECOMMENDED GROUNDING METHOD

A 115 V, 60 Hz., AC only, 15 A or 20 A fused, grounded

electrical supply is required. It is recommended that a

separate circuit serving only your refrigerator be provided.

Use an outlet that cannot be turned off by a switch. Do

not use an extension cord.

IMPORTANT : If this product is connected to a GFCI

(Ground Fault Circuit Interrupter) protected outlet,

nuisance tripping of the power supply may occur,

resulting in loss of cooling. Food quality and ﬂavor may

be affected. If nuisance tripping has occurred, and if the

condition of the food appears poor, dispose of it.

NOTE : Before performing any type of installation or

cleaning, remove the top grille and turn the master power

switch to OFF or disconnect power at the circuit breaker

box.

When you are ﬁnished, turn ON the master power switch

or reconnect power at the circuit breaker box. Then reset

the control to the desired setting.

84" (213.4 cm)

to bottom of solid sofﬁt

77"

(196 cm)

Width

(see chart following)

C Depth

Dimension

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove ground prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions can result in death,

fire, or electrical shock.

WARNING

WATER SUPPLY REQUIREMENTS

IMPORTANT :

All installations must meet local plumbing code

requirements.

Connect to potable water supply only.

There is not enough clearance to achieve a ﬂush

installation if a water shutoff valve is located in the

wall behind the refrigerator.

The water shutoff should be located in the base

cabinet on either side of the refrigerator or some

other easily accessible area. The water supply line,

however, must come up through the ﬂoor in the gray

shaded area shown.

A 1/2" (12.7 mm) hole for plumbing should be drilled

on the ﬂoor at least 6" (15.2 cm) from the right- or left-

hand side cabinet and should be no more than

1" (2.54 cm) away from the back wall. See “Connect

the Water Supply.”

The water supply connection is made at the front of

the refrigerator.

If additional tubing is needed, use copper tubing and

check for leaks. Install the copper tubing only in areas

where the household temperatures will remain above

freezing.

Do not use a piercing-type or 3/16" (4.76 mm) saddle

valve which reduces water ﬂow and also clogs more

easily.

NOTE : Your refrigerator dealer has a kit available with

a 1/4" (6.35 mm) saddle-type shutoff valve, a union,

and copper tubing. Before purchasing, make sure a

saddle-type valve complies with your local plumbing

codes.

WATER PRESSURE

A cold water supply with water pressure between

30 psi and 120 psi (207 kPa and 827 kPa) is required to

operate the water dispenser and ice maker. If you have

questions about your water pressure, call a licensed,

qualiﬁed plumber.

REVERSE OSMOSIS WATER SUPPLY

IMPORTANT : The pressure of the water supply coming

out of a reverse osmosis system going to the water inlet

valve of the refrigerator needs to be between

30 psi and 120 psi (207 kPa and 827 kPa).

If a reverse osmosis water ﬁltration system is connected

to your cold water supply, the water pressure to the

reverse osmosis system needs to be a minimum of

40 psi to 60 psi (276 kPa to 414 kPa).

If the water pressure to the reverse osmosis system is less

than 40 psi to 60 psi (276 kPa to 414 kPa):

Check to see whether the sediment ﬁlter in the

reverse osmosis system is blocked. Replace the ﬁlter if

necessary.

Allow the storage tank on the reverse osmosis system

to reﬁll after heavy usage.

If your refrigerator has a water ﬁlter, it may further

reduce the water pressure when used in conjunction

with a reverse osmosis system. Remove the water

ﬁlter cartridge.

If you have questions about your water pressure, call a

licensed, qualiﬁed plumber.

PRODUCT DIMENSIONS

IMPORTANT :

The depth from the front face of the doors to the

back of the refrigerator cabinet is 24" (60.96 cm)

without panels.

The power cord is 84" (213 cm) long.

The water supply connection is made at the bottom

front of the refrigerator.

TOP VIEW

MODEL A

42 41³⁄₄" (106 cm)

48 47³⁄₄" (121.3 cm)

Do not use with water that is microbiologically unsafe or

of unknown quality without adequate disinfection before

or after the system. Systems certified for cyst reduction

may be used on disinfected waters that may contain

filterable cysts.

(2.54 cm) 6"

(15.2 cm)

24"

(61.0 cm)

FRONT VIEW

Width dimensions were measured from hinge to

hinge.

When leveling legs are fully extended to 1¹⁄₄" (3.2 cm)

below rollers, add 1¹⁄₄" (3.2 cm) to the height

dimensions.

MODEL WIDTH A HINGE EDGE TO HINGE EDGE

42 41³⁄₄" (106 cm)

48 47³⁄₄" (121.3 cm)

DOOR SWING DIMENSIONS

The location must permit both doors to open to a

minimum of 90°. Allow 4¹⁄₂" (11.4 cm) minimum space

between the side of the refrigerator and a corner wall.

NOTE : More clearance may be required if you are using

wood overlay panels, custom handles, or extended

handles.

MODEL A B C D

42 40³⁄₄"

(103.5 cm)

39³⁄₄"

(101.0 cm)

45³⁄₈"

(115.3 cm)

46³⁄₄"

(118.8 cm)

48 43¹⁄₄"

(109.9 cm)

42"

(106.7 cm)

48⁵⁄₈"

(123.5 cm)

50¹⁄₄"

(127.6 cm)

(see chart following)

*83³⁄₈"

(211.8 cm)

90˚

110˚

90˚

A CB D

Andere Handbücher für JS42NXFXDE

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Sprachen:

Andere Jenn-Air Kühlschrank Handbücher

Jenn-Air

Jenn-Air JS42SEDUDB01 Bedienungsanleitung

Jenn-Air

Jenn-Air JS42NXFXDW Bedienungsanleitung

Jenn-Air

Jenn-Air JUR248LBCX00 Bedienungsanleitung

Jenn-Air

Jenn-Air JS48PPDUDB01 Bedienungsanleitung

Jenn-Air

Jenn-Air JCB2587WEF00 Bedienungsanleitung

Jenn-Air

Jenn-Air JRS203 Bedienungsanleitung

Jenn-Air

Jenn-Air JKCPL301GM Bedienungsanleitung

Jenn-Air

Jenn-Air JBRFR24IGX Bedienungsanleitung

Jenn-Air

Jenn-Air DOUBLE REFRIGERATOR DRAWERS W10310149A Bedienungsanleitung

Jenn-Air

Jenn-Air 2289 Guide Bedienungsanleitung

Jenn-Air

Jenn-Air JUGFR242HM00 Bedienungsanleitung

Jenn-Air

Jenn-Air JFI2089AES2 Bedienungsanleitung

Jenn-Air

Jenn-Air JS42CXDUDB02 Bedienungsanleitung

Jenn-Air

Jenn-Air REFRIGERATOR Bedienungsanleitung

Jenn-Air

Jenn-Air jb36ssfxra Bedienungsanleitung

Jenn-Air

Jenn-Air JF42NXFXDW00 Bedienungsanleitung

Jenn-Air

Jenn-Air JCB2285KEF Bedienungsanleitung

Jenn-Air

Jenn-Air W10151249A Bedienungsanleitung

Jenn-Air

Jenn-Air JS42PPFXDA Bedienungsanleitung

Jenn-Air

Jenn-Air JCD2395WES01 Bedienungsanleitung

Jenn-Air

Jenn-Air JFX2897DRM Bedienungsanleitung

Jenn-Air

Jenn-Air JUD24FR S Series Bedienungsanleitung

Jenn-Air

Jenn-Air JFI2089AEP Bedienungsanleitung

Jenn-Air

Jenn-Air JFD2589KES Bedienungsanleitung

Beliebte Kühlschrank Handbücher anderer Marken

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Bedienungsanleitung

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Bedienungsanleitung

Sharp

Sharp SJ-BA31IEXW2-EU Bedienungsanleitung

CORBERO

CORBERO CC2300MCW Bedienungsanleitung

KitchenAid

KitchenAid 2205264 Bedienungsanleitung

Stengel

Stengel KU 1101 A++ Bedienungsanleitung

NEFF

NEFF KI181 Series Bedienungsanleitung

Hoshizaki

Hoshizaki Reach-In Bedienungsanleitung

Amana

Amana ASD2524VES00 Bedienungsanleitung

BOMANN

BOMANN KGC 213 Bedienungsanleitung

Danby

Danby DAR044A1SLDD Montageanleitung

Samsung

Samsung RF323TE Bedienungsanleitung

Beko

Beko CSA31022 Bedienungsanleitung

IKEA

IKEA FROSTIG C 185 E Bedienungsanleitung

Electrolux

Electrolux ER 6821 D Bedienungsanleitung

True

True TS-28 Bedienungsanleitung

Frigidaire

Frigidaire FSC23R5DW9 Bedienungsanleitung

Beko

Beko LSP4579W Bedienungsanleitung
