Jenn-Air JFC2089HPY12 Bedienungsanleitung

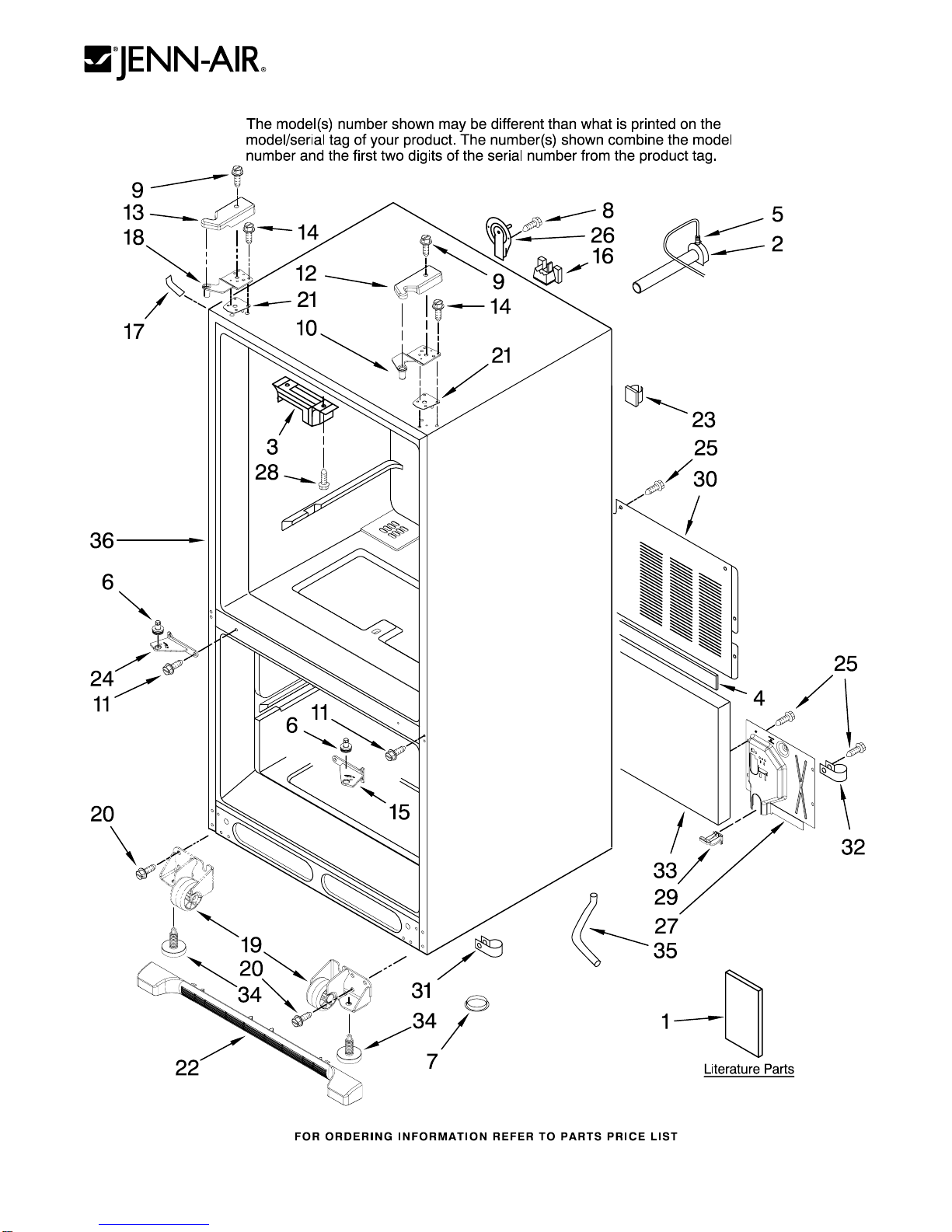

CABINET PARTS
1
For Models: JFC2089HPF12, JFC2089HPY12
(Frost White) (Black)
12−08 Litho In U.S.A. (mat)(bay) Part No. W10242321 Rev.A
REFRIGERATOR
CABINET PARTS
2
For Models: JFC2089HPF12, JFC2089HPY12
(Frost White) (Black)
W10242321
Illus. Part
No. No. DESCRIPTION
1 Literature Parts
67006616 Tech Sheet
W10137647
Owners Manual
67005575 Tag, Energy
2
W10137519
Elbow, Fill Tube
3 67003405 Block, Pivot
4 B5759649 Gasket
5 M0114003 Clip, Speed
6 67006642 Pin, Center Hinge
7 A3076901 Plug, Button
8 67006287 Screw
9 67006521 Screw
10
12626907ED
Hinge, Top Right
11 67006380 Screw (6)
12 Cover, Right Hinge
12629801W
White
12629801B
Black
13 Cover, Left Hinge
67007156 White
67006726 Black
14 67006303 Screw (6)
15 Hinge, Center (RT)
67002959 White
67002960 Black
16 67004092 Block, Fill Tube
17 Cover, Corner (2)
67003484 White
67003485 Black
18
12626908ED
Hinge, Top Left
19 Roller Assy.
(Front)
W10130459
Right
W10130460
Left
20 67006564 Screw (8)
21 12579702 Shim, Hinge
22 Grille, Toe
W10131133
White
W10131134
Black
23 M0104106 Clip (2)
24 Hinge, Center (LT)
67002959 White
67002960 Black
25 67006425 Screw (10)
26 67003331 Cover, Water Line
27 67004098 Cover, Water Valve
28 67006669 Screw (2)
29 67004101 Sweep, Dual Tube
30 67006101 Cover, Unit
31 67001067 Clip, Drain Tube
32 M0108105 Clamp, Tube
33 67003796 Insulation, Sound
34
W10141622
Brake, Foot
35 67001066 Tube, Drain
36 Cabinet (Not a
Servicable Part)

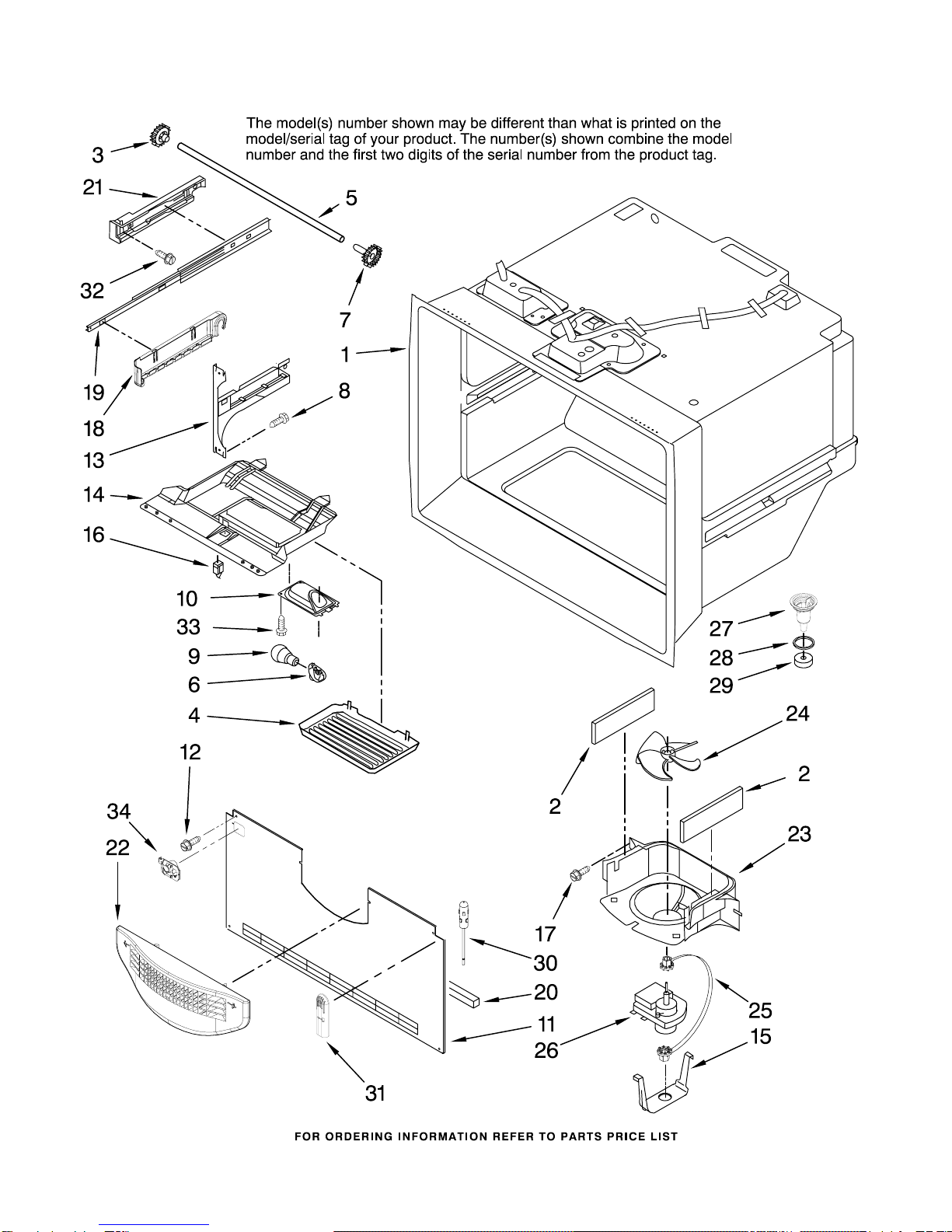

FREEZER LINER PARTS
3
For Models: JFC2089HPF12, JFC2089HPY12
(Frost White) (Black)
W10242321
FREEZER LINER PARTS
4
For Models: JFC2089HPF12, JFC2089HPY12
(Frost White) (Black)
W10242321
Illus. Part
No. No. DESCRIPTION
1 Liner (Not A
Seviceable Part)
2 67001291 Gasket, Foam
3 12002497 Gear (Left)
(Includes Item 7)
4 67003905 Cover, Light
5 67004017 Shaft
6
Y12570701
Socket, Light
7 12002497 Gear (Right)
(Includes Item 3)
8 67006473 Screw (8)
9 A0282812 Bulb, Light
10 67001035 Housing, Light
11 67005873 Cover, Evaporator
12 67006425 Screw (4)
13 Bracket, Door
W10119064
Left
W10119295
Right
14 67003906 Housing, Light
15
W10167028
Clip, Evap Motor
16 67005653 Switch, Light
17 67006287 Screw (2)
18 Cradle, Basket
67004728 Left
67004729 Right
19
W10180420
Slide, Drawer (2)
20 67002492 Gasket, Bottom
21 Adapter, Slide
67004971 Left
67004972 Right
22
W10175909
Grille, Fz Air
23
W10167023
Shroud, Evap Fan
24 2169142 Blade, Fan
(Evaporator)
25
W10121318
Grommet
26 67003636 Motor, Evaporator
27 D7753903 Funnel, Drain
28 M0500703 Seal
29 B8381501 Gasket
30 12002355 Thermistor
31 67003924 Cover, Thermistor
32 67006406 Screw (6)
33 67006530 Screw
34 67005874 Guide, Fill Tube
Following Parts Not Illustrated
67006095 Harness, Fz Module

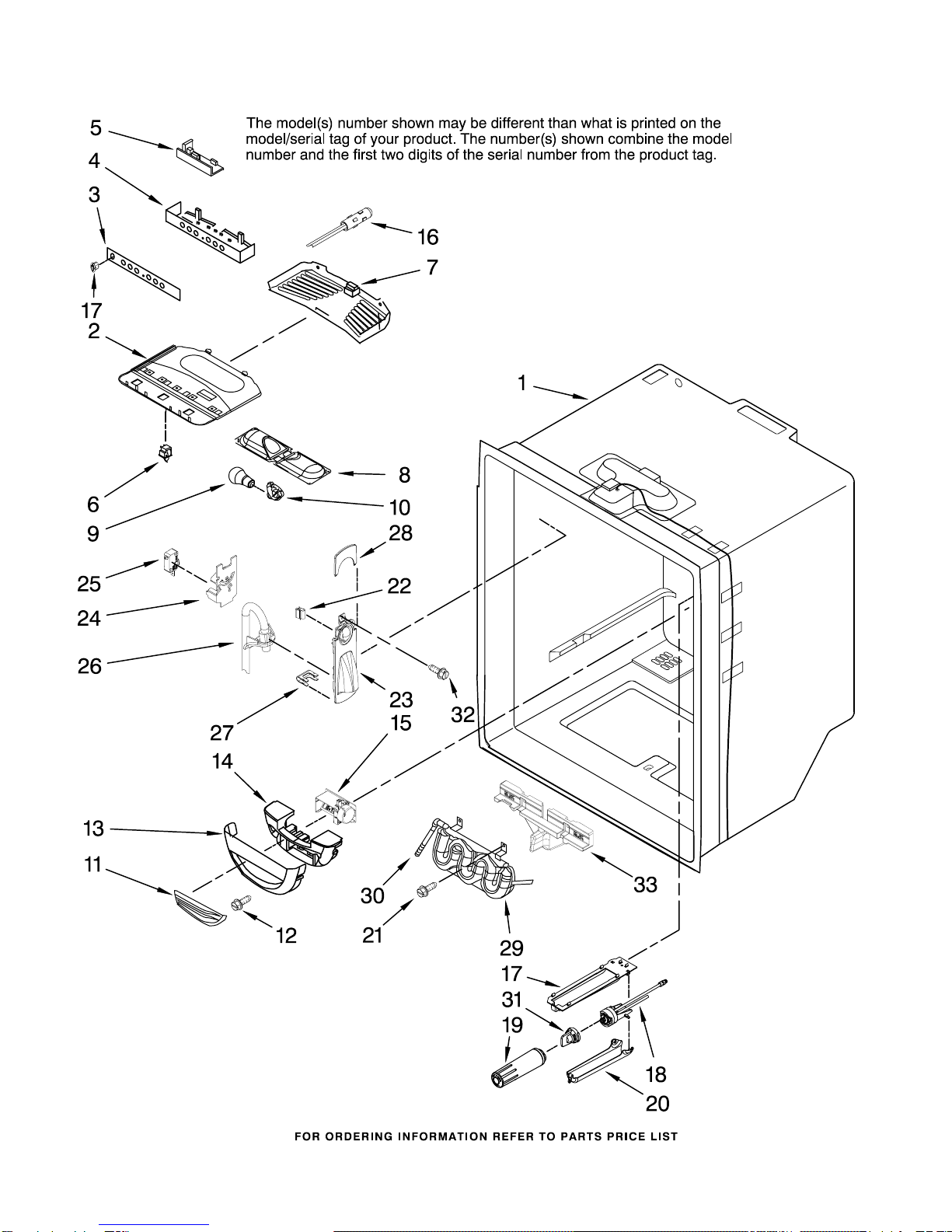

REFRIGERATOR LINER PARTS
5
For Models: JFC2089HPF12, JFC2089HPY12
(Frost White) (Black)
W10242321
REFRIGERATOR LINER PARTS
6
For Models: JFC2089HPF12, JFC2089HPY12
(Frost White) (Black)
W10242321
Illus. Part
No. No. DESCRIPTION
1 Liner (Not A
Serviceable Part)
2 67004078 Module, Light
3 67005445 Overlay
4 67005444 Housing, Control
5 67005397 Board, Control
6 C3680310 Switch, Light (2)
7 67003897 Cover, Light
8 67003901 Housing, Light
9 A0282812 Bulb, Light (2)
10
Y12570701
Socket, Light (2)
11 67003900 Insert,
Damper Cover
12 67006602 Screw
13 67003899 Cover, Damper
14 67006604 Insulation
15
W10127429
Control, Damper
16 12002355 Thermistor
17 67001668 Plate
18 67006524 Head, Water Filter
19
UKF8001AXX
Filter, Water
20 12568001 Cover, Filter
21 67006415 Screw (2)
22 B8390302 Clip, Facade (2)
23
W10158503
Facade, Disp.
24 67002742 Plate, Switch
25 12575501 Switch, Limit
26 67003728 Guide, Waterline
27 67002816 Clip, Waterline
28 67005674 Facade, Disp (Top)
29
W10153959
Tank, Water
30 61006182 Union
31 67003146 Plug, Bypass
32 67006400 Screw
33
W10163893
Insulation, Water
Tank
Following Parts Not Illustrated
67005417 Harness, Control
(Refrigerator)

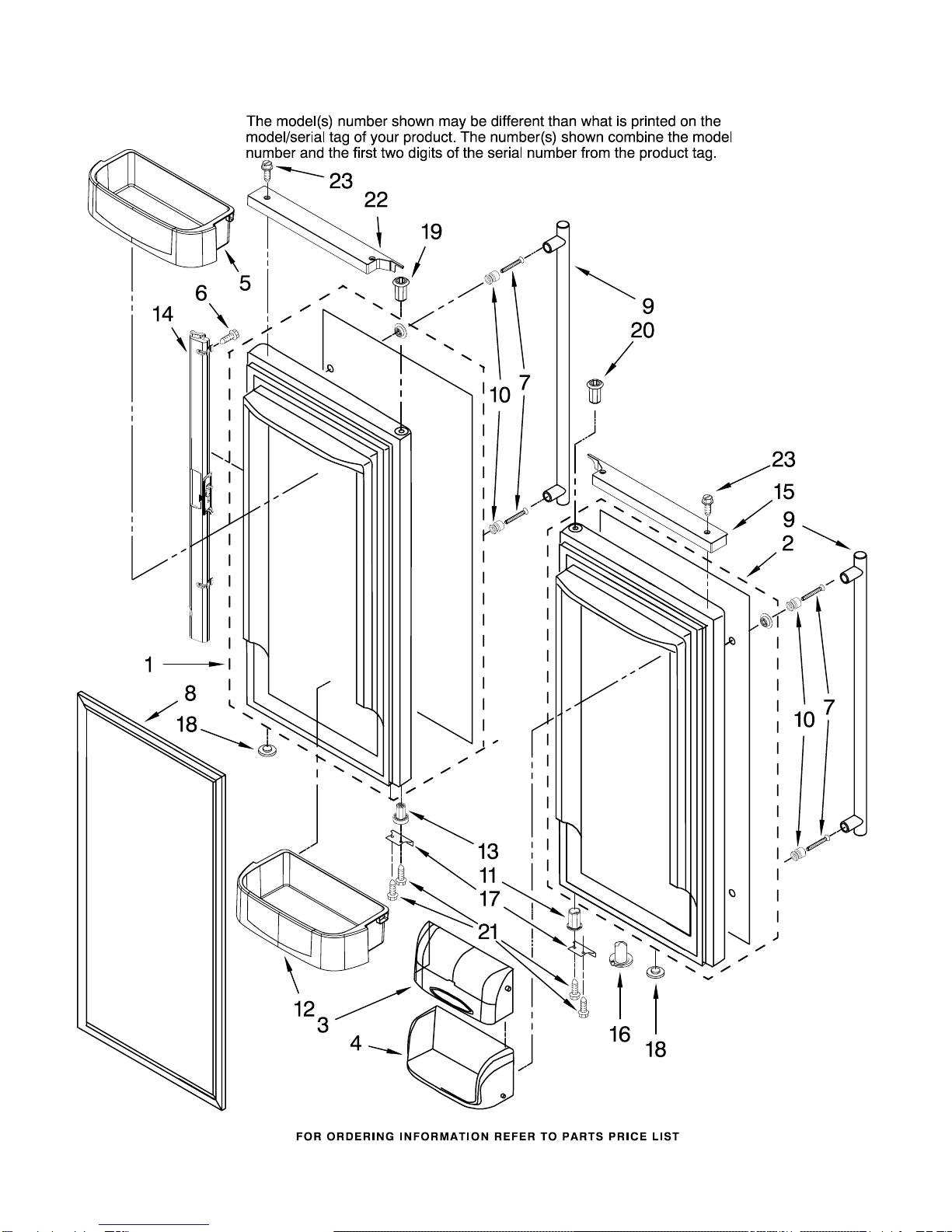

REFRIGERATOR DOOR PARTS
7
For Models: JFC2089HPF12, JFC2089HPY12
(Frost White) (Black)
W10242321
REFRIGERATOR DOOR PARTS
8
For Models: JFC2089HPF12, JFC2089HPY12
(Frost White) (Black)
W10242321
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 Door, Left
W10133891
White
W10133892
Black
2 Door, Right
W10133894
White
W10133895
Black
3 67003637 Door, Dairy
4 67001279 Tray, Dairy
5 67004748 Bin, Shelf (3)
(Medium)
6 67006786 Screw
7
W10133608
Screw
8 Gasket, Door (2)
W10137006
White
12723206B
Black
9 Door Handle
12850910 Stainless
10 67006109 Mount, Handle
11 Bushing, Door
(Bottom Right)
67002732 White
67002731 Black
12 67004749 Bin, Shelf (2)
(Gallon)
13 Bushing, Door
(Bottom Left)
67002722 White
67002721 Black
14 Mullion, Door
67003263 White
67003264 Black
15 Extension, Door
(Right)
67005570 White
67005569 Black
16 Closure, Door
67003638 White
67003639 Black
17 Stop, Door
67003779 White
67003780 Black
18 Plug, Button
10712401 White
67004838 Black
19 Bushing, Door
(Upper Left)
8208313 White
12395501B
Black
20 Bushing, Door
(Upper Right)
67004977 White
67004978 Black
21 67006287 Screw
22 67005567 Extension, Door
(Left−Black)
67005568 White
67005567 Black
23 67006679 Screw, Extension

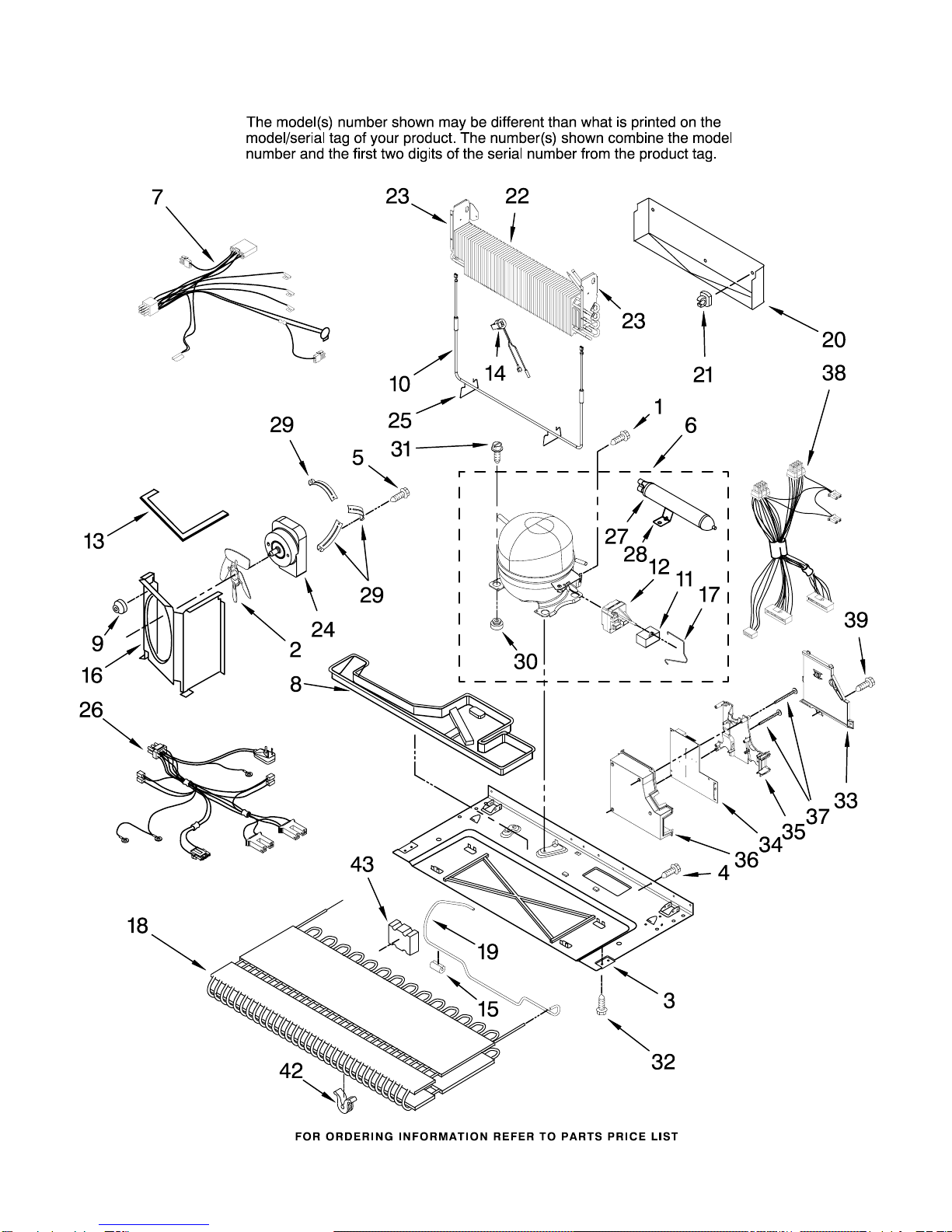

UNIT PARTS
9
For Models: JFC2089HPF12, JFC2089HPY12
(Frost White) (Black)
W10242321
UNIT PARTS
10
For Models: JFC2089HPF12, JFC2089HPY12
(Frost White) (Black)
W10242321
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 67006433 Screw
2
W10162928
Blade, Fan
3 67005889 Basepan
4 67006425 Screw (2)
5 67004954 Screw (3)
6 67005565 Compressor
(Includes items
11,12,17,27, &
30)
7
W10119857
Harness, Evap
Heater
8 67007175 Pan, Drain
9 61004743 Grommet (3)
10 67002493 Heater, Defrost
11 67005562 Capacitor
12 67005561 Relay Assy.
13 61003210 Gasket
14
W10165425
Thermostat,
Defrost
15 67005680 Grommet (2)
16
W10158508
Shroud
17 67007052 Clip, Capacitor
18 67006131 Condenser
19 67004700 Tube, Discharge
20 67002490 Tray, Drip
21 10623002 Clip, Evaporator
22 12002041 Evaporator Kit
(Incl. Evap., Heat
Shield, & Instr.
Sheet)
23 Dam
67001084 Right Side
67001083 Left Side
24 67004432 Motor, Fan
25 10428101 Clip, Heater
26 13060201 Harness, Unit
With Power Cord
27 2317845 Drier
28 10547003 Clip, Drier
29 67004953 Bracket, Fan Motor
30 67003493 Grommet (4)
31 67006432 Screw (3)
32 67006573 Screw (4)
33 67005421 Cover, HV Box
34
W10173398
Board, HV Control
(Inc. Inst. Sheet)
35 67005418 Spacer, HV Box
36 67004969 Box, HV
37 67006550 Screw (2)
38 67005419 Harness, HV
39 67006615 Screw, Cover
42
W10137529
Grommet, Cond (4)
43 67005491 Block, Condenser
Following Parts Not Illustrated
and Optional Parts Not Included
978025 Valve, Access
(1/4")
978026 Valve, Access
(5/16")
978027 Valve, Access
(3/8")
978028 Valve, Access
(1/2")
978029 Valve, Access
(5/8")
978030 Valve, Access
(3/4")
876764 Valve, Access
(3/16")
REFRIGERANT CHARGE
5.0 Ozs.
(R−134A)
