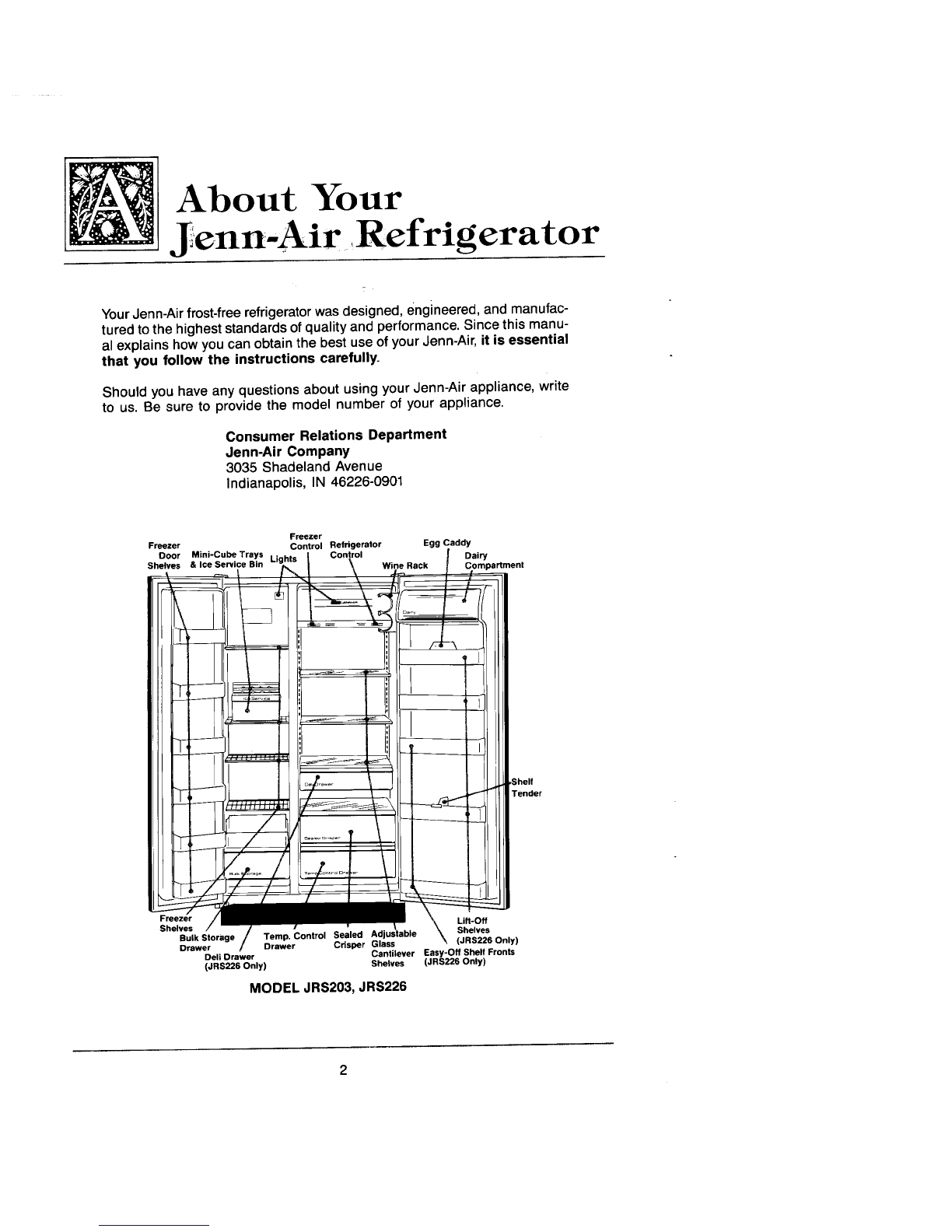

_ About Your .

_[enn-Alr Refrigerator

Your Jenn-Air frost-free refrigerator was designed, engineered, and manufac-

tured to the highest standards of quality and performance.Since this manu-

al explains how you can obtain the best use of your Jenn-Air, it isessential

that you follow the instructions carefully.

Should you haveany questions about using your Jenn-Air appliance, write

to us. Be sure to provide the model number of your appliance.

Consumer Relations Department

Jenn-Air Company

3035 Shadeland Avenue

Indianapolis, IN 46226-0901

Freezer

Freezer Control Refrigerator Egg Caddy

Door Mini-Cube Trays Lk Dairy

Shelves & Ice Service Bin •

:_] 'II

•-_ _______ I

TV__ TenOer

/J'

Fre

Shelves /-_ _ Lift-Off

Bulk SIorage / Temp. Conlrol Sealed \Shelves

Drawer /Drawer Crisper Glass (JRS226 Only)

Dell Drawer Cantilever Easy-Off Shelf Fronts

(JRS226Only) Shelves (JRS226 Only)

MODEL JRS203,JRS226

Convenience

Center Freeze r Automatic Ice Maker

Door " and Automatic Freezer Refrigerator

Shelves Dispenser Bin Control Control Egg Dairy

Wine Rack Caddy Compartment

IShelf

Tender

/Lift-Off Shelves

Freezer Bulk .Control Sealed able

Shelves Storage Drawer Drawer Crisper Glass Easy-Off

Drawer Cantilever Shelf Fronts

Shelves

MODEL JRSD226

Installat o

Location

If you are installing your new refrigerator yourself, please follow these helpful suggestions.

1. Remove base skids and reinsert two front levelers. Discard two rear levelers.

2.Remove all exterior and interior tape carefully and retain old tape.Make a small pad

of this tape to pick off any remaining tape residues.This will eliminate the need to

use dangerous solvents of any kind.

3. Remove and discard cantilever shelf ll,,i,,lll_ll I

packing clips located just above

each shelf where it hooks onto the

frame. To remove red plastic clip,

wiggle sideways and pull straight

out.

4. Select a location for your new refrigerator away from any heat sources. Allow a free

flow of air through the front base grille.

5. Your model should not be installed where the room temperature will go below 55OF.

because it will not run frequently enough to maintain proper temperature in the freezer.

Important Leveling Information

To enhance its appearance, maintain effi-

cient performance, and for proper function

of the ice maker, your refrigerator should

be level. Usingacarpenter's level, check I TURNCLOCKWISETO

your refrigerator to make sure it is level front __ _ _I_I_ER

to back and side to side. The front wheels

were adjusted at the factory so the doors

were properly aligned and the cabinet lev-

el. However, jarring in transit, or standing

the refrigerator on an uneven floor may

cause the doors to shift out of alignment. URNCOUNTER-CLOCKWISE

TO RAISE CABINETCORNER

If door alignment or leveling is necessary,

remove the base grille and adjust the

wheels with a screwdriver as shown (right).

To lock the cabinet in place, turn down one or both leveler feet, located near the front

wheels.Rear leveler feet are not required.

TOCORRECTTHIS TOCORRECTTHIS

CONDITION,RAISE CONDITION,RAISE

RIGHTCORNERAND LEFTCORNERAND

/ORLOWERLEFT /ORLOWERRIGHT

CORNERUNTIL CORNERUNTIL

DOORSALIGN DOORSALIGN

ACROSSTOPOF ACROSSTOPOF

CABINET. CABINET.

Electrical Connection

and Grounding POWERSUPPLYCORD

WITH. 3-PRONG /i\

Thisappliance isdesigned to operate on a GROUNDINGPLUG"

nominal 115volt, 15amp, 60cycle line. There \| II,)

should be a separate, grounded circuit, serv-

ing this appliance only. DO NOT use an ex-

tension cord. /"",

This appliance is equipped with a three-\11 II)

pronged grounding plug for your protection

against possible electrical shock hazards. It GROUNDINGTYP

must be plugged intoa groundingreceptacle. WALLRECEPTACLE

Where a standard two prong wall receptacle*LOCATIONOFPRONGSONPOWERCORD

iSencountered,it isthe personalresponsibil-PLUGMAYBEDIFFERENTONYOURMODELTHAN SHOWN HERE.

ity and obligation of the customer to have it

replaced with a properly grounded three-prong wall receptacle. DO NOT,under any cir-

cumstances, cut or remove the third (ground) prong from the power cord.

DO NOT use an adapter plug.

]¥im Kits (Models JRS226, JRSD226 Only)

Your refrigerator has been designed so that black door panels, custom cabinet panels

(up to 1/4"thick) or anycustom panel (up to .060" thick) can be easily installed. Toinstall

either custom cut black door panels or decorator trim kit for custom cabinet panels, ord-

er the appropriate kit listed below.The kit contains the installation instructions.Toinstall

a custom panel for example formica, stainless steel or others (up to .060" thick), refer

to the enclosed cutout and installation sheet.

Note: Read all cutout and installation instructions before cutting custom panels.

For JRS226 you will want to order:

Model BDS22-02 - Black door panel kit.

Model DTS22-02- Decorator trim kit.(Tobe used with custom cabinet panels up to 1/4"

thick.)

For JRSD226 you will want to order:

Model BDS22D-02 - Black door panel kit.

Model DTSD22-02-Decoratortrim kit.(To be used with custom cabinet panels up to 1/4"

thick.)

Oporat,o°

Setting Controls

Your new refrigerator has two controls.

One for regulating the temperature in ..................... ,,.--G I_ E I

the refrigerator compartment and one ...... 0_..............,........... i

for the freezer compartment.Both con-

trols are located at the upper rear of the

refrigerator compartment, just below the

light shield. _ 543 21 .................

-- ' TURN freez,, con,rolto ng,t HIGHERnumbe,

To start your refrigerator, set the refrig-I

erator control on "F"and set the freez-

er control on "4".

IMPORTANT:In a day or so, you may decide that one or both compartments should

be colder or warmer. DO NOT change either control more than one letter or one number

at a time.Allow 24 hours for temperature to stabilize before adjusting the setting again.

This does not apply when you first start your refrigerator.

To turn off your refrigerator, set the refrigerator control on off.

Warm Cabinet Surfaces

At times, the front surfaces of your refrigerator cabinet may be warm to the touch. This

is a normal function of your refrigerator. This feature prevents moisture from condensing

on the outside of your refrigerator during humid weather.This condition may be noticea-

ble when you first start your refrigerator, during hot weather, and during excessive or

lengthy door openings.

Energy Tips

For efficient energy use:

1. Be sure refrigerator is level and ventilation around front grille is not blocked.

2.Check door seals occasionally for leakage. Check at various places, top, bottom,

and sides.

3. Check the temperature; avoid unnecessary cold settings.

4.Keep freezer full to near capacity, less cold air is lost during door openings.

5. Let hot dishes cool before putting into refrigerator or freezer.

6. Cover liquids; if uncovered, the unit must work longer.

7. Clean refrigerator condenser coils at least twice a year.

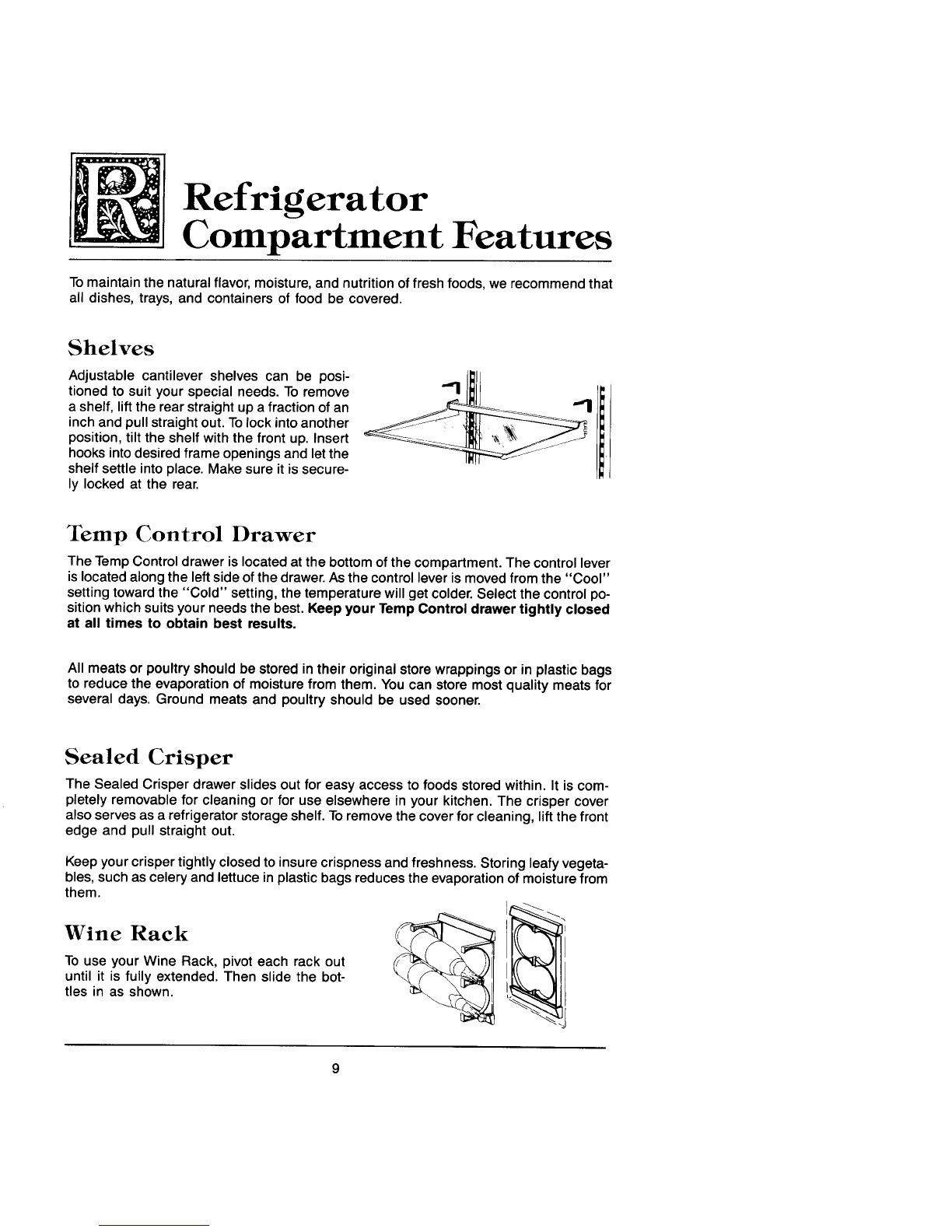

Refrigerator

Compartment Features

To maintain the natural flavor, moisture, and nutrition of fresh foods, we recommend that

all dishes, trays, and containers of food be covered.

Shelves

Adjustable cantilever shelves can be posi- _AI_I] i

tioned to suit your special needs. To remove

a shelf, lift the rear straight up a fraction of an

inch and pull straight out.To lock into another

position, tilt the shelf with the front up. Insert

hooks into desired frame openings and let the

shelf settle into place. Make sure it is secure-

ly locked at the rear.

Temp Control Drawer

The Temp Control drawer is located at the bottom of the compartment. The control lever

is located along the left side of the drawer.As the control lever is moved from the "Cool"

setting toward the "Cold" setting, the temperature will get colder.Select the control po-

sition which suits your needs the best.Keep your Temp Control drawer tightly closed

at all times to obtain best results.

All meats or poultry should be storedin theiroriginalstorewrappings orin plastic bags

to reduce the evaporation ofmoisturefrom them. You can store most quality meats for

several days. Ground meats and poultry should be used sooner.

Sealed Crisper

The Sealed Crisper drawer slides out for easy access to foods stored within. It is com-

pletely removable for cleaning or for use elsewhere in your kitchen. The crisper cover

also serves as a refrigerator storage shelf. To remove the cover for cleaning, lift the front

edge and pull straight out.

Keep your crisper tightly closed to insure crispness and freshness.Storing leafy vegeta-

bles, such as celery and lettuce in plastic bags reduces the evaporation of moisture from

them.

To use your Wine Rack, pivot each rack out

until it is fully extended. Then slide the bot-

tles in as shown.

Door Features

Easy-Off Shelf Fronts ' E_

(Models JRS226 and

JRSD226 Only) \

Doorshelffrontscan be removedforeasyclean-

ingof the door liner and shelf fronts.Lift the shelf

front straight up until itclearsthe retainerson the

door liner and pull straight out.Reverse this

procedure when replacing the door shelf front.

Lift-Off DoorShelves_ _

(Models JRS226 and

JRSD226 Only)

Lift-offshelvesmay be easilyadjustedto another _/

position on thedoor.Lift itstraightup until itclears

the retainers on thedoor liner and pull straight

out. Reverse this procedure when replacing a

shelf.

Cover (ModelJRSD226 Only)

h cover is located on one ofthe large adjustable shelves on the refrigerator door.It pro-

vides short term storage of fresh foods.Keep the lid tightly closed to insure freshness

of your foods.

Egg Caddy

Your model has an egg caddy that fits securely on a door shelf. This tray can be re-

moved and carried to your working area.

Automatic Door Closers

All doors contain built-in mechanisms that automatically pull them completely shut once

they areclosedtowithin 6 inchesof thecabinet.All doorsalso havemagneticdoor gaskets

that cling to the cabinet front.

These featurescombine to insure complete door closures and air tight seals all around.

It is always important that your refrigerator is reasonably level for the door closers to

function properly.

Magnetic Door Gaskets

Door gaskets are magnetized to insure an air tight seal all around. These gaskets cling

to the cabinet front, once the doors are closed to within their magnetic range.

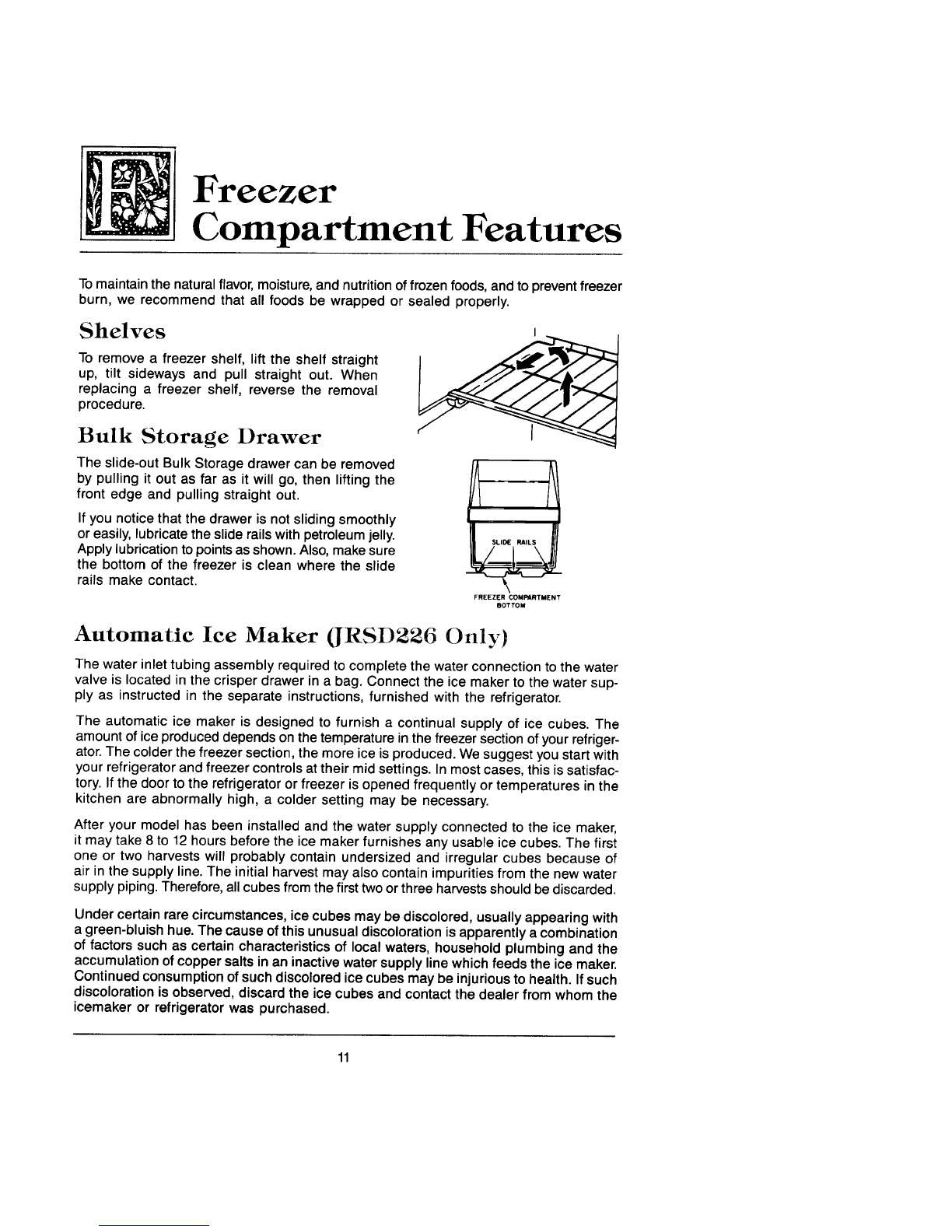

Freezer

Compartment Features

Tomaintain the natural flavor, moisture, and nutrition of frozen foods, and to prevent freezer

burn, we recommend that all foods be wrapped or sealed properly.

Shelves

To remove a freezer shelf, lift the shelf straight I ,_'/_m_'/1_3::_

up, tilt sideways and pull straight out. When

replacing a freezer shelf, reverse the removal

procedure.

Bulk Storage Drawer

The slide-out Bulk Storage drawer can be removed IA I_1

by pulling it out as far as it will go, then lifting the

front edge and pulling straight out.

If you notice that the drawer is not sliding smoothly

or easily, lubricate the slide rails with petroleum jelly.

Apply lubrication to points as shown.Also, make sure

the bottom of the freezer is clean where the slide

rails make contact.

FREEZER COMP&BTMENT

BOTTOM

Automatic Ice Maker (JRSD226 Only)

The water inlet tubing assembly required to complete the water connection to the water

valve is located in the crisper drawer in a bag.Connect the ice maker to the water sup-

ply as instructed in the separate instructions, furnished with the refrigerator.

The automatic ice maker is designed to furnish a continual supply of ice cubes.The

amount of ice produced depends on the temperature in the freezer section of your refriger-

ator. The colder the freezer section, the more ice is produced.We suggest you start with

your refrigerator and freezer controls at their mid settings. In most cases, this is satisfac-

tory. If the door to the refrigerator or freezer is opened frequently or temperatures in the

kitchen are abnormally high, a colder setting may be necessary.

After your model has been installed and the water supply connected to the ice maker,

it may take 8 to 12 hours before the ice maker furnishes any usable ice cubes. The first

one or two harvests will probably contain undersized and irregular cubes because of

air in the supply line. The initial harvest may also contain impurities from the new water

supply piping. Therefore, all cubes from the first two or three harvests should be discarded.

Under certain rare circumstances, ice cubes may be discolored, usually appearing with

agreen-bluish hue. The cause of this unusual discoloration is apparently a combination

of factors such as certain characteristics of local waters, household plumbing and the

accumulation of copper salts in an inactive water supply line which feeds the ice maker.

Continued consumption of such discolored ice cubes may be injurious to health. If such

discoloration is observed, discard the ice cubes and contact the dealer from whom the

icemaker or refrigerator was purchased.

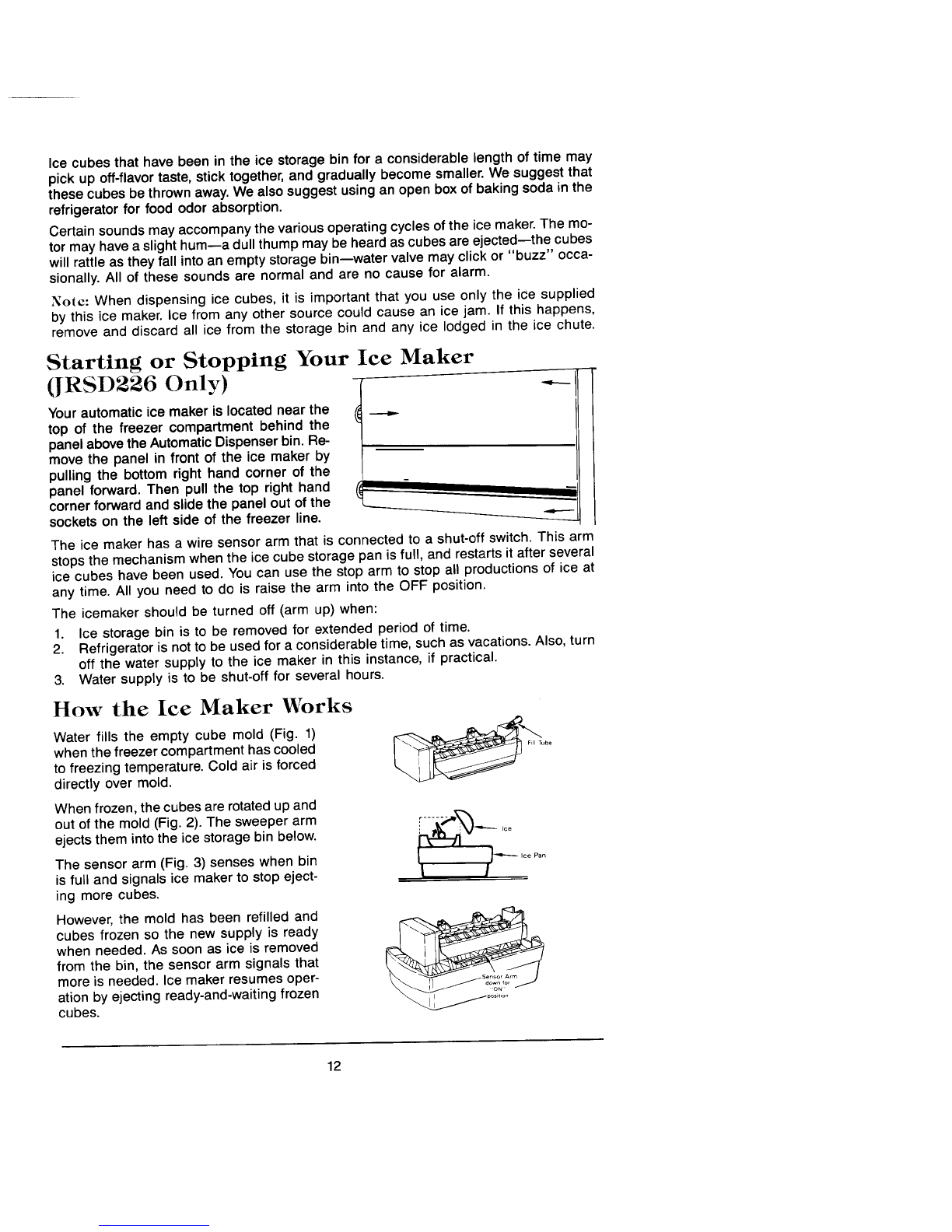

Icecubesthat havebeenintheicestoragebin foraconsiderable length of time may

pick up off-flavor taste, stick together, and gradually become smaller. We suggest that

these cubesbe thrown away. We also suggest using an open box of baking soda in the

refrigerator for food odor absorption.

Certain sounds may accompany thevarious operating cycles of the ice maker. Themo-

tor may have a slight hum--a dull thump may be heard as cubes are ejected--the cubes

will rattle as they fall into an empty storage bin--water valve may click or "buzz" occa-

sionally. All of these sounds are normal and are no cause for alarm.

Note: When dispensing ice cubes, it is important that you use only the ice supplied

by this ice maker.Ice from any other source could cause an ice jam. If this happens,

remove and discard all ice from the storage bin and any ice lodged in the ice chute.

Starting or Stopping Your Ice Maker

0RSD226 Only)

Your automatic ice maker is located near the _

top of the freezer compartment behind the

panel above the Automatic Dispenser bin. Re-

move the panel in front of the ice maker by

pulling the bottom right hand corner of the

panel forward.Then pullthe top right hand

corner forward and slide the panel out of the

sockets on the left sideof thefreezer line. 4---

Theice maker has awiresensor arm that is connected to ashut-off switch. Thisarm

stops the mechanism when the ice cube storage pan is full, and restarts it after several

ice cubes have been used.You can use the stop arm to stop all productions of ice at

any time. All you need to do is raisethe arm into theOFF position.

Theicemaker should be turned off (arm up) when:

1. Ice storage bin is to be removed for extended period of time.

2. Refrigerator is not to be used for a considerable time, such as vacations. Also, turn

off the water supply to the ice maker in this instance, if practical.

3. Water supply is to beshut-off for severalhours.

How the Ice Maker Works

Water fills the empty cube mold (Fig. 1) _ _'_,_u

when the freezer compartment has cooled _ be

to freezing temperature. Cold air is forced

directly over mold.

When frozen, the cubes are rotated up and

out of the mold (Fig. 2). The sweeper arm ._......

ejects them into the icestorage bin below._ v_'°e

The sensor arm (Fig. 3) senses when bin /l_ ......

is full and signals ice maker to stop eject- _,

ing more cubes.

However, the mold has been refilled and .__._ _ _

cubes frozen so the new supply is ready

when needed.As soon as iceis removed

from the bin, the sensor arm signals that

more is needed.Ice maker resumes oper-

ation by ejecting ready-and-waiting frozen

cubes. _ ........

Removing and Replacing the Automatic

Ice Cube Dispenser Bin (]RSD226 Only)

Lift the front of the Automatic Dispenser bin and pull it straight out.Wash the bin occa-

sionally in mild soap and lukewarm water. Toreplace the bin, push it all the way back

until the bottom ofthe bin is behind the raised edge at the front ofthe shelf it restsupon.

Make sure the tabs, at the back ofthe bin, that turn the spiral auger are positioned be-

tween the prongs from the auger motor.

Operating Your Automatic Ice Cube Dispenser

(]RSD226 Only)

Preventice cubes from missingyourglass by hold-

ing it as high as possible (just below the ice chute).

Pressthe glassagainstthe padded leverat the left IH

sideofthefountain.Tostopdispensingice,release

pressurejust enoughto stopthe dispensermotor

and leavethe glassin place toholdthe dooropen

untilicestopsfalling.With a littlepractice,you will

learntoanticipatewhen toreleasepressuretopre-

ventan unwanteddispenseofice,whichoccurseach

oneand onehalfseconds.

After installation,it may take1 to 2 daysto fill the

AutomaticDispenserbinwithcubes.

Operating Your Water Dispenser (lRSD226 Only)

Todispensewater,press a containeragainst the pad-

ded lever at the right side of the fountain.To stop the

water flow, release pressure.To minimize splashing,

hold the container as high as possible.

When you first operate your dispenser or after recon-

necting water to your refrigerator,air will escape from

the dispenser for a few minutes beforewater begins to

flow. Draw 10glasses of water and empty them in the

kitchensink.Thiswill insurecompletefilling ofthe reser-

voir with fresh water.

Spill Tray

Do notdiscard water into the grille at the bottom of the fountain. This is a spill area,

not a drain. Normal spills will be evaporated in the recessed area below the spill shelf

grille. Excessive spills should be removed with an absorbent sponge or cloth.The spill

area should be cleaned occasionally.

Fountain Light

The push button light switch is located behind the panel at the top and on the right side

of your fountain. For replacement, use a 120v, 7 watt bulb.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Jenn-Air Kühlschrank Handbücher

Jenn-Air

Jenn-Air JUDFP242HM Bedienungsanleitung

Jenn-Air

Jenn-Air W10231365B Bedienungsanleitung

Jenn-Air

Jenn-Air JB36NXFXLW01 Bedienungsanleitung

Jenn-Air

Jenn-Air JCB2582WTF Bedienungsanleitung

Jenn-Air

Jenn-Air REFRIGERATOR Bedienungsanleitung

Jenn-Air

Jenn-Air SIDE BY SIDE Bedienungsanleitung

Jenn-Air

Jenn-Air JS42NXFXDW00 Bedienungsanleitung

Jenn-Air

Jenn-Air UNDER COUNTER REFREGERATOR Bedienungsanleitung

Jenn-Air

Jenn-Air JCB2581WES00 Bedienungsanleitung

Jenn-Air

Jenn-Air JFC2089HT Benutzerhandbuch

Jenn-Air

Jenn-Air REFRIGERATOR Bedienungsanleitung

Jenn-Air

Jenn-Air JF42NXFXDW00 Bedienungsanleitung

Jenn-Air

Jenn-Air SIDE BY SIDE BUILT-IN Bedienungsanleitung

Jenn-Air

Jenn-Air JSC23C9EEM Bedienungsanleitung

Jenn-Air

Jenn-Air jb36ssfxra Bedienungsanleitung

Jenn-Air

Jenn-Air JB36NXFXLW Stücklistenhandbuch

Jenn-Air

Jenn-Air JFI2589AEP10 Bedienungsanleitung

Jenn-Air

Jenn-Air UKF8001AXX Bedienungsanleitung

Jenn-Air

Jenn-Air JS42NXFXDW10 Bedienungsanleitung

Jenn-Air

Jenn-Air Refrigerators Bedienungsanleitung

Jenn-Air

Jenn-Air JUD278DBCX00 Bedienungsanleitung

Jenn-Air

Jenn-Air JFFCC72EFS00 Bedienungsanleitung

Jenn-Air

Jenn-Air JSD2695KGB Bedienungsanleitung

Jenn-Air

Jenn-Air JBZFR18IGX Bedienungsanleitung

Beliebte Kühlschrank Handbücher anderer Marken

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Bedienungsanleitung

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Bedienungsanleitung

Sharp

Sharp SJ-BA31IEXW2-EU Bedienungsanleitung

CORBERO

CORBERO CC2300MCW Bedienungsanleitung

KitchenAid

KitchenAid 2205264 Bedienungsanleitung

Stengel

Stengel KU 1101 A++ Bedienungsanleitung

NEFF

NEFF KI181 Series Bedienungsanleitung

Hoshizaki

Hoshizaki Reach-In Bedienungsanleitung

Amana

Amana ASD2524VES00 Bedienungsanleitung

BOMANN

BOMANN KGC 213 Bedienungsanleitung

Danby

Danby DAR044A1SLDD Montageanleitung

Samsung

Samsung RF323TE Bedienungsanleitung

Beko

Beko CSA31022 Bedienungsanleitung

IKEA

IKEA FROSTIG C 185 E Bedienungsanleitung

Electrolux

Electrolux ER 6821 D Bedienungsanleitung

True

True TS-28 Bedienungsanleitung

Frigidaire

Frigidaire FSC23R5DW9 Bedienungsanleitung

Beko

Beko LSP4579W Bedienungsanleitung
