IOM3711 Input/Output Module Installation Guide
Application
The IOM37 input/output expansion module is a part of the
Metasys® system Field Equipment Controller family. Input/
Output Module (IOM) expansion modules expand the
number of I/O points connected to a Network Automation
Engine (NAE), Network Control Engine (NCE), Field
Equipment Controller (FEC), VAV Modular Assembly (VMA),
or Advanced Application Field Equipment Controller (FAC)
to monitor and control a wide variety of HVAC equipment.
IOM expansion modules operate on an RS-485 BACnet®
MS/TP Bus and integrate into Johnson Controls® and
third-party BACnet systems.
Note: At CCT Release 10.1 and later, a new capability
was introduced allowing VMAs, FECs, and FACs to
communicate by using either the BACnet or the N2
field bus networking protocol. The operation of the
Input/Output Module (IOM) is not affected by the
selection of the BACnet or the N2 protocol in the host
controller, when the (IOM) is connected to the host
controller using the SA bus. Only the BACnet protocol
is supported when the (IOM) is connected directly to
the trunk using the FC bus.
Important: In Metasys system smoke control
applications, use only the MS-IOM3710-0U and MS-
IOM3711-0U at Metasys Release 8.1 that are UL 864
UUKL/UUKLC 10th Edition Smoke Control Listed. For
Metasys system smoke control applications, you must
refer to the Metasys System UL 864 UUKL Tenth Edition
Smoke Control System Technical Bulletin (LIT-12012487)
for detailed requirements and procedures for
installing, commissioning, and operating UL 864
UUKL Listed Metasys system devices. The UL 864
UUKL listing for Smoke Control Equipment is voided
if (1) you do not use the required software tools
at the required versions; or (2) you do not meet
the requirements or do not follow the procedures
as documented in the Metasys System UL 864 UUKL
Tenth Edition Smoke Control System Technical Bulletin
(LIT-12012487).
North American Emissions Compliance
Canada
This Class (A) digital apparatus meets all the
requirements of the Canadian Interference-Causing
Equipment Regulations.
Cet appareil numérique de la Classe (A) respecte toutes
les exigences du Règlement sur le matériel brouilleur du
Canada.
United States
This equipment has been tested and found to comply
with the limits for a Class A digital device pursuant to
Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful
interference when this equipment is operated in a
commercial environment. This equipment generates,
uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instruction
manual, may cause harmful interference to radio
communications. Operation of this equipment in a
residential area may cause harmful interference, in which
case the users will be required to correct the interference
at their own expense.
Installation
Observe these guidelines when installing an expansion
module:
• Transport the expansion module in the original
container to minimize vibration and shock damage.
• Verify that all parts shipped with the expansion module.
• Do not drop the expansion module or subject it to
physical shock.
Parts included
• One expansion module with removable terminal blocks
(Power and SA/FC bus are removable)
• One installation instructions sheet
Materials and special tools needed
• Three fasteners appropriate for the mounting surface
(M4 screws or #8 screws)
• One 20 cm (8 in.) or longer piece of 35 mm DIN rail and
appropriate hardware for DIN rail mount (only)
• Small straight-blade screwdriver for securing wires in
the terminal blocks
Physical feature graphic and table
*241014484N*
Part No. 24-10144-84 Rev. N
2019-10-01
(barcode for factory use only)
MS-IOM3711-x

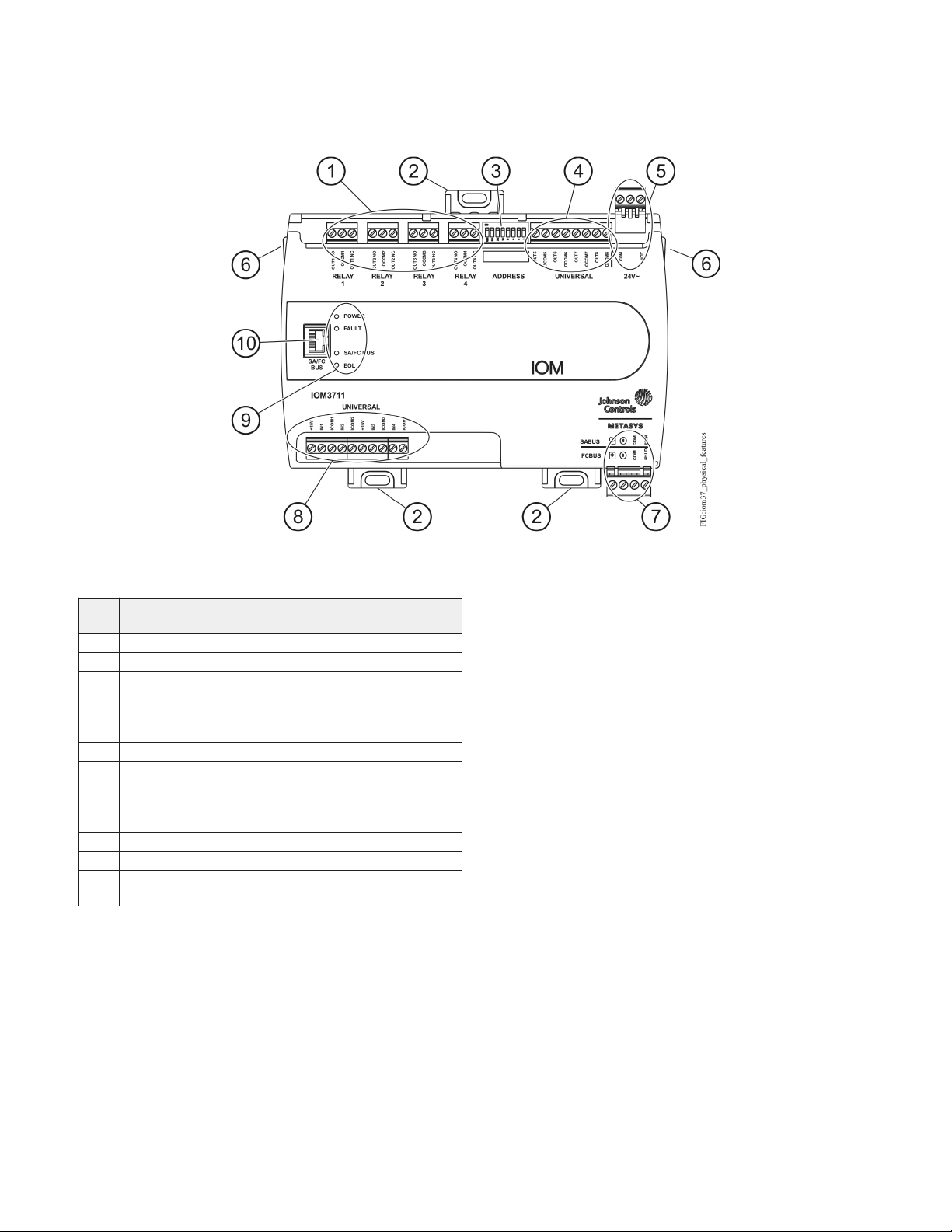

Figure 1: IOM3711 physical features
Table 1: IOM3711 Physical features
Callo
ut Physical features: description and references
1 Relay Output Terminal Blocks (See Table 2)
2 Mounting Clip
3Device Address DIP Switch Block (See Setting the device
addresses)
4Universal Outputs (UOs) Terminal Blocks (See Input and
Output terminal blocks)
5 24 VAC, Class 2 Supply Power Terminal Block (See Table 4)
6Cover Lift Tab (See Removing the Expansion Module
cover)
7Sensor Actuator (SA) Bus or Field Controller (FC) Bus
Terminal Block (See Table 4)
8 Universal Inputs (UI) Terminal Blocks (See Table 2)
9 Light-Emitting Diode (LED) Status Indicators (See Table 7)
10 Sensor Actuator (SA) Bus / Field Controller (FC) Bus Port
(RJ-12 6-pin Modular Jack) (See Table 4)
Mounting
Observe these guidelines when mounting an expansion
module:
• Ensure the mounting surface can support the
expansion module, DIN rail, and any user-supplied
enclosure.
• Mount the expansion module horizontally on 35 mm
DIN rail whenever possible.
• Mount the expansion module in the proper mounting
position (Figure 2).
• Mount the expansion module on a hard, even surface
whenever possible in wall-mount applications.
• Use shims or washers to mount the expansion module
securely and evenly on the mounting surface.
• Mount the expansion module in an area free of
corrosive vapors and observe the Ambient Conditions
requirements in Table 10.
• Provide for sufficient space around the expansion
module for cable and wire connections for easy cover
removal and good ventilation through the expansion
module (50 mm [2 in.] minimum on the top, bottom,
and front of the expansion module).
• Do not mount the expansion module on surfaces prone
to vibration, such as duct work.
• Do not mount the expansion module in areas where
electromagnetic emissions from other devices or wiring
can interfere with expansion module communication.
Observe these additional guidelines when mounting a
expansion module in a panel or enclosure:
• Mount the expansion module so that the enclosure
walls do not obstruct cover removal or ventilation
through the expansion module.
• Mount the expansion module so that the power
transformer and other devices do not radiate excessive
heat to the expansion module.
• Do not install the expansion module in an airtight
enclosure.
IOM3711 Input/Output Module Installation Guide2
Figure 2: Expansion Module mounting positions
DIN rail mount applications
Mounting the expansion module horizontal on 35 mm
DIN rail is the preferred mounting method.
To mount a expansion module on 35 mm DIN rail:
1. Securely mount a 20 cm (8 in.) or longer section of 35
mm DIN rail horizontal and centered in the desired
space so that the expansion module mounts in the
horizontal position shown in Figure 2.
2. Pull the two bottom mounting clips outward from
the expansion module to the extended position
(Figure 3).
3. Hang the expansion module on the DIN rail by the
hooks at the top of the (DIN rail) channel on the back
of the expansion module (Figure 3), and position the
expansion module snugly against the DIN rail.
4. Push the bottom mounting clips inward (up) to
secure the expansion module on the DIN rail.
To remove the expansion module from the DIN rail, pull
the bottom mounting clips out to the extended position
and carefully lift the expansion module off the DIN rail.
Wall mount applications
To mount a expansion module directly on a wall or other
flat vertical surface:
1. Pull the two bottom mounting clips outward and
ensure they are locked in the extended position as
shown in Figure 3.
2. Mark the mounting hole locations on the wall using
the dimensions in Figure 3 and one of the mount
positions shown in Figure 2. Or hold the expansion
module up to the wall or surface in a proper mount
position and mark the hole locations through the
mounting clips.
3. Drill holes in the wall or surface at the marked
locations, and insert appropriate wall anchors in the
holes (if necessary).
4. Hold the expansion module in place, and insert the
screws through the mounting clips and into the
holes (or anchors). Carefully tighten all of the screws.
Important: Do not overtighten the mounting
screws. Overtightening the screws may damage the
mounting clips.
Mounting features and dimensions
Figure 3: Back of Expansion Module showing
extended mounting clips, DIN rail channel, and
mounting dimensions, mm (in.)
Wiring
Warning
Risk of Electric Shock:
Disconnect or isolate all power supplies before mak-
ing electrical connections. More than one disconnec-
tion or isolation may be required to completely de-en-
ergize equipment. Contact with components carrying
hazardous voltage can cause electric shock and may
result in severe personal injury or death.
Avertissement
Risque de décharge électrique:
Débrancher ou isoler toute alimentation avant de
réaliser un branchement électrique. Plusieurs iso-
lations et débranchements sont peut-être néces-
saires pour -couper entièrement l'alimentation de
l'équipement. Tout contact avec des composants con-
ducteurs de tensions dangereuses risque d'entraîner
une décharge électrique et de provoquer des
blessures graves, voire mortelles.
IOM3711 Input/Output Module Installation Guide 3
CAUTION
Risk of Property Damage:
Do not apply power to the system before checking all
wiring connections. Short circuited or improperly con-
nected wires may result in permanent damage to the
equipment.
ATTENTION
Risque de dégâts matériels:
Ne pas mettre le système sous tension avant d'avoir
vérifié tous les raccords de câblage. Des fils for-
mant un court-circuit ou connectés de façon incor-
recte risquent d'endommager irrémédiablement
l'équipement.
Important: Do not exceed the expansion module
electrical ratings. Exceeding expansion module
electrical ratings can result in permanent damage to
the expansion module and void any warranty.
Important: Use copper conductors only. Make
all wiring in accordance with local, national, and
regional regulations.
Important: Electrostatic discharge can damage
expansion module components. Use proper
electrostatic discharge precautions during
installation, setup, and servicing to avoid damaging
the expansion module.
For detailed information on configuring and wiring
an MS/TP Bus, FC bus, and SA bus, refer to the MS/TP
Communications Bus Technical Bulletin (LIT-12011034).
Terminal blocks and bus ports
See Figure 1 for terminal block and bus port locations on
the expansion module. Observe the following guidelines
when wiring an expansion module.
Input and Output terminal blocks
Most of the input terminal blocks are mounted on the
bottom of the expansion module and the output terminal
blocks are mounted on the top of the expansion module.
See Table 2 for more information about I/O terminal
functions, requirements, and ratings.
SA/FC bus terminal block
An IOM can be connected to a Sensor/Actuator (SA)
bus or a Field Controller (FC) bus, but not to both buses
simultaneously. The SA/FC bus terminal block is a
removable, 4-terminal plug that fits into a board-mounted
jack.
When connecting the IOM to an FC bus, wire the bus
terminal block plugs on the expansion module, and the
other expansion modules in a daisy-chain configuration
using 3-wire twisted, shielded cable as shown in Figure 4.
See Table 4 for more information.
Figure 4: FC bus terminal block wiring
When connecting the IOM to an SA bus, wire the bus
terminal block plugs on the expansion module, and other
SA bus devices in a daisy-chain configuration using 4-
wire twisted, shielded cable as shown in Figure 5. See
I/O wiring ratings and requirements table for more
information.
Figure 5: SA bus terminal block wiring
Note: The SA PWR/SHLD terminal does not supply 15
VDC. The SA PWR/SHLD terminal is isolated and can
be used to connect (daisy chain) the 15 VDC power
leads on the SA bus (Figure 5) or the cable shields on
the FC bus (Figure 4). The SA bus supervisor supplies
15 VDC to devices on the SA bus requiring power.
IOM3711 Input/Output Module Installation Guide4
SA/FC bus port
The SA/FC bus port on the front of the expansion
module is an RJ-12, 6-position modular jack that provides
a connection for devices on the SA bus, a Wireless
Commissioning Converter, a ZFR/ZFR Pro Wireless Router
(depending on which bus the IOM is operating on).
The SA/FC bus port is connected internally to the SA/FC
bus terminal block. See Table 4 for more information. The
SA/FC bus port pin assignment is shown in Figure 6.
Figure 6: Pin number assignments for sensor, SA bus
and FC bus ports on Expansion Modules
Supply power terminal block
The 24 VAC supply power terminal block is a gray,
removable, 3-terminal plug that fits into a board-mounted
jack on the top right of the expansion module.
Wire the 24 VAC supply power wires from the transformer
to the HOT and COM terminals on the terminal plug as
shown in Figure 7. The middle terminal on the supply
power terminal block is not used. See Table 4 for more
information about the Supply Terminal Block.
Figure 7: 24 VAC supply power terminal block wiring
Note: The supply power wire colors may be different
on transformers from other manufacturers. Refer to
the transformer manufacturer’s instructions and the
project installation drawings for wiring details.
Important: Connect 24 VAC supply power to the
expansion module and all other network devices
so that transformer phasing is uniform across the
network devices. Powering network devices with
uniform 24 VAC supply power phasing reduces
noise, interference, and ground loop problems. The
expansion module does not require an earth ground
connection.
Wireless network applications
The expansion module can also be installed in a wireless
application using a ZFR/ZFR Pro Wireless Field Bus Router.
Important: Wireless operation is not approved for
smoke control applications. Refer to the Metasys
System UL 864 UUKL Tenth Edition Smoke Control
System Technical Bulletin (LIT-12012487) for detailed
requirements and procedures for installing,
commissioning, and operating UL 864 UUKL/UUKLC
Listed Metasys system devices.
To configure a expansion module for use with the
ZFR/ZFR Pro Series Wireless Field Bus system:
Note: IOMs can talk wirelessly on the FC bus only.
1. Connect the ZFR/ZFR Pro Wireless Field Bus Router to
the FC bus port (RJ-12 modular jack) on the front of
the expansion module.
2. Ensure that the expansion module's device address
DIP switches are set to the correct device address.
See Setting the device addresses.
3. Set DIP switch 128 to ON, which enables wireless
operation on the expansion module.
For more information on the ZFR Pro Wireless Field Bus
system, refer to the WNC1800/ZFR182x Pro Series Wireless
Field Bus System Product Bulletin (LIT-12012320).
For more information on the ZFR 1800 Wireless Field Bus
system, refer to the ZFR1800 Series Wireless Field Bus Sys-
tem Product Bulletin (LIT-12011336).
Terminal Wiring Guidelines,
Functions, Ratings, and
Requirements
Input and Output wiring guidelines
Table 2 provides information and guidelines about the
functions, ratings, and requirements for the expansion
module input and output terminals; and references
guidelines for determining proper wire sizes and cable
lengths.
In addition to the wiring guidelines in Table 2, observe
these guidelines when wiring expansion module inputs
and outputs:
• Run all low-voltage wiring and cables separate from
high-voltage wiring.
IOM3711 Input/Output Module Installation Guide 5
• All input and output cables, regardless of wire size or
number of wires, should consist of stranded, insulated,
and twisted copper wires.
• Shielded cable is not required for input or output
cables.
• Shielded cable is recommended for input and output
cables that are exposed to high electromagnetic or
radio frequency noise.
• Inputs/outputs with cables less than 30 m (100 ft)
typically do not require an offset in the software setup.
Cable runs over 30 m (100 ft) may require an offset in
the input/output software setup.
IOM3711 Input/Output Module Installation Guide6
I/O wiring ratings and requirements
table
Table 2: IOM37 terminal blocks, functions, ratings, requirements, and cables
Terminal block label Terminal
label Function, ratings, requirements Determine wire size and
maximum cable length
+15 V
15 VDC Power Source for active (3-wire) input devices
connected to the Universal INn terminals.
Provides 100 mA total current
Same as (Universal) INn
Note: Use 3-wire cable for
devices that source power
from the +15 V terminal.
Analog Input - Voltage Mode (0–10 VDC)
10 VDC maximum input voltage
Internal 75k ohm Pull-down
See Guideline A in Table 3.
Analog Input - Current Mode (4–20 mA)
Internal 100 ohm load impedance See Guideline B in Table 3.
Analog Input - Resistive Mode (0–600k ohm)
Internal 12 V. 15k ohm pull up
Qualified Sensors: 0-2k ohm potentiometer, RTD (1k Nickel
[ Johnson Controls sensor], 1k Platinum, and A99B Silicon
Temperature Sensor) Negative Temperature Coefficient (NTC)
Sensor (10k Type L, 10k JCI Type II, 2.252k Type II)
See Guideline A in Table 3.
INn
Binary Input - Dry Contact Maintained Mode
1 second minimum pulse width
Internal 12 V. 15k ohm pull up
See Guideline A in Table 3.
UNIVERSAL
(Inputs)
ICOMn
Universal Input Common for all Universal Input terminals
Note: All Universal ICOMn terminals share a common,
which is isolated from all other commons.
Same as (Universal) INn
OUT NOn
Normally Open Contact
Connects OCOM to OUT NO when activated.
UL Listed (-0 model only)
1/4 hp 120 VAC, 1/2 hp 240 VAC
360 VA Pilot Duty at 120/240 VAC (B300)
3 A Non-inductive 24–240 VAC
CE Marking (-2 model only):
6 (4) A N.O. or N.C. only, 240 VAC
OCOMn
Relay Common
Isolated from all other terminal commons, including other
Relay Commons.
RELAYn
(Outputs)
OUT NCn
Normally Closed Contact
Connects OCOM to OUT NC when activated.
UL Listed(-0 model only)
1/4 hp 120 VAC, 1/2 hp 240 VAC
360 VA Pilot Duty at 120/240 VAC (B300)
3 A Non-inductive 24–240 VAC
CE Marking (-2 model only):
6 (4) A N.O. or N.C. only, 240 VAC
The Relay output terminals can
accommodate the following
maximum wire sizes:
Two wires per terminal:
1.0 mm (18 AWG) maximum wire
size
or
One wire per terminal:
2.0 mm (12 AWG) maximum
Note: You must determine
the required wire size
for the high-voltage (>30
V) terminals according
to relay ratings, the
applied load, and the
local, national, or regional
electrical codes.
IOM3711 Input/Output Module Installation Guide 7
Table 2: IOM37 terminal blocks, functions, ratings, requirements, and cables
Terminal block label Terminal
label Function, ratings, requirements Determine wire size and
maximum cable length
Analog Output - Voltage Mode (0–10 VDC)
10 VDC maximum output voltage
10 mA maximum output current
Requires an external load of 1,000 ohm or more.
Note: The AO operates in Voltage Mode when
connected to devices with impedances greater than
1,000 ohm. Devices that drop below 1,000 ohm may not
operate as intended for Voltage Mode applications.
See Guideline A in Table 3.
Analog Output - Current Mode (4–20 mA)
Requires an external load between 0–300 ohm.
Note: The AO operates in Current Mode when
connected to devices with impedances less than 300
ohm. Devices that exceed 300 ohm may not operate as
intended for Current Mode applications.
See Guideline B in Table 3.
OUTn
Binary Output Mode - 24 VAC/DC Field-effect Transistor
(FET)
Connects OUT to OCOM when activated.
30 V AC/DC maximum output voltage
0.5 A maximum output current
40 mA minimum load current (hold current)
See Guideline B in Table 3.
Universal
(Outputs)
OCOMn
Universal Output (UO) Common
Isolated from all other terminal commons, including other UO
commons.
Same as OUT
Cable and wire length guidelines
The table below defines cable length guidelines for the
various wire sizes that may be used for wiring low-voltage
(<30 V) input and outputs.
Table 3: Cable length guidelines for recommended wire sizes for low-voltage (<30 V) Inputs and Outputs
Guideline Wire size/Gauge and type Maximum cable length
and type Assumptions
1.0 mm (18 AWG) stranded copper 457 m (1,500 ft) twisted wire
0.8 mm (20 AWG) stranded copper 297 m (975 ft) twisted wire
0.6 mm (22 AWG) stranded copper 183 m (600 ft) twisted wire
A
0.5 mm (24 AWG) stranded copper 107 m (350 ft) twisted wire
100 mV maximum voltage drop
Depending on cable and the connected input
or output device, you may have to define an
offset in the setup software for the input or
output point.
1.0 mm (18 AWG) stranded copper 229 m (750 ft) twisted wire
0.8 mm (20 AWG) stranded copper 137 m (450 ft) twisted wire
0.6 mm (22 AWG) stranded copper 91 m (300 ft) twisted wire
B
0.5 mm (24 AWG) stranded copper 61 m (200 ft) twisted wire
100 mV maximum voltage drop
Depending on cable and the connected input
or output device, you may have to define an
offset in the setup software for the input or
output point.
CSee Figure 8 to select wire size/gauge.
Use stranded copper wire
See Figure 8 to determine
cable length. Use twisted
wire cable.
N/A
IOM3711 Input/Output Module Installation Guide8
Note: The required wire sizes and lengths for high-
voltage (>30 V) Relay Outputs are determined by the
load connected to the relay, and local, national, or
regional electrical codes.
Maximum cable length versus load
current
Use Figure 8 to estimate the maximum cable length
relative to the wire size and the load current (in mA) when
wiring inputs and outputs.
Note: Figure 8 applies to low-voltage (<30 V) inputs
and outputs only. The required wire size and length
for high-voltage (>30 V) Relay Outputs is determined
by the load connected to the relay and local electrical
codes.
Max wire length by current and wire size
graphic
Figure 8: Maximum wire length for low-voltage (<30
V) Inputs and Outputs by current and wire Size
SA/FC bus and supply power wiring
guidelines
Table 4 provides information about the functions, ratings,
and requirements for the communication bus and supply
power terminals; and guidelines for wire sizes, cable
types, and cable lengths when wiring the expansion
module's communication buses and supply power.
In addition to the guidelines in Table 4, observe these
guidelines when wiring an SA or FC bus and the 24 VAC
supply power:
• Run all low-voltage wiring and cables separate from
high-voltage wiring.
• All SA and FC bus cables, regardless of wire size, should
be twisted, insulated, stranded copper wire.
• Shielded cable is strongly recommended for all SA and
FC bus cables.
• Refer to the MS/TP Communications Bus Technical
Bulletin (LIT-12011034) for detailed information
regarding wire size and cable length requirements for
the SA and FC buses.
Table 4: Communications bus and supply power terminal blocks, functions, ratings, requirements, and cables
Terminal block/Port
label
Terminal
labels Function, electrical ratings/Requirements Recommended cable type
+
-FC or SA Bus Communications
COM Signal Reference (Common) for FC or SA Bus
communications
FCBUS
or
SABUS SHLD
or
SAPWR
SHLD on FC Bus: Isolated terminal (optional shield drain
connection
SAP WR on SA Bus: 15 VDC power lead connection
Note: The SA PWR terminal on an IOM expansion
module does not supply 15 VDC. The SA bus
supervisor supplies 15 VDC to devices on the SA bus
requiring power.
FC Bus: 0.6 mm (22 AWG) stranded,
3-wire twisted, shielded cable
recommended.
SA Bus: 0.6 mm (22 AWG) stranded,
4-wire (2 twisted-pairs), shielded
cable recommended.
Note: On the SA Bus, the + and
- wire are one twisted pair, and
the COM and SA PWR are the
second twisted pair of wires.
SA/FC BUS
(Port)
RJ-12 6-Position Modular Connector provides:
FC or SA Bus Communications
FC or SA Bus Signal Reference and 15 VDC Common
Commissioning Converter or ZFR181x/ZFR 182x Wireless
Router
(Maximum total current draw for SA Bus is 240 mA.)
Wireless Commissioning Converter
retractable cable or 24 AWG 3-pair
CAT 3 Cable <30.5 m (100 ft)
IOM3711 Input/Output Module Installation Guide 9
Table 4: Communications bus and supply power terminal blocks, functions, ratings, requirements, and cables
Terminal block/Port
label
Terminal
labels Function, electrical ratings/Requirements Recommended cable type
HOT 24 VAC Power Supply - Hot
Supplies 20–30 VAC (Nominal 24 VAC)
24~
COM
24 VAC Power Supply - Common
(Isolated from all other Common terminals on expansion
module.)
0.8 mm to 1.0 mm
(18 AWG) 2-wire
Note:
• The SA Bus and FC Bus wiring recommendations
in this table are for MS/TP bus communications
at 38,400 baud. For more information, refer to
the MS/TP Communications Bus Technical Bulletin
(LIT-12011034).
• See Table 3 to determine wire size and cable
lengths for cables.
IOM3711 Input/Output Module Installation Guide10
Andere Handbücher für IOM3711
1
Inhaltsverzeichnis
Andere Johnson Controls Steuereinheit Handbücher
Johnson Controls
Johnson Controls Facility Explorer FX20 Bedienungsanleitung
Johnson Controls
Johnson Controls M4-XPM Bedienungsanleitung
Johnson Controls
Johnson Controls VP1000 Series Bedienungsanleitung
Johnson Controls
Johnson Controls Mercury P2000 CKM-MR16IN Handbuch
Johnson Controls
Johnson Controls EM-3000 Series Bedienungsanleitung
Johnson Controls
Johnson Controls VP140 Bedienungsanleitung
Johnson Controls
Johnson Controls Penn System 350 S350P Bedienungsanleitung
Johnson Controls
Johnson Controls Tyco HSM3408 Bedienungsanleitung
Johnson Controls
Johnson Controls S1-TTSCC01 Kurzanleitung
Johnson Controls
Johnson Controls GS Series Bedienungsanleitung
Johnson Controls
Johnson Controls Penn A19K Series Bedienungsanleitung
Johnson Controls
Johnson Controls tyco AMD-1 Bedienungsanleitung
Johnson Controls
Johnson Controls A19ZBC Series Service-Handbuch
Johnson Controls
Johnson Controls FX-PCX2721 Bedienungsanleitung
Johnson Controls
Johnson Controls GS-20 Series Bedienungsanleitung
Johnson Controls
Johnson Controls Digital Vision Network 5000 Series Kurzanleitung
Johnson Controls
Johnson Controls System 450 Series Bedienungsanleitung
Johnson Controls
Johnson Controls VG8000V Series Bedienungsanleitung
Johnson Controls
Johnson Controls VG1xA5Gx Bedienungsanleitung
Johnson Controls
Johnson Controls Tyco PRV-1A Bedienungsanleitung
Beliebte Steuereinheit Handbücher anderer Marken
Festo
Festo Compact Performance CP-FB6-E Stücklistenhandbuch
Elo TouchSystems
Elo TouchSystems DMS-SA19P-EXTME Bedienungsanleitung
JS Automation
JS Automation MPC3034A Bedienungsanleitung
JAUDT
JAUDT SW GII 6406 Series Kurzanleitung
Spektrum
Spektrum Air Module System Bedienungsanleitung
BOC Edwards
BOC Edwards Q Series Bedienungsanleitung
