J-series™Services Router Quick Start

12 October 2007

Part Number: 530-021980-01

Revision 1

J-series Services Routers provide IP routing, WAN and LAN connectivity, and

management services. Available in several models, Services Routers typically connect

small, branch, or regional offices to a central site, and link Internet service provider

(ISP) networks.

The J-series Services Router Quick Start provides instructions to initially set up J2300,

J2320, J2350, J4350, and J6350 Services Routers. You need no previous JUNOS

software experience, but must have managed a network and configured other routers.

For more information, see the J-series documentation at http://www.juniper.net/techpubs.

Contents What You Need To Know ................................................................................3

Management IP Address ...........................................................................3

J-Web Access ............................................................................................3

CLI Console Access ...................................................................................3

Required Licenses .....................................................................................3

Slot Numbers ............................................................................................4

Interfaces and Ports ..................................................................................4

Remote Access .........................................................................................4

Before You Begin .............................................................................................4

Installing a Services Router .............................................................................6

Installing J2300 Services Routers ..............................................................6

Installing J2320 and J2350 Services Routers .............................................6

Installing J4350 or J6350 Services Routers ................................................8

Connecting Power to a Services Router ...........................................................8

Basic Connection and Configuration with the J-Web Interface .........................9

Step 1. Connecting, Logging In, and Starting the J-Web Interface .............9

Step 2. Updating the Software with the J-Web Interface ..........................10

■1

Step 3. Adding Licenses with the J-Web Interface ...................................11

Step 4. Configuring Basic Settings with J-Web Quick Configuration .........11

Basic Connection and Configuration with the CLI ..........................................13

Step 1. Connecting, Logging In, and Starting the CLI ..............................13

Step 2. Updating the JUNOS Software with the CLI .................................14

Step 3. Adding Licenses with the CLI ......................................................14

Step 4. Configuring Basic Settings with the CLI .......................................14

J-Web Basics ..................................................................................................15

JUNOS CLI Basics ..........................................................................................16

Safety Warnings Summary ............................................................................18

Compliance Statements .................................................................................21

Related Juniper Networks Documentation .....................................................23

Requesting Support .......................................................................................26

Revision History ............................................................................................26

2■

J-series™Services Router Quick Start

What You Need To Know

Management IP Address

When you first connect a management PC or laptop to a built-in Ethernet port on a

Services Router, the router acts as a DHCP client and attempts to perform an

autoinstallation. If it does not find a DHCP server, the router assigns 192.168.1.1/24

as the IP address for port 0. (If you are connected to port 1, 192.168.2.1/24 is

assigned as the IP address. On the J2320, J2350, J4350 and J6350 routers, port 2

and port 3 are assigned 192.168.3.1/24 and 192.168.4.1/24, respectively.)

Because this address is not part of any explicit configuration, it is removed when

you change the configuration in any way. You must configure an IP address for this

LAN port when you commit your initial configuration. (See “Step 4. Configuring Basic

Settings with J-Web Quick Configuration”on page 11 or “Step 4. Configuring Basic

Settings with the CLI”on page 14.)

J-Web Access

The Web interface to the router—called the J-Web interface—is enabled by default.

To configure the router with the Web interface, you attach a PC or laptop to a built-in

Ethernet port. The examples in this document use the first built-in Ethernet port:

■On J2300 routers, the first built-in Ethernet port is Fast Ethernet PORT 0 (internally

named fe-0/0/0).

■On J2320, J2350, J4350 and J6350 routers, the first built-in Ethernet port is

Gigabit Ethernet port 0/0 (internally named ge-0/0/0).

See “Step 1. Connecting, Logging In, and Starting the J-Web Interface”on page 9.

CLI Console Access

Services Routers are shipped with a console cable and adapter. To configure a Services

Router through the console port with the JUNOS command-line interface (CLI), you

use a terminal emulation program such as Microsoft Windows HyperTermimal. (See

“Step 1. Connecting, Logging In, and Starting the CLI”on page 13.)

Required Licenses

To use the following features on a Services Router, you must purchase a license. (See

“Step 3. Adding Licenses with the CLI”on page 14 or “Step 4. Configuring Basic

Settings with J-Web Quick Configuration”on page 11.)

■Advanced Border Gateway Protocol (BGP) support for route reflectors

■Data link switching (DLSw)

■J-Flow traffic analysis

What You Need To Know ■3

What You Need To Know

Slot Numbers

J2300 routers have built-in WAN ports. Other models have slots for replaceable

Physical Interface Modules (PIMs):

■J2320 Services Routers—Slots 1 through 3 are numbered from top to bottom

and left to right.

■J2350 Services Routers—Slots 1 through 5 are numbered from top to bottom

and left to right.

■J4350 and J6350 Services Routers—Slots 1 through 6 are numbered from top to

bottom and left to right.

Interfaces and Ports

Interfaces are named by type, slot number, module number (always 0), and port

number. Port numbering starts with 0. For example:

■On J2300 routers, built-in Fast Ethernet LAN PORT 0 and PORT 1, which are in

slot 0, are named fe-0/0/0 and fe-0/0/1.

■On J2320, J2350, J4350, and J6350 routers, the built-in Gigabit Ethernet LAN

ports 0/0 through 0/3, which are in slot 0, are named ge-0/0/0, ge-0/0/1,

ge-0/0/2, and ge-0/0/3.

■On models with replaceable PIMs, the first port on a T1 PIM in slot 1 is named

t1-1/0/0.

Remote Access

Although Telnet and SSH are both supported, they are disabled by default.

Before You Begin

Before installing and connecting a Services Router, read “Safety Warnings

Summary”on page 18.

Then make sure you have the equipment listed in Table 1 on page 5.

4■Before You Begin

J-series™Services Router Quick Start

Table 1: Equipment Required for Services Router Installation

Management AccessAll Other ModelsJ2300 Model OnlyAll Models

For CLI access:

■Management device,

such as a PC or laptop,

with a serial port (not

provided)

■RJ-45 console (Ethernet

“rollover”) cable, with

an RJ-45-to-DB-9

adapter (both provided)

For J-Web access:

■Management device,

such as a PC or laptop,

with an Ethernet port

(not provided)

■Ethernet cable (not

provided)

■For rack installation,

mounting screws

appropriate for your rack

(not provided).

■Routers with redundant

power supplies require

an AC power cord

(provided) or DC power

cables (not provided) for

each power supply.

■Mounting brackets are

preinstalled on J2320

and J2350 models, and

must be installed on

J4350 and J6350 models.

■For desk installation,

four rubber feet

(provided)

■For rack installation,

four mounting

screws appropriate

for your rack (not

provided)

■For wall installation,

four wall screws or

anchors capable of

supporting the full

weight of the chassis,

up to 12 lb (5.4 kg)

■Electrostatic discharge (ESD)

grounding strap (not

provided)

■For rack or wall installation,

a screwdriver appropriate

for the screws or anchors

(not provided)

■For AC power, an AC power

cord with a plug appropriate

for your geographical

location (provided)

■For DC power, 14 AWG DC

power cables with

appropriate lugs (not

provided)

■For grounding, 14 AWG

grounding cable and lug for

the router (not provided)

CAUTION: A licensed electrician must attach a cable lug to the grounding and power

cables that you supply. A cable with an incorrectly attached lug can damage the

router.

If you are installing a J4350 or J6350 Services Router, take the following steps:

1. Attach the air filter and filter cover, as shown in Figure 1 on page 5.

Figure 1: Attaching Air Filter and Filter Cover

2. Attach the mounting brackets to either the center or front of the chassis, as

shown in Figure 2 on page 6.

Before You Begin ■5

Before You Begin

Figure 2: Attaching Mounting Brackets

Installing a Services Router

WARNING: A DC-powered J2300 Services Router is intended for installation in a

dedicated equipment room where it is accessible by trained personnel only. Other

DC-powered Services Routers are intended for installation in a restricted access

location.

Installing J2300 Services Routers

To install a J2300 Services Router on a desk, attach the rubber feet to the underside

of the chassis.

To install a J2300 Services Router on a wall, attach the rubber feet to the chassis

underside, attach a mounting bracket to each side of the chassis, and attach the

brackets to the wall. (For instructions, see the J2300, J4300, and J6300 Services Router

Getting Started Guide.)

To install a J2300 router in a rack:

1. Attach an electrostatic discharge (ESD) grounding strap to your bare wrist and

connect the strap to an outside ESD point.

2. Make sure the rack is properly secured to the building in its permanent location.

3. Attach a mounting bracket to each side of the router chassis.

4. Have one person grasp each side of the router, lift the router, and position it in

the rack.

5. Have a second person install a mounting screw into each of the bracket holes

that are aligned with the threaded holes in the rack.

Installing J2320 and J2350 Services Routers

To install the J2320 and J2350 router into a rack:

6■Installing a Services Router

J-series™Services Router Quick Start

1. Have one person grasp the sides of the router, lift the router, and position it in

the rack.

2. Align the top hole in each mounting bracket with a hole in each rack rail as shown

in Figure 3 on page 7 and Figure 4 on page 7, making sure the chassis is level.

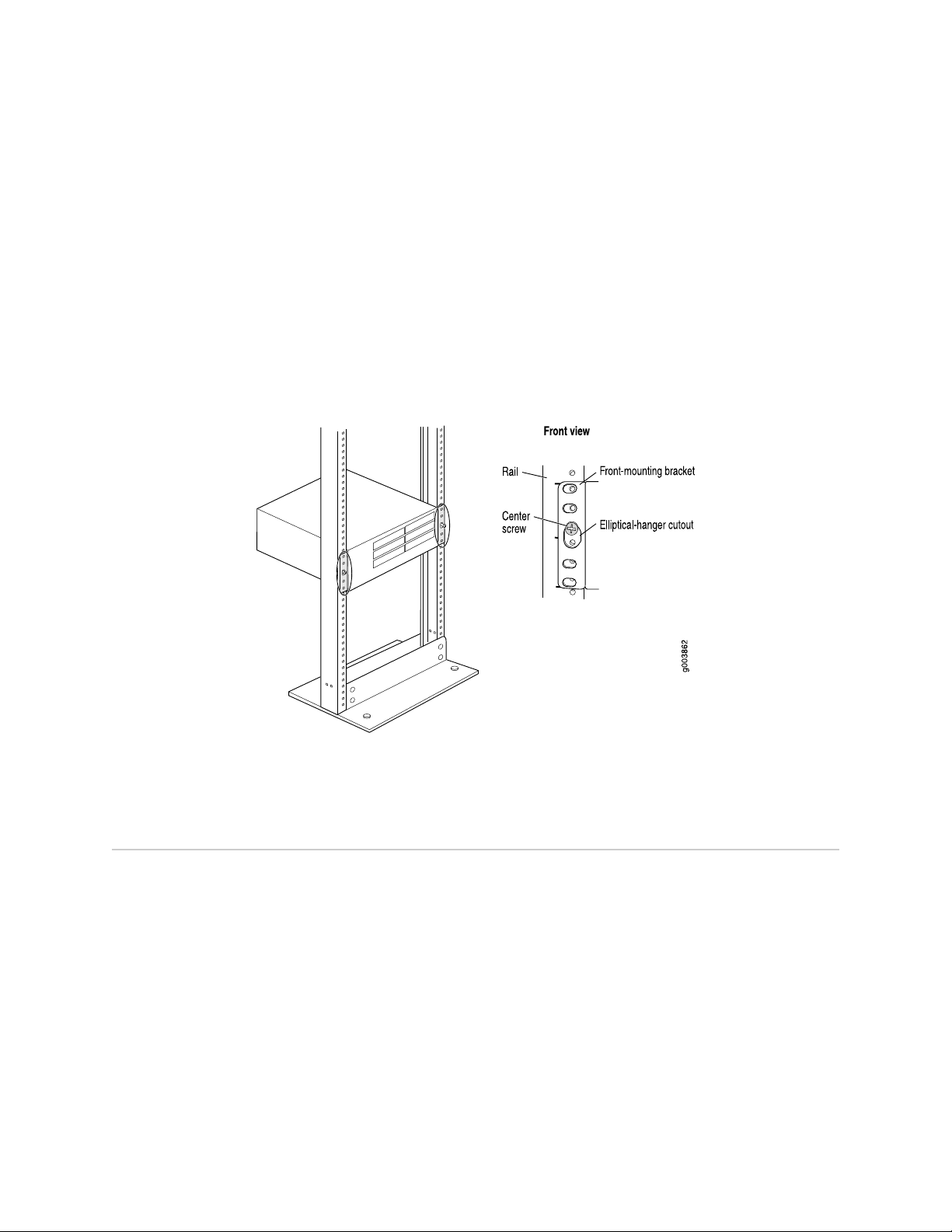

Figure 3: Hanging a J2320 Router in a Rack

Figure 4: Hanging a J2350 Router in a Rack

3. Have a second person install a mounting screw into each of the two aligned

holes. With a number 2 Phillips screwdriver, tighten the screws.

4. Verify that the mounting screw on one side of the rack is aligned with the

mounting screw on the opposite side and that the router is level.

5. Install the second screw in each mounting bracket.

Installing a Services Router ■7

Installing a Services Router

Installing J4350 or J6350 Services Routers

To install a J4350 or J6350 Services Router in a rack:

1. Make sure the rack is properly secured to the building in its permanent location.

2. Attach a screw to each rack rail in the third hole down from where you want the

top of the router to be positioned, as shown in Figure 5 on page 8. Screw only

part way in, leaving about 1/4 in. (6 mm) distance between the screw head and

the rail.

3. Lift the router and insert the elliptical openings in the mounting brackets onto

the partially inserted screws so that the router is hanging from the two screws.

Figure 5: Hanging the Router in the Rack

4. Install at least two mounting screws into each mounting bracket, in addition to

the center screws from which the router hangs.

Connecting Power to a Services Router

J2300, J2320, J2350, and J4350 Services Routers have a fixed power supply. J6350

Services Routers have field-replaceable AC or DC power supplies.

To connect AC or DC power:

1. Connect the router to earth ground with a 14 AWG grounding cable:

a. Connect one end to a proper earth ground point (the rack, for example).

b. Remove the screw and washer from the PEM nut on the protective earthing

terminal at the rear of the router chassis. (The J4350 and J6350 chassis have

two PEM nuts.)

8■Connecting Power to a Services Router

J-series™Services Router Quick Start

c. Secure the other end of the cable to this grounding point with the washer

and then with the screw.

2. For an AC power supply only:

a. Insert the appliance coupler end of the power cord into the appliance inlet

on the router's power supply faceplate.

b. Insert the plug into an AC power source receptacle.

c. If the power supply includes a on/off switch, turn the switch to on.

3. For a DC power supply only:

a. Ensure that the voltage across the DC power source cable leads is 0 volts

and that the cable leads cannot become active during installation.

b. Remove the clear plastic cover protecting the terminal block.

c. Remove the two center screws next to the labels –48 VDC and RTN.

d. Secure the positive (+) DC source power cable lug to the RTN terminal,

tightening the screw only until snug. Do not overtighten.

e. Secure the negative (–) DC source power cable lug to the –48 VDC terminal,

tightening the screw only until snug. Do not overtighten.

f. Replace the plastic cover.

4. Repeat Step 2 or Step 3 for the second power supply, if one is installed.

For complete instructions, see the Getting Started Guide for your router.

Basic Connection and Configuration with the J-Web Interface

For J-Web access, you connect from your management PC or laptop to the Services

Router through one of the built-in Ethernet interfaces. The examples in this document

use port 0. (For information about the J-Web interface, see “J-Web Basics”on page 15.)

Step 1. Connecting, Logging In, and Starting the J-Web Interface

When the Services Router is powered on for the first time, it searches for a DHCP

server, and if it does not find one, it assigns an IP address within the 192.168.1.0/24

subnetwork to any devices connected to it.

To connect to the J-Web interface through port 0/0 on the router:

Basic Connection and Configuration with the J-Web Interface ■9

Basic Connection and Configuration with the J-Web Interface

1. On the management device, such as a PC or laptop, you use to access the J-Web

interface, verify that the address of the port that you connect to the router is set

to one of the following:

■An Ethernet address on the 192.168.1/24 subnetwork other than

192.168.1.1

■An Ethernet address from a DHCP server

2. Turn off the power to the management device.

3. Plug one end of the Ethernet cable into the Ethernet port on the management

device.

4. Connect the other end of the Ethernet cable to the built-in Ethernet port on the

router.

5. Power on the router by pressing the power button on the front panel.

6. Wait until the STATUS LED on the front panel turns solid green.

7. Turn on the power to the management device. The router assigns an IP address

to the management device within the 192.168.1/24 subnetwork if the device

is configured to use DHCP.

8. From the management device, open a Web browser and enter the IP address

192.168.1.1 in the address field. The Set Up Quick Configuration page appears.

9. Configure basic settings for your router as described in “Step 4. Configuring Basic

Settings with J-Web Quick Configuration”on page 11.

NOTE: You must manually configure the IP address for the management port you

are using before you save your initial configuration. When you save the configuration

for the first time, the DHCP lease is lost and you will lose the connection to the router

if you have not manually configured the IP address. If you lose connection through

the management interface, you must connect through the console port.

Step 2. Updating the Software with the J-Web Interface

After starting up the Services Router, you might want to download the latest version

of the JUNOS software from the Juniper Networks Web site and load it onto the

router. To update the JUNOS software:

1. Go to http://www.juniper.net/support, and follow the links to download the JUNOS

software for J-series routers to your PC or laptop.

2. Log in to the J-Web interface.

3. Click Manage>Software>Upload software package.

4. Click Browse, locate the JUNOS software package file on your PC or laptop hard

drive, and open the file.

5. Select the check box next to Reboot If Required, and click Upload Package.

For complete instructions, see the J-series Services Router Administration Guide.

10 ■Basic Connection and Configuration with the J-Web Interface

J-series™Services Router Quick Start

Andere Handbücher für J2300

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Juniper Netzwerk-Router Handbücher

Juniper

Juniper M5 Bedienungs- und Wartungshandbuch

Juniper

Juniper T4000 - Montageanleitung

Juniper

Juniper Juniper Networks Montageanleitung

Juniper

Juniper T640 Montageanleitung

Juniper

Juniper ACX1000 Bedienungsanleitung

Juniper

Juniper PTX3000 Bedienungsanleitung

Juniper

Juniper ACX7100-32C Montageanleitung

Juniper

Juniper ACX5096 Bedienungsanleitung

Juniper

Juniper M10i Montageanleitung

Juniper

Juniper MX240 Montageanleitung

Juniper

Juniper 6rd Bedienungsanleitung

Juniper

Juniper E-Series Montageanleitung

Juniper

Juniper PTX Series Bedienungsanleitung

Juniper

Juniper EX4500 Series Bedienungsanleitung

Juniper

Juniper J-Series Bedienungsanleitung

Juniper

Juniper J2300 Bedienungsanleitung

Juniper

Juniper T320 Bedienungsanleitung

Juniper

Juniper ACX710 Bedienungsanleitung

Juniper

Juniper E SERIES BROADBAND SERVICES ROUTERS - E SERIES END-OF-LIFE MODULE GUIDE... Bedienungsanleitung

Juniper

Juniper T320 Bedienungsanleitung

Juniper

Juniper PTX10004 Bedienungsanleitung

Juniper

Juniper PTX5000 Bedienungsanleitung

Juniper

Juniper JUNOS OS 10.4 Bedienungsanleitung

Juniper

Juniper TX MATRIX PLUS Bedienungsanleitung

Beliebte Netzwerk-Router Handbücher anderer Marken

Allnet

Allnet ALL0333AU Bedienungsanleitung

HomeSeer

HomeSeer HT-SEL Bedienungsanleitung

Sercomm

Sercomm Genesis OC3505D Bedienungsanleitung

Billion

Billion BIPAC 5102 Series Bedienungsanleitung

TP-Link

TP-Link TD-8817 Bedienungsanleitung

Motorola

Motorola MR1900 Bedienungsanleitung

Digi

Digi IX14 Bedienungsanleitung

Cisco

Cisco NCS 540 Handbuch

XAVi

XAVi X8821e Bedienungsanleitung

BEC

BEC 6200WZL Bedienungsanleitung

MikroTik

MikroTik hAP ac3 Series Bedienungsanleitung

Korenix

Korenix JetNet 5428G Series Bedienungsanleitung

NETGEAR

NETGEAR FS526T - Switch Bedienungsanleitung

Korenix

Korenix JetNet 5710G Series Bedienungsanleitung

Automated Logic

Automated Logic ZN551 Betriebsanleitung

Cisco

Cisco ASR 1000 Series Bedienerhandbuch

EnGenius

EnGenius ESR-9710 Bedienungsanleitung

Cisco

Cisco 805 Series Bedienungs- und Sicherheitshinweise
