JVC Sp-x100 Bedienungsanleitung

SP-X100 / SP-CR100

SP-R100

SATELLITE SPEAKER SYSTEM

No.20922

Mar. 2001

SP-X100 / SP-CR100

SP-R100 Area Suffix

Continental Europe

U.S.Military

Singapore

Continental Europe

Area Suffix

Contents

Safety precautions

Disassembly method

SP-X100/SP-CR100

SP-R100

Each difference points

SP-XC100

SP-XS100 SP-XC100

SP-XS100 SP-XS100

Center speaker

Side speaker x1 x2 x2

x5 x1 Interchangeable

Interchangeable

Model Description

SP-CR100 SP-R100

Parts name Parts name Parts name

Q'ty Q'ty Q'ty

SP-X100

SERVICE MANUAL

1-2

1-3

SP-R100

SP-XS100 SP-XS100

SP-X100

SP-XS100

SP-XC100

SP-XS100

SP-CR100

SP-XS100 SP-XS100

SP-XC100

All manuals and user guides at all-guides.com

all-guides.com

SP-X100/SP-CR100

SP-R100

1-2

!Burrs formed during molding may be left over on some parts of the chassis. Therefore,

pay attention to such burrs in the case of preforming repair of this system.

Safety precaution

All manuals and user guides at all-guides.com

SP-X100/SP-CR100

SP-R100

1-3

Remove the six hooks a attaching the ornament

panel from front side. In that case, ornament panel is

fixed with the adhesive, and remove the ornament

panel by using a minus driver etc. , please.

Disassembly method

Removing the Ornament Panel (See Fig.1)

Prior to performing the following procedure, remove

the ornament panel.

Remove the two screws A attaching the front panel.

Pull out the front Panel. In that case, front panel is

fixed with the adhesive, and remove the front panel

by using a minus driver etc. , please.

Removing the front panel (See Fig.2 )

Prior to performing the following procedure, remove

the ornament panel. and front panel.

Disconnect the speaker wire from speaker terminal.

Remove the four screws B attaching the speaker.

Removing the speaker (See Fig.3 to 4)

The speaker box of this model is a unit supply.

Therefore, we do not supply it as individual parts though

the method of disassembling the speaker box has been

described.

Fig.1

Fig.2

Fig.3

Ornament Panel

Front panel assembly

Fig.4

Speaker

wire

Speaker

terminal

Speaker

All manuals and user guides at all-guides.com

Printed in Japan

200103(V)

VICTOR COMPANY OF JAPAN, LIMITED

AUDIO & COMMUNICATION BUSINESS DIVISION

PERSONAL & MOBILE NETWORK BUSINESS UNIT. 10-1,1chome,Ohwatari-machi,Maebashi-city,371-8543,Japan

(No.20922)

SP-X100/ SP-CR100

SP-R100

All manuals and user guides at all-guides.com

2-1

A DBC

SP-X100/SP-CR100

SP-R100

INPUT SP11

SP12

Standard schematic diagram

(SP-XC100 / SP-XS100)

All manuals and user guides at all-guides.com

SP-X100/SP-CR100

SP-R100

3-1

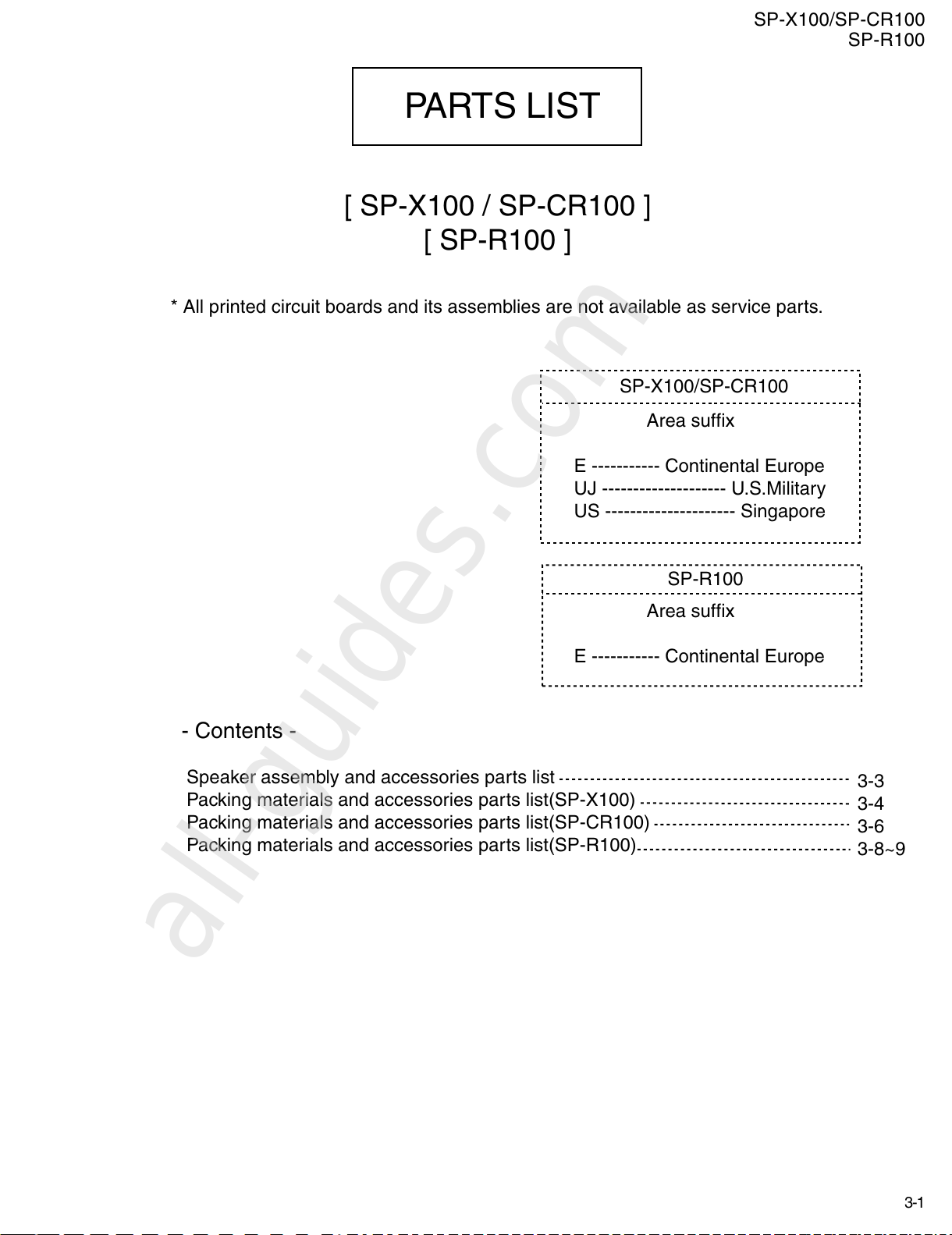

PARTS LIST

* All printed circuit boards and its assemblies are not available as service parts.

- Contents -

Speaker assembly and accessories parts list

Packing materials and accessories parts list(SP-X100)

Packing materials and accessories parts list(SP-CR100)

Packing materials and accessories parts list(SP-R100)

[ SP-X100 / SP-CR100 ]

[ SP-R100 ]

3-3

3-4

3-6

3-8~9

Area suffix

E ----------- Continental Europe

UJ -------------------- U.S.Military

US --------------------- Singapore

Area suffix

E ----------- Continental Europe

SP-X100/SP-CR100

SP-R100

All manuals and user guides at all-guides.com

all-guides.com

SP-X100/SP-CR100

SP-R100

3-2

< MEMO >

All manuals and user guides at all-guides.com

SP-X100/SP-CR100

SP-R100

3-3

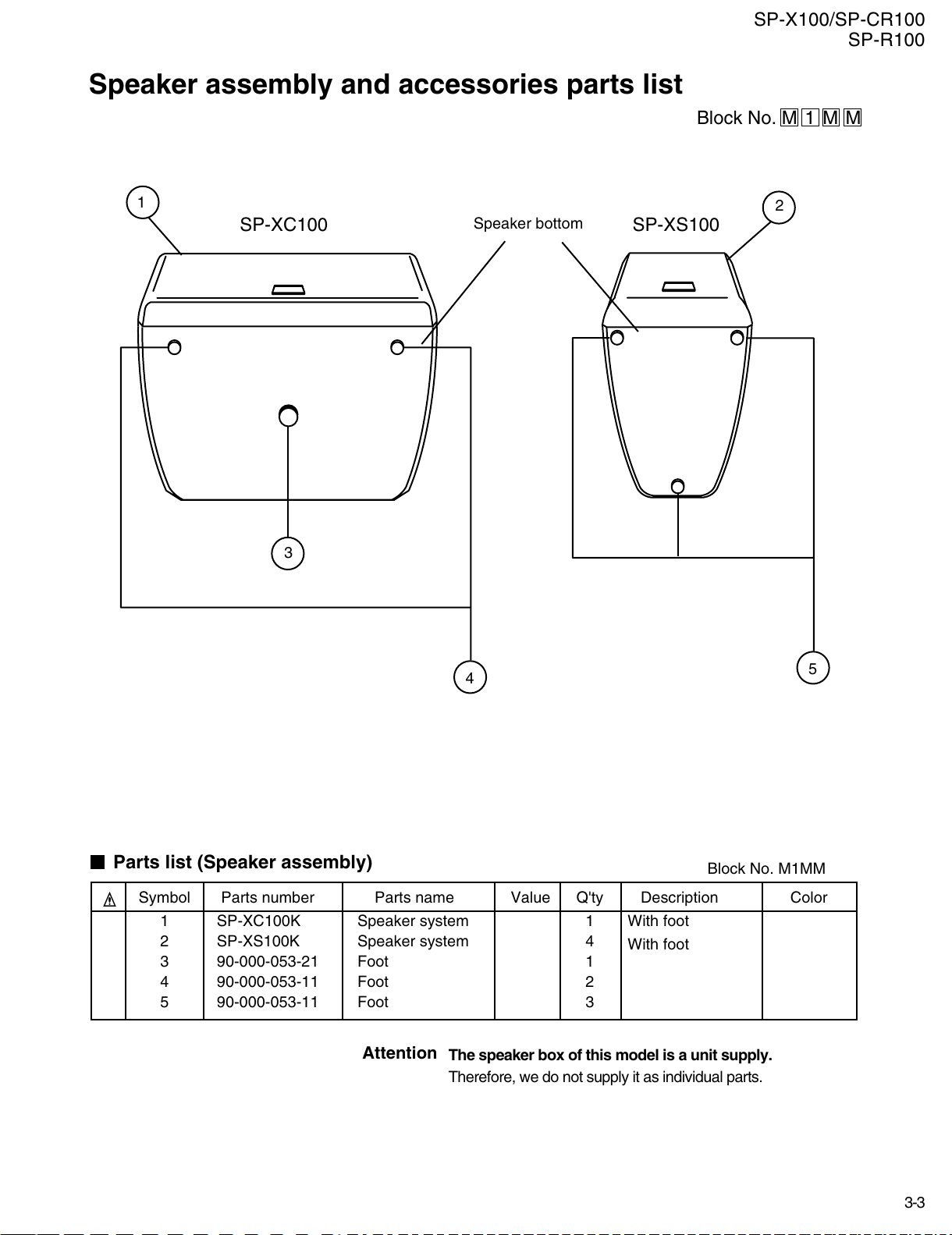

Speaker assembly and accessories parts list

Block No. M1MM

Speaker bottom

Parts list (Speaker assembly)

Block No. M1MM

Symbol

Parts number

SP-XC100K

SP-XS100K

90-000-053-21

90-000-053-11

Parts name

Speaker system

Foot

Value Q'ty

Description

With foot

Color

Attention

SP-XC100 SP-XS100

The speaker box of this model is a unit supply.

Therefore, we do not supply it as individual parts.

All manuals and user guides at all-guides.com

SP-X100/SP-CR100

SP-R100

3-4

P5 P6

A4 A5

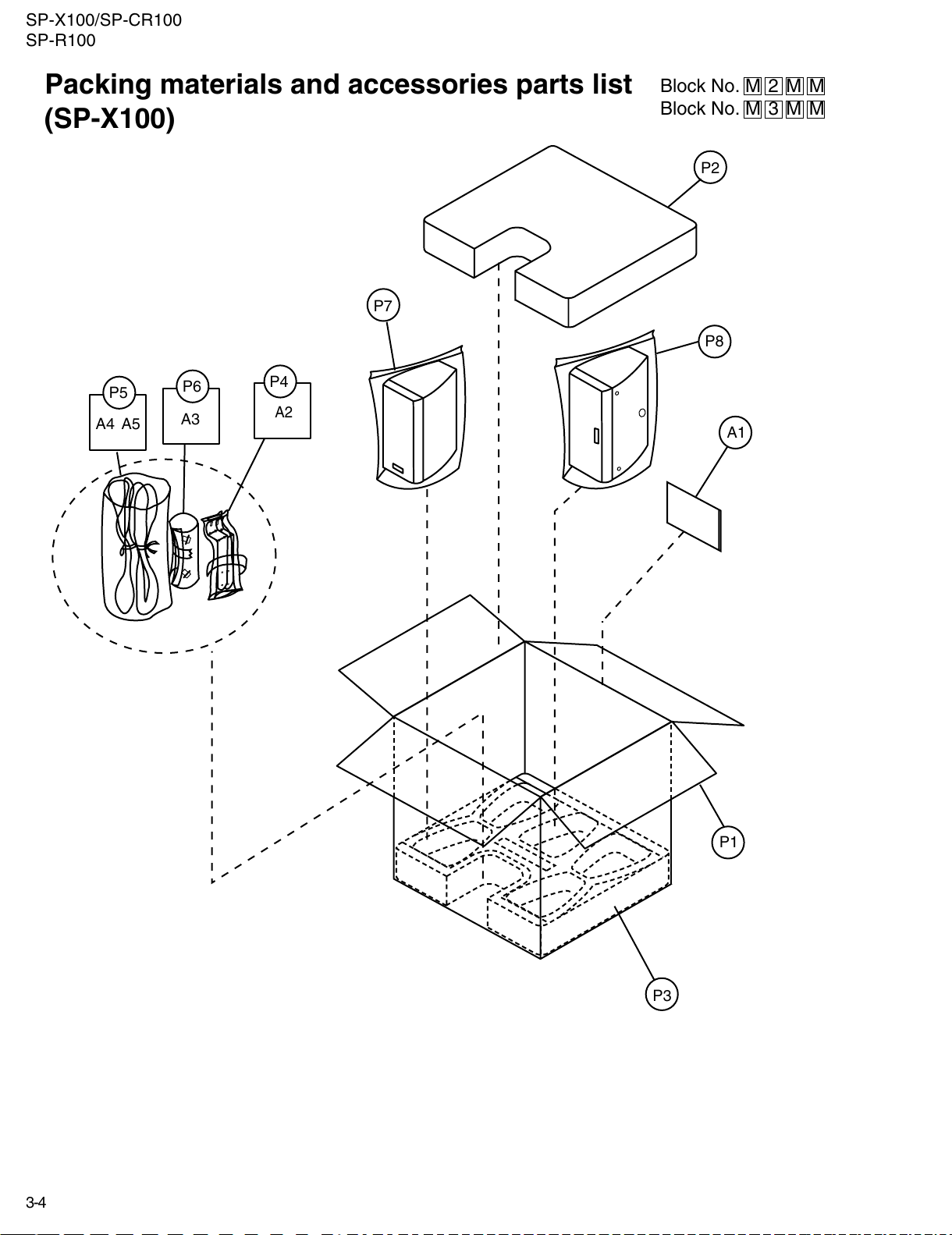

Packing materials and accessories parts list

(SP-X100)

Block No. M2MM

Block No. M3MM

All manuals and user guides at all-guides.com

SP-X100/SP-CR100

SP-R100

3-5

Block No. M2MM

Parts list (Packing)

Symbol

P 1

P 2

P 3

P 4

P 5

P 6

P 7

P 8

Parts number

83-000-436-11

80-000-452-01

80-000-452-11

85-000-357-01

85-000-357-71

85-000-357-21

85-000-327-71

Parts name

Individual carton

Cushion (Top)

Cushion (Bottom)

Poly bag

Q'ty

Description

Upper

Bottom

For bracket

For speaker cord

For bolt set

SP-XS100

SP-XC100

ColorValue

Parts list (Accessories)

Block No. M3MM

Symbol

A 1

A 2

A 3

A 4

A 5

Parts number

87-000-929-01

64-000-200-11

72-000-359-11

62-000-408-01

62-000-408-11

Parts name

Instruction

Bracket

Bolt set

Speaker cord

Value Q'ty

Description

Length 5m

Length 10m

Color

SP-X100

All manuals and user guides at all-guides.com
