CATALOGUE
0201
01 PRODUCT
INTRODUCE
PRODUCT DIAGRAM 8
[2]
[5]
[3]
[6]
[8]
[11]
[9]
[12]
[1] Handle [2] Light&horn Switch [3] Display
[4] Folding Lever [5] T Bar [6] Lock Nut
[7] Main Tube [8] Light&Horn [9] Protecon Pin
[10] Shock Absorber [11] Pedal [12] Rear Light
[13] 8” Tire [14] Kickstand [15] Motor
[1]
[15] [14]
[10]
[13]
[7]
SPECIFICATION 8
38 km/h
Max. Speed
3-5 h 6-8 h 4-6 hCharging
Rear Drum Brake + Electronic Brake
8.0 x 2.0 Tires
350 w 500 w
Motor
Brake
Tire
N.W 16 kg 18 kg 19.3 kg
Configuraon 36V
10.4AH
36V
21AH
48V
13AH
28-32 km 65-70 km 45-50 km
Max. Range
Front Shock Absorber
1100 x 190 x 320 mm
Shock Absorber
Open Size 1050 x 560 x 1150 mm
Folding Size
1070 x 260 x 430 mm
Package Size
* The specificaon can be changed by manufacturer to meet the requirements and laws of
different countries and regions.
* The distance can be affected by loaded weight, wind direct (wind speed), riding surface
density, slope and re condion.
[4]
PRODUCT DIAGRAM 8H
[1] Handle [2] Light&horn Switch [3] Display
[4] Folding Lever [5] T Bar [6] Lock Nut
[7] Main Tube [8]Light&Horn [9] Protecon Pin
[10] Shock Absorber [11] Pedal [12] Rear Light
[13] 8” Tire [14] Kickstand [15] Motor
[2]
[5]
[4]
[3]
[6]
[8]
[11]
[9]
[12]
[1]
[15] [14]
[10]
[13]
[7]
03 04
35 km/h 38 km/h
Max. Speed
3 - 5 h 6 - 8 h 4 - 6 hCharging
Rear Drum Brake + Electronic Brake
8.0 x 2.0 Tires
350W 500W
Motor
Brake
Tire
N.W 17.3 kg 19.4 kg 18.6 kg
Configuraon 36V
10.4 AH
36 V
21 AH
48 V
13 AH
28 - 32 km 65 - 70 km 45 - 50 km
Max. Range
Front and Rear Shock Absorber
1060 x 190 x 320 mm
Shock Absorber
Open Size 1070 x 560 x 1150 mm
Folding Size
1120 x 260 x 430 mm
Package Size
* The specificaon can be changed by manufacturer to meet the requirements and laws of
different countries and regions.
* The distance can be affected by loaded weight, wind direct (wind speed), riding surface
density, slope and re condion.
SPECIFICATION 8H
05 06
SPECIFICATION 8S
40 km/h
Max. Speed
4 - 6 hCharging
Rear Disc Brake + EABS Electronic Brake
85mm Soild Tire
800 w
Motor
Brake
Tire
N.W 22 kg
Configuraon 48 V
13 AH
40 - 45 km
Max. Range
C Shock Absorpon
1080 x 190 x 350 mm
Shock Absorber
Open Size 1100 x (520 ~560) x 1150 mm
Folding Size
1120 x 260 x 430 mm
Package Size
* The specificaon can be changed by manufacturer to meet the requirements and laws of
different countries and regions.
* The distance can be affected by loaded weight, wind direct (wind speed), riding surface
density, slope and re condion.
PRODUCT DIAGRAM 8S
[1] Handle [2]Light&horn Switch [3] Display
[4] Folding Lever [5] T Bar [6] Lock Nut
[7] Main Tube [8] Light&Horn [9] Protecon Pin
[10] Shock Absorber [11] Pedal [12] Rear Light
[13] 8” Tire [14] Kickstand [15] Motor
[2]
[5]
[4]
[3]
[6]
[8]
[11]
[9]
[12]
[1]
[15] [14]
[10]
[13]
[7]
07 08
SPECIFICATION 10
38 km/h 42 km/h
Max. Speed
3 - 5 h 6 - 8 h 4 - 6 hCharging
Front and Rear Disc Brake + Electronic Brake
10.0 x 2.25 / 10.0 x 2.5 res
400 w 500 w
Motor
Brake
Tire
N.W 17.3 kg 19.3 kg 18.6 kg
Configuraon 36 V
10.4 AH
36 V
21 AH
48 V
15.6 AH
28 - 32 km 65 - 70 km 50 - 55 km
Max. Range
No
1120 x 240 x 360 mm
Shock Absorber
Open Size 1135 x 560 x 1200 mm
Folding Size
1200 x 300 x 450 mm
Package Size
* The specificaon can be changed by manufacturer to meet the requirements and laws of
different countries and regions.
* The distance can be affected by loaded weight, wind direct (wind speed), riding surface
density, slope and re condion.
PRODUCT DIAGRAM 10
[1] Handle [2] Light&horn Switch [3] Display
[4] Folding Lever [5] T Bar [6] Lock Nut
[7] Main Tube [8] Light&Horn [9] protecon pin
[10] Shock Absorber [11] Pedal [12] Rear Light
[13] 10” Tire [14] Kickstand [15] Motor
[2]
[5]
[4]
[3]
[6]
[8]
[11]
[9]
[12]
[1]
[15] [14]
[10]
[13]
[7]
09 10
SPECIFICATION 10H
38 km/h 42 km/h
Max. Speed
3 - 5 h 6 - 8 h 4 - 6 hCharging
Front and Rear Disc Brake + Electronic Brake
10.0 x 2.25 / 10.0 x 2.5 res
400 w 800 w
Motor
Brake
Tire
N.W 19.6 kg 21.7 kg 21.4 kg
Configuraon 36 V
10.4 AH
36 V
21 AH
48 V
15.6 AH
28 - 32 km 65 - 70 km 50 - 55 km
Max. Range
Front and Rear Shock Absorber
1170 x 240 x 360 mm
Shock Absorber
Open Size 1186 x 560 x 1200 mm
Folding Size
1240 x 300 x 430 mm
Package Size
* The specificaon can be changed by manufacturer to meet the requirements and laws of
different countries and regions.
* The distance can be affected by loaded weight, wind direct (wind speed), riding surface
density, slope and re condion.
PRODUCT DIAGRAM 10H
[1] Handle [2] Light&horn Switch [3] Display
[4] Folding Lever [5] T Bar [6] Lock Nut
[7] Main Tube [8] Light&Horn [9] Protecon Pin
[10] Shock Absorber [11] Pedal [12] Rear Light
[13] 10” Tire [14] Kickstand [15] Motor
[2]
[5]
[4]
[3]
[6]
[8]
[11]
[9]
[12]
[1]
[15] [14]
[10]
[13]
[7]
SPECIFICATION 10S
50 km/h 60 km/h
Max. Speed
Charging
Front and Rear Disc Brake + Electronic Brake
10.0 x 2.25 / 10.0 x 2.5 res
800 w 1200 w
Motor
Brake
Tire
N.W 23.5 kg 25 kg
Configuraon 48 V
23.4AH
60 V
23.4 AH
80km 90 km
Max. Range
1220 x 230 x 380 mm
Shock Absorber
Open Size 1208 x 560 x 1200 mm
Folding Size
1260 x 300 x 470 mm
Package Size
* The specificaon can be changed by manufacturer to meet the requirements and laws of
different countries and regions.
* The distance can be affected by loaded weight, wind direct (wind speed), riding surface
density, slope and re condion.
PRODUCT DIAGRAM 10S
[2]
[5]
[4]
[3]
[6]
[8]
[11]
[9]
[12]
[1]
[15] [14]
[10]
[13]
[7]
11 12
12 h (2A charging) 12 h (2A charging)
6 h (4A charging) 6 h (4A charging)
Front Type C Shock Absorber
Rear Common Shock Absorber
[1] Handle [2] Light&horn Switch [3] Display
[4] Folding Lever [5] T Bar [6] Lock Nut
[7] Main Tube [8] Light&Horn [9] Protecon Pin
[10] Shock Absorber [11] Pedal [12] Rear Light
[13] 10” Tire [14] Kickstand [15] Motor
13 14
SPECIFICATION 10S+
60 km/h
Max. Speed
12 h (2A charging)
6 h (4A charging)
12 h (2A charging)
6 h (4A charging)
Charging
Front and Rear Disc Brake + Electronic Brake
10.0 x 2.25 / 10.0 x 2.5 Tires
800 w x 2 1000 w x 2
Motor
Brake
Tire
N.W 29 kg 30.5 kg
Configuraon 48 V
23.4 AH
60 V
23.4 AH
80 km 120 km
Max. Range
Front Type C Shock Absorber
Rear Common Shock Absorber
1220 x 230 x 380 mm
Shock Absorber
Open Size 1208 x 560 x 1200 mm
Folding Size
1240 x 300 x 430 mm
Package Size
* The specificaon can be changed by manufacturer to meet the requirements and laws of
different countries and regions.
* The distance can be affected by loaded weight, wind direct (wind speed), riding surface
density, slope and re condion.
PRODUCT DIAGRAM 10S+
[2]
[5]
[4]
[3]
[6]
[8]
[11]
[9]
[12]
[1]
[15] [14]
[10]
[13]
[7]
[1] Handle [2] Light&horn Switch [3] Display
[4] Folding Lever [5] T Bar [6] Lock Nut
[7] Main Tube [8] Light&Horn [9] Protecon Pin
[10] Shock Absorber [11] Pedal [12] Rear Light
[13] 10” Tire [14] Kickstand [15] Motor

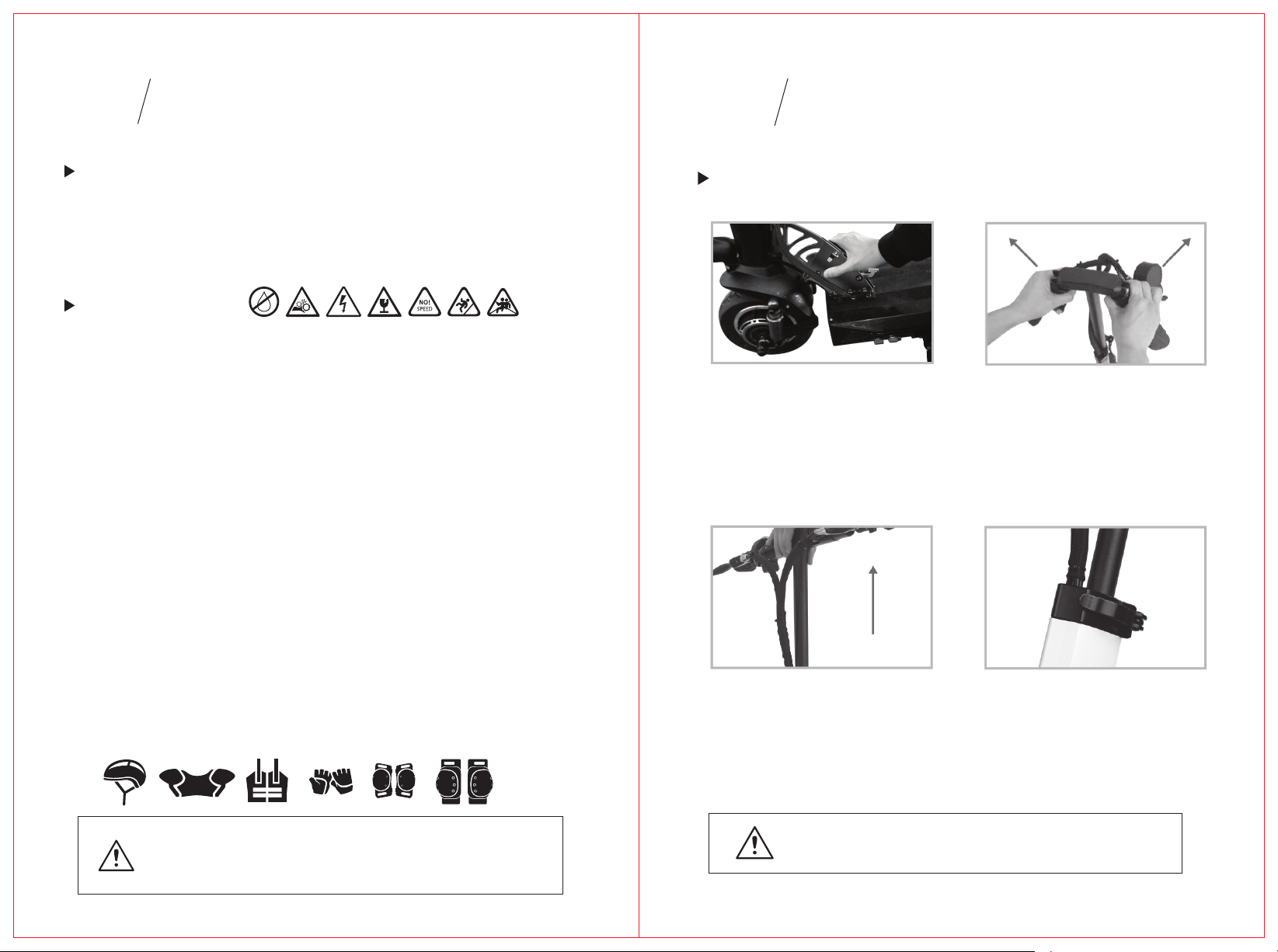

Safety Instruction
Tips
This Chapter is very important. Please read carefully and understand
all the instrucon. We will not be responsible for any property loss,
casuales, accidents, legal disputes caused by violaon of the safety
instruons on chapter.
5. One scooter for one person only.
1. Do not drive in rainy days.
2. Do not repair by yourself, electric shocks can occur.
3. Please abide by the local road traffic law.
4. Do not acrobacs.
6. Beer to wear safety protecve equipments such as a helmet,gloves,elbow
and knee pads when ride.
7. Please pracce on open ground first,and then ride on the road.
02 SAFETY
INSTRUCTION
8. Adjust to a suitable height to avoid injury.
9. Suggest to charge six hours before the first me to ride the scooter.
10. Do not cut off the power when scooter is running.
11. Do not climb a step higher than 3cm to avoid turning over and possible injury.
12. Use and storage scooter temperature range is -5℃ to 50℃.
13. If le a long me mo use of the scooter,charge it once every month to
maintain the longevity if the baery.
15. Keep feet on pedal when the scooter is run tuble.
14. Do not ride in puddle deeper than 5cm or avoid sprayed directly by water in
case of motor or electrical faults.
Please do not exceed maximum speed for local traffic
requirements when you driving this equipments,
otherwise there may be danger!
Step1:
Kickdown the lever to unfold the
scooter.Put the safety pin to right
poson to lock it
Step2:
Pull the T-tubes to the le
and right side.
Step3:
Adjust the height by open
the locking nut and move the
main tube up or down.
Step4:
Lock the nut.
Open
03 OPEN
FOLD
Before driving, please make sure the folding lock is
locked, this is very important !
15 16
