Kane 358 Bedienungsanleitung
KANE 358
Flue Gas Analyser with direct O2 measurement
and CO sensor protection
Stock No: MAN00164 Rev: 1.00321 MARCH 2021
© Kane International Ltd
2KANE 358 MANUAL
CONTENTS
Page No.
KANE 358 OVERVIEW 4
INSTRUMENT FEATURES AND KEYPAD 5-8
KEYPAD BUTTONS 6
INSTRUMENT LAYOUT 7
BACK OF ANALYSER - PROBE ETC 8
BATTERIES 9
BATTERY TYPE 9
REPLACING BATTERIES 9
TIME AND DATE 9
CHARGING NIMH BATTERIES 9
BATTERY DISPOSAL 9
GENERAL SAFETY 10
FIRST TIME USE 11
GENERAL OPERATING PRINCIPLE 11-15
QUICK START 11
USER INTERFACE 11
STATUS 12
STATUS BAR 12
STATUS BAR LAYOUT 13
STATUS BAR MESSAGE AREA 13
STATUS BAR ICONS 14
STATUS BAR ICON LEVEL 14
STATUS BAR MENU OPTIONS 15
STANDARD OPTIONS 15
USING THE MENU 16
MENU ITEMS 17
MEASURING FLUE GASSES 17-18
PRINTING 18
KANE INFRARED PRINTER 18
3KANE 358 MANUAL
CO PROTECTION PUMP OPERATION 19
AUX SCREEN 19
EDITING THE AUX SCREEN 19
O2/EFF SCREEN 19
RATIO SCREEN 20
STORED MEMORY REPORTS 20
MENU OPTIONS 21
VIEWING STORED REPORTS 21
REPORT VIEW MENU OPTIONS 21
NAVIGATING STORED REPORTS 22
REPORT NAVIGATION MENU OPTIONS 22
PRESSURE & TEMPERATURE TESTING 23
TEMPERATURE & PRESSURE DISPLAY 23
VIEWING, SENDING & PRINTING 23
PRESSURE MEASUREMENT GOOD PRACTICE 24
LARGE BORE TUBING ISSUES 24
TESTS 24-27
COMMISSIONING TEST 24-25
LET-BY & TIGHTNESS TESTING 26-27
PRINTOUTS 28
SPECIFICATIONS 29-30
EU DECLARATION OF CONFORMITY 31
COLD WEATHER PRECAUTIONS 32
4KANE 358 MANUAL
KANE 358 OVERVIEW
The KANE358 combustion analyser measures:
● Carbon Monoxide (CO)
● Oxygen (O2)
● Pressure
● Temperature
Depending on your options these parameters are calculated:
● Carbon Dioxide (CO2)
● CO/CO2 ratio
● Combustion Eciency
● Losses
● Excess Air
● Dierential Pressure
● Dierential Temperature
Your KANE358 has a protective rubber cover with magnets for
“hands-free” operation and is supplied with a ue probe with integral
temperature sensor.
Your KANE358 has a low gas ow detector that switches o the
analyser’s pump if it detects water entering the analyser from an
overlled water trap.
Your KANE358 has a large 6 line display showing data & test results
based on your actions.
The display’s bottom line also highlights analyser status at all times.
Your KANE358 can print out test results using an optional infrared
printer or to KANE’s wireless printer App.
Your KANE358 stores up to 30 logs of any combination of
Combustion, AUX, Temperature & Pressure test results – including 10
Tightness Tests & 10 Commissioning tests
You can add 2 lines of 16 characters to your test results header.
5KANE 358 MANUAL

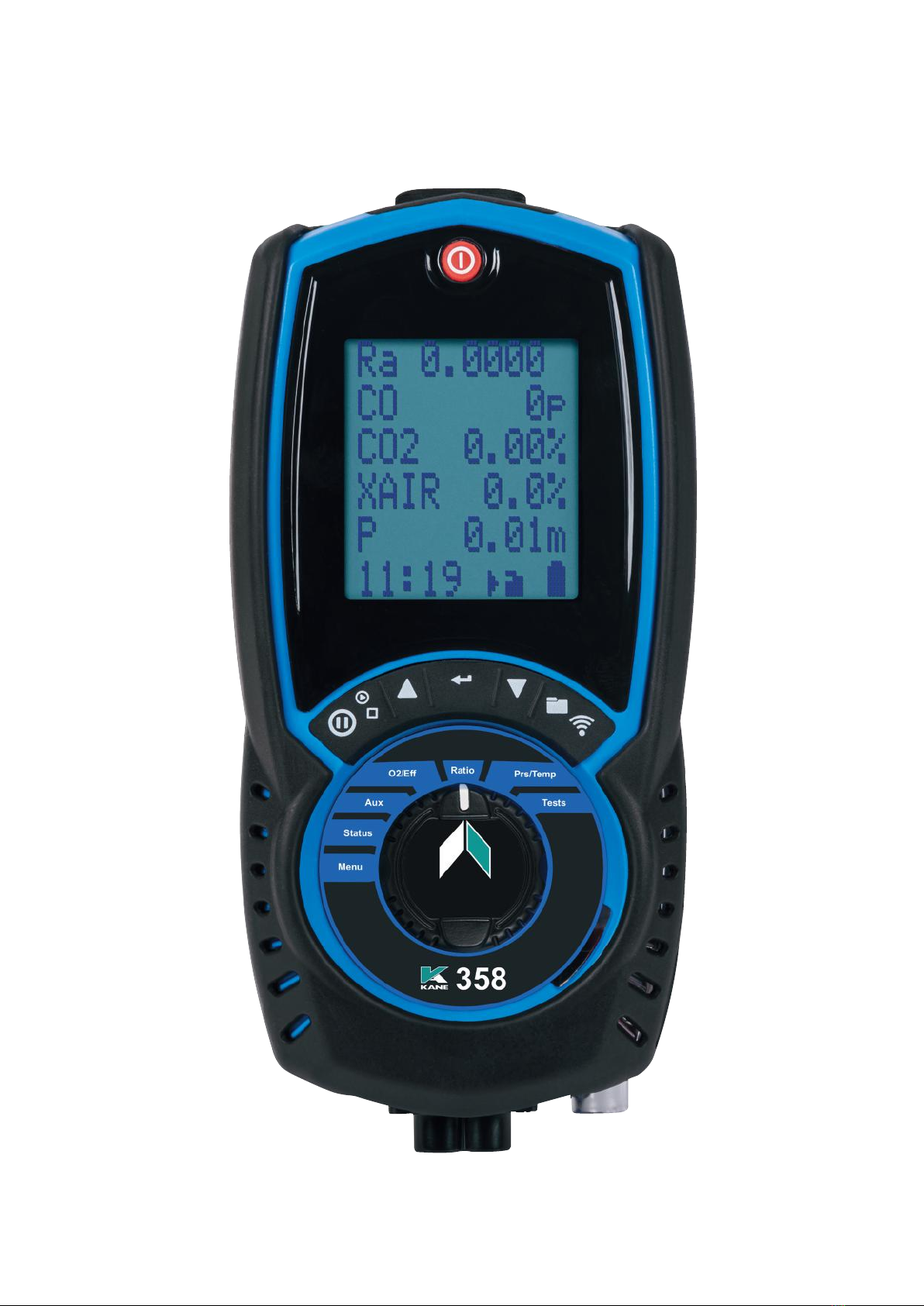

ANALYSER FEATURES AND KEYPAD
6KANE 358 MANUAL

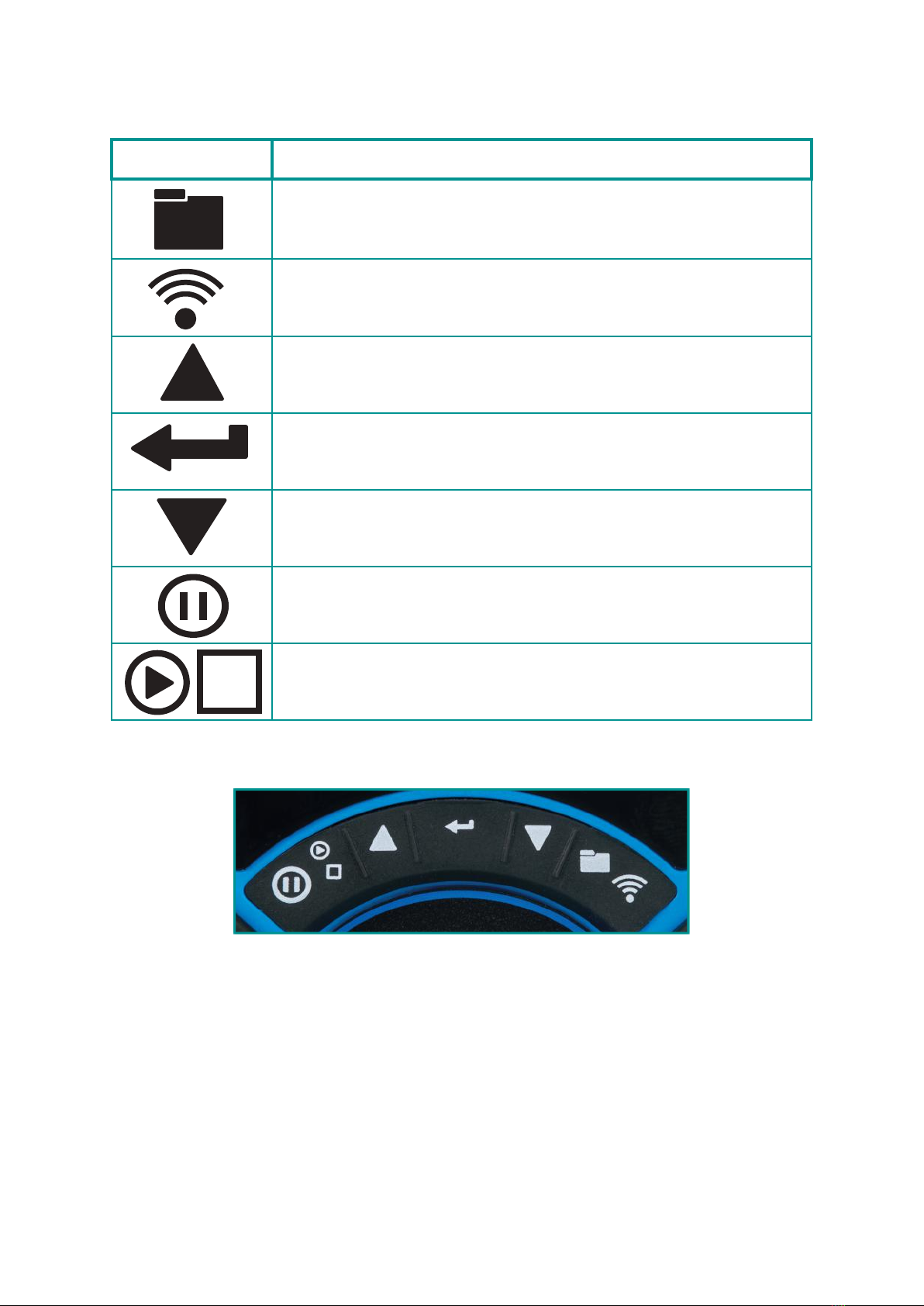

KEYPAD BUTTONS
ICON DESCRIPTION
Save log – Long press to store data
Print report. Short press to print a report (Enters a
print destination when both wireless and irda tted)
Navigate up – Short press to scroll up
Enter button – Used to select the current option
Navigate down – Short press to scroll down
Data hold – Short press to hold current data on screen
(see status bar section)
Pump toggle – long press to toggle the pump on and
o
Function
buttons
7KANE 358 MANUAL

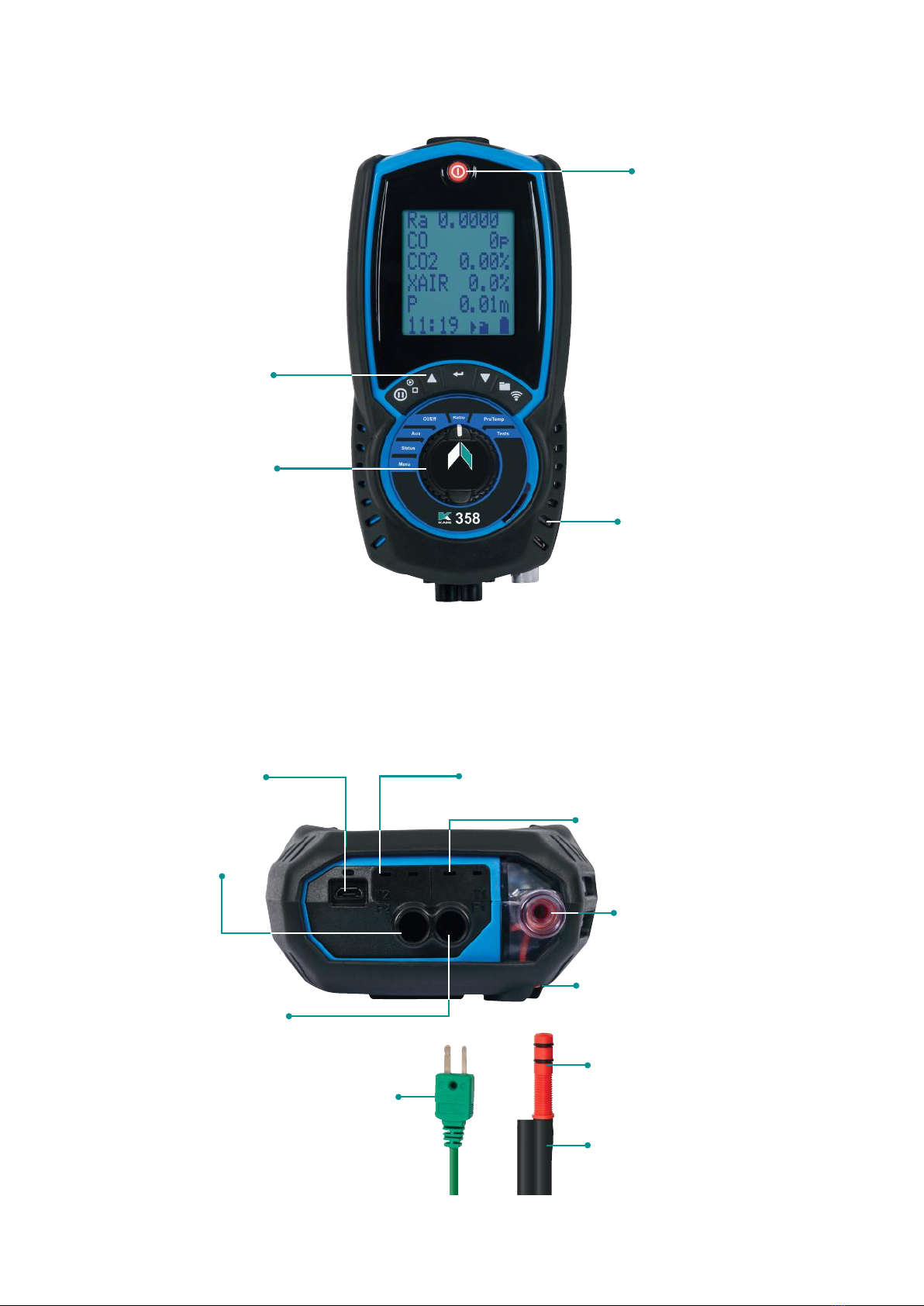

INSTRUMENT LAYOUT
Battery
charger
Watertrap drain with
red plug
Flue probe
temperature T1
Inlet temperature T2
Pressure
connection P1
Pressure
connection P2
(Differential)
Flue gas
inlet
On / Off
Function buttons
- see below
Water trap &
particle filter
Rotary switch
Red connector
– plugs into Flue
Gas Inlet
Flue Probe Temperature Plug –
plugs into T1
The narrower (+ve) pin must be
on the right hand side Flue Probe Hose
8KANE 358 MANUAL
Watertrap drain
with red plug
Thermocouple
Thermocouple
Wire
Stainless Steel
Shaft
Depth Stop Cone
Gas Path
Magnets x2
9KANE 358 MANUAL
BATTERIES
BATTERY TYPE
This analyser uses rechargeable Nickel Metal Hydride (NiMH) batteries
- Using other battery types may void your analyser’s warranty.
WARNING
Although you can use Alkaline batteries you must not charge your
analyser with Alkaline batteries tted.
Do not mix NiMH cells of dierent capacities or from dierent
manufacturers - All batteries must be identical.
REPLACING BATTERIES
Turn over your analyser & remove its protective rubber cover to nd trhe
battery compartment & t 3 NiMH “AA” rechargeable batteries ensuring
they are tted with correct battery polarity. Replace battery cover &
protective rubber cover.
TIME AND DATE
After changing batteries reset your analyser’s time & date.
CHARGING NIMH BATTERIES
Your KANE358 uses a standard Micro USB connector - For best
results turn it o then connect your charger. The charging indicator will
illuminate and turn o when the need for charge is over.
Your rst charge should be for 8 hours - Thereafter NiMH batteries can
be “topped up” at any time, even for short periods.
If your batteries discharge so that the analyser enters a low power
shutdown, 1 hour’s charge provides approx 2 hours continuous use.
BATTERY DISPOSAL
Always dispose of depleted batteries using approved disposal methods
that protect the environment.
10 KANE 358 MANUAL
GENERAL SAFETY
SAFETY WARNING
This analyser extracts combustion gases that may be toxic in relativity
low concentrations. These gases are exhausted from the bottom of the
analyser. This analyser must only be used in well-ventilated locations by
trained and competent persons after due consideration of all the
potential hazards.
Portable gas detectors users should conduct “bump” tests before
relying on units to verify atmospheres are free from hazard.
A “bump” test is a way to check an instrument works within
acceptable limits by briey exposing it to known gas mixtures to
change the output of all sensors present.
Note: This is dierent from a calibration where the instrument is also
exposed to known gas mixtures but allowed to settle to a steady gure
with readings adjusted to the stated gas concentration of the test gas.
Protection Against Electric Shock (In accordance with EN 61010-1:
2010):
This analyser is designed as Class III equipment and should only be
connected to SELV circuits. The battery charger is designated as:
● Class II equipment
● Installation category II
● Pollution degree 2
● Indoor use only
● Altitude to 2000m
● Ambient temperature 0°C-40°C
● Maximum relative humidity 80% for temperatures up to 31°C
decreasing linearly to 50%RH at 40°C
● Mains supply uctuations not to exceed 10% of the nominal voltage
