Kanomax 3950 Bedienungsanleitung

0.1μm Particle Counter

MODEL 3950

User Manual

List of Components

■ Standard

Item Model Functions

Main Unit 3950 Main unit

AC Adapter 3910-08 Exclusive adapter

USB Cable Communicates with the PC.

Zero Filter 3950-60 Cleans the air flow path inside the device with

clean air.

Tygon Tube (1 m) Connects to the inlet to perform a measurement.

Inlet Protective Cap Prevents the entry of foreign objects into the

Main unit when not using the device.

Software CD 3950-40 Software for remote measurement, User Manual

■ Optional Accessories

Item Model Qty

Compact Printer NP-DPU-S245-00C-E 1

■ Consumables

Item Model Qty

Zero Filter 3950-60 1

Important Safety Information

The symbols for the warnings used in this manual are defined below:

Classifications

Warning

Warnings in this classification indicate risks that may result in serious injury

or death if not observed.

Caution

Warnings in this classification indicate risks that may result in injury or

damage to the surrounding objects if not observed.

Notice

Warnings in this classification indicate risks of damage to the product that

may void the product warranty if not observed.

Description of Symbols

This symbol indicates a condition that requires caution (including warning).

The subject of each caution is illustrated inside the triangle (e.g. the high

temperature caution symbol is shown on the left).

This symbol indicates a prohibition. Do not take the prohibited action shown

inside or near this symbol (e.g. the disassembly prohibition symbol is shown

on the left).

This symbol indicates a mandatory action. A specific action is given near the

symbol.

This symbol indicates a warning of possible laser radiation.

Warning

（Forbidden）Do not use the AC adapter other than the provided one with the

instrument.

Using an inappropriate adapter may damage the instrument.

It may generate heat and cause fire.

（Do not remodel/disassemble）Never disassemble, modify, or repair.

This instrument uses a Class 4 laser diode as the light source.

Exposure to the laser may cause loss of eyesight and other injury.

Never open the instrument other than the battery compartment.

（Handle properly）Handle the instrument properly in accordance with the

iii

instructions provided in this manual.

Failure to do so may cause electric shock, fire, or sensor damage.

（Caution）If abnormal noise, smell, or smoke is observed, or if liquid has

entered the instrument, turn off the power immediately, remove the batteries

or pull out the plug.

Failure to observe the above may cause electric shock, fire hazard, or

damage.

Please contact your local distributor or Kanomax service center for repair.

Caution

（Handle properly）Pull out the plug when the instrument is not in use.

Failure to do so may cause electric shock, fire hazard, and circuit damage.

Notice

（Forbidden）Do not use or keep the instrument in hot, humid, or dusty

environment. Do not expose the instrument to direct sunlight for a prolonged

period of time.

The instrument may not function properly out of the specified operational

temperature range.

（Forbidden）Do not subject the instrument to strong impact.

Dropping or hitting the instrument may cause damage and malfunction.

（Forbidden）Do not wipe the instrument with volatile solvent.

The body may deform or deteriorate. Use soft dry cloth to remove stains. If

stains persist, soak the cloth in neutral detergent and wipe the instrument

with the cloth.

（Forbidden）Do not touch the LCD screen with a sharp-pointed object or

with excessive pressure.

It may cause distortion of the screen or a malfunction.

A rapid temperature change may cause a malfunction of the screen.

（Handle properly）When storing the instrument, put the instrument in the

carrying bag and keep it in a place with an ambient temperature of -10 to

50℃ and no condensation.

（Forbidden）Do not dispose of the instrument as household waste.

Please note that the disposal of the instrument and batteries should be in line

with your local or national legislations. For details, please consult with your

local distributor.

Table of Contents

Part Names and Functions................................................................................................5

Preparation Before Measurement ....................................................................................6

AC adapter ............................................................................................................ 6

Warm-up ............................................................................................................... 6

Measurement Procedures .................................................................................................6

Internal Cleaning .................................................................................................... 6

Measurement ......................................................................................................... 6

Errors .................................................................................................................... 7

User Interface .....................................................................................................................7

Title Screen ........................................................................................................... 7

Main Screen ........................................................................................................... 7

General Setting .................................................................................................... 10

Measurement Setting ............................................................................................ 12

Preset ................................................................................................................. 14

History ................................................................................................................ 15

Print Example ....................................................................................................... 16

Screen Flow Diagram ............................................................................................ 17

Specifications...................................................................................................................1

Troubleshooting ...............................................................................................................20

Warranty and After Service .............................................................................................21

Contact Information .........................................................................................................22

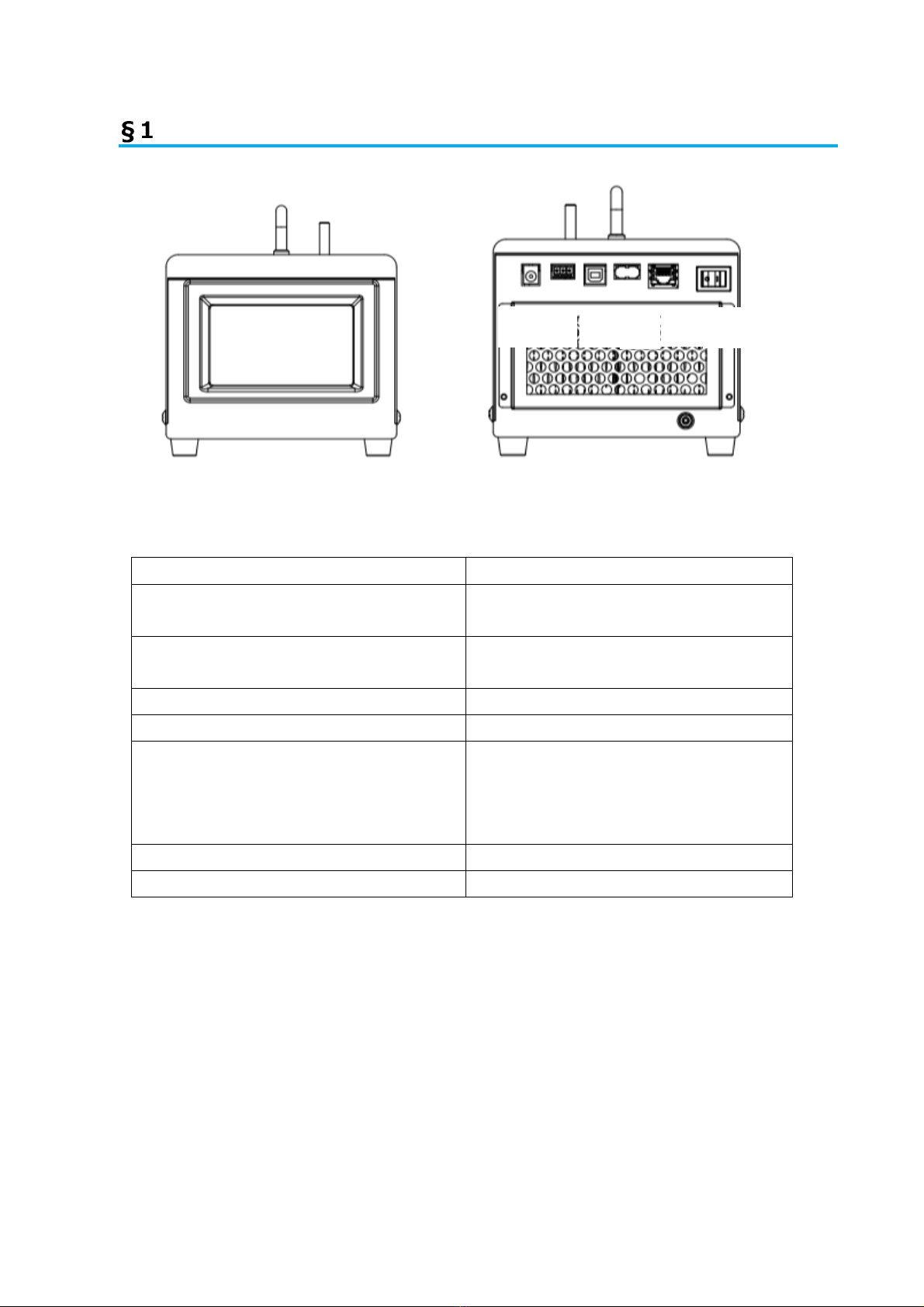

Part Names and Functions

Name Functions

① Inlet Suction volume : 2.83 L/min.

Outer diameter : 6.4 mm

② DC Power Terminal Connects to the main unit with the AC

Adapter.

③ Communication Terminal Communicates in the RS-485 method.

④ USB Terminal (for PC) Connects to the PC with the USB Cable.

⑤ USB Terminal

(for the Printer, for the USB memory)

Connects to the Printer with the USB

Cable.

The measurement results are copied to

the USB memory.

⑥ Communication Terminal Communicates with the Ethernet.

⑦ Power Switch Turns ON/OFF power to the Main unit

②

⓺

⓻

①

⓹

⓸

③

Preparation Before Measurement

AC adapter

Be sure to use the provided AC adapter when using the Main unit.

Warm-up

If the device is brought in from a different temperature place, prior to a measurement, let

the device allow adapt the current temperature environment. Be sure to warm up the

device at least for 10 minutes before starting a measuring. A sudden temperature change

may cause a measurement error.

Measurement Procedures

Internal Cleaning

Prior to use, purge the device (Interior cleaning) with the Zero Filter.

Remove the Inlet Protective Cap, and attach the Zero Filter to the inlet.

Turn the power on and press the Start button to perform a continuous measurement for

10 to 15 minutes. When the measuring count value is stable and confirm the value is

retained at least for 10 seconds, finish a measurement.

(If the value doesnʼt reach to zero, block the inlet of the Zero Filter for a few seconds to

accelerate the cleaning while measuring.)

Remove the Zero Filter from the inlet.

Measurement

Connect the Tygon Tube to the inlet. (Using the Tube leads to less influence by the

ambient environment.)

Set the required setup on the General setup and Measurement setup sub-menus.

Set the measurement conditions in the Measurement mode, and select the measurement

conditions in the Preset.

Return to the Main screen. Press the Start button to perform a measurement.

The measurement will complete automatically or by pressing the Stop button.

The previous measurement results can be viewed from the History sub-menu.

Do not run the device for eight (8) hours or more per day.

Try to avoid a suction sampling in the general atmosphere. A suction sampling in the

general atmosphere may cause contamination in the optical system, resulting in providing

unstable measurement.

Errors

The following errors can occur by the self-diagnostic function. Even if an error occurs, the

measurement and other processes will be continued.

Laser power failure

The laser diode may be defective or reached the end of its life.

Flow rate

The pump current is increasing or decreasing. If the inlet

Protective Cap is attached, remove the Cap. If the error

persists, the pump may be defective or reached the end of its

life.

Maximum

measurable

concentration

is exceeded

The concentration exceeds the maximum measurable range.

Perform the measurement at a cleaner location or attach the

Zero Filter to the device to measure.

User Interface

Title Screen

Turn on the power to the device. After four (4) seconds, the Main screen will appear

automatically. Or tap the Title screen to go to the Main screen.

Main Screen

There are three main screens as required. You can go to the sub-menu screens from the

main screens.

Table Form

Cumulative

Icon Name Functions

General setting

Opens the menus to set the unit, calendar, data,

sound and language and to display device

information.

Measurement

setting

Opens the menu to set the mode, alarm, save, and

remote.

Preset

Opens the menu to set or select up to 12 Presets.

History

Views the previous measurement results and prints

the data.

Chart type

changing

Switches the chart types between a Bar

graph and a

Table form ∑ graph.

Table Form

Differential

Bar Graph

Differential

A Line graph

is shown

while

measuring.
