INTRODUCTION

Congratulations on your purchase of a 6815 Digital Hygro-Thermometer

Anemometer! You now own one of the most accurate, reliable, and highly

regarded airflow, temperature, and humidity measurement instruments

available today.

Kanomax’ s model 6815 digital hygro-thermometer anemometer is a versatile

instrument for measuring air velocity, temperature, and humidity in various

applications such as HVAC, aerospace development, industrial process airflow,

and fluids research.

The rugged yet precise air probe can be used in airstreams that have a wide

range of humidity, temperature and contaminants without compromising air

velocity measurement accuracy. The combination humidity and temperature

probe gives accurate readings across a wide range of temperatures and

humidity’s.

Features include custom cable lengths, service temperatures up to 212˚F (100˚C)

at the air probe, high reliability, and long life.

www. .com information@itm.com1.800.561.8187

IMPORTANT SAFETY INFORMATION

Classifications

Danger: To Prevent Serious Injury or Death

Warnings in this classification indicate danger that may result in serious injury or death if

not observed.

Caution: To Prevent Damage to the Product

Warnings in this classification indicate risks of damage to the product that may void the

product warranty and/or calibration.

Description of Symbols

ESD Caution: To Prevent Damage to the Product

Warnings in this classification indicate risks of damage to the product that may void the

product warranty and/or calibration. Internal components are static sensitive and are not

user serviceable. Opening the cases by a non-authorized service center and/or in a non-

ESD safe environment may cause damage not covered by the manufacturer’s warranty.

Important: Mandatory Action Required

The specific action is given near this symbol.

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class

B digital device, pursuant to part 15 of the FCC rules. These limits are designed

to provide reasonable protection against harmful interference. This equipment

generates, uses and can radiate radio frequency energy and, if not installed and

used in accordance with the instructions, may cause harmful interference to

radio communications. However, there is no guarantee that interference will not

occur in a particular situation.

www. .com information@itm.com1.800.561.8187

IMPORTANT SAFETY INFORMATION (continued)

EU – Declaration of Conformity

Kanomax declares that the product for this manual complies with the essential

requirements and other relevant provisions of Directive 1999/5/EC. A copy of

the Declaration of conformity is available on request.

RoHS Statement

Concerning EU-Directive 2011/65/EU (RoHS 2), to the best of our knowledge,

based on supplier provided information, all Kanomax brand products, are not

intentionally manufactured or formulated with the following substances: Lead,

mercury, cadmium, hexavalent chromium, polybrominated biphenyls (PBB),

polybrominated diphenyl ethers (PBDE). Minimal levels established in the 2005

RoHS Directive still apply under Article 4(2), Annex II: 0.1% by weight in

homogenous materials for lead, mercury, hexavalent chromium, polybrominated

biphenyls and polybrominated diphenyl ethers; 0.01% by weight in homogenous

materials for cadmium. Please be advised that we do not analyze for these

substances.

WEEE – Waste Electrical and Electronic Equipment - 2002/96/EC

Kanomax asks that all our products to be recycled at the end of their current use,

to comply with local waste requirements. Kanomax supports local Waste

Electrical and Electronic Equipment (WEEE) directives where they are in

operation. That means that WEEE may not be disposed as unsorted municipal

waste but is to be collected separately. Kanomax consumer products are

therefore labeled with a crossed-out “wheelie-bin” symbol which you can see

above. Further, all our products bear any other appropriate symbols for their

respective region. WEEE may contain hazardous substances which may

negatively affect the environment and human health when disposed of through

normal channels. Kanomax is committed to reduce the negative environmental

and human health effects of WEEE.

www. .com information@itm.com1.800.561.8187

DANGER

Never touch the vane assembly blades and/or thermal sensors.

The vane assembly blades may contain sharp edges which may cause minor

cuts. The assembly contains precision bearings which are sensitive and the

blades are finely adjusted to specific pitches. Touching this assembly or its parts

may cause damage which can affect its operation and the calibration.

NOTE: If the vane assembly head or probe head requires cleaning we

recommend a fine mist of isopropyl alcohol and a fine long-haired brush or send

the unit in or servicing.

Do not disassemble or heat the batteries, or put them into a fire.

The may cause burns and the batteries may burst. Please dispose of used

batteries in the proper manner per local ordinances.

CAUTION

When measuring, ensure that the direction arrow is facing the

direction of airflow.

The arrow indicates the direction of airflow for the data provided on the calibration

certificate. It is meant to allow for uniform and consistent readings as per the provided

data. The probe will operate in the opposite direction but the data may be different.

Do not use or leave the instrument in a high temperature, high humidity,

high speed airflows or dusty environments for prolonged periods.

The instrument may not function properly out of the specified operating conditions and/or

have a greatly reduced operating life span.

Do not subject the instrument or the probe to strong impacts.

Dropping the instrument or the probe may cause damage or malfunction to the instrument

and may change the calibration data. We recommend sending it in immediately to be

checked.

www. .com information@itm.com1.800.561.8187

CAUTION (continued)

Never disassemble, modify or repair the product.

Failure to observe the above may cause damage to the instrument or the probe. It may

also void the manufacturer’s warranty and calibration certificate.

Do not pick up or carry the instrument by the cable.

It may cause a malfunction or damage to the wiring of the cable.

Remove the batteries from the instrument when storing for long

periods of time. When inserting the batteries, be sure to insert them with the

polarity facing the correct direction.

Failure to do so may cause battery leakage and subsequent damage to the

instrument. The manufacturer does not recommend any specific brand of

batteries but a high-quality name brand alkaline battery seems to last the longest.

Do not wipe the instrument with a volatile solvent.

Use neutral solvents and simple cleaners to clean the instrument with a soft cloth.

Regularly check the head of the probe for contamination.

Impurities (such as dust) on the blades and/or thermal sensor may affect the

accuracy of the instrument.

NOTE: If the vane assembly head or probe head requires cleaning we

recommend a fine mist of isopropyl alcohol and a fine long-haired brush or send

the unit in or servicing.

When storing or shipping the instrument, the manufacturer recommends

disconnecting the cable(s) and returning it to the original carrying case.

www. .com information@itm.com1.800.561.8187

SECTION 1 - SPECIFICATIONS

Ranges:

Air Probe AP275: 50 to 7800 ft/min (feet per minute)

0.2 to 40.00 m/sec (meters per second)

Air Probe AP100: 300 to 6890 ft/min (1.5 to 35.00 m/sec)

Relative Humidity (%RH): 5.0 to 95.0 %RH

Temperature (using combination HTP202 probe): -4° to 176°F

(-20° to 80°C)

Temperature (using optional RTD probe): -148° to 1112°F

(-100° to 600°C)

Accuracy:

Air Velocity: AP275: ± 1.0% of reading ±1 digit

AP100: ±0.50% full scale ±0.75% of reading ±1 digit

Relative Humidity: ± 2.0 %RH

Temperature: ± (0.3°C + 0.2% of reading in °C)

Temperature accuracy examples: ± 0.3°C at 20°C

± 0.5°F at 68°F

Resolution:

Air Velocity: 1 ft/min or 0.01 m/sec

Relative Humidity: 0.1 %RH

Temperature: 0.1˚F or 0.1˚C (1˚F below -99.0˚F)

Operating Temperature:

Instrument: 32˚ to 125˚F (0˚ to 50˚C)

Air Probes: -22˚ to 212˚F (-30˚ to 100˚C)

HTP202 Probe: -4˚ to 176˚F (-20˚ to 80˚C)

Power Supply: 3 AA alkaline batteries

Battery Life: Approx. 150 hours, without backlight

Battery check: Automatic low battery display

Display: 0.5” LCD, 4 digits, with LED backlight

www. .com information@itm.com1.800.561.8187

Options Available:

 Protective Boot and Splash-Proof Seal for the Instrument

 USB Communications

 RS232 Communications

 Analog 0-5 Volt Output

 Additional Probes: AP275, AP100, HTP202

 Extra extension and/or flexible rods

 Custom cable lengths

 Immersion RTD temperature probe

 Surface RTD temperature probe

 Air RTD temperature probe

Included:

 (1) 6815 Instrument

 (1) Vane-type probe head, choice of AP100 or AP275

 (1) HTP202 combination RH / temperature probe

 (3) Rigid extension rods with handle grip

 (1) Flexible extension rod

 (1) Probe connection cable, 5 ft.

 (3) Size AA 1.5V alkaline batteries (installed in instrument)

 (1) Hard-shell carrying case with foam liner

 (1) 6815 operation manual

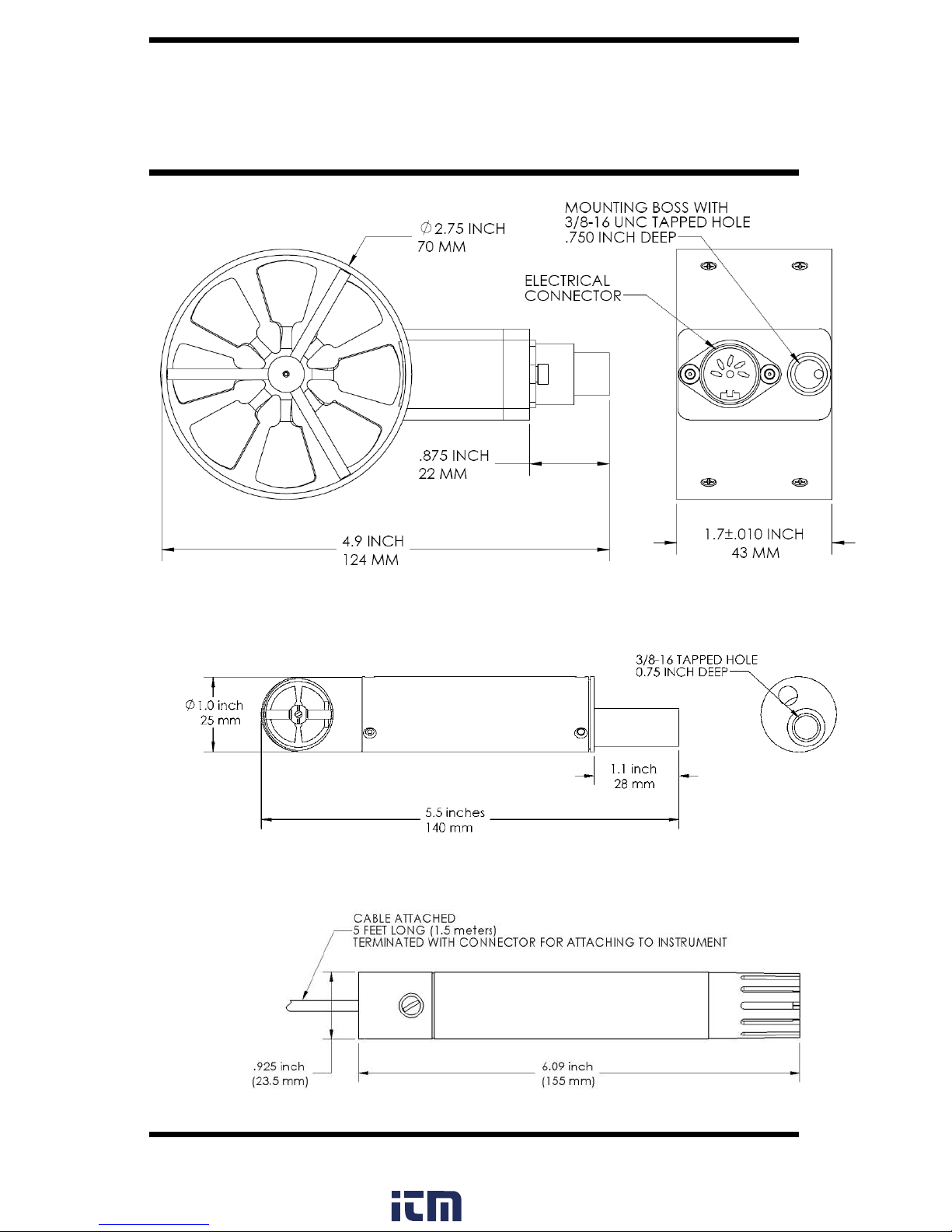

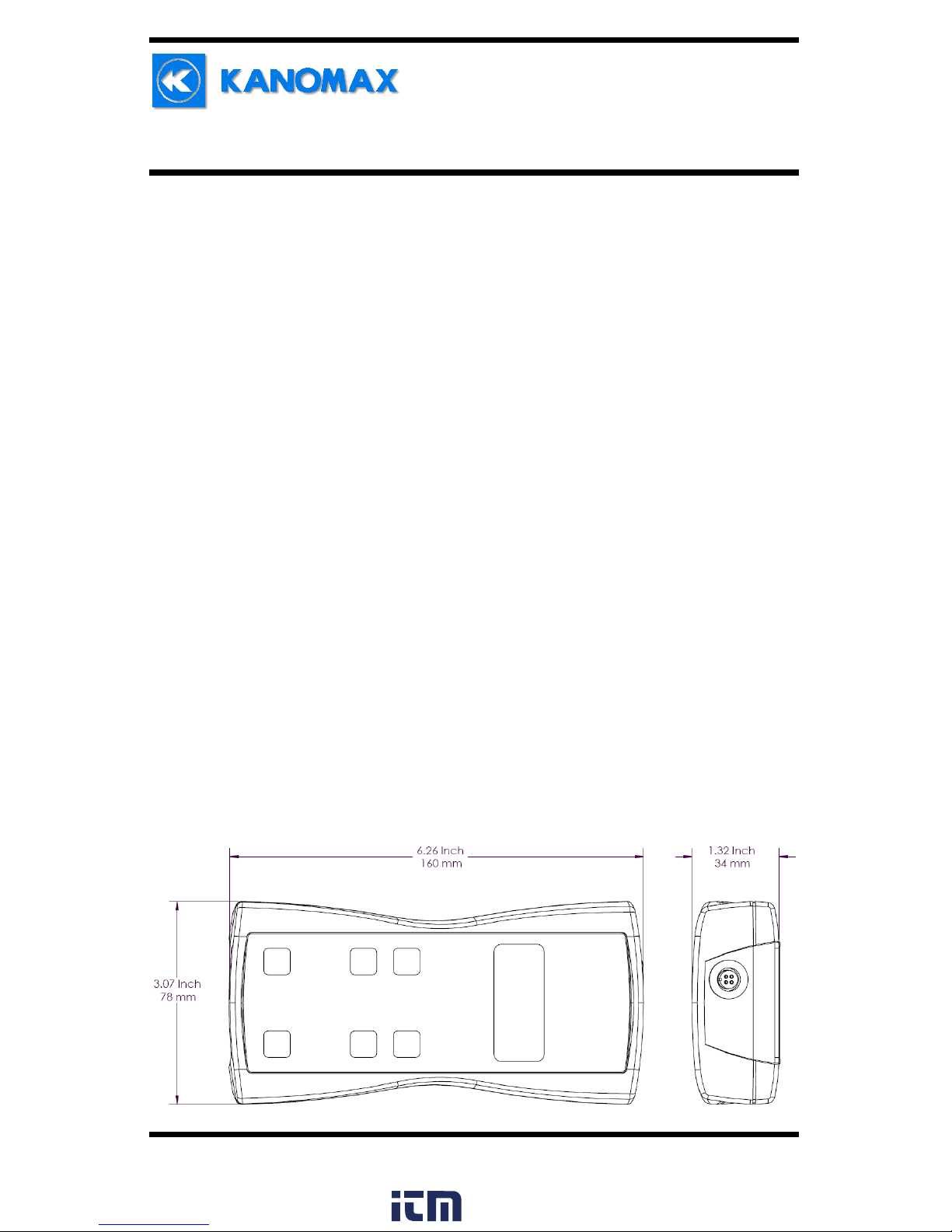

Dimensions

INSTRUMENT

www. .com information@itm.com1.800.561.8187

6815™ User Manual, PN 10284 Kanomax USA, Inc

Rev 3.0, 20-May-2016 www.kanomax-usa.com

AP275 PROBE

AP100 PROBE

HTP202 PROBE

www. .com information@itm.com1.800.561.8187

SECTION 2 – SWITCH FUNCTIONS

Pressing the ON/OFF key switches the instrument ON. Hold down the

key for 2 seconds to switch the unit OFF. The unit will automatically

power off after 30 minutes without any key presses. To disable auto

power-off, hold down the power button during turn-on. The unit will

flash AOFF, which means that the auto power-off has been disabled.

The auto power-off is re-enabled each time the instrument is turned on.

Press the BACKLIGHT key to turn the LCD backlight on for 30

seconds. To turn the backlight on permanently, hold the backlight key

down for 3 seconds. The LCD will flash. The backlight is now

switched on permanently. To switch the backlight off, press the backlight key

again.
