Kargo Master 4081SF Handbuch

Kargo Master

Rancho Cordova, CA 95742

800-343-7486

CustomerService@KargoMaster.com

20210930R1 DATE: ________________

Instruction Guide

4081SF

Instructions –4081SF

For Technical Support Call: 800-343-7486, Monday-Friday, 7AM - 4 PM (PST) Page 1

*PLEASE READ ALL INSTRUCTIONS AND WARNINGS PRIOR TO ASSEMBLING, INSTALLING,

AND USING THIS PRODUCT. *

Warning

Always check for wires, fuel tanks and lines, brake lines and other important vehicle

functionality items prior to drilling and installing all products.

DO NOT EXCEED MANUFACTURERS WEIGHT CAPACITY FOR ROOF.

Tools Needed

1/2”, 9/16” Sockets and Wrench

Tape Measure

Table of Contents

Before You Begin............................................................................................................................................... 1

Parts .................................................................................................................................................................. 2

Hardware .......................................................................................................................................................... 2

Step 1 –Install Feet to Factory Rails................................................................................................................. 3

Step 2 –Install Rack to Feet.............................................................................................................................. 5

Before You Begin

Read all instructions prior to assembling or installing any Kargo Master product.

Always locate your installation locations prior to performing any work.

ENSURE SAFETY WHILE INSTALLING OR DRILLING INTO VEHICLE.

Refer to assembly instructions provided with rack to assemble rack. It is recommended to have the rack

assembled before installation.

Instructions –4081SF

For Technical Support Call: 800-343-7486, Monday-Friday, 7AM - 4 PM (PST) Page 2

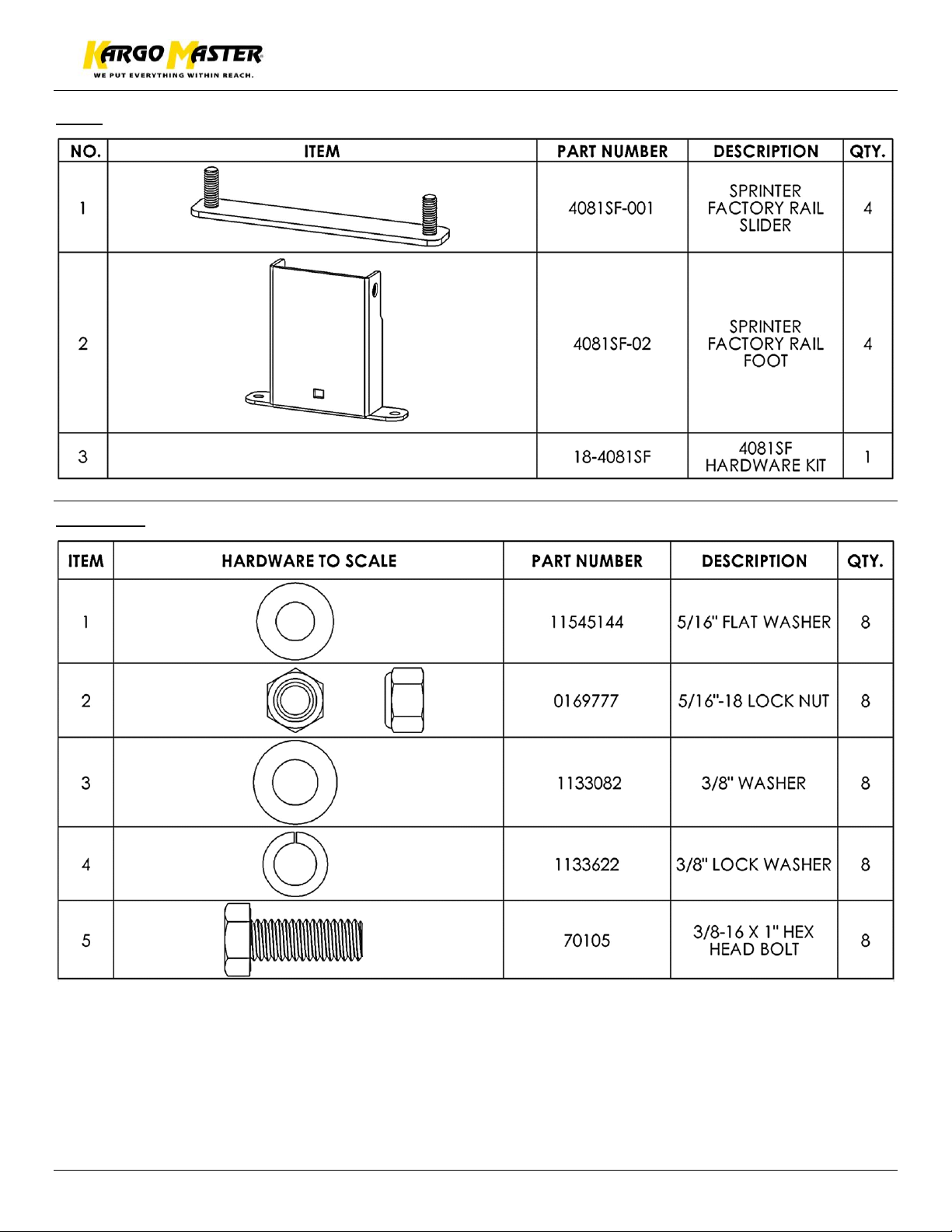

Parts

Hardware

Instructions –4081SF

For Technical Support Call: 800-343-7486, Monday-Friday, 7AM - 4 PM (PST) Page 3

DO NOT EXCEED MANUFACTURERS WEIGHT CAPACITY FOR ROOF

Step 1 –Install Feet to Factory Rails

Measure the bow center to bow center distance on rack being installed. Standard bow-to-bow distances

are 71-1/2” or 96”.

Slide a rail slider into factory

rail on one side of vehicle.

Set foot over rail slider studs with saddle in foot

towards center of vehicle.

LOOSELY attach a 5/16”washer and 5/16” lock nut to

each stud.

Repeat for second foot.

Instructions –4081SF

For Technical Support Call: 800-343-7486, Monday-Friday, 7AM - 4 PM (PST) Page 4

Position feet center-to-center at the distance measured previously.

oStandard bow-to-bow distances are 71-1/2” or 96”.

oRear foot should be about 12” to 14” inches from the rear of vehicle for rack handle clearance.

Loosely tighten hardware.

Repeat for opposite side.

12”-14”

Instructions –4081SF

For Technical Support Call: 800-343-7486, Monday-Friday, 7AM - 4 PM (PST) Page 5

Step 2 –Install Rack to Feet

Set rack on feet. Center rack to vehicle.

Using 3/8” x 1” hex head bolts, 3/8” lock washers, and 3/8” flat washers, install rack bows to feet.

Square and align rack to vehicle.

Tighten hardware.

GO BACK AND TIGHTEN ALL HARDWARE.

ASSEMBLY AND INSTALLATION ARE COMPLETE.

Center rack to vehicle.
