Kargo Master 48142 Bedienungsanleitung

Instruction Guide

48142

Kargo Master

Rancho Cordova, CA 95742

800-343-7486

CustomerService@KargoMaster.com

20190730R2

DATE: ______________

Instructions –48142

For Technical Support Call: 800-343-7486 Monday-Friday 7AM - 4 PM (PST) Page 2

*PLEASE READ ALL INSTRUCTIONS AND WARNINGS PRIOR TO ASSEMBLING,

INSTALLING, AND USING THIS PRODUCT*

Warning

Always check for wires, fuel tanks and lines, brake lines and other important vehicle

functionality items prior to drilling and installing all products.

Tools Needed

Phillips Driver

Table of Contents

Parts List ..........................................................................................................................................3

Hardware ........................................................................................................................................3

Step 1 –Determine Location ...........................................................................................................4

Step 2 –Attach Drawer Mounts .....................................................................................................5

Step 3 –Install Divider ....................................................................................................................6

Step 4 –Install Drawer ....................................................................................................................7

Drawer Removal .............................................................................................................................8

Before You Begin

•Read all instructions.

•DO NOT OVERLOAD THE DRAWER UNIT. MAXIMUM CAPACITY IS 75lbs.

Instructions –48142

For Technical Support Call: 800-343-7486 Monday-Friday 7AM - 4 PM (PST) Page 3

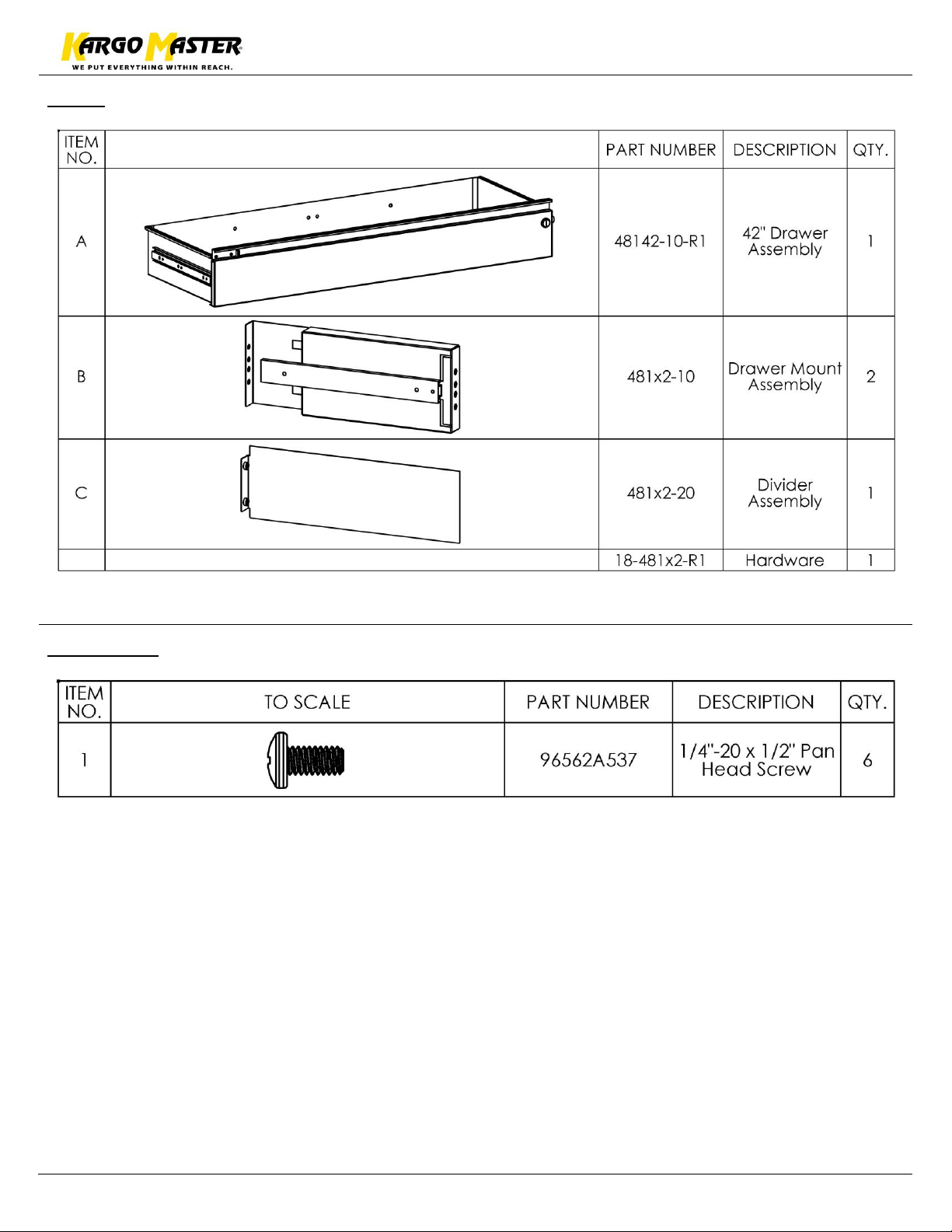

Parts

Hardware

Instructions –48142

For Technical Support Call: 800-343-7486 Monday-Friday 7AM - 4 PM (PST) Page 4

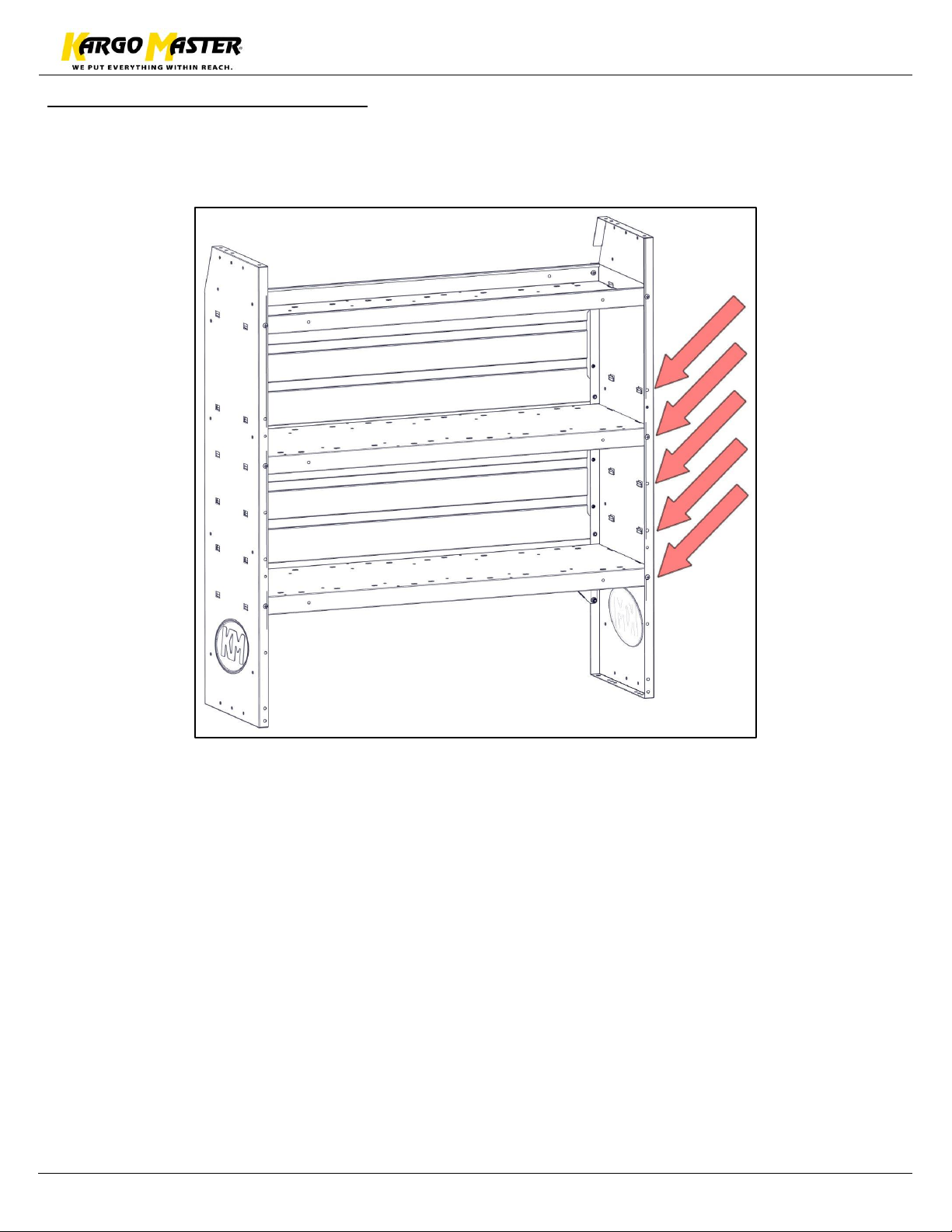

Step 1 –Determine Location

•Determine the location for the drawer to be mounted.

Note: If only one drawer unit is being installed, it is recommended to install directly under a shelf. This provides an

enclosed area when drawer is closed.

Instructions –48142

For Technical Support Call: 800-343-7486 Monday-Friday 7AM - 4 PM (PST) Page 5

Step 2 –Attach Drawer Mounts

•Place the drawer mount

into the shelf unit in the

orientation shown.

•Hook the drawer mounts

onto the rear tab in the

shelf side panel.

•Using two 1/4" x 1/2”

pan head screws, attach

the drawer mount to the

threaded emboss at the

rear and through the

hole in the front of the

shelf side panel.

•TIGHTEN the rear screw.

•Snug tighten the front

screw.

•Repeat on both sides.

Instructions –48142

For Technical Support Call: 800-343-7486 Monday-Friday 7AM - 4 PM (PST) Page 6

Step 3 –Install Divider

•If desired, install the divider into the shelf assembly. There are three locations to choose

from.

•Bolt into place using 1/4" x 1/2” pan head screw. Be sure the front of the divider sits in the

slot at the front of the drawer assembly.

Instructions –48142

For Technical Support Call: 800-343-7486 Monday-Friday 7AM - 4 PM (PST) Page 7

Step 4 –Install Drawer

•Align the slider rails on the previously installed side mounts with the slides on the drawer

unit.

•Slide the drawer assembly in place. The drawer should move freely in and out of place. Be

sure the drawer can NOT pull out from sliders when fully opened.

•Tighten the front screws from Step 2.

Instructions –48142

For Technical Support Call: 800-343-7486 Monday-Friday 7AM - 4 PM (PST) Page 8

Steps to remove drawer from drawer mounts

•Extend the drawer all the way out to view the latch.

•Gently click the latch to disengage the rail.

Note: If the latch's original position is up, clip down to disengage and vice versa.

•Disengage rail on both sides and pull drawer unit out.

Instructions –48142

For Technical Support Call: 800-343-7486 Monday-Friday 7AM - 4 PM (PST) Page 9

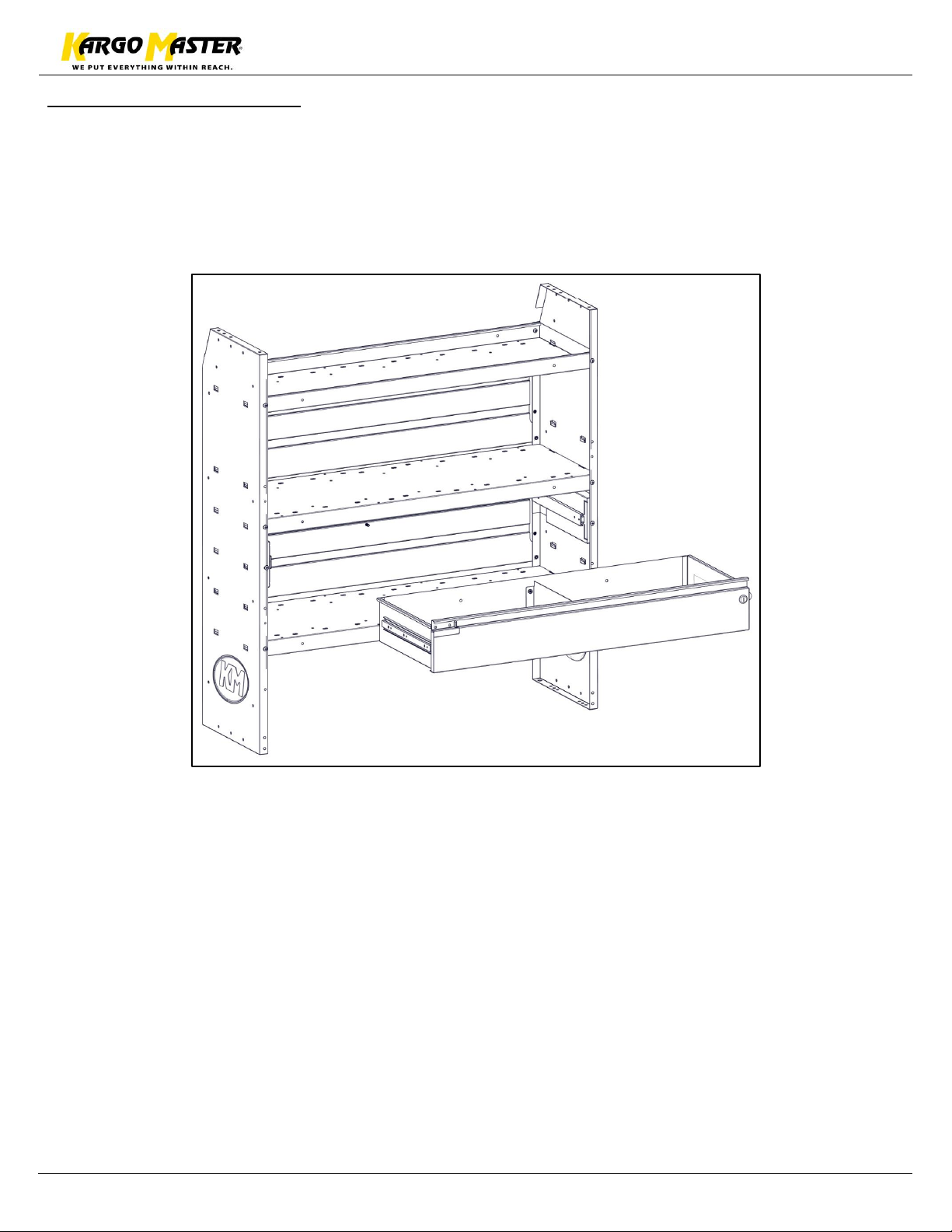

Multiple shelf units may be installed in a variety of different locations. Some

examples are shown below.

When only one drawer unit is being installed, it is recommended to install

directly below a shelf to provide an enclosed area when the drawer is

closed.

Ensure all bolts are tight. Your Installation is now complete.
