Installation manual for

Kathrein RFID UHF-Reader

Installation manual Reader English

This document is valid for all Kathrein RFID readers and describes the construction and commissioning

of the readers.

Version 1.03

date of creation: 01.06.2012

document no.: 936B057

RRU4

ARU4

M-ARU

ERU

RDR

Installation manual Reader 2

Modications, misprints and errors excepted.

English

Installation manual Reader

This manual applies to the followings ARU4 types:

Type: Order number:

ARU4-RS4-E6 52010099

ARU4-ETG-E6 52010100

ARU4-ETL-E6 52010101

ARU4-RS4-U6 52010102

ARU4-ETG-U6 52010103

ARU4-ETL-U6 52010104

ARU4-ELK-E6 52010225

ARU4-ELK-U6 52010226

ARU4-ELC-U6 52010171

This manual applies to the followings M-ARU types:

Type: Order number:

M-ARU-RS232 ETSI 52010135

M-ARU-RS232 FCC 52010136

M-ARU-ETH-E6 52010198

M-ARU-ETH-U6 52010199

RFID-UHF-Reader

This manual applies to the followings RRU4 types:

Type: Order number:

RRU4-RS4-E6 52010093

RRU4-ETG-E6 52010094

RRU4-ETL-E6 52010095

RRU4-RS4-U6 52010096

RRU4-ETG-U6 52010097

RRU4-ELC-E6 © KRAI 52010180

RRU4-ELC-U6 © KRAI 52010181

This manual applies to the followings ERU types:

Type: Order number:

ERU-ETG-E4 52010190

ERU4-ETG-U4 52010191

This manual applies to the followings RDR types:

Type: Order number:

RDR-ETH-E4 52010200

RDR-ETH-U4 52010201

Installation manual Reader 3

Modications, misprints and errors excepted

English

Foreword and general information

The reproduction or distribution of this document or extracts from it in whatever form and by whatever means (electronic or mechanical)

for whatever purpose is permitted only with the prior written permission of Kathrein.

Kathrein accepts no liability for omissions or inaccuracies in this document or in relation to the provision or use of the information

contained in this document. Kathrein reserves the right to change the products described in this document and does not accept any

liability in relation to the application or usage of the products described in this manual.

This document and the information contained in it are proprietary information of Kathrein and should be treated as condential.

Kathrein provides this document to its customers in connection with contacts of sale for the products described therein. If the person

in possession of this document, being a legal or natural person, is not a contractual sales partner of Kathrein, or Kathrein has not

intended him by other means as the recipient of the document and the information contained therein, the person in possession is hereby

informed that the use of this document is unlawful and a violation of the rights of Kathrein.

The information in this manual was correct at the time of editorial deadline.

We reserve the right however to make changes at any time and without prior notice.

This document was prepared for specialist personal who install, congure and place in operation the reader.

Scope

The information contained in this manual is intended for the support of the development process and as development guidance

for the customer. In addition this manual offers supporting information about the standards to be applied at the place of installation

and the relevant safety standards for installation and conguration of the Kathrein reader.

General information

This manual contains information on the installation, conguration, operation and maintenance of the reader. In addition it gives

detailed technical data in order better to familiarise the user with the features of the reader.

In order to ensure a long working life and fault-free operation, this manual should therefore be read carefully and all the instructions

and information contained in it should be complied with.

Warranty

Switching on the AC or DC power supply prior to connecting the LAN cable is considered incorrect installation. Any functional defect

arising as a result is excluded from the warranty/guarantee. Before installing or servicing the reader, the person concerned must

have read the manual and understood its contents. Kathrein accepts no liability if the customer fails to implement the precautions

listed here. In such cases, any claims under the warranty/guarantee are void.

Disposal instruction

Electronic equipment is not classed as household waste and must be disposed of properly in accordance with

Directive 2002/96/EC OF THE EUROPEAN PARLIAMENT AND OF THE COUNCIL of 27 January 2003 on used

electrical and electronic equipment.

At the end of its service life, take this device for disposal at a designated public collection point.

Used batteries are special waste!

Do not put used batteries into your domestic waste; instead take them to a collection point for used batteries!

Further reading on this manual is as ((A)) in section 2.2. further reading or 7th list of references listed.

Installation manual Reader 4

Modications, misprints and errors excepted.

English

List of Contents

Foreword and general information 3

List of Contents 4

1. Safety instructions/information 6

2. Introduction 9

2.1. The reader

2.2. RFID system

2.3. Kathrein RFID Antenna Interface (© KRAI)

2.4. Wide Range © KRAI antenna

2.5. SMSH © KRAI planar antenna module

2.6. Further reference material

2.7. Scope of supply

2.8. Accessories

3. Installation 15

3.1. Selecting the installation site

3.2. Installing the reader RRU / ARU

3.3. Installing the reader ERU

3.4. Installing the reader RDR

3.5. Installing the reader M-ARU

4. Connections and displays 19

4.1. Power supply

4.2. Ethernet connection

4.3. RS422-/485 connection

4.4. RS232 connection

4.5. ERU connection

4.6. RDR connection

4.7. M-ARU connection

4.8. UART transmission (RS232, RS422, RS485 or similar)

4.9. Ethernet transmission

4.10. Anschlüsse M-ARU, RS232,

4.11. Antenna Connection

Installation manual Reader 5

Modications, misprints and errors excepted

English

List of Contents

4.12. LED

4.13. Buzzer

5. Software 30

5.1. System requirements

5.2. Installation

5.3. Operation

6. Operating the reader 39

6.1. Communication 39

6.2. Application

6.3. Basic read functions

6.4. Basic writing functions

6.5. GPIO functions

6.6. Expert settings

6.7. Test Gen2 functions

6.8. © KRAI Setting

6.9. App Manager

6.10. Access Manager

6.11. Ethernet password

6.12. configuration password

7. Programming the Reader 80

7.1. Preparation

7.2. Using the examples with Windows

7.3. Using the examples with Linux

7.4. Using the examples with Linux on a PC

7.5. Using on an embedded system

7.6. Installation Embedded Linux Development Kit (ELDK)

7.7. Installation Linux application

8. List of references 85

9. Contact address 86

Installation manual Reader 6

Modications, misprints and errors excepted.

English

1. Safety instructions/information

Key

Caution!

Note

Before starting installation work or replacing the unit, the accompanying manual must be read carefully and its

contents understood.

The detailed information in the data sheets and in this manual must be complied with carefully during installation and

operation of the reader!

The installation team must be properly qualied and familiar with the safety regulations applicable in the country

concerned.

Connection, installation and maintenance work, as well as all other work on the unit, may only be carried out by

properly qualied and trained employees.

The unit may only be used for the purpose intended by the manufacturer.

Unauthorized changes to the unit and the use of spare parts and peripheral devices which are not sold or

recommended by the manufacturer can result in res, electric shocks and injuries. Such actions therefore result in

exclusion of liability and make the manufacturer’s warranty/guarantee null and void.

The applicable version of the manufacturer’s warranty is that which was valid at the time of purchase. We accept

no liability for unsuitable manual or automatic adjustments made to the unit's parameters and inappropriate use of

the unit.

Repairs may only be undertaken by personnel authorised to perform them. Opening or attempting to repair the

unit makes all guarantee/warranty claims null and void! Improper work on the unit may jeopardise electrical safety.

The manufacturer is not liable for accidents caused by the user opening the unit!

When carrying out work on the unit, the valid safety regulations must be complied with.

Supply voltage

Make sure that the mains cable (power supply cable) is not damaged. If the mains cable is damaged, the device

must not be used. Instead it must be disconnected from the mains and repaired by a qualied technician. Use only

the power supply unit supplied!

Risk of fatal injury due to electric shock!

The device may be operated only at the stated supply voltage (see the rear of the device or external power supply unit)!

If the supply voltage is too high, there is a risk of re!

General safety notes

Important!

Indicates a potentially dangerous situation which, if disregarded, can lead to injuries ranging

from minor to severe and/or damage to the unit.

Information intended to make a specic topic easier to understand and/or enable optimal use

of the unit functions.

Important!

Installation manual Reader 7

Modications, misprints and errors excepted

English

1. Safety instructions/information

CE marking for the Kathrein RFID reader with type designation "E6"

Appropriate means are provided to dissipate the heat generated within this equipment. The device must however not be

installed in a cabinet or on shelves with insufcient ventilation. The ventilation slots on the device must not be covered.

There is a risk of re!

Ventilation

Protect the device from moisture, dripping water and spraying water. The device must not be placed close to sources of

heat, exposed to direct sunlight or operated in a damp environment. The device may not be operated only is moderate

climatic zones. It is unsuitable for use under tropical conditions! Do not place anything which has a naked ame on the

device! 1)

There is a risk of re!

Moisture, direct sunlight, heat, naked ames

This reader is designed “E6” for operation as per EN 302208. When the unit is operated with antennas connected,

the human exposure regulations in accordance with EN 50364 must be complied with. Ensure a minimum clearance

of 20 cm between the antenna and the human body, and comply with the operating instructions for RFID antennas. In

some circumstances, heart pacemakers may suffer interference if wearers are close to the antenna when the unit is

in operation (reader and antenna). In case of doubt, the people affected are requested to contact the manufacturer of

their pacemaker or their doctor.

The reader output power must be reduced as a function of the antenna cable length and the antenna gain.

Radiated electromagnetic elds

Marking for the Kathrein RFID reader with type designation "U6"

The reader with the identier „U6“ are designed to operate under FCC Part 15 and can be found at the FCC homepage

under grantee code „WJ9“.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device

may not cause harmful interference, and, (2) This device must accept any interference received including interference

that may cause undesired operation.

Industry Canada

Le présent appareil est conforme aux CNR d‘Industrie Canada applicables aux appareils radio exempts de licence.

L‘exploitation est autorisée aux deux conditions suivantes : (1) l‘appareil ne doit pas produire de brouillage, et (2)

l‘utilisateur de l‘appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d‘en

compromettre le fonctionnement.

Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum

(or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users,

the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more

than that necessary for successful communication.

This radio transmitter has been approved by Industry Canada to operate with the antenna types listed at page 8 with

the maximum permissible gain and required antenna impedance for each antenna type indicated. Antenna types not

included in this list, having a gain greater than the maximum gain indicated for that type, are strictly prohibited for use

with this device.

Modications or conversions which are carried out on this unit without the express permission of Kathrein may

invalidate the FCC permit for the operation of this unit.

Important!

Installation manual Reader 8

Modications, misprints and errors excepted.

English

1. Safety instructions/information

Note

Following corresponding tests, it has been ascertained that this unit adheres to the limit values for class B digital

units in accordance with part 15 of the FCC regulations. These limit values are intended to provide private user's

systems with appropriate protection against harmful radio interference. This unit generates and uses energy

in the radio frequency range and is also able to radiate this; if it is not installed and used in accordance with the

regulations, the unit may cause harmful radio communication interference. However, there is no guarantee that

interference will not occur in a specic system. If this unit causes harmful radio or television reception interference,

which can be ascertained by switching the unit on and off, we recommend that the user attempts to rectify this

interference via one or more of the following measures:

- Realign the receive antenna or change its position.

- Increase the distance between the unit and the receiver.

- Plug the unit into a socket in a current circuit other than that to which the receiver is connected.

- Seek advice from the retailer or an experienced radio/television technician.

Warning regarding exposure to RF radiation

Note

To meet part 15 of the FCC regulations in the United States, the system must be properly installed to guarantee

adherence to the certication regulations according to part 15. The operator and the specialist company which carries

out installation are responsible for ensuring that only certied systems are used in the United States. Use of this

system in any other combination (e.g. several antennas which transmit the same information in the same location)

is expressly prohibited.

Note regarding proper installation:

Important!

FCC RF Radiation Exposure Statement

This transmitter must not be co-location or operating in conjunction with any other antenna or transmitter.

This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment.

This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and

your body.

This equipment complies with IC RSS-102 radiation exposure limits set forth for an uncontrolled environment.

This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.

Type Order-No. Shortened designation Gain

WiRa 30° FCC 52010087 Wide Range-Antenna FCC, 902-928 MHz, 30° circular 11dBiC/ 8DBi

WiRa 70° FCC 52010079 Wide Range-Antenna FCC, 902-928 MHz, 70° circular typ. 11dBi

MiRa FCC 52010083 Mid Range-Antenna FCC, 902-928 MHz, 1000° circular 2.5dBi

S-MiRa ETSI/FCC 52010172 Short-Range-Antenna FCC, 865-928 MHz, 100° circular typ -10dBi

U-LoRa ETSI/FCC 52010092 Ultra Low Range-Antenna FCC, 865-928 MHz -30dBi

LoRa FCC 52010085 Low Range-Antenna FCC, 902-928 MHz -15dBi

WiRa-30-linear-FCC 52010249 Wide Range-Antenna 30° linear FCC, 902-828 MHz, 30° linear typ. 11dBi

WiRa-40-linear-FCC 52010252 Wide Range-Antenna 40° linear FCC, 902-828 MHz, 40° linear typ. 13dBi

SMSH-30-30ETSI-

FCC-Antennenmodul 52010219 Smart Shelft-Antenna, 865-928 MHz, non cascadable -7dBi

Installation manual Reader 9

Modications, misprints and errors excepted

English

2. Introduction

2.2. RFID system

An RFID system consists of the control computer of the actual reader, antennas, antenna connection cables and the

tags. The gure below shows the schematic structure of the system:

The tags consist of an antenna and a small chip. The chip is the true carriers of the information,

the EPC number. This number can be identied products or product groups. Alternatively, the EPC can be overwritten

with new information.

To read the tag information, the reader sends an RF carrier by an active antenna and thus supplies the tags in the RF

eld with energy.

If the information in one tag should be read, this tag should be rst selected (inventoried) from the population of tags.

Upon successful completion of the inventory, the EPC number of each tag can be read and sent to the PC. Additional

information can be attached to the EPC, for example the antenna which read it the time point at which it was read.

Figure: continuous operation ETL and ELC RFID system

By the ETL and ELC

Reader is an industrial

PC with Linux operating

system is integrated.

RS232

RS422/485

Ethernet

2.1. The reader

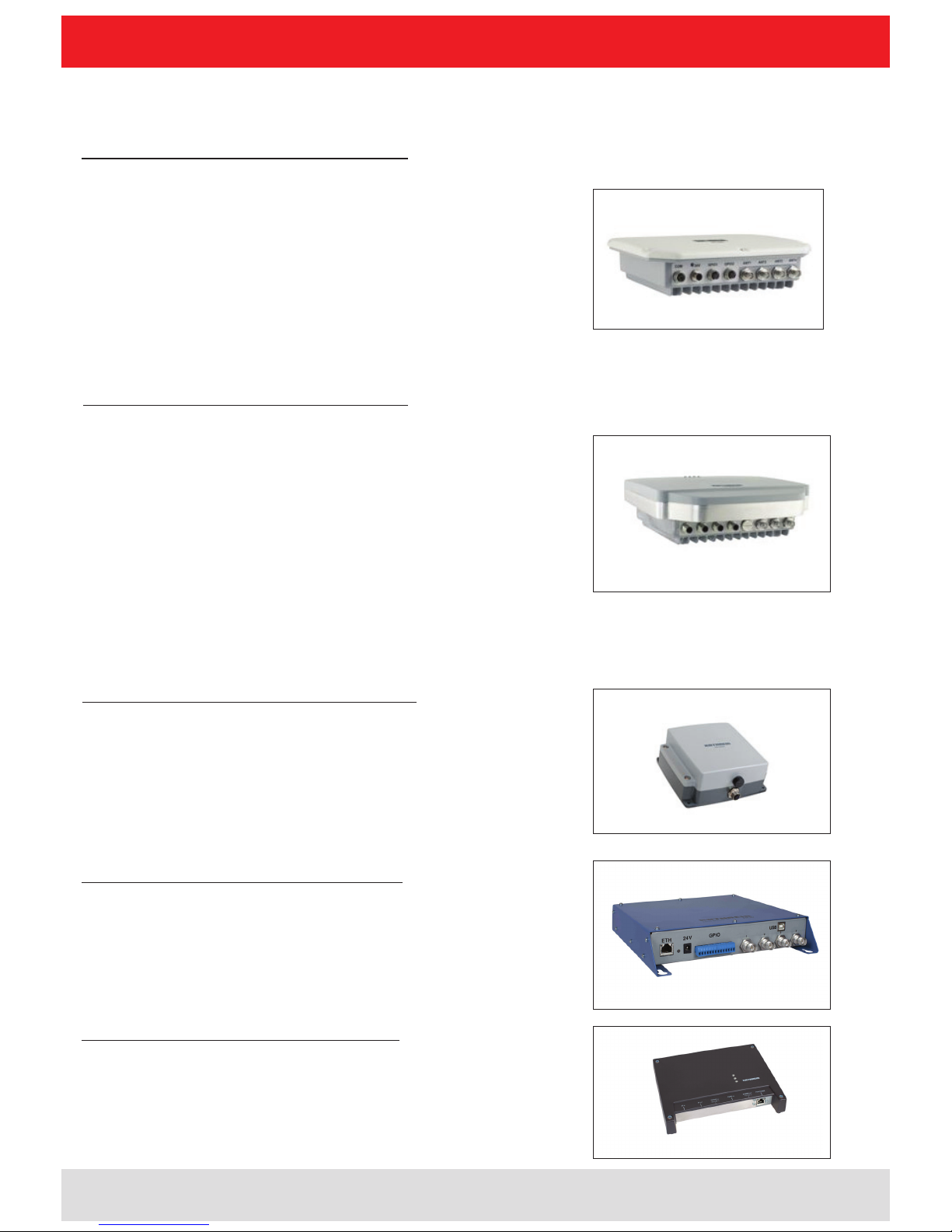

The Kathrein RFID (Radio Frequency Identication) reader RRU4 is a multi-protocol-capable device for reading active

and passive RFID tags in the frequency range from 865 to 868 MHz for Europe type “E6” and 902 to 928 MHz for the

American market type “U6”. As supplied the unit can read and write tags in accordance with the EPC-Gen2 standard.

Additional protocols can be loaded using software updates.

The device has a maximum of four external antenna ports for connection of the transmission/reception antennas for

communication with RFID tags.

For integration into a variety of infrastructures, the device has different communication interfaces depending on the

variant. The power supply is provided by a 4-pin M12 panel connector in A coding.

Important!

The reader operates using the frequency hopping process, so as to avoid faults and interference between readers.

Within the FCC area this procedure is mandatory. The readers changes its transmission frequency randomly,

with equal distribution across the 52 available channels. Each channel is used for max. 400ms in an interval of 20s.

Installation manual Reader 10

Modications, misprints and errors excepted.

English

For testing and parameterizing the reader the Demo Software“Reader Start v2”can be used.

The communication between the“Reader Start v2” and the reader is based on the DLL, which includes the commu-

nication protocol ((A)). For specic applications the user can build its own control software based on the reader DLL.

The DLL includes all the relevant commands and functions, which are needed to control the reader

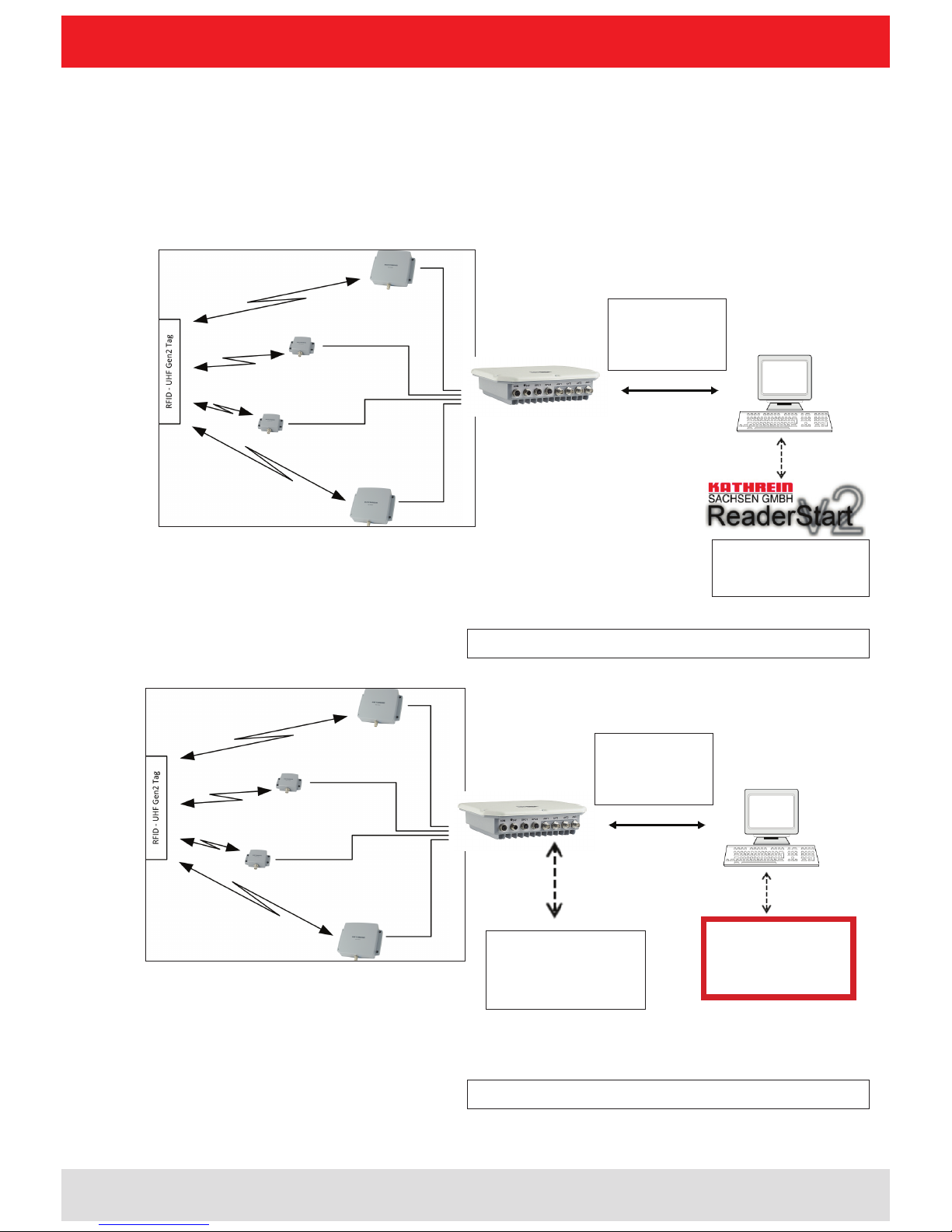

Figure: Testing and conguration of the RFID system

RS232

RS422/485

Ethernet

By the ETL and ELC

Reader an industrial PC

with Linux Operating

System is integrated.

RS232

RS422/485

Ethernet

Figure: Continuous operation of the ETL and ELC RFID system

The control software

must be created by

the user.

The user-specic control software can run on ETL reader directly. Thus, a stand-alone operation without permanent

network connection is possible.

The demo software

Reader Start is included.

2. Introduction
