Kenmore 240432307 Bedienungsanleitung

Refrigerator

Top Mount

Use & Care Guide

Refrigerador

Congelador Superior

Gufa para su uso y cuidado

R_frig_rateur

Compartiments Superposes

Guide d'utilisation et d'entretien

Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.

Sears Canada, Inc., Toronto, Ontario, Canada M5B 2B8 www.sears.com

240432307 (0308)

Congratulations on your purchase of a new refrigerator!

We here at Sears are very proud of our product and we

are completely committed to providing you with the best

service possible. Your satisfaction is our #1 priority.

We know you'll enjoy your new refrigerator and Thank

You for choosing our product. We hope you consider us

for future purchases.

PLEASE READ AND SAVE THESE INSTRUCTIONS

This Owner's Guide provides specific operating

instructions for your model. Use your refrigerator only as

instructed in this manual. These instructions are not

meant to cover every possible condition and situation that

may occur. Common sense and caution must be

practiced when installing, operating and maintaining any

appliance.

Please record your model and serial numbers below

for future reference. This information is found on the

serial plate located inside the refrigerator

compartment.

FOR YOUR SAFETY

•Do not store or use gasoline, or other flammable liquids

in the vicinity ofthis or any other appliance. Read product

labels for warnings regarding flammability and other

hazards.

• Do not operate the refrigerator in the presence of

explosive fumes.

• Avoid contact with any moving parts of automatic ice

maker.

• Remove all staples from the carton. Staples can cause

severe cuts, and also destroy finishes if they come in

contact with other appliances or furniture.

CHILD SAFETY

Destroy or recycle the carton, plastic bags, and any

exterior wrapping material immediately after the

refrigerator is unpacked. Children should NEVER use

these items to play. Cartons covered with rugs,

Model Number: 253

or: 970

Serial Number:

Purchase Date:

Welcome ............................................. 2

Safety Instructions ............................... 2-3

Warranty .............................................. 3

Canada - Limited Warranty ................. 4

Protection Agreements ........................ 5

Installation--Includes Connecting Optional Ice

Maker To Water Supply ...................................... 8-7

Door Removal & Reversal ................... 8-9

Features At A Glance .......................... 10

Temperature Controls .......................... 11

Looking Inside ..................................... 12-14

Ice Service .......................................... 15

Food Storage & Energy Saving Tips ... 16

Normal Operating Sounds & Sights .... 17

Care & Cleaning .................................. 18-19

Before You Call ................................... 20

PROPER DISPOSAL OF YOUR REFRIGERATOR

OR FREEZER

Risk of child entrapment

Child entrapment and suffocation

are not problems of the past.

Junked or abandoned

refrigerators or freezers are still

dangerous - even if they will sit

for "just a few days." If you are

getting rid of your old refrigerator

or freezer, please follow the

instructions below to help prevent

accidents.

Before you throw away your old refrigerator/freezer:

• Remove doors.

• Leave shelves in place so children may not easily climb

inside.

• Have refrigerant removed by a qualified service

technician.

ELECTRICAL INFORMATION

•The refrigerator must be plugged into its own

dedicated 115 Volt, 60 Hz, AC only electric outlet.

The power cord of the appliance is equipped with a

three-prong grounding plug for your protection against

electrical shock hazards. It must be plugged directly

into a properly grounded three-prong receptacle. The

receptacle must be installed in accordance with local

codes and ordinances. Consult a qualified electrician.

Do not use an extension cord or adapter plug.

•Immediately repair or replace any power cord that

becomes frayed or damaged.

• Never unplug the refrigerator by pulling on the power

cord. Always grip the plug firmly, and pull straight out

from the receptacle to prevent damaging the power cord.

• Unplug the refrigerator before cleaning and before

replacing a light bulb to avoid electrical shock.

• Performance may be affected if the voltage varies by

10% or more. Operating the refrigerator with insufficient

power can damage the compressor. Such damage is

not covered under your warranty.

• Do not plug the unit into an outlet controlled by a wall

switch or pull cord to prevent the refrigerator from being

turned off accidentally.

• Avoid connecting refrigerator to a Ground Fault Interruptor

(GFI) circuit.

FULL ONE-YEAR WARRANTY ON

REFRIGERATOR

For one year from the date of purchase, when this

refrigerator is operated and maintained according to the

instructions provided in this Owner's Guide, Sears will

repair this refrigerator, free of charge, if defective in

material or workmanship.

FULL FIVE-YEAR WARRANTY ON SEALED

REFRIGERATION SYSTEM

For five years from the date of purchase, when this

refrigerator is operated and maintained according to the

instructions provided in this Owner's Guide, Sears will

repair the sealed system (consisting of refrigerant,

connecting tube, and compressor motor), free of charge,

if defective in material or workmanship.

The above refrigerator warranty applies only to

refrigerators which are used for storage of food for private

household purposes.

This warranty gives you specific legal rights and you may

also have other rights which vary from state to state.

Warranty service is available by contacting the

NEAREST SEARS SERVICE CENTER/DEPARTMENT

in the United States. See the back page of this manual.

For warranty questions, please contact the following

address:

Sears, Roebuck and Co.

Dept. 817WA

Hoffman Estates, IL 60179

CANADA mLIMITED WARRANTY

Refrigerators

Sears Canada Inc., warrants every new Kenmore refrigerator to be free from defects in material or workmanship. What

Sears will do, free of charge, in case of defect:

The Compressor TEN (10) YEARS TEN (10) YEARS FIVE (5) YEARS

The Sealed System

(consisting of refrigerant, FIVE (5) YEARS FIVE (5) YEARS FIVE (5) YEARS

evaporator,and condenser)

All other parts or

adjustments ONE (1) YEAR ONE (1) YEAR ONE (1) YEAR

Normal Responsibility of the Customer

The following items, since they are not manufacturing defects, are not included in the warranty, but are the responsibility

of the customer:

1) Damage to finish after delivery.

2) Improper power supply, low voltage, or any defects in the house wiring system or appliance not connected

to electric outlet.

3) Replacement of light bulbs.

4) Damage caused by moving the product from its original installation.

5) Service required as a result of alteration, abuse, fire, floods, or acts of God.

6) Providing adequate air circulation to the refrigerating system.

7) Proper use and care of product as listed in the customer's manual; proper setting of the controls.

If any service is required under this warranty, simply call 1-800-4-MY-HOME sM(1-800-469-4663).

This warranty is in addition to any statutory warranty. The above warranty covers Kenmore Refrigerators sold and

operated in Canada only and shall not apply if the refrigerator is used for other than domestic purposes.

Sears Maintenance Agreement

Maintain the value of your Kenmore refrigerator with a Sears Maintenance Agreement.

SEARS CANADA INC. •Toronto, Canada •M5B 2B8

PRINTED IN U.S.A.

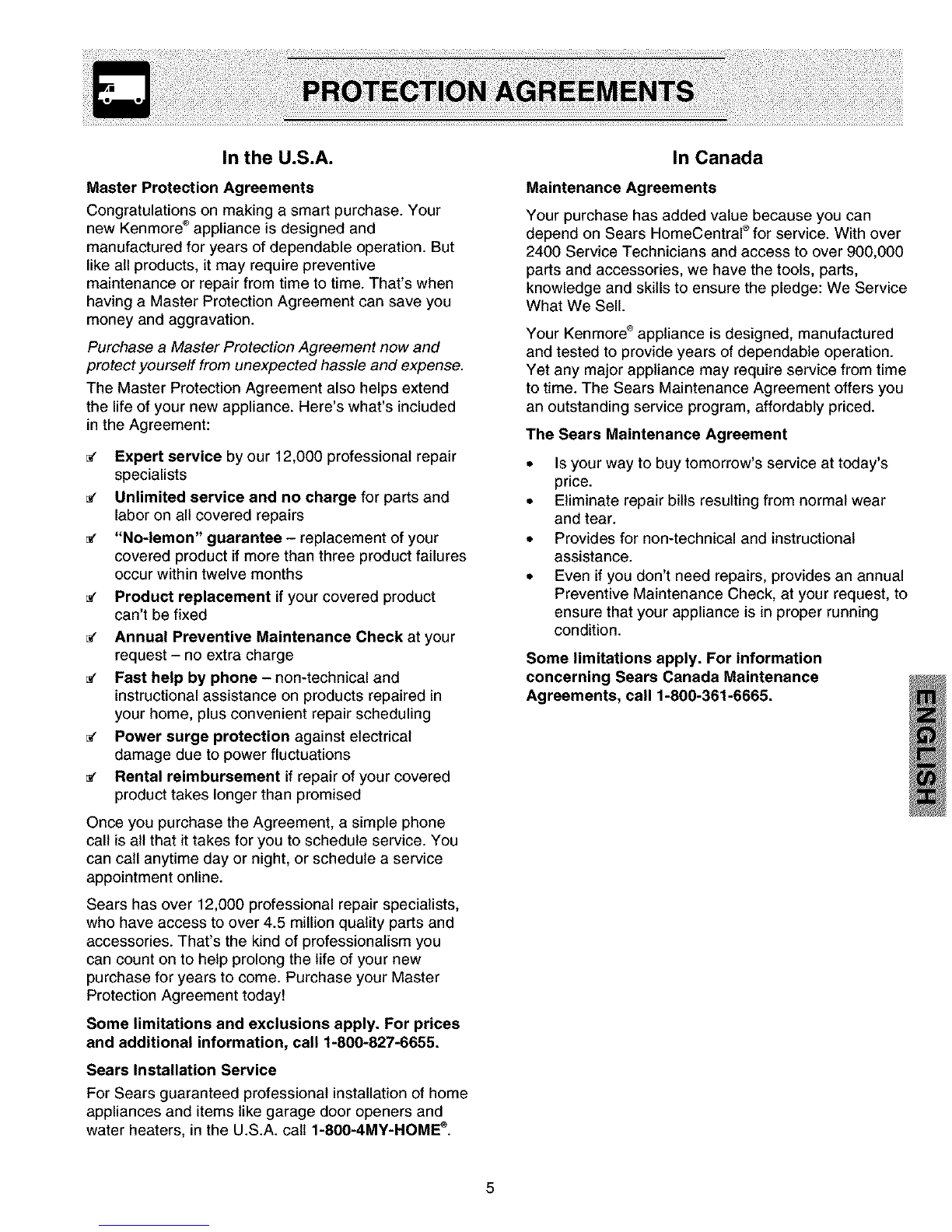

In the U.S.A.

Master Protection Agreements

Congratulations on making a smart purchase. Your

new Kenmore ®appliance is designed and

manufactured for years of dependable operation. But

like all products, it may require preventive

maintenance or repair from time to time. That's when

having a Master Protection Agreement can save you

money and aggravation.

Purchase a Master Protection Agreement now and

protect yourself from unexpected hassle and expense.

The Master Protection Agreement also helps extend

the life of your new appliance. Here's what's included

in the Agreement:

_" Expert service by our 12,000 professional repair

specialists

_" Unlimited service and no charge for parts and

labor on all covered repairs

_" "No-lemon" guarantee- replacement of your

covered product if more than three product failures

occur within twelve months

Product replacement if your covered product

can't be fixed

Annual Preventive Maintenance Check at your

request -no extra charge

Fast help by phone - non-technical and

instructional assistance on products repaired in

your home, plus convenient repair scheduling

Power surge protection against electrical

damage due to power fluctuations

Rental reimbursement if repair of your covered

product takes longer than promised

Once you purchase the Agreement, a simple phone

call is all that it takes for you to schedule service. You

can call anytime day or night, or schedule a service

appointment online.

Sears has over 12,000 professional repair specialists,

who have access to over 4.5 million quality parts and

accessories. That's the kind of professionalism you

can count on to help prolong the life of your new

purchase for years to come. Purchase your Master

Protection Agreement today!

Some limitations and exclusions apply. For prices

and additional information, call 1-800-827-6655.

Sears Installation Service

For Sears guaranteed professional installation of home

appliances and items like garage door openers and

water heaters, in the U.S.A. call 1-800-4MY-HOME _.

In Canada

Maintenance Agreements

Your purchase has added value because you can

depend on Sears HomeCentral ®for service. With over

2400 Service Technicians and access to over 900,000

parts and accessories, we have the tools, parts,

knowledge and skills to ensure the pledge: We Service

What We Sell.

Your Kenmore ®appliance is designed, manufactured

and tested to provide years of dependable operation.

Yet any major appliance may require service from time

to time. The Sears Maintenance Agreement offers you

an outstanding service program, affordabiy priced.

The Sears Maintenance Agreement

•Is your way to buy tomorrow's service at today's

price.

• Eliminate repair bills resulting from normal wear

and tear.

• Provides for non-technical and instructional

assistance.

• Even if you don't need repairs, provides an annual

Preventive Maintenance Check, at your request, to

ensure that your appliance is in proper running

condition.

Some limitations apply. For information

concerning Sears Canada Maintenance

Agreements, call 1-800-361-6665.

This Use & Care Manual provides specific operating

instructions for your model. Use the refrigerator only as

instructed in this Use & Care Manual. Before starting the

refrigerator, follow these important first steps.

LOCATION

• Choose a place that is near a grounded electrical outlet.

Do Not use an extension cord or an adapter plug.

• If possible, place the refrigerator out of direct sunlight

and away from the range, dishwasher or other heat

sources.

• The refrigerator must be installed on a floor that is level

and strong enough to support a fully loaded refrigerator.

• Consider water supply availability for models equipped

with an automatic ice maker.

INSTALLATION

LEVELING

All four corners of your refrigerator must rest firmly on a

solid floor. Your refrigerator isequipped with adjustable front

rollers to help level your unit.

To Level Your Refrigerator:

1. Remove toe grille.

2. Use flat-blade screwdriver or 3/8" socket wrench

to adjust front rollers.

Installation Clearances

Allow the following clearances for ease of installation,

proper air circulation, and plumbing and electrical

connections:

Sides & Top 3/8"

Back 1"

DOOR OPENING

Your refrigerator should be positioned to allow easy access

to a counter when removing food. To make this possible,

the direction in which the doors open can be reversed. See

Door Removal & Reversal Instructions on page 8.

Before Installing The Water Supply Line, You Will Need

•Basic Tools: adjustable wrench, flat-blade screwdriver, and Phillips TM screwdriver

• Access to ahousehold coldwater line with water pressure between 20 and 120 psi.

• A water supply line made of 1Ainch (6.4 mm) OD, copper tubing or braided water line. To determine the length of

copper tubing needed, you willneed to measure the distance from the ice maker inletvalve at the back of the

refrigerator to your coldwater pipe. Then add approximately 7feet (2.1 meters), so the refrigerator can be moved out

for cleaning (as shown).

• A shutoff valve to connect the water supply line to your household water system. DO NOT use a self-piercing type

shutoff valve.

• A compression nut and ferrule (sleeve) for connecting the water supply line to the ice maker inletvalve.

To Connect Water Supply Line To Ice Maker Inlet Valve

1. Disconnect refrigerator from electric power source.

2. Place end of water supply line into sink or bucket. Turn ON water supply

and flush supply line until water is clear. Turn OFF water supply at shut

off valve.

3. Unscrew plastic cap from water valve inlet and discard cap.

4. Slide brass compression nut, then ferrule (sleeve) onto water supply line,

as shown.

5. Push water supply line into water valve inlet as far as it will go (_Ainch).

Slide ferrule (sleeve) into valve inlet and finger tighten compression nut

onto valve. Tighten another half turn with a wrench; DO NOT over tighten.

6. With steel clamp and screw, secure water supply line to rear panel of

refrigerator as shown.

7. Coil excess water supply line (about 2V2turns) behind refrigerator as shown

and arrange coils so they do not vibrate or wear against any other surface.

8. Turn ON water supply at shutoff valve and tighten any connections that

leak.

9. Reconnect refrigerator to electrical power source.

10. To turn ice maker on, lower wire signal arm (see ice maker front cover for ON/

OFF position of arm).

ToolsNecessQry: Awl

DOOR REMOVAL AND REVERSAL INSTRUCTIONS:

CabinetHole

Plugs

1. Remove toe grille and top hinge cover.

2. Remove top hinge with 3/8" hex driver and lift freezer door off of

center hinge pin. Set door aside.

3. Unscrew center hinge pin using adjustable wrench and save for

reassembly. Ensure plastic washer stays on hinge pin.

4. Lift refrigerator door off of bottom hinge and set aside.

5. Remove center hinge and shim by removing inside screw and

loosening two outside screws enough to allow hinge and shim to

slide out. Tighten screws.

6. Loosen two outside screws on opposite side of refrigerator, remove

inside screw and install center hinge.

7. Remove two screws on bottom hinge with 3/8" socket wrench.

8. Install bottom hinge on opposite side with the two screws removed

from step 7.

9. Unscrew bottom hinge pin using adjustable wrench. Move hinge pin

to other hole in hinge and tighten with adjustable wrench.

10. Reverse door handles (see instructions on next page).

11. Move freezer and refrigerator door stops to opposite side. Before

starting screws, use an awl to puncture the foam.

12. Position refrigerator door onto bottom hinge pin and screw center

hinge pin through center hinge into top of door. Close refrigerator

door to help align hinge hole.

13. Tighten center hinge pin with adjustable wrench.

14. Remove cabinet and hinge hole plugs and move to opposite side.

15. Lower freezer door onto center hinge pin.

16. Close freezer door. Have an assistant lift up on opposite side of

door while tightening screws to install top hinge.

17. Replace toe grille and top hinge cover.

18. Plug in electrical power cord and turn refrigerator temperature control

to center position. Adjust setting as necessary.

TO REMOVE FREEZER HANDLE:

(Handles may be easier to reverse while doors are off.)

1. Remove two screws attaching handle to bottom of freezer door.

2. Swing bottom of handle away from the door and slide handle straight

up and off of dovetail button.

3. Remove screw and dovetail button and install on other side, moving

hole plugs from corresponding holes to opposite side.

TO ATTACH FREEZER HANDLE:

1. Start with handle offset away from door. Place top of handle over

dovetail button, swing handle into an upright position and pull

downward, locking it into place.

2. Secure bottom of handle with two screws removed earlier.

TRIM REMOVAL (FULL-LENGTH TRIM MODELS ONLY)

In some models, the refrigerator door has a full length trim piece which continues from the bottom of the handle to the

bottom of the door. The top of the trim fits around the base of the handle. An adhesive "trim lock" is positioned about

halfway down. The bottom of the trim is held in place by either an adhesive trim lock, or a trim lock with two prongs

inserted into a hole on the face of the door.

TO REMOVE TRIM:

1. Remove trim by gently pulling trim lock areas out and away from door.

2. When trim is free from door, slide the trim straight down and away from base of handle.

TO REMOVE REFRIGERATOR HANDLE:

(Handles may be easier to reverse while doors are off.)

1. Remove two screws attaching handle to top of refrigerator door.

2. Swing top of handle away from door and slide handle down and off of

dovetail button.

3. Remove screw and dovetail button and install on other side, moving

hole plugs from corresponding holes to opposite side.

TO ATTACH REFRIGERATOR HANDLE:

1. Start with handle offset away from door. Place bottom of handle over

dovetail button, swing handle into an upright position and pull upward,

locking it into place.

2. Secure top of handle with screws.

TO ATTACH TRIM:

1. Slide both trim locks out of trim.

2. Insert new adhesive trim locks contained in your literature pack.

3. Install trim to handle by sliding over base of handle. Carefully align

trim and press down at trim lock locations.

4. Replace hole plug on opposite side. Use rubbing alcohol to remove

any adhesive residue from old trim lock locations.

Ice Freezer Light

Ice Bucket_

Freezer

Control

Refrigerator

Control

Dell Drawer

Cover

Dell

Half Shelf

Wine Rack

Special

Full Shelf

Cris

Crisper

Drawers

_Toe Grille

Door Bin

Dairy Door

Tall Bottle

Retainer

Snugger

Door Bin

Fixed Door Bin

Door Rack

Features may vary according to model
