WHATYOUNEEDTOKNOW

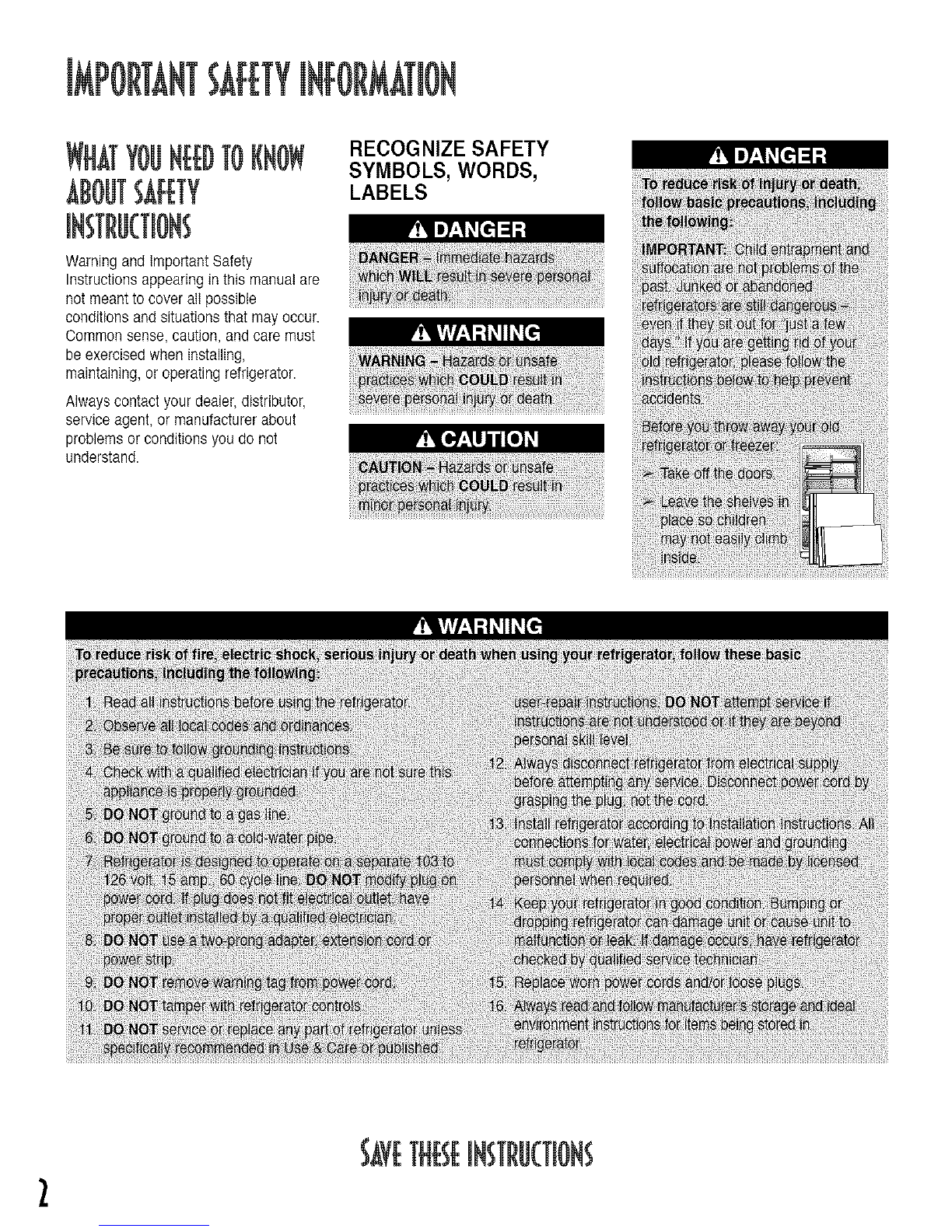

ABOUTSAFETY RECOGNIZE SAFETY

SYMBOLS, WORDS,

LABELS

Warning and important Safety

Instructions appearing in this manual are

not meant to cover all possible

conditions and situations that may occur.

Common sense, caution, and care must

be exercised when installing,

maintaining, or operating refrigerator.

Always contact your dealer, distributor,

service agent, or manufacturer about

problems or conditions you do not

understand.

2SAVETHESE

MkSTERPROTECTION

IN THE U.S.A.

Congratulations on making a smart

purchase. Your new Kenmore®

appliance is designed and manufactured

for years of dependable operation. But

like all products, it may require

preventive maintenance or repair from

time to time. That is when having a

Master ProtectionAgreement can save

you money and aggravation.

Purchase a Master Protection

Agreement now and protect yourself

from unexpected hassle and expense.

The Master ProtectionAgreement also

helps extend the life of your new

appliance. Here is what is included in

the agreement:

Expert service by our 12,000

professional repair specialists.

Unlimited service and no charge for

parts and labor on all covered

repairs.

>- "No-lemon"guarantee - replacement

of your covered product if more than

three product failures occur within

twelve months.

:_ Product replacement if your covered

product cannot be fixed.

Annual Preventive Maintenance

Check at your request - no extra

charge.

>- Fast help by phone - non-technical

and instructional assistance on

products repaired in your home, plus

convenient repair scheduling.

>- Power surge protection against

electrical damage due to power

fluctuations.

Rental reimbursement if repair of

your covered product takes longer

than promised.

Once you purchase the Agreement, a

simple phone call is all that ittakes for

you to schedule service. You can call

anytime day or night, or schedule a

service appointment online.

Sears has over 12,000 professional

repair specialists, who have access to

over 4.5 million quality parts and

accessories. That is the kind of

professionalism you can count on to

help prolong the life of your new

purchase for years to come. Purchase

your Master ProtectionAgreement

today!

Some limitations and exclusions apply.

For prices and additional information,

call 1-800-827-6655.

Sears Installation Service

For Sears guaranteed professional

installation of homeappliances and

items like garage door openers and

water heaters, in the U.S.A. call

1-800-MY-HOME®.

IN CANADA

Your purchase has added value because

you can depend on Sears HomeCentrat®

for service. With over 2,400 service

technicians and access to over 900,000

parts and accessories, we have the

tools, parts, knowledge and skills to I[i_!

ensure our pledge: We Service What

We Sell. m

Your Kenmore®appliance is designed

manufactured and tested to provide

years of dependable operation. Yetany

major appliance may require service

from time to time. The Sears

Maintenance Agreement offers you an

outstanding service program, affordably

priced.

Sears Maintenance Agreement

Is your way to buy tomorrow's service

at today's price.

:,--Eliminates repair bitls resulting from

normal wear and tear.

> Provides for non-technical and

instructional assistance.

Even if you don't need repairs,

provides an annual Preventive

Maintenance Check, at your request,

to ensure that your appliance is in

proper running condition.

Some limitations apply. For information

concerning Sears Canada Maintenance

Agreements, call 1-800-361-6665.

Full One YearWarranty on

Refrigerator

For one year from the date of purchase,

when this refrigerator is operated and

maintained according to instructions

attached to or furnished with it, Sears

will repair it, free of charge, if defective

in material or workmanship.

Full Five Year Warranty on Sealed

Refrigeration System

For five years from the date of purchase,

when this refrigerator is operated and

maintained according to instructions

attached to or furnished with it, Sears

will repair the sealed system (consisting

of refrigerant, connecting tubing and

compressor motor) free of charge, if

defective in material or workmanship.

The above warranty coverage applies

only to refrigeratorswhich are used for

storage of food for private household

purposes. It excludes original and

replacement Kenmoreice & water filter

cartridges. Original and replacement

cartridges are warranted for 30 days,

parts only, against defects in material or

workmanship.

Warranty service isavailable by

contacting 1-800-4-MY-HOME®

(1-800-469-4663).

This warranty applies only while this

product is in use in the United States

and Canada.

This warranty gives you specific legal

rights, and you may also haveother

rights, which vary from stateto state.

Sears, Roebuck and Co., Dept. 817WA,

Hoffman Estates, IL 60179

NOTE: Some Reverse Osmosis home

water systems cause low water

pressure. Low water pressure can affect

the water and ice dispensing system by

causing small or hollow ice cubes and

slow water flow from the dispenser.

Service problems related to the home's

Reverse Osmosis water system are not

covered bythe warranty.

In the space below recordthe model

and serial numbers and purchase date

of your refrigerator. You will find the

model and serial number sticker inside

the refrigerator section on the left wall.

Model Number: 596.

Serial Number:

Purchase Date:

Keep this booklet and your Sears

sales receipt in a safe place for future

reference.

Important Safety Information ......................................................................................2

What You Needto Know About Safety Instructions...................................................2

Electrical Requirements .............................................................................................2

Protection Agreements ................................................................................................3

Master Protection Agreements - USA .....................................................................3

Maintenance Agreements - Canada .........................................................................3

Warranty ........................................................................................................................4

Product Record .............................................................................................................4

Installing Your Refrigerator ....................................................................................6-11

Measuring the Opening .............................................................................................6

TransportingYour Refrigerator...................................................................................6

Selecting the Best Location .......................................................................................6

Opening and Closing Your Fresh Food Doors...........................................................6

Removing and Replacing Handles ............................................................................7

How to Remove the Hinges, Doors and Drawer .......................................................7

How to Replace the Hinges, Doors and Drawer........................................................9

How to Connect the Water Supply...........................................................................10

How to Level Your Refrigerator................................................................................11

Setting and Maintaining Proper Temperatures ........................................................12

Initial Control Settings..............................................................................................12

Adjusting the Controls..............................................................................................12

Fresh Food Storage.................................................................................................12

Frozen Food Storage...............................................................................................12

About Your Water Filter ........................................................................................13-14

Water Filter Installation and Removal......................................................................13

Water Filter Data......................................................................................................14

Fresh Food Features .............................................................................................15-16

Water Dispenser......................................................................................................15

Interior Shelves........................................................................................................15

Door Storage............................................................................................................15

Climate-Controlled Drawers.....................................................................................16

Freezer Features.........................................................................................................17

Automatic Ice Maker................................................................................................17

Drawers....................................................................................................................17

Hints and Care .......................................................................................................18-19

How to Clean Your Refrigerator...............................................................................18

How to Remove Odors from Refrigerator................................................................19

Energy Saving Ideas................................................................................................19

How to Remove and Replace Light Bulbs...............................................................19

Normal Operating Sounds .........................................................................................20

Troubleshooting ....................................................................................................21-22

Operation............................................................................................................21-22

Ice and Water...........................................................................................................22

EspaSol ........................................................................................................................23

Frangais .......................................................................................................................45

Service ..........................................................................................................Back Cover

I'll

These instructions were provided to aid

you in the installationof your refrigerator.

MB URINGTHEoPENiNG

A one-half inch (v;') of air space must be

provided for the back of the refrigerator.

When installing your refrigerator,

measure carefully.

Subflooring or floor coverings (i.e.

carpet, tile, wood floors, rugs) may make

your opening smaller than anticipated.

Some clearance may be gained by

using the leveling procedure under

How to Level Your Refrigerator.

IMPORTANT: If refrigerator is to be

installed into a recess where top of

refrigerator is completely covered, use

dimensions from floor to top of hinge

cap to verify proper clearance.

SELECTINGTHEBEST

Observe these points when choosing the

final location for your refrigerator:

DO NOT install refrigerator near

oven, radiator or other heat source. If

not possible, shield refrigerator with

cabinet material.

DO NOT install where temperature

falls below 55° F (13° C). Malfunction

may occur at this temperature.

Toassure proper door closure, follow

the leveling instructions in the

section, How to Level Your

Refrigerator.

Your new refrigerator is uniquely

designed with two fresh food doors.

Either door can be opened or closed

independently of one another.

There is a vertically-hinged section on

the left fresh food door calledthe

SmartSeal. When the left door isclosed,

the hinged section automatically forms a

seal between the two doors when both

doors are closed.

When the left door is opened, the

SmartSeal automatically folds inward so

that it is out of the way.

TRANSPORTINGYOUR

Follow these tips when moving the

refrigerator to final location:

NEVER transport refrigerator on its

side. If an upright position is not

possible, lay refrigerator on its back.

Allow refrigerator to sit upright for

approximately 30 minutes prior to

plugging refrigerator in to assure oil

returns to the compressor. Plugging

refrigerator in immediately may cause

damage to internal parts.

Use an appliance doilywhen moving

refrigerator.ALWAYS truck

refrigerator from its side-NEVER

from its front or back.

Protect outside finish of refrigerator

during transport by wrapping cabinet

in blankets or inserting padding

between the refrigerator and dolly.

Secure refrigerator to dolly firmly with

straps or bungee cords. Thread

straps through handleswhen

possible. DO NOT overtighten. Over-

tightening restraints may dent or

damage outside finish.

ANDREPL, (iNG

Removing Fresh Food Handles

1. Locate either the plastic II

tool packaged with the

literature pack or a plastic

putty knife• Pulling the

handle slightly outward, _._'7_

insert the tool, as illustrated• Tool

should slide in about :Y_".

2. With tool still in place,

grab portion of handle

closest to the tool area,

and firmly slide handle

upward to remove from

door.

3. Repeat to remove opposite fresh food

handle•

Removing Freezer Handle

1.Locateeitherthep,ast,c

tool packaged with the

•

literature pack or a plastic

putty knife• Pulling the i_

handle slightly outward, ,_

insert the tool, as illustrated• Tool

should slide in about _".

2. With tool still in place, grab portion of

handle closest to the toot area, and

firmly slide handle right to remove

from door•

Replacing Fresh Food Handles

1. Making sure the outer curve of the

handle is facing the hinge side of

door, align handle on door face just

above clips on door.

2. Push handle firmly

against door while sliding

handle downward until it

locks into place•

3. Repeat to install opposite

fresh food handle•

Replacing Freezer Handle

1. Making sure the outer curve of the

handle is pointed toward the floor,

align handle on door face just to the

right of the clips on door.

2. Push handle firmly

against door while sliding

handle to the left until it

locks into place.

Some installations require door removal

to get refrigerator into final location•

1. Unplug power cord

from power source•

2. Remove top hinge

covers by removing

Phillips screws•

>- Retain screw and

cover for replacement•

3. Unscrew _" hex head screws from

right side top hinge to remove hinge•

>- Retain all screws for later use.

4. Lift right side refrigerator door from

center hinge pin. Remove door

closure from center hinge pin on the

right side.

Retain door closure for later use.

Right side

/door closure

5. Disconnect wire harness on top of left

side refrigerator door top hinge•

:,--Release two-pin connector by

pressing junction pointwith a fiat

blade screwdriver or fingernail•

Green ground wire remains

attached to the hinge.

6. Unscrew _',_"hex head screws from

top hinge to remove hinge•

>- Retain all screws for later use.

:,--Lift left side refrigerator door,

along with top hinge from center

hinge pin.

7. Remove rightand left center hinges

with Phillips screwdriver•

:,--Retain screws for later use.

10. Pull upper basket out to full 13. Remove both stabilizing brackets

extension, and lift out to remove, with _/8"hex head driver.

_.-Retain screws for later use.

8. Pull drawer open to fult extension.

11. Lift top of door to unhook door

supports from rail system. Lift door

out to remove.

9. Remove lower basket by pressing

inward on basket sides, then lift

basket. 12. Remove toe grille and bottom

bracket covers.

PressTab Here

1. Install stabilizing brackets with %"hex

head driver.

2. Replace toe grille and bottom bracket

covers.

_--Snap bottom portion oftoe

grille into place first. Press

down on top part of grille until

top portion snaps into place.

3. Pull both rails out to full extension.

5. With drawer pulled out to full

extension, insert lower basket by

aligning tabs on both side of lower

basket with notches in rail assembly.

6. Stide upper basket into refrigerator.

Make sure that rear of basket hooks

behind rail catch.

7. Install center hinges with Phillips

screws.

_.-Replace door closure on the right

side. Door closure cannot be

used on the left side.

8. Place hinge side of refrigerator door

on center hinge pin.

9. While holding refrigerator door

upright, tighten door top hinge with

_z,_"hex head driver.

10. Repeat steps 8 and 9 to install

second door.

11. Reconnect wire harness on left side

door.

12. Replace top hinge covers on both

hinges.

4. Hook door supports into rail tabs, as

illustrated, and lower door into final

position.

HOWTOCONNECTTHE MATERIALS NEEDED

7Zouter diameter flexible copper

tubing

:.--Brass compression nut and sleeve for

7_"outer diameter copper tubing.

Shut-off valve (requires a '/4"hole to

be drilled intowater supply before

valve attachment)

:.--Adjustable wrench

Y_"hex nut driver

NOTE: Add 8' to tubing length needed to

reach water supply for creation of

service loop.

1. Create service loop with tubing using

care to avoid kinks in tubing.

4. Placeend of coppertubing intowater

valve inlet port. Shape tubingslightly -

DO NOT KINK - so that tubing feeds

straight into inlet port.

5. Slide brass nut over sleeve and

screw nut into inlet port. Tighten nut

with wrench.

2. Remove plastic cap from water valve

inlet port.

IMPORTANT: DO NOT overtighten.

Cross threading may occur.

6. Pull on tubing to confirm connection

is secure. Connecttubing to frame

with water tubing clamp (C) and turn

on water supply.Check for leaks and

correct, if present. C

3. Place brass nut (A) and sleeve (B) on

copper tube end as illustrated.

A7. Monitor water connection for 24

hours. Correct leaks if necessary.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Sprachen:

Andere Kenmore Kühlschrank Handbücher

Kenmore

Kenmore 461.6010 Bedienungsanleitung

Kenmore

Kenmore 69872 Bedienungsanleitung

Kenmore

Kenmore Compact refrigerator 91171 Bedienungsanleitung

Kenmore

Kenmore 4048 - Pro 29.5 cu. Ft Bedienungsanleitung

Kenmore

Kenmore 7817 - 20.6 cu. Ft. Top Freezer Refrigerator Bedienungsanleitung

Kenmore

Kenmore 253.70722 SERIES Bedienungsanleitung

Kenmore

Kenmore 970-4204 Series Bedienungsanleitung

Kenmore

Kenmore 25370889404 Bedienungsanleitung

Kenmore

Kenmore Elite 795.7132 Series Bedienungsanleitung

Kenmore

Kenmore 795.7102 Series Bedienungsanleitung

Kenmore

Kenmore 67277 Bedienungsanleitung

Kenmore

Kenmore 61040 Bedienungsanleitung

Kenmore

Kenmore 3639644284 Bedienungsanleitung

Kenmore

Kenmore 7830 - 22.6 cu. Ft. Trio Bottom Freezer... Bedienungsanleitung

Kenmore

Kenmore 6121 series Bedienungsanleitung

Kenmore

Kenmore 7759 - Elite 24.8 cu. Ft. Bottom Freezer... Bedienungsanleitung

Kenmore

Kenmore 795.75192401 Bedienungsanleitung

Kenmore

Kenmore TRIM AND RISER KIT Bedienungsanleitung

Kenmore

Kenmore Sears refrigerator Bedienungsanleitung

Kenmore

Kenmore 795.7237 Series Bedienungsanleitung

Kenmore

Kenmore TRIO 596.76572600 Bedienungsanleitung

Kenmore

Kenmore 106.5022 Series Bedienungsanleitung

Kenmore

Kenmore 106.5133 Series Bedienungsanleitung

Kenmore

Kenmore Elite Side by Side Refrigerator Bedienungsanleitung

Beliebte Kühlschrank Handbücher anderer Marken

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Bedienungsanleitung

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Bedienungsanleitung

Sharp

Sharp SJ-BA31IEXW2-EU Bedienungsanleitung

CORBERO

CORBERO CC2300MCW Bedienungsanleitung

KitchenAid

KitchenAid 2205264 Bedienungsanleitung

Stengel

Stengel KU 1101 A++ Bedienungsanleitung

NEFF

NEFF KI181 Series Bedienungsanleitung

Hoshizaki

Hoshizaki Reach-In Bedienungsanleitung

Amana

Amana ASD2524VES00 Bedienungsanleitung

BOMANN

BOMANN KGC 213 Bedienungsanleitung

Danby

Danby DAR044A1SLDD Montageanleitung

Samsung

Samsung RF323TE Bedienungsanleitung

Beko

Beko CSA31022 Bedienungsanleitung

IKEA

IKEA FROSTIG C 185 E Bedienungsanleitung

Electrolux

Electrolux ER 6821 D Bedienungsanleitung

True

True TS-28 Bedienungsanleitung

Frigidaire

Frigidaire FSC23R5DW9 Bedienungsanleitung

Beko

Beko LSP4579W Bedienungsanleitung
