Before Using Your New

Vacuum Cleaner .................... 2

Packing List ..................... 2

Vacuum Cleaner Help Line ........... 3

Kenmore Vacuum Cleaner Warranty . . . 3

important Safety instructions.......... 4

Parts and Features .................. 5

Assembly instructions .............. 6-7

Operating instructions ............... 8

How to Start ..................... 8

Vacuuming Tips .................. 9

Attachments .................... 10

Attachment Use Table ............ 10

Performance Features ............. 11

Canister Care ..................... 12

Removing Clogs ................. 12

Cleaning Exterior and Attachments .. 12

Emptying Dust Bin ................ 13

Cleaning Dust Bin ................ 14

Replacing Exhaust Filter ........... 15

Cleaning Secondary Filter ......... 16

Troubleshootlng ................... 17

Master Protection Agreements ......... 18

Requesting Assistance

Or Service ................ Back Cover

Please read this guide. It will help you assemble and operate your new Kenmore vacuum

cleaner in the safest and most effective way.

For more information about vacuum cleaner care and operation, call your nearest Sears

store. You will need the complete model and serial numbers when requesting information.

Your vacuum cleaner's model and serial numbers are located on the Model and Serial

Number Plate.

Use the space below to record the model number and serial number of your new Kenmore

vacuum cleaner.

Model No.

Serial No.

Date of Purchase

Keep this book and your sales check (receipt) in a safe place for future reference.

PACKING LiST

Your KENMORE VACUUM CLEANER is packaged with the following parts and

components assembled separately in the carton:

]Canister Vacuum Cleaner ]Combination Tool

]Hose & Handle Assembly ]Use & Care Guide

] Telescopic Wand ] Repair Parts List

] Floor Brush

Each of the above assemblies are shown in detail inside the Repair Parts List.

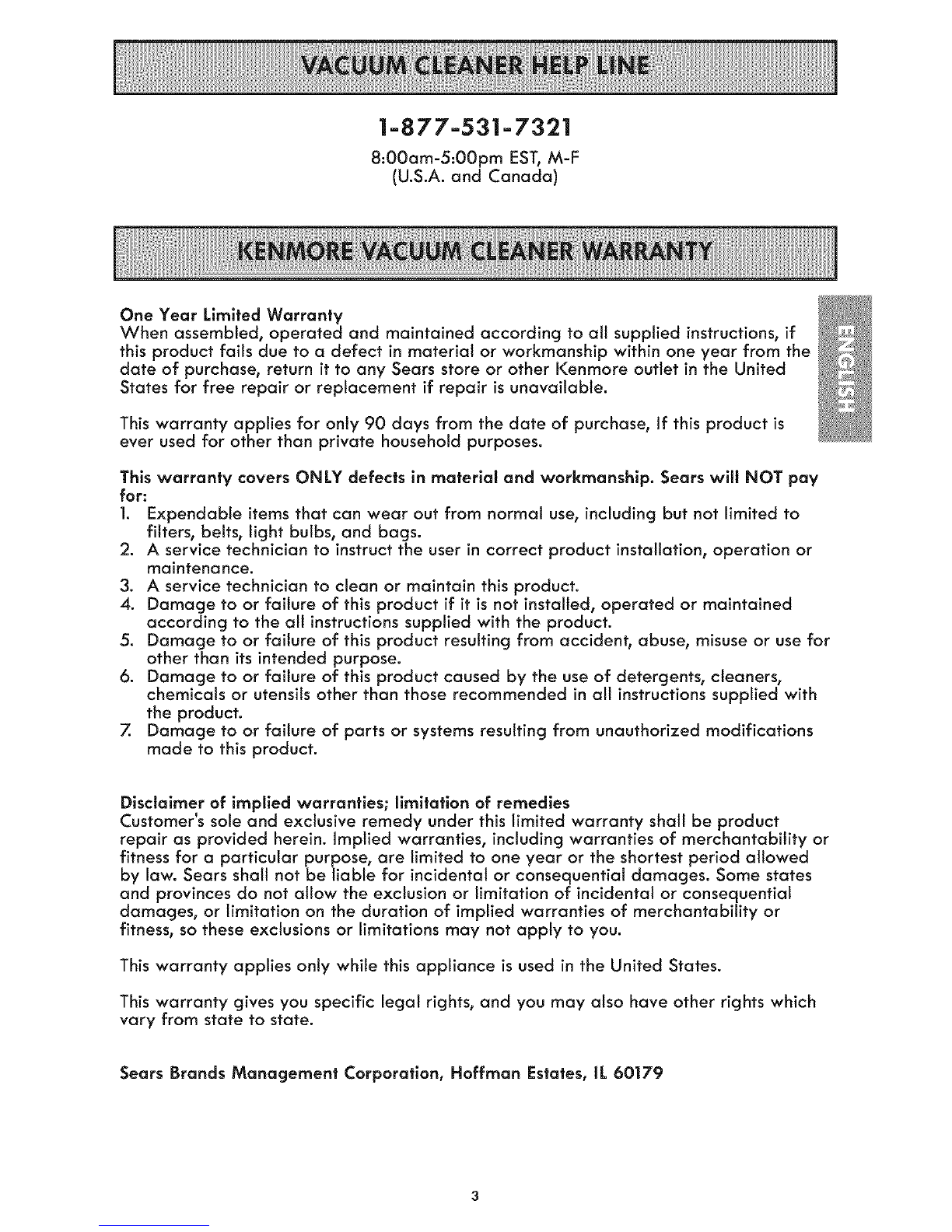

1-877-531-7321

8:00am-5:00pm EST,M-F

(U.S.A. and Canada)

One Year Limited Warranty

When assembled, operated and maintained according to all supplied instructions, if

this product fails due to a defect in material or workmanship within one year from the

date of purchase, return it to any Sears store or other Kenmore outlet in the United

States for free repair or replacement if repair is unavailable.

This warranty applies for only 90 days from the date of purchase, If this product is

ever used for other than private household purposes.

Thiswarranty covers ONLY defects in material and workmanship. Sears wilt NOT pay

for:

1. Expendable items that can wear out from normal use, including but not limited to

filters, belts, light bulbs, and bags.

2. A service technician to instruct the user in correct product installation, operation or

maintenance.

3. A service technician to clean or maintain this product.

4. Damage to or failure of this product if it is not installed, operated or maintained

according to the all instructionssupplied with the product.

5. Damage to or failure of this product resulting from accident, abuse, misuse or use for

other than its intended purpose.

6. Damage to or failure of this product caused by the use of detergents, cleaners,

chemicals or utensils other than those recommended in all instructions supplied with

the product.

Z Damage to or failure of parts or systemsresulting from unauthorized modifications

made to this product.

Disclaimer of implied warranties; limitation of remedies

Customer's sole and exclusive remedy under this limited warranty shall be product

repair as provided herein, implied warranties, including warranties of merchantability or

fitness for a particular purpose, are limited to one year or the shortest period allowed

by law. Sears shah not be liable for incidental or consequential damages. Some states

and provinces do not allow the exclusion or limitation of incidental or consequential

damages, or limitation on the duration of implied warranties of merchantability or

fitness, so these exclusions or limitations may not apply to you.

This warranty applies only while this appliance is used in the United States.

This warranty gives you specific legal rights, and you may also have other rights which

vary from state to state.

Sears Brands Management Corporation, Hoffman Estates, IL 60179

Read all insfructlons in this guide before assembling or using your vacuum cleaner.

WARNING:

Your safety is important to us. To reduce the risk of fire, electrlcal shock, injury to

persons or damage when using your vacuum cleaner, follow basic safety

precautions including the following:

Use your vacuum cleaner only as described

in this guide. Use only with Sears

recommended attachments.

Do not leave vacuum cleaner when plugged

in. Unplug from outlet when not in use and

before performing servicing.

Toreduce the risk of electrical shock - Do

not useoutdoors or on wet surfaces.

Do not allow to be used as a toy. Close

attention isnecessary when used by or near

children.

Do not usewith a damaged cord or plug.

If vacuum cleaner isnot working as it

should,has been dropped, damaged, left

outdoors, or dropped in water, return it to a

Sears Service Center.

Do not pull or carry by cord, use cord as a

handle, close a door on cord, or pull cord

around sharp edges or corners. Do not run

vacuum cleaner over cord. Keep cord

away from heated surfaces.

Do not unplug by pulling on cord. To

unplug, grasp the plug, not the cord.

Do not handle plug or vacuum cleaner with

wet hands.

Do not put any objects into openings.

Do not use with any opening blocked; keep

free of dust, lint, hair, and anything that

may reduce air flow.

Keep hair, loose clothing, fingers, and all

parts of body away from openings and

moving parts.

Turn off all controls before unplugging.

Use extra care when cleaning on stairs.

Do not put on chairs, tables, etc. Keep on

floor.

Do not usevacuum cleaner to pick up

flammable or combustible liquids (gasoline,

cleaning fluid, perfumes, etc.), or usein

areas where they may be present. The

fumes from these substances can create a

fire hazard or explosion.

Do not pick up anything that isburning or

smoking, such as cigarettes, matches, or hot

ashes.

Do not usevacuum cleaner without dust bin

and/or filters in place.

Always empty the dust bin after vacuuming

carpet cleaners or freshener, powders, and

fine dust. These products clog the filters,

reduce airflow and can cause damage to

the vacuum cleaner. Failure to do so could

cause permanent damage to the vacuum

cleaner.

Do not usethe vacuum cleaner to pick up

sharp hard objects, small toys,pins, paper

clips, etc. They may damage the vacuum

cleaner.

Do not operature the vacuum cleaner

without the exhaust filter and filter door in

place.

Hold plug when rewinding onto cord reel.

Do not allow plug to whip when rewinding.

Youare responsiblefor making sure that

your vacuum cleaner isnot used by anyone

unable to operate it properly.

SAVE THESEINSTRUCTIONS

Proper assembly and safe use ofyour vacuum cleaner are your responsibilities. Your vacuum

cleaner is intended for Householduse. Read this Use & Care Guide carefully for important

use and safety information. This guide contains safety statements under warning and

caution symbols.

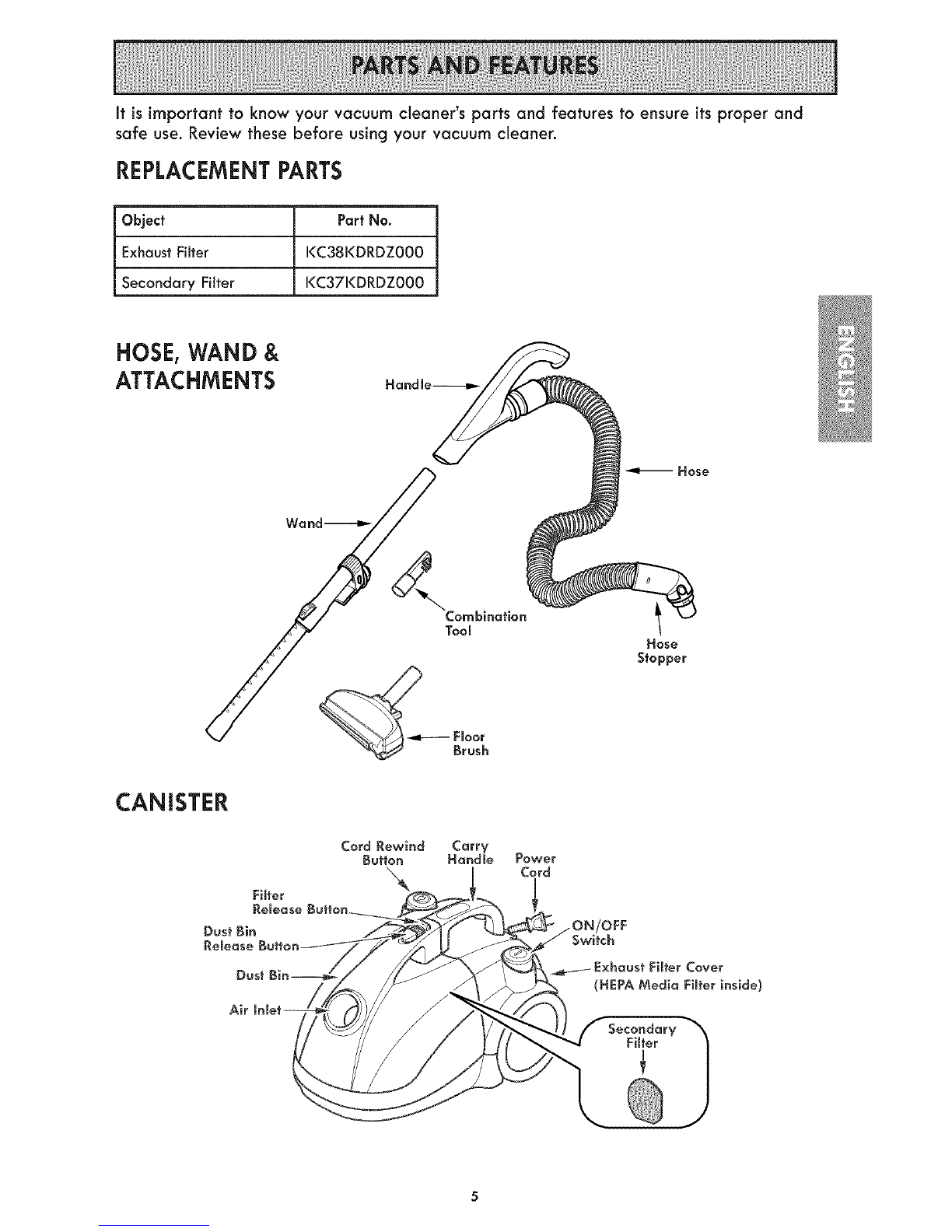

it isimportant to know your vacuum cleaner's parts and features to ensure its proper and

safe use. Review these before using your vacuum cleaner.

REPLACEMENT PARTS

Object Part No.

Exhaust Filter I(C38KDRDZ000

Secondary Filter I(C37KDRDZ000

HOSE, WAND &

ATTACHMENTS

Hose

CANISTER

Cord Rewind Carr¥

Button Handle Power

Cord

Hose

Stopper

Please pay special attention to these hazard alert boxes, and follow any instruc-

tions given. WARNING statements alert you to such dangers as fire, electric

shock, burns and personal injury. CAUTION statements alert you to such dan-

gers as personal injury and/or property damage.

WARNING

Electrlcal Shock Hazard

DO NOT plug into electrical supply until

assembly is complete. Failure to do so

could result in electrical shock or injury.

Before assembling vacuum cleaner, check

the PACKING LIST (page 2). Use this list

to verify that you have received and

identified all the components of your new

Kenmore vacuum cleaner.

HOSE

Insert the hose stopper all the way into the

air inlet.

Hose

Stopper

Toremove: Pressbuttons on the hose

stopper and pull the hose upward.

WAND (TELESCOPING)

Insert the wand into the handle and press

together tightly.

Handle

Telescoping

FLOOR BRUSH

Insert the floor Wand-----_

brush into the

wand by Floor

aligning the Brush

arrows and press

together tightly.

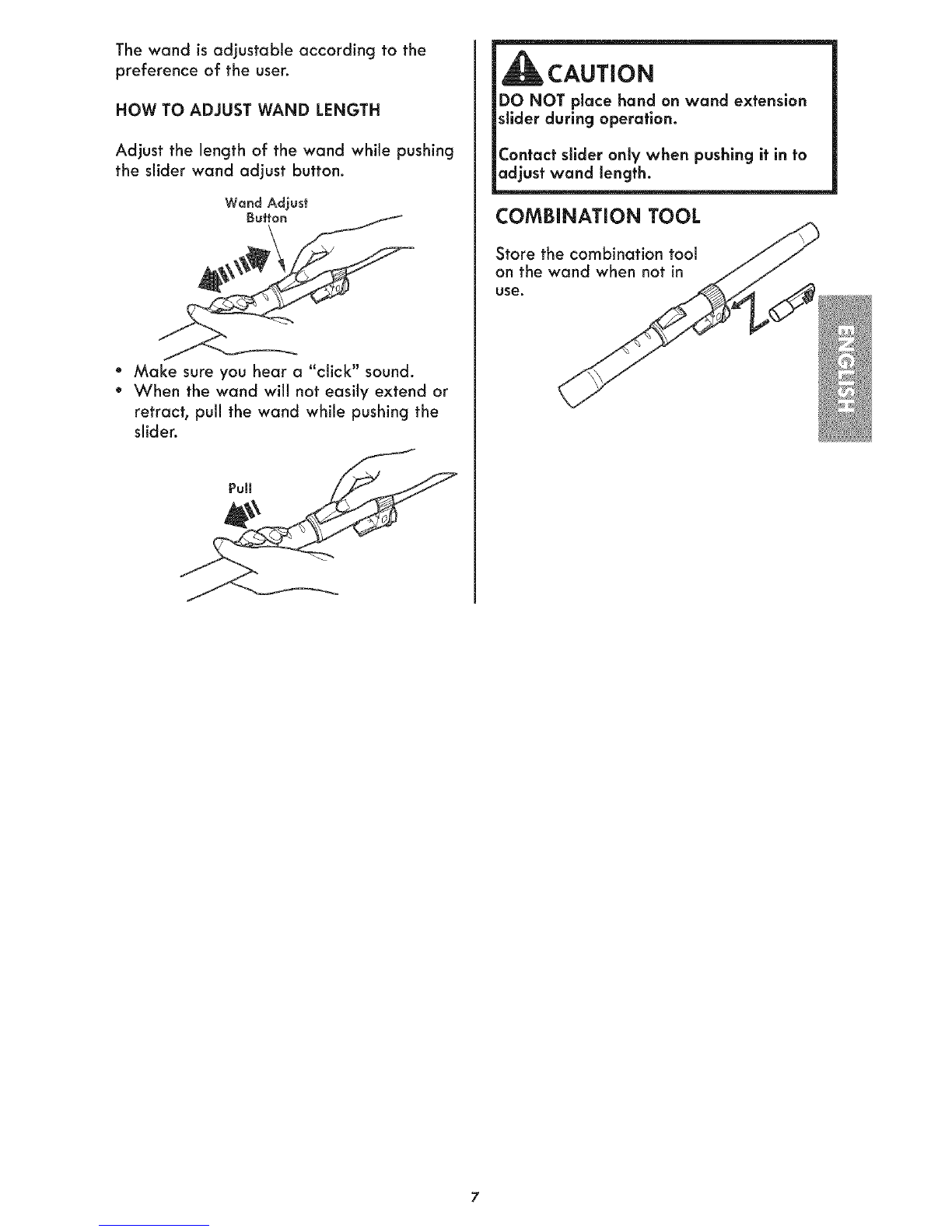

The wand isadjustable according to the

preference of the user.

HOW TO ADJUST WAND LENGTH

Adjust the length of the wand while pushing

the slider wand adjust button.

Wand Adjust

Button

*Make sure you hear a "click" sound,

*When the wand will not easily extend or

retract, pull the wand while pushing the

slider.

CAUTION

DO NOT place hand on wand extension

slider during operation.

Contactslider only when pushing it in to

adjust wand length.

COMBiNATiON TOOL

Store the combination tool

on the wand when not in

use.

HOW TO START

WARNING

Personal Injury and Product Damage

Hazard

DO NOT plug in if switch is in ON

position. Personal injury or property

damage could result.

The cord moves rapidly when

rewinding. Keep children away

and provide a clear path when

rewinding the cord to prevent

personal injury.

DO NOT use outlets above counters.

Damage from cord to items in

surrounding area could occur.

When any abnormality/failure occurs,

stop using the product immediately and

disconnect the power plug.

1. Pull cord out of canister to desired

length.

Cord

Rewind

Button

NOTE: Toreduce the risk of electric shock,

this vacuum cleaner has a polarized plug;

one blade is wider than the other. This plug

will fit in apolarized outlet only one way. If

the plug does not fit fully in the outlet,

reverse the plug. If it still does not fit,

contact a qualified electrician to install the

proper outlet. Do not change the plug in

any way.

2. Plug the polarized power cord intoa 120

Volt outlet located near the floor.

3. Start or stop

vacuum cleaner by

pushing on the

switch.

Torewind: Turn off and unplug the vacuum

cleaner. Hold the plug while rewinding to

prevent damage or injuryfrom the moving

cord. Pushcord rewind button.

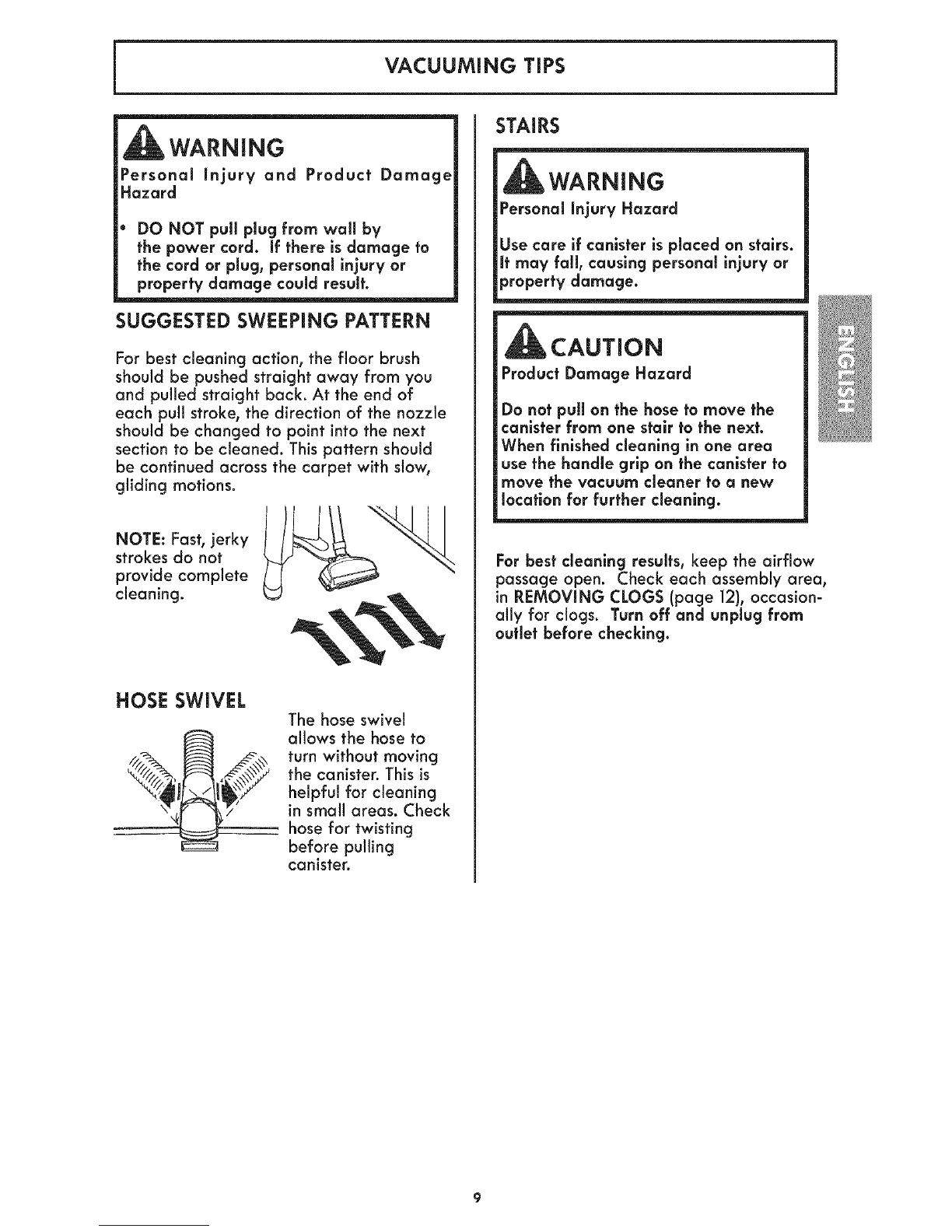

VACUUMING TiPS

WARNING

Personal Injury and Product Damage

Hazard

* DO NOT pull plug from wall by

the power cord. If there isdamage to

the cord or plug, personal injury or

SUGGESTED SWEEPING PATTERN

For best cleaning action, the floor brush

should be pushed straight away from you

and pulled straight back. At the end of

each pull stroke, the direction of the nozzle

should be changed to point intothe next

section to be cleaned. This pattern should

be continued across the carpet with slow,

gliding motions.

NOTE: Fast,jerky I /t_------_

strokes do not

provide complete

cleaning.

HOSE SWIVEL The hose swivel

_/_._ A_ _ allowsthehoseto

turn without moving

the canister. This is

_ I_I_/ he,pfu, for c,eaning

in small areas. Check

hose for twisting

before pulling

canister.

STAIRS

WARNING

Personal Injury Hazard

Use care if canister isplaced on stairs.

It may fall, causing personal injury or

property damage.

CAUTION

Product Damage Hazard

Do not pull on the hose to move the

canister from one stair to the next.

When finished cleaning in one area

use the handle grip on the canister to

move the vacuum cleaner to a new

location for further cleaning.

For best cleaning results,keep the airflow

passage open. Check each assembly area,

in REMOVING CLOGS(page 12), occasion-

ally for clogs. Turn off and unplug from

outlet before checking.

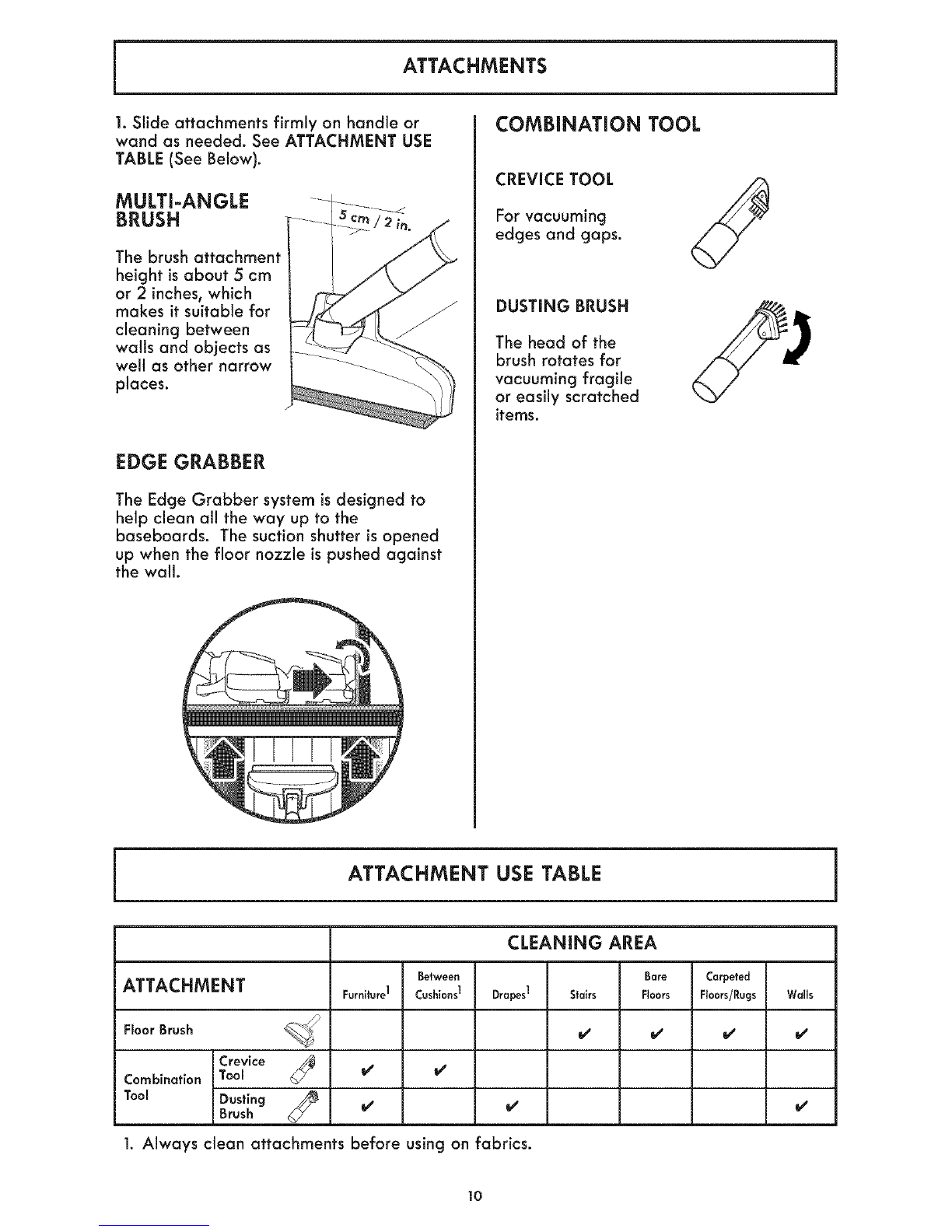

ATTACHMENTS

1.Slide attachments firmly on handle or

wand as needed. See ATTACHMENT USE

TABLE(See Below).

MULTI-ANGLE

BRUSH

The brush attachment

height isabout 5 cm

or 2 inches,which

makes it suitable for

cleaning between

walls and objects as

well as other narrow

places.

EDGE GRABBER

The Edge Grabber system is designed to

help clean all the way up to the

baseboards. The suction shutter is opened

up when the floor nozzle is pushed against

the wall.

COMBINATION TOOL

CREVICETOOL

For vacuuming

edges and gaps.

DUSTING BRUSH

The head of the

brush rotates for

vacuuming fragile

or easily scratched

items.

ATTACHMENT USE TABLE

CLEANING AREA

Between Bare Carpeted

ATTACHMENT Fur.ltu,J Cu,h_o.J o,apoJ St,,i,, FI.... Floo,,/_g, Wolls

FloorBrush _ _ _

Crevice _

Combination Took _

Tool Dusting

Brush _ _

1. Always clean attachments before using on fabrics.

Inhaltsverzeichnis

Sprachen:

Andere Kenmore Staubsauger Handbücher

Kenmore

Kenmore Intuition BU4021 Bedienungsanleitung

Kenmore

Kenmore 680.14100410 Bedienungsanleitung

Kenmore

Kenmore 116.22614 Bedienungsanleitung

Kenmore

Kenmore 3693 - Progressive Bagless Upright Bedienungsanleitung

Kenmore

Kenmore 116.25614 Bedienungsanleitung

Kenmore

Kenmore 116.30608C Bedienungsanleitung

Kenmore

Kenmore 116.23203C Bedienungsanleitung

Kenmore

Kenmore 116.22822 Bedienungsanleitung

Kenmore

Kenmore CROSSOVER DU3017 Bedienungsanleitung

Kenmore

Kenmore Elite 21814 Bedienungsanleitung

Kenmore

Kenmore 116.21714 Bedienungsanleitung

Kenmore

Kenmore SSV Complete DS6028 Bedienungsanleitung

Kenmore

Kenmore 26823 - Progressive Bagless Canister Vacuum Bedienungsanleitung

Kenmore

Kenmore 116.23203C Bedienungsanleitung

Kenmore

Kenmore 16.23195C Bedienungsanleitung

Kenmore

Kenmore 116.36932 Bedienungsanleitung

Kenmore

Kenmore 116.35725 Bedienungsanleitung

Kenmore

Kenmore Galaxy 721.36078 Bedienungsanleitung

Kenmore

Kenmore KW3050 Bedienungsanleitung

Kenmore

Kenmore ASPIRADORA 116.23512 Bedienungsanleitung

Kenmore

Kenmore 116.30612C Bedienungsanleitung

Kenmore

Kenmore 3704 - Bagless Upright Vacuum Bedienungsanleitung

Kenmore

Kenmore 116.23155C Bedienungsanleitung

Kenmore

Kenmore FeatherLite DU1040 Bedienungsanleitung

Beliebte Staubsauger Handbücher anderer Marken

Bissell

Bissell LittleGreen Proheat 1425 Series Bedienungsanleitung

Panasonic

Panasonic MC-YL637S147-AE Bedienungsanleitung

NEFF

NEFF N17XH10 0 Series Bedienungsanleitung

LG A9 Series Bedienungsanleitung

Oreck

Oreck Cordless Captura BK51700 Series Bedienungsanleitung

Kogan

Kogan KAVACROBVWA Bedienungsanleitung

Kränzle

Kränzle VENTOS 50 ID Benutzerhandbuch

EVVO

EVVO Ai35 Bedienungsanleitung

DeWalt

DeWalt DWH200D Bedienungsanleitung

Pontec

Pontec Pondomatic Vacuum Cleaner Bedienungsanleitung

Cleanmaxx

Cleanmaxx PC-P007E Bedienungsanleitung

Exido

Exido 240-114 Bedienungsanleitung

RIDGID

RIDGID WD1685AU0 Bedienungsanleitung

Ezviz

Ezviz RE4P Bedienungsanleitung

STG global

STG global TANVAC HDV3000 Bedienungsanleitung

Shark

Shark ROTATOR PRO COMPLETE NV550 Series Bedienungsanleitung

Factory

Factory M3340 Bedienungsanleitung

Shop-Vac

Shop-Vac VN92 SERIES Bedienungsanleitung
