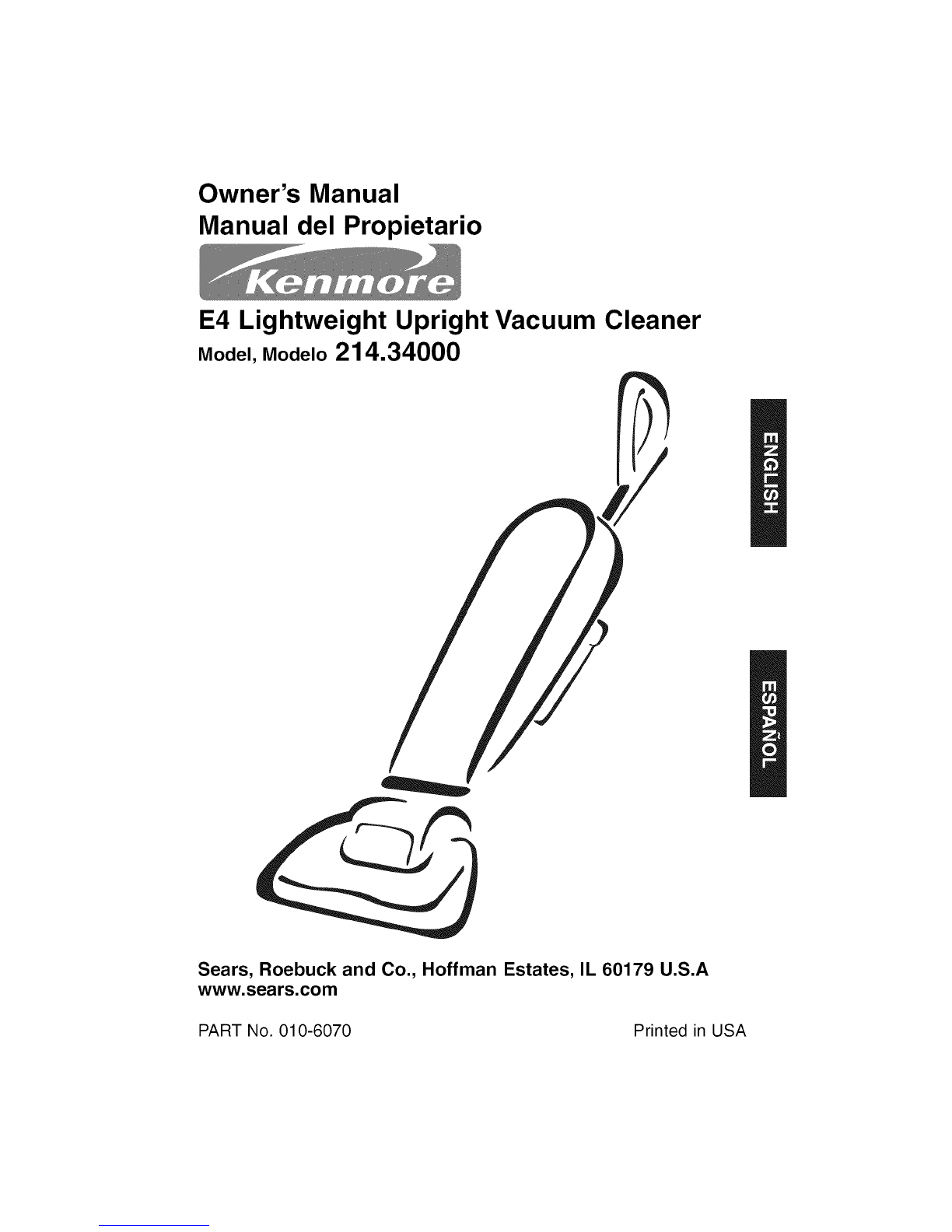

Kenmore 214.34000 Bedienungsanleitung

Owner's Manual

Manual del Propietario

E4 Lightweight Upright Vacuum Cleaner

Model, Modelo 214.34000

Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A

www.sears.com

PART No. 010-6070 Printed in USA

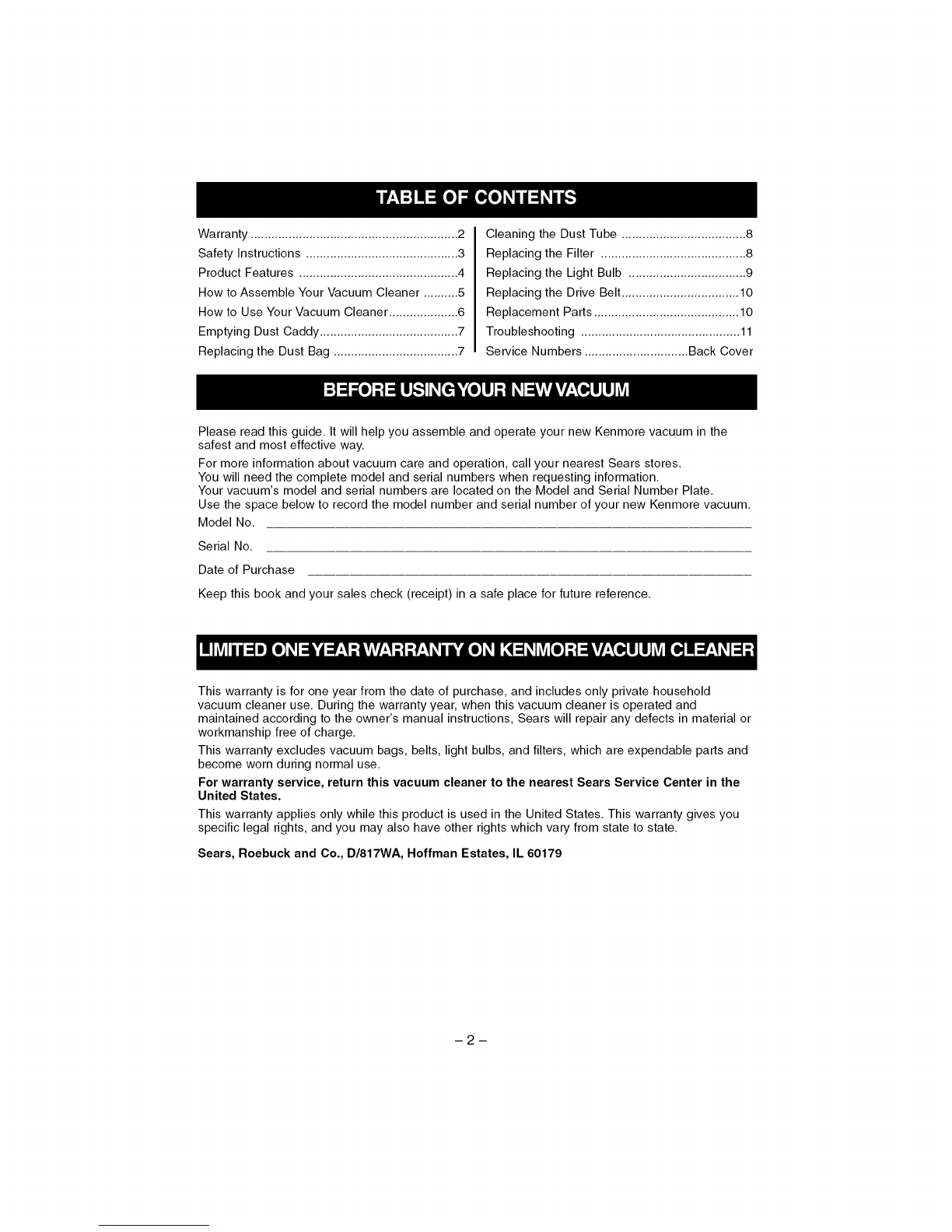

Warranty ............................................................ 2

Safety Instructions ............................................ 3

Product Features .............................................. 4

How to Assemble Your Vacuum Cleaner .......... 5

How to Use Your Vacuum Cleaner .................... 6

Emptying Dust Caddy ........................................ 7

Replacing the Dust Bag .................................... 7

Cleaning the Dust Tube .................................... 8

Replacing the Filter .......................................... 8

Replacing the Light Bulb .................................. 9

Replacing the Drive Belt .................................. 10

Replacement Parts .......................................... 10

Troubleshooting .............................................. 11

Service Numbers .............................. Back Cover

Please read this guide. It will help you assemble and operate your new Kenmore vacuum in the

safest and most effective way.

For more information about vacuum care and operation, call your nearest Sears stores.

You will need the complete model and serial numbers when requesting information.

Your vacuum's model and serial numbers are located on the Model and Serial Number Plate.

Use the space below to record the model number and serial number of your new Kenmore vacuum.

Model No.

Serial No.

Date of Purchase

Keep this book and your sales check (receipt) in a safe place for future reference.

This warranty is for one year from the date of purchase, and includes only private household

vacuum cleaner use. During the warranty year, when this vacuum cleaner is operated and

maintained according to the owner's manual instructions, Sears will repair any defects in material or

workmanship free of charge.

This warranty excludes vacuum bags, belts, light bulbs, and filters, which are expendable parts and

become worn during normal use.

For warranty service, return this vacuum cleaner to the nearest Sears Service Center in the

United States.

This warranty applies only while this product is used in the United States. This warranty gives you

specific legal rights, and you may also have other rights which vary from state to state.

Sears, Roebuck and Co., D/817WA, Hoffman Estates, IL 60179

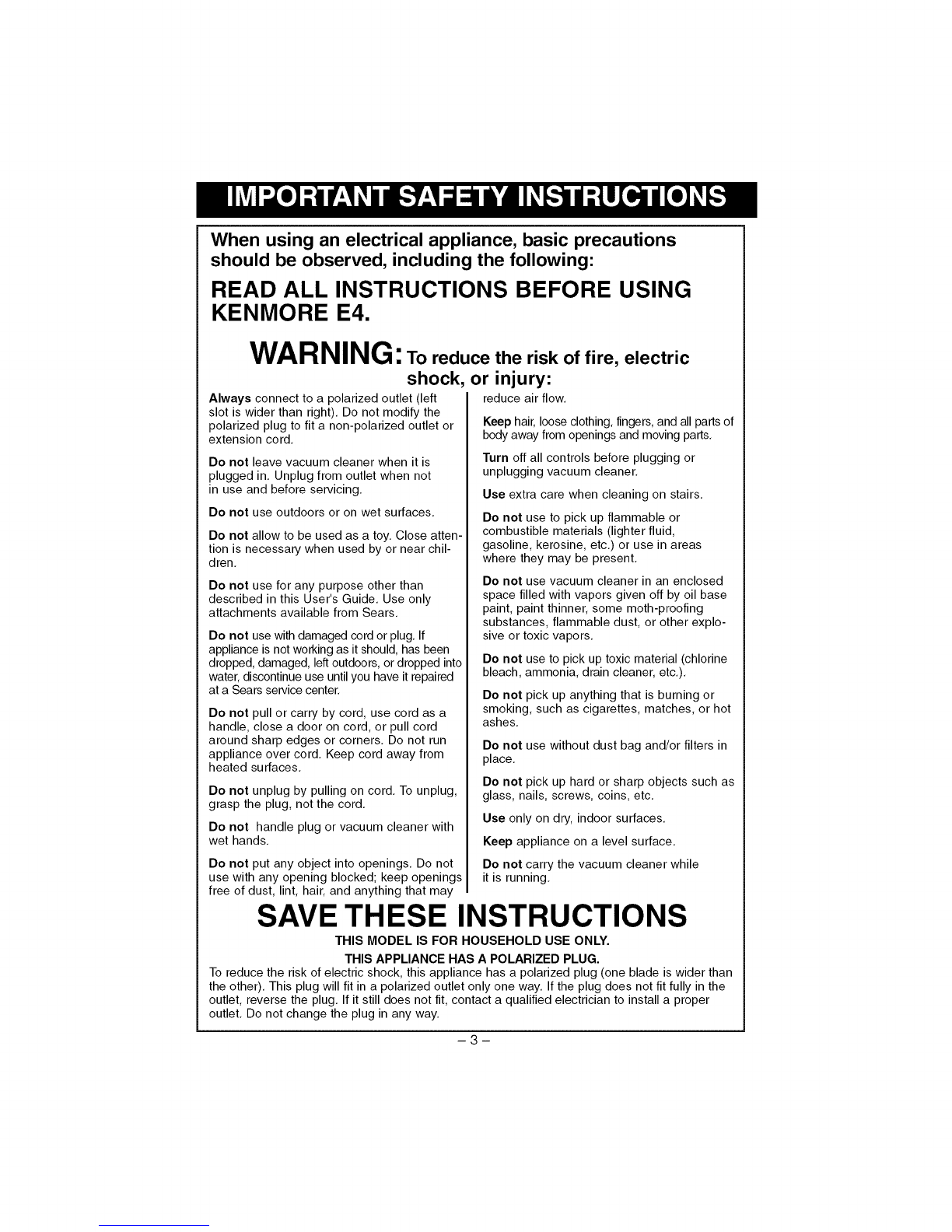

When using an electrical appliance, basic precautions

should be observed, including the following:

READ ALL INSTRUCTIONS BEFORE USING

KENMORE E4.

WARNING:Toreduce the risk of fire, electric

shock

Always connect to a polarized outlet (left

slot is wider than right). Do not modify the

polarized plug to fit a non-polarized outlet or

extension cord.

Do not leave vacuum cleaner when it is

plugged in. Unplug from outlet when not

in use and before servicing.

Do not use outdoors or on wet surfaces.

Do not allow to be used as a toy. Close atten-

tion is necessary when used by or near chil-

dren.

Do not use for any purpose other than

described in this User's Guide. Use only

attachments available from Sears.

Do not use with damaged cord or plug. If

appliance is not working as it should, has been

dropped, damaged, left outdoors, or dropped into

water, discontinue use until you have it repaired

at a Sears service center.

Do not pull or carry by cord, use cord as a

handle, close a door on cord, or pull cord

around sharp edges or corners. Do not run

appliance over cord. Keep cord away from

heated surfaces.

Do not unplug by pulling on cord. To unplug,

grasp the plug, not the cord.

Do not handle plug or vacuum cleaner with

wet hands.

Do not put any object into openings. Do not

use with any opening blocked; keep openings

free of dust, lint, hair, and anything that may

or injury:

reduce air flow.

Keep hair, loose clothing, fingers, and all parts of

body away from openings and moving parts.

Turn off all controls before plugging or

unplugging vacuum cleaner.

Use extra care when cleaning on stairs.

Do not use to pick up flammable or

combustible materials (lighter fluid,

gasoline, kerosine, etc.) or use in areas

where they may be present.

Do not use vacuum cleaner in an enclosed

space filled with vapors given off by oil base

paint, paint thinner, some moth-proofing

substances, flammable dust, or other explo-

sive or toxic vapors.

Do not use to pick up toxic material (chlorine

bleach, ammonia, drain cleaner, etc.).

Do not pick up anything that is burning or

smoking, such as cigarettes, matches, or hot

ashes.

Do not use without dust bag and/or filters in

place.

Do not pick up hard or sharp objects such as

glass, nails, screws, coins, etc.

Use only on dry, indoor surfaces.

Keep appliance on a level surface.

Do not carry the vacuum cleaner while

it is running.

SAVE THESE INSTRUCTIONS

THIS MODEL IS FOR HOUSEHOLD USE ONLY.

THIS APPLIANCE HAS A POLARIZED PLUG.

To reduce the risk of electric shock, this appliance has a polarized plug (one blade is wider than

the other). This plug will fit in a polarized outlet only one way. If the plug does not fit fully in the

outlet, reverse the plug. If it still does not fit, contact a qualified electrician to install a proper

outlet. Do not change the plug in any way.

CordStoragei

Power

SourcePluc

\Switch

Cloth

Dust

Rotatinc

Cleaning

Brush 'Furniture Protection

Guard

Pivoting Headlight

Safety

Rotating/Agitator Brush /

Anti-Clog System

-4-

-- Qu irdkHRe/kase

-Halddlll Tube

i Lowe r

...----- Tube

IAir Diverter

iDust

addy TM

Dust

7to /

_C_n_nector

Plug

"_Post-Motor

Filtration

System

Non-Mamng Wheels

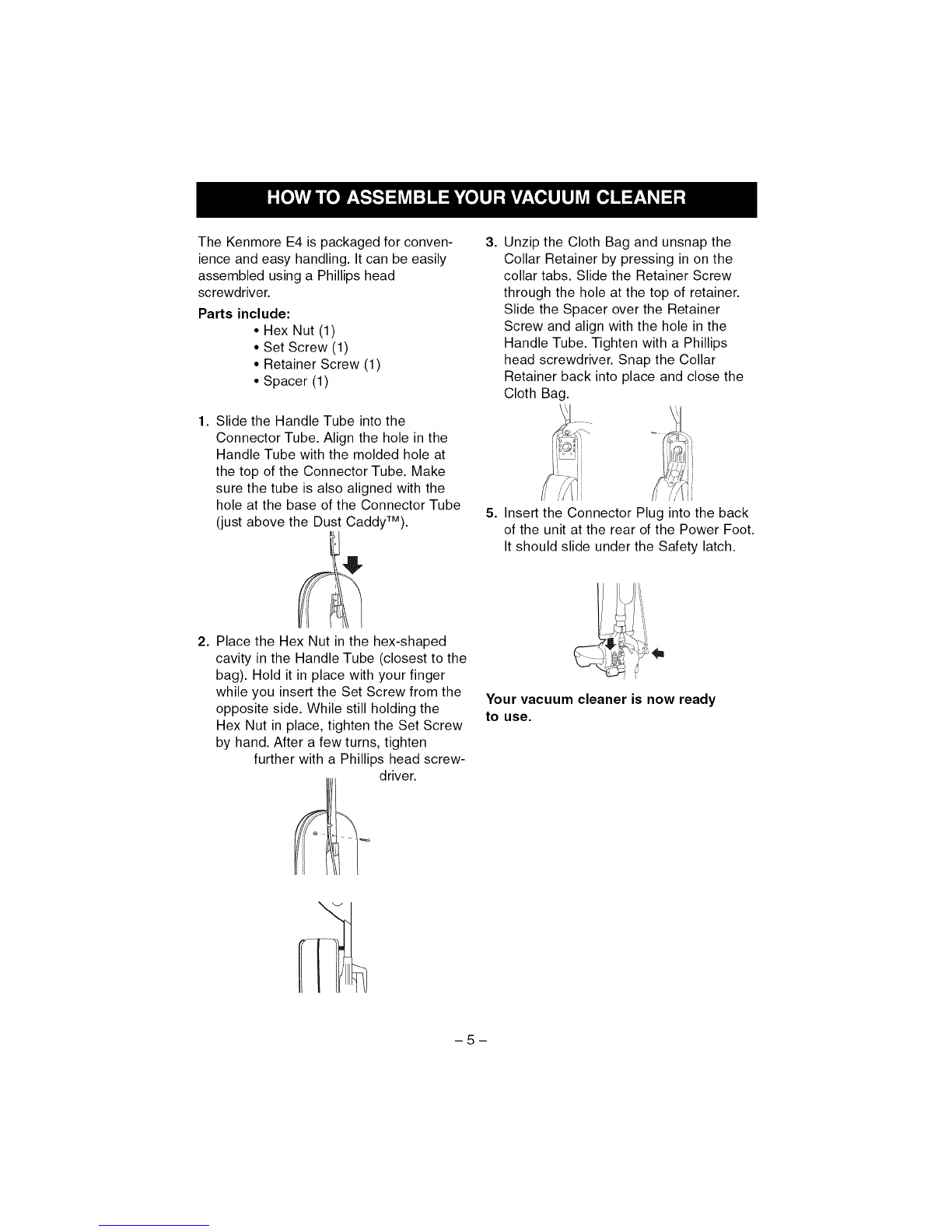

The Kenmore E4 is packaged for conven-

ience and easy handling. It can be easily

assembled using a Phillips head

screwdriver.

Parts include:

• Hex Nut (1)

• Set Screw (1)

• Retainer Screw (1)

• Spacer (1)

1. Slide the Handle Tube into the

Connector Tube. Align the hole in the

Handle Tube with the molded hole at

the top of the Connector Tube. Make

sure the tube is also aligned with the

hole at the base of the Connector Tube

(just above the Dust CaddytM).

2. Place the Hex Nut in the hex-shaped

cavity in the Handle Tube (closest to the

bag). Hold it in place with your finger

while you insert the Set Screw from the

opposite side. While still holding the

Hex Nut in place, tighten the Set Screw

by hand. After a few turns, tighten

further with a Phillips head screw-

driver.

3. Unzip the Cloth Bag and unsnap the

Collar Retainer by pressing in on the

collar tabs. Slide the Retainer Screw

through the hole at the top of retainer.

Slide the Spacer over the Retainer

Screw and align with the hole in the

Handle Tube. Tighten with a Phillips

head screwdriver. Snap the Collar

Retainer back into place and close the

Cloth Bag.

5. Insert the Connector Plug into the back

of the unit at the rear of the Power Foot.

It should slide under the Safety latch.

Your vacuum cleaner is now ready

to use.

PowerSupply

The Power Cord isstored at the

back of the vacuum cleaner and

looped around the upper Quick

Release and lower cord hooks.

The Power Source Plug is

notched for safe, convenient

attachment to the Power Cord

during storage. Before using your

vacuum, make sure the

Connector Plug is securely

attached atthe back of the Power

Foot and that the Power Source

Plug is plugged into a polarized

(three-hole) outlet.

Power Switch

The Power Switch is located at the top front

of the Handle. To turn on your vacuum push

down on the switch marked (I). To turn off

your vacuum push up on (0).

become visible and turn on.

For best results when vacuuming, use a

constant, steady back and forth motion. This

allows the Rotating Brush and Anti-Clog

system to work at optimum efficiency.

Power Cord Storage

When you are finished using your E4,

return it to the upright position. Make sure

the machine is turned off (0). Always dis-

connect the unit from the wall outlet by

grasping the Power Plug (NEVER pull on

the cord). Store the Power Cord by winding

the cord in a continuous loop around the

Quick Release and lower cord hooks at the

back of the machine. Use the notch in the

Power Plug to secure the plug to the Power

Cord.

Operation

The E4 is suitable for all types of basic

household floor cleaning. It works on all

types of carpeting. It effectively and safely

cleans wood, linoleum, and vinyl floors. Its

wide Power Foot makes cleaning quick and

easy.

To place the E4 in proper cleaning position,

lightly press your foot on the Power Foot

and tip back the handle. When the unit is in

this position, the headlight will automatically

-6-

YourE4vacuumcleanerisdesignedfor

manyyearsofusefulservice.Youcan

extenditsusefullifebyperformingafew

basicmaintenancechecks.

Emptying the Dust Caddy TM

While the Dust Caddy provides clear visual

reference of collected dirt and dust, it is still

recommended that it be emptied after every

vacuuming. If there is an excessive amount

of dirt, you may want to place the vacuum

over some newspapers before you empty

the Dust Caddy TM.

1. Unplug vacuum.

2. Grasp the Dust Caddy TM near the top and

turn clockwise. Pull down, slowly, to

remove. Dispose of dust and dirt. If

desired, the Dust Caddy TM can be cleaned

out with a soft brush. It can also be hand

washed, but be sure it is completely dry

before reattaching to the vacuum.

3. Reattach Dust Caddy TM by aligning with

its base and pushing up. Turn counter-

clockwise until you feel it lock into place.

Air Diverter

Occasionally it will be necessary to clean the

Air Diverter in the unit. The Air Diverter is

contained in the Dust Caddy. Remove the

Dust Caddy. Pull the Air Diverter straight

down. Wi 3e clean with a cloth. Reinstall Air

Diverter. Re 31aceDust Caddy.

Replacing the Dust Bag

The Dust Bag acts as a secondary filter to

capture excess dirt and dust. It should be

checked periodically and replaced when near

full or when cleaning suction diminishes.

Never reuse a Dust Bag.

1. Unplug vacuum.

2. Unzip the Cloth Bag. Open the Collar

Retainer by pressing inward on the two

collar tabs and pulling the top towards

you. Slide the Dust Bag up and out of the

retainer, exerting gentle pressure on the

backing, as necessary, to remove the

bag. Dispose of Dust Bag.

3. Slide collar of new Dust Bag completely

into Collar Retainer.

4. Push the Collar Retainer back into

position. It should click into place

between the collar tabs.

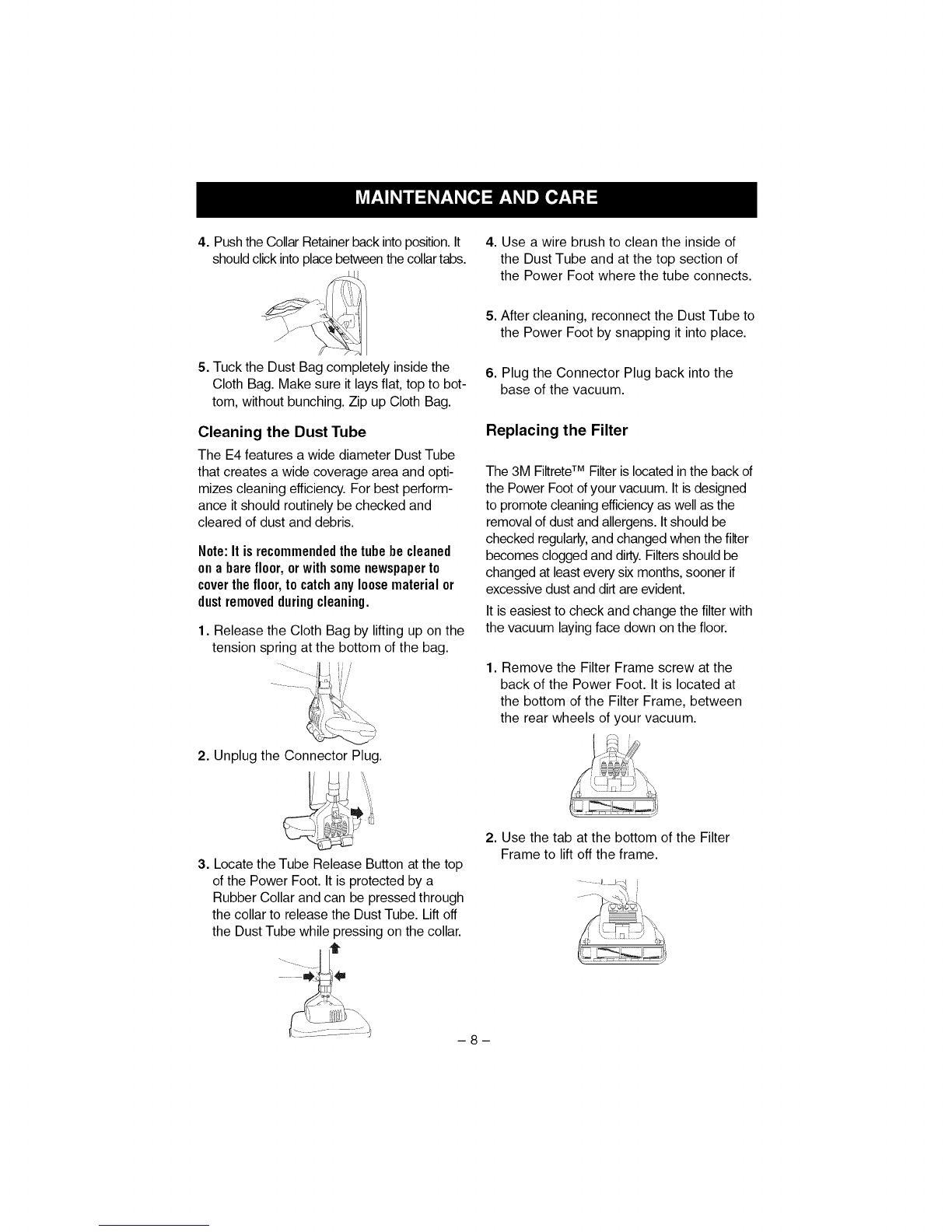

4.PushtheCollarRetainerbackintoposition.It 4.Useawirebrushtocleantheinsideof

shouldclickintoplacebetweenthecollartabs. theDustTubeandatthetopsectionof

thePowerFootwherethetubeconnects.

5.TucktheDustBagcompletelyinsidethe

ClothBag.Makesureitlaysflat,toptobot-

tom,withoutbunching.ZipupClothBag.

CleaningtheDustTube

TheE4featuresawidediameterDustTube

thatcreatesawidecoverageareaandopti-

mizescleaningefficiency.Forbestperform-

anceitshouldroutinelybecheckedand

clearedofdustanddebris.

Note:Itisrecommendedthetubebecleaned

ona barefloor,orwithsomenewspaperto

coverthefloor,tocatchanyloosematerialor

dustremovedduringcleaning.

1. Release the Cloth Bag by lifting up on the

tension spring at the bottom of the bag.

2. Unplug the Connector Plug.

After cleaning, reconnect the Dust Tube to

the Power Foot by snapping it into place.

Plug the Connector Plug back into the

base of the vacuum.

Replacing the Filter

The 3M FiltreteTM Filter is located in the back of

the Power Foot of your vacuum. It is designed

to promote cleaning efficiency as well as the

removal of dust and allergens. It should be

checked regularly, and changed when the filter

becomes clogged and dirty.Filters should be

changed at least every six months, sooner if

excessive dust and dirtare evident.

It is easiest to check and change the filter with

the vacuum laying face down on the floor.

1. Remove the Filter Frame screw at the

back of the Power Foot. It is located at

the bottom of the Filter Frame, between

the rear wheels of your vacuum.

3. Locate the Tube Release Button atthe top

of the Power Foot. It is protected by a

Rubber Collar and can be pressed through

the collar to release the Dust Tube. Lift off

the Dust Tube while pressing on the collar.

2. Use the tab at the bottom of the Filter

Frame to lift off the frame.

-8-

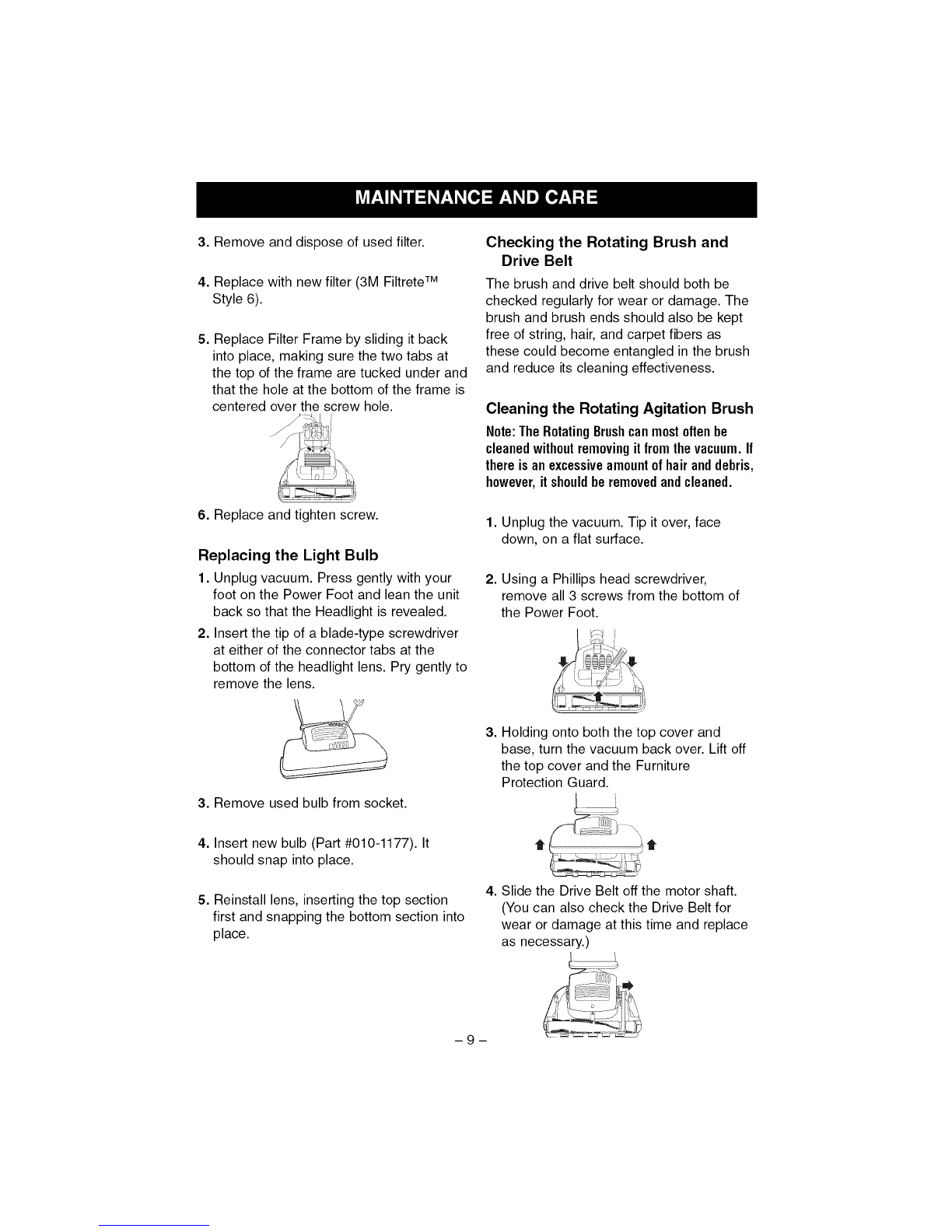

3.Removeanddisposeofusedfilter.

4.Replacewithnewfilter(3MFiltreteTM

Style 6).

5. Replace Filter Frame by sliding it back

into place, making sure the two tabs at

the top of the frame are tucked under and

that the hole at the bottom of the frame is

centered over the screw hole.

6. Replace and tighten screw.

Replacing the Light Bulb

1. Unplug vacuum. Press gently with your

foot on the Power Foot and lean the unit

back so that the Headlight is revealed.

2. Insert the tip of a blade-type screwdriver

at either of the connector tabs at the

bottom of the headlight lens. Pry gently to

remove the lens.

Checking the Rotating Brush and

Drive Belt

The brush and drive belt should both be

checked regularly for wear or damage. The

brush and brush ends should also be kept

free of string, hair, and carpet fibers as

these could become entangled in the brush

and reduce its cleaning effectiveness.

Cleaning the Rotating Agitation Brush

Note:TheRotatingBrushcanmostoftenbe

cleanedwithoutremovingitfromthevacuum.If

thereisanexcessiveamountofhairanddebris,

however,itshouldheremovedandcleaned.

1. Unplug the vacuum. Tip it over, face

down, on a flat surface.

2. Using a Phillips head screwdriver,

remove all 3 screws from the bottom of

the Power Foot.

3. Remove used bulb from socket.

4. Insert new bulb (Part #010-1177). It

should snap into place.

5. Reinstall lens, inserting the top section

first and snapping the bottom section into

place.

3. Holding onto both the top cover and

base, turn the vacuum back over. Lift off

the top cover and the Furniture

Protection Guard.

t t

-'; t. ]2 ]-_TJ

4. Slide the Drive Belt off the motor shaft.

(You can also check the Drive Belt for

wear or damage at this time and replace

as necessary.)

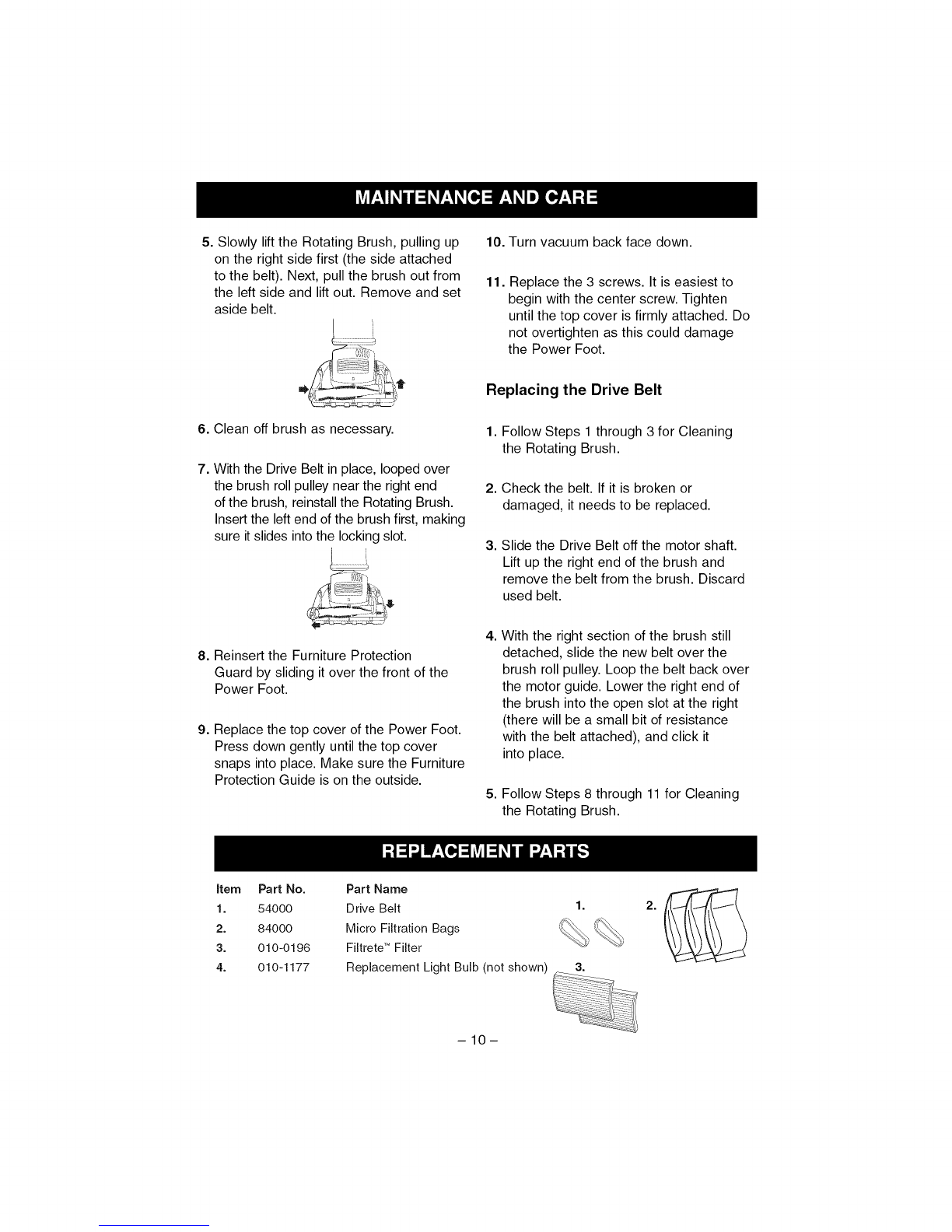

5.SlowlylifttheRotatingBrush,pullingup

ontherightsidefirst(thesideattached

tothebelt).Next,pullthebrushoutfrom

theleftsideandliftout.Removeandset

asidebelt.

10.Turnvacuumbackfacedown.

11.Replacethe3screws.Itiseasiestto

beginwiththecenterscrew.Tighten

untilthetopcoverisfirmlyattached.Do

notovertightenasthiscoulddamage

thePowerFoot.

6.Cleanoffbrushasnecessary.

7.WiththeDriveBeltinplace,loopedover

thebrushrollpulleyneartherightend

ofthebrush,reinstalltheRotatingBrush.

Inserttheleftendofthebrushfirst,making

sureitslidesintothelockingslot.

Replacing the Drive Belt

1. Follow Steps 1 through 3 for Cleaning

the Rotating Brush.

2. Check the belt. If it is broken or

damaged, it needs to be replaced.

3. Slide the Drive Belt off the motor shaft.

Lift up the right end of the brush and

remove the belt from the brush. Discard

used belt.

8. Reinsert the Furniture Protection

Guard by sliding it over the front of the

Power Foot.

9. Replace the top cover of the Power Foot.

Press down gently until the top cover

snaps into place. Make sure the Furniture

Protection Guide is on the outside.

With the right section of the brush still

detached, slide the new belt over the

brush roll pulley. Loop the belt back over

the motor guide. Lower the right end of

the brush into the open slot at the right

(there will be a small bit of resistance

with the belt attached), and click it

into place.

Follow Steps 8 through 11for Cleaning

the Rotating Brush.

item Part No.

1. 54000

2. 84000

3. 010-0196

4. 010-1177

Part Name

Drive Belt

Micro Filtration Bags

Filtrete TM Filter

Replacement Light Bulb (not shown)

-10-

Inhaltsverzeichnis

Andere Kenmore Staubsauger Handbücher

Kenmore

Kenmore Elite SSV Quick Clean DS6025 Bedienungsanleitung

Kenmore

Kenmore CSV Go 125.10438910 Bedienungsanleitung

Kenmore

Kenmore 116.23110C Bedienungsanleitung

Kenmore

Kenmore Intuition BU4018 Bedienungsanleitung

Kenmore

Kenmore 116.33920 Bedienungsanleitung

Kenmore

Kenmore 346.2718579 Bedienungsanleitung

Kenmore

Kenmore 116.30412 Bedienungsanleitung

Kenmore

Kenmore SpotLite KW2001 Bedienungsanleitung

Kenmore

Kenmore 116.21514 Bedienungsanleitung

Kenmore

Kenmore 592.30414 Bedienungsanleitung

Kenmore

Kenmore ASPIRADORA 116.25914 Bedienungsanleitung

Kenmore

Kenmore 116.25812 Bedienungsanleitung

Kenmore

Kenmore 116.35923 Bedienungsanleitung

Kenmore

Kenmore Crossover Max DU3018 Bedienungsanleitung

Kenmore

Kenmore 116.27212 Bedienungsanleitung

Kenmore

Kenmore 11 Bedienungsanleitung

Kenmore

Kenmore 116.34922 Bedienungsanleitung

Kenmore

Kenmore BU1005 Bedienungsanleitung

Kenmore

Kenmore 125.81714610 Bedienungsanleitung

Kenmore

Kenmore 116.33728 Bedienungsanleitung

Kenmore

Kenmore 116.22175C Bedienungsanleitung

Kenmore

Kenmore 116.23155C Bedienungsanleitung

Kenmore

Kenmore 125.21814610 Bedienungsanleitung

Kenmore

Kenmore Aspiradora 116.21814 Bedienungsanleitung

Beliebte Staubsauger Handbücher anderer Marken

Bissell

Bissell LittleGreen Proheat 1425 Series Bedienungsanleitung

Panasonic

Panasonic MC-YL637S147-AE Bedienungsanleitung

NEFF

NEFF N17XH10 0 Series Bedienungsanleitung

LG A9 Series Bedienungsanleitung

Oreck

Oreck Cordless Captura BK51700 Series Bedienungsanleitung

Kogan

Kogan KAVACROBVWA Bedienungsanleitung

Kränzle

Kränzle VENTOS 50 ID Benutzerhandbuch

EVVO

EVVO Ai35 Bedienungsanleitung

DeWalt

DeWalt DWH200D Bedienungsanleitung

Pontec

Pontec Pondomatic Vacuum Cleaner Bedienungsanleitung

Cleanmaxx

Cleanmaxx PC-P007E Bedienungsanleitung

Exido

Exido 240-114 Bedienungsanleitung

RIDGID

RIDGID WD1685AU0 Bedienungsanleitung

Ezviz

Ezviz RE4P Bedienungsanleitung

STG global

STG global TANVAC HDV3000 Bedienungsanleitung

Shark

Shark ROTATOR PRO COMPLETE NV550 Series Bedienungsanleitung

Factory

Factory M3340 Bedienungsanleitung

Shop-Vac

Shop-Vac VN92 SERIES Bedienungsanleitung
