Kenmore Sears 116 Bedienungsanleitung

Vacuum Cleaner

OWNER'SMANUAL

READTHISMANUAL for important safety,

assembly and operating instructions.

WARRANTY ................................................................ I

SERVICE..................................................................... I

IMPORTANT SAFETYINSTRUCTIONS ......................... 2

PARTSAND FEATURES............................................... 3

ASSEMBLY.................................................................. 4

USE

How to Staff .......................................................... 5

Pile Height Selection and Setting ....................... 6

Bare Floor Setting (Optional) .............................. 6

Releasing the Handle .......................................... 6

On/Off and Power Level Selection ................... 7

Using Attachments ........................................... 7-8

Vacuuming Tips .................................................... 9

Performance Features ...................................... 10

VACUUM CLEANER CARE

Vacuum Cleaner Storage ................................ 11

Cleaning Exterior and Attachments ................ 11

Bag Changing .................................................... 12

Motor Safety Filter Cleaning ............................. 13

Exhaust Filter Cleaning ...................................... 14

Belt Changing and Brush Cleaning ............ 15-17

Clog Removal .................................................... 18

Light Bulb Changing .......................................... 19

Brush Servicing .................................................... 20

Brush Assembly ................................................... 20

TROUBLESHOOTING ................................................ 21

AND OPTIONAL

FEATURES

Usersof upright vacuum cleaners have a variety!of

cleaning needs.

Thisvacuum cleaner comes with optional features

which offer the customer the opportunity to select

features which best meet their needs.

This manual provides instructions which include those

features in addition to those found on the standard

model. Optional features include:

Pre-assembly

Power Switch Location

Two Power Levels

Bare Floor Setting

Belt Protection System

Performance Indicator

Quick Release Cord Wrap

Noting these feature options now will enable you to

instantly identify your model when the instructions

refer to STANDARD or OPTIONAL features.

Some models may come with an extra dust bag

and/or belt.

Proper assembly and safe use of your vacuum cleaner are your responsibilities. Your

cleaner is intended only for household use. The cleaner should be stored in a dry, indoor

area. Read this Owner's Manual carefully for important use and safety information.

RR4NTY

KENMOREVACUUM CLEANER

FULLONE-YEARWARRANTY

When used for private household purposes, if within one

year from the date of purchase, this vacuum cleaner fails

due to a defect in material or workmanship, RETURNITTO

THENEARESTSEARSSERVICECENTER/DEPARTMENTIN THE

UNITEDSTATES,and Searswill repair it free of charge.

If this vacuum cleaner isused for commercial or rental

purposes, the above warranty coverage applies for only

90 days from the date of purchase.

Thiswarranty gives you specific legal rights, and you may

also have other rights which vary from state to state.

SEARS,ROEBUCKAND CO., D/817WA

HOFFMAN ESTATES,IL60195

VICE

If you need service or parts, visit your local Sears

service or parts department. They will be able to

solve your problem and supply any needed

replacement parts. Any service needed other than

described in this Owner's Manual shoula be done by

a Sears authorized service representative.

When requesting assistance, parts or service, always

give the following information:

1. Model number;

2, Serial number;

3. Problem description;

4. Part number;

5. Name of part.

NTSAFETYINSTRUCTIONS

WARNING

To reduce the risk of fire, electrical shock, injury to persons or damage when using

your vacuum cleaner, follow basic safety precautions including the following:

Read this manual before assembling or

using your vacuum cleaner.

Use your cleaner only as described in this

manual. Use only with Sears recommended

attachments.

To reduce the risk of electrical shock, do

not use outdoors or on wet surfaces.

Disconnect electrical supply before

servicing or cleaning out brush area. Failure

to do so could result in electrical shock or

brush suddenly starting.

Always turn cleaner off before unplugging.

Do not unplug by pulling on cord. To

unplug, grasp the plug, not the cord.

Do not use with damaged cord or plug, If

cleaner is not working as it should, has

been dropped, damaged, left outdoors, or

dropped into water, return it to a Sears

Service Center/Department.

Do not pull or carry by cord, use cord as a

handle, close door on cord, or pull cord

around sharp edges or corners. Do not run

cleaner over cord. Keep cord away from

heated surfaces.

Do not leave cleaner when plugged in.

Unplug from outlet when not in use and

before servicing.

Do not allow to be used as a toy. Close

attention is necessary when used by or

near children.

Do not handle plug or cleaner with wet

hands.

Do not put any objects into openings.

Do not use with any opening blocked; keep

free of dust, lint, hair and anything _hat

may reduce air flow.

Keep hair, loose clothing, fingers, and all

parts of body away from openings iand

moving parts.

Do not use cleaner without dust bag in

place. Always change the dust bag Offer

vacuuming carpet cleaners or fresheners,

powders and fine dust. These products Clog

the bag, reduce airflow and can cause the

bag to burst. Failure to change could

cause permanent damage to the cleaner.

Do not use the cleaner to pick up sharp

hard objects, small toys, pins, paper, etc.

They may damage the cleaner or dust

bag.

Do not pick up anything that is burniqg or

smoking, such as cigarettes, matches, or

hot ashes.

Do not use cleaner to pick up flammable or

combustible liquids (gasoline, cleaning

fluids, perfumes, etc.), or use in a!eas

where they may be present. The fumes

from these substances can create a fire

hazard or explosion.

Use extra core when cleaning on stairs. Do

not put on chairs, tables, etc. Keep on floor

You are responsible for making sure ihat

your vacuum cleaner is not used by

anyone unable to operate it properly.

SAVETHESEINSTRUCTIONS

Proper assembly and safe use of your vacuum cleaner are your responsibilities.

Your cleaner is intended only for household use.

Read this Owner's Manual carefully for important use and safety instructions.

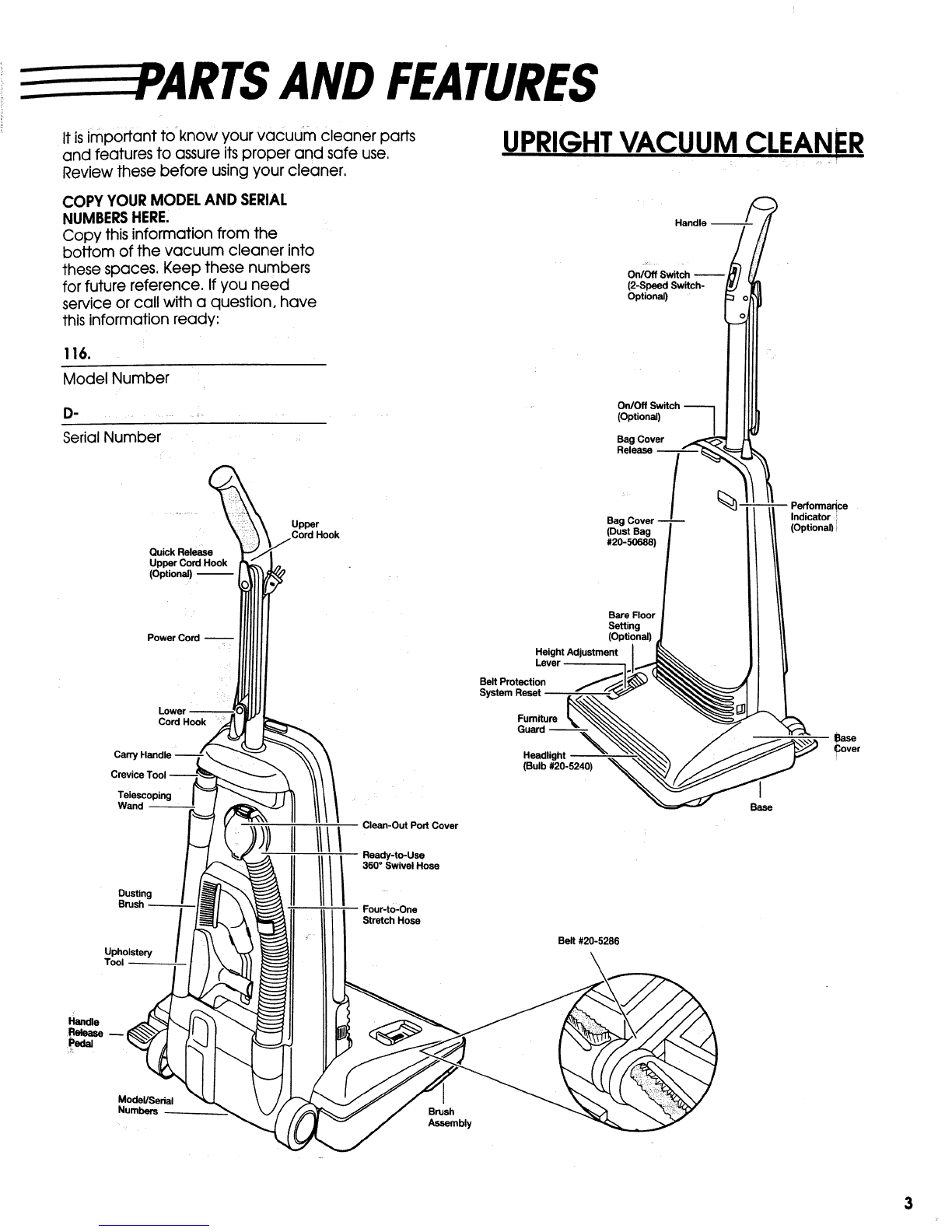

AND FEATURES

It isimportant to know your vacuum cleaner parts

and features to assure its proper and safe use,

Review these before using your cleaner.

COPY YOUR MODEL AND SERIAL

NUMBERSHERE.

Copy this information from the

bottom of the vacuum cleaner into

these spaces. Keep these numbers

for future reference, If you need

service or call with a question, have

this information ready:

116.

Model Number

Serial Number

UPRIGHT VACUUM CLEANER

Handle --

On/Off Switch --

(2-Speed Switch-

Optional)

On/Off Switch --

(Optional)

Bag Cover

Release

Quick Release

Upper Cord Hook

(Optional) --

Power Cord --

Cord Hook

Carry

Telescoping

Wand

Dusting

Tool --

Handle

Pedal

Upper

Cord Hook

II I//I Clean-Out Port Cover

Ready-to-Use

360 ° Swivel Hose

Four-to-One

Stretch Hose

Bag Cover --

(Dust Bag

#20-50688)

Bare Floor

Setting

(Optional)

Height Adjustment

Level

Bait Protection

System Reset

Fumiture

Headlight

(Bulb #20-5240)

Bait #20-5286

"Performartce

Indicator

(Optional)

Base

Cover

ModeVSedal

Numbers Brush

Assembly

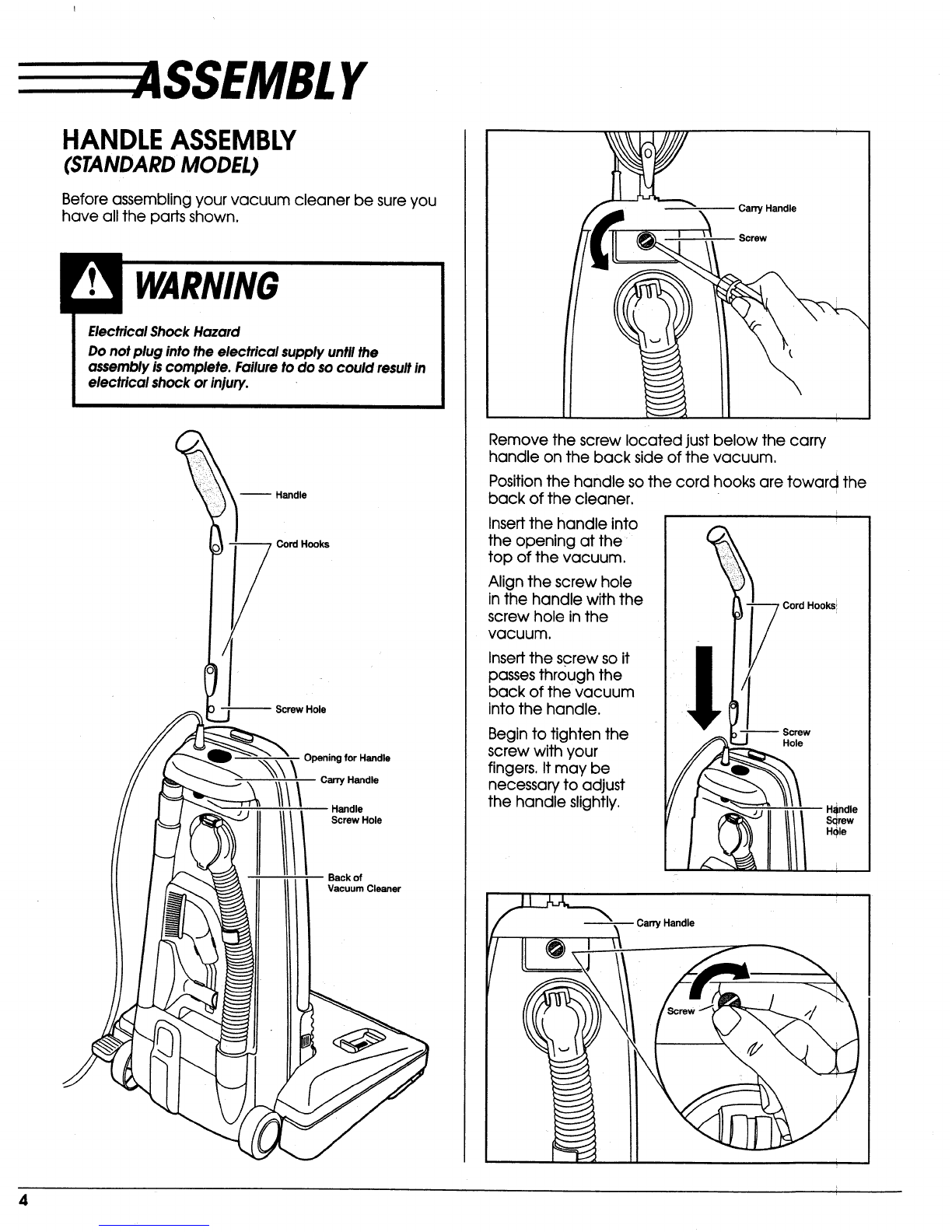

HANDLEASSEMBLY

(STANDARD MODEL)

Before assembling your vacuum cleaner be sure you

have all the parts shown.

Electrical Shock Hazard

Do not plug into the electrical supply untll the

assembly iscomplete. Failure to do so could result in

electrical shock or injury.

-- Handle

•_Cord Hooks

_.j Screw Hole

.,_,_ _Opening for Handle

Handle

IIIIIIorwoe

Back of

Vacuum Cleaner

Carry Handle

Screw

Remove the screw located just below the carry

handle on the back side of the vacuum.

Position the handle so the cord hooks are toward the

back of the cleaner.

Insert the handle into

the opening at the

top of the vacuum.

Align the screw hole

in the handle with the

screw hole in the

vacuum.

Insert the screw so it

passes through the

back of the vacuum

into the handle.

Begin to tighten the

screw with your

fingers, It may be

necessary to adjust

the handle slightly,

-- Screw

Hole

Carry Handle

Using a

screwdriver.

tighten the

screw,

CAUTION

Do not overtighten.

Overtighteningcould stripthescrewholes.

Do not operate the cleaner withoutthescrew in

place.

CORD ASSEMBLY

(STANDARDAND OPTIONALMODELS)

Make sure the

quick release

upper cord hook

isin the upright

position,

Remove the wire

tie from the

power cord

Wrap the power

cord around the

upper and lower

cord hooks,

W TOSTART

(STANDARD MODEL)

Unwrap the power cord. Plug the power cord into a

120 volt outlet located near the floor.

(OPTIONAL MODEL)

Release

1.Turn the quick

release cord hook

to either side and

down to release

the power cord.

2. Once the cord is

removed, lock the

cord into place by

forcing it into the

locking notch on

the body of the

cord hook as

shown.

3. Plug power cord into a 120-volt outlet Iocatea

near the floor.

WARNING

PersonalInjuryand ProductDamage Hazard

• DO NOTplug inifswitchisin ONposition.Personnl

injuryor damage could result.

•DO NOTuseoutletsabove counters. Damage to

itemsinsurroundingarea could occur.

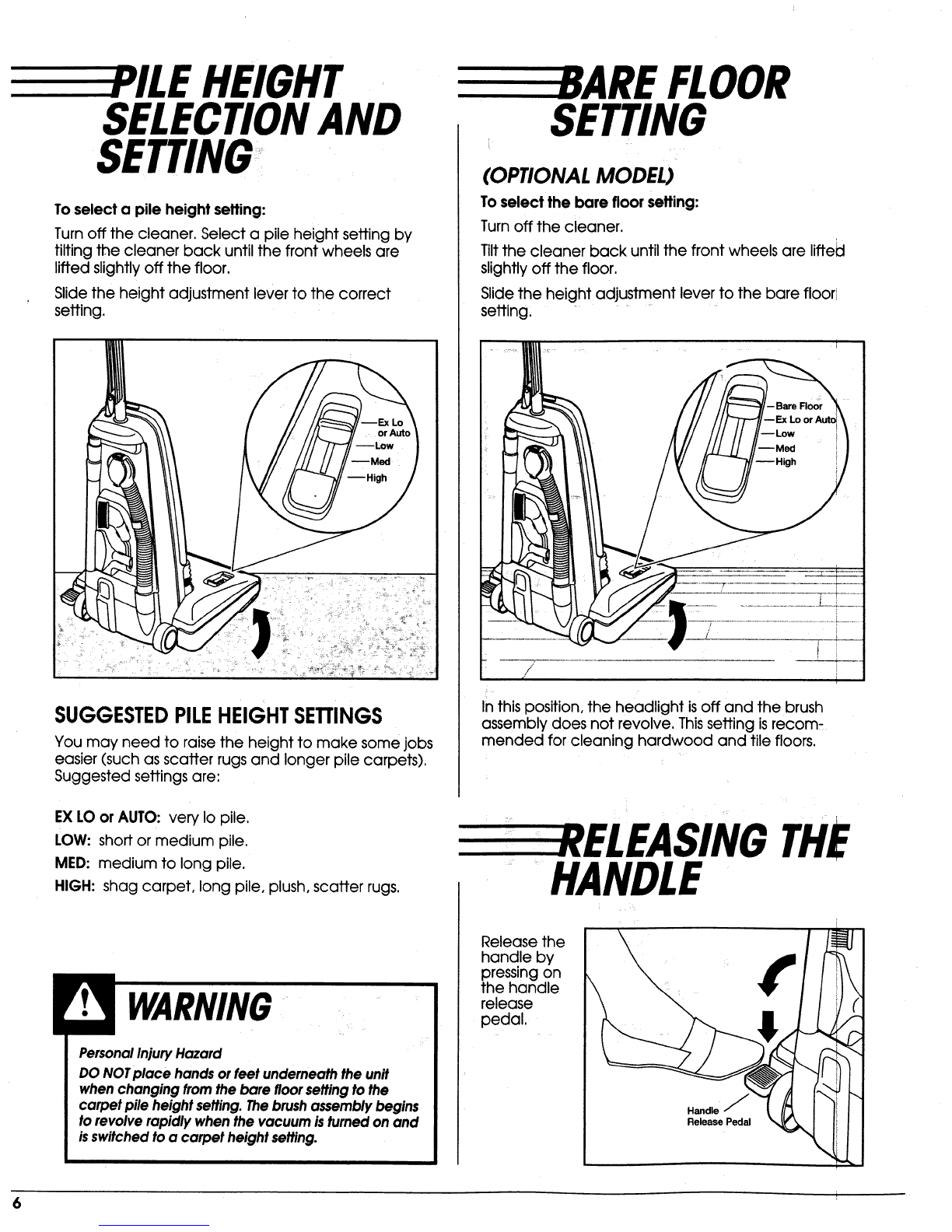

HEIGHT

SELECTIONAND

SETTING

Toselect a pile height setting:

Turn off the cleaner. Select a pile height setting by

tilting the cleaner back until the front wheels are

lifted slightly off the floor.

Slide the height adjustment lever to the correct

setting.

--High

SUGGESTEDPILEHEIGHT SETTINGS

You may need to raise the height to make some jobs

easier (such as scatter rugs and longer pile carpets).

Suggested settings are:

EX LO or AUTO: very Io pile.

LOW: short or medium pile.

MED: medium to long pile.

HIGH: shag carpet, long pile, plush, scatter rugs.

FLOOR

SETTING

(OPTIONAL MODEL)

To select the bare floor seffing:

Turn off the cleaner.

Tilt the cleaner back until the front wheels are lifteid

slightly off the floor.

Slide the height adjustment lever to the bare floor

setting.

Inthis position, the headlight isoff and the brush

assembly does not revolve. Thissetting isrecom-

mended for cleaning hardwood and tile floors.

LEASINGTHE

HANDLE

WARNING

PersonalInjuryHazard

DO NOTplace handsorfeet underneaththe unit

whenchanging fromthe bare floorsettingtothe

carpet pileheight setting.Thebrushassemblybegins

torevolve rapidlywhen the vacuum isturnedon and

isswitchedtoa carpet heightsetting.

Release the

handle by

pressing on

the handle

release

pedal.

\\\

Handle j

Release Pedal

AND POWERLEVELSELECTION

HANDLEON/OFF SWITCH

(STANDARDMODEL)

To start the

vacuum cleaner,

slide the On/Off

Switch from the

OFF position to the

ON position. To

stop the vacuum

cleaner, slide the

On/Off Switch to

the OFF position.

BODYON/OFF SWITCH

(OPTIONALMODEL)

On/Off

Sw_ch_ I

wer _Handle

To staff the

vacuum cleaner,

put the switch on

the top of the

body in the ON

position. To stop

the vacuum

cleaner, put the

switch in the OFF

position.

TWO SPEEDS

(OPTIONALMODEL)

To staff the vacuum

cleaner, slide the

Two-Speed On/Off

Switch to the LO or HI

position. Use the LO

(center position) to

clean lightweight

rugs. Use the HI

(bottom position) to

clean most carpeted

floors. Use the OFF

(top position] when

leaving or storing the

cleaner.

To stop the vacuum, slide the Two-Speed On/Off

Switch to the OFF position.

ATTACHMENTS

Identify each of the attachments shown below.

w Dandusting

Collar

Stretch Hose

ToUseAttachments:

Remove the lower end of the stretch hose from the

cleaner by grasping the hose collar, twisting and pulling

straight up.

NOTE:Brush

assembly stops

revolving and the

headlight goes off

when hose is

removed.

Stretch

Hose

Collar

WARNING

PersonalInjuryHazard

Alwaysunplugvacuum before placing handsnear

brushassemblyasbrushmay suddenlyre-start.

Failuretodo socould resultin injury.

The attached hose end

swivels 360 degrees to

make cleaning

easier in every

direction.

Remove the telescoping

wand from

its storage

position.

Telescoping

Wand

Remove the

crevice tool from

its storage

position in the

wand. Turnthe

locking ring to

the UNLOCK

position.

Extend the

wand to its

full length.

Turnthe

wand

locking ring

to the LOCK

position.

Lower

Wand Wand

-Locking Ring

Upper

Wand

OPTIONALWANDWITH

SUCTIONCONTROL

Lower

Wand

Unlock

Suction Control

Wand

Upper

Wand

Attach the

wand to the

hose by

inserting

and twisting

slightly.

To achieve maximum

reach (approximately 10

feet) with the attachments,

add the crevice tool to the

end of the wand by

inserting and twisting

slightly.

Suction Control

Slide --

Telescoping TOOPERATESUCTION

Wand CONTROL SLIDE

Crevice (Telescoping Wand)

Tool When using attachments for cleaning

draperies, small rugs with low pile and other

de cate items twist the Suction Control L_ver

to the open position. Thislever islocated onlthe

Telescoping Wand, close to the hose.

Thiswill reduce suction for ease of cleaning.

CAUTION- Return Suction Control Lever to the closed

position for normal cleaning.

CAUTION'

lhen usingattachments,be carefulnot toover-

extend thestretchhose whenreaching. Tryingto

reach beyond thehosestretchcapability could

cause the cleaner totip over.

When using the

dusting brush or the

upholstery tooli

they may be

attached dire_ly

to the wand or

placed on the _nd

of the crevice tool.

ToStore Attachments:

Remove dusting brush or upholstery tool. Snap into

appropriate storage location.

Remove crevice tool from the wand by twisting.

Lay aside.

Unlock the wand by turning the wand locking ring to the

UNLOCKposition.

___ Lower

//'-.\ w"°

nlock_ iLockingRing r

\ \ /Upper

Wand

Slide

the lower wand into the

upper wand. Turnthe

wand locking ring to

the LOCK position.

Place the crevice tool down

into the compressed wand.

Snap into the appropriate storage location.

Be surethe unit isturned off. Reinsertthe hose fully into

the opening on the lower body from which it was

removed

Pressfirmly to assure connection.

NOTE:Brushassembly willnot turn ifhoseisnot fully

inserted.

Personal Injury Hazard

DO NOT place hands or feet underneath the unit

when inserting the hose. The brush assembly begins

to revolve rapidly when the vacuum isturned on and

isswitched to a carpet height setting.

EXTENSION HOSE

NOT INCLUDED IN ALL MODELS

The stretch hose attached to the vacuum cleanler

has two "J" shaped slots in the end where attach-

ments fit into.

Unit Hose Extension Hose

The extension hose has two tabs on the end that can

be pushed into the slots and twisted to attach the

two hoses together.

Attachments and the telescoping wand can be

attached to the other end of the extension hose for

additional reach.

!f your mode did not come with an extension hose,

one can be purchased at any SEARSretail store

under part number 20-52571.

CAUTION

When using the regular hose or with the extension

hose attached, the cleaner should be on a solid

surface on the same level or below the level of the

user's feet. DO NOT use the hoses when the cleaner is

above the level of the user's feet.

ATTACHMENTUSECHART

CLEANING AREA

Between

ATTACHMENT Furniture* Cushions* Drapes* Stairs Walls

DUSTING BRUSH X X X

CREVICE TOOL X X X

FABRIC BRUSH X X X

*Always clean attachments before using on fabrics.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Kenmore Staubsauger Handbücher

Kenmore

Kenmore 116.25812 Bedienungsanleitung

Kenmore

Kenmore 116.28014 Bedienungsanleitung

Kenmore

Kenmore 116.30701C Bedienungsanleitung

Kenmore

Kenmore SPOTLITE KW2005 Bedienungsanleitung

Kenmore

Kenmore DU2012 Bedienungsanleitung

Kenmore

Kenmore 81414 Bedienungsanleitung

Kenmore

Kenmore 116.26312 Bedienungsanleitung

Kenmore

Kenmore 2029219 - Canister Vacuum Bedienungsanleitung

Kenmore

Kenmore 116.22151C Bedienungsanleitung

Kenmore

Kenmore Elite CROSSOVER ULTRA Bedienungsanleitung

Kenmore

Kenmore SpotLite KW2001 Bedienungsanleitung

Kenmore

Kenmore 116.10065 Bedienungsanleitung

Kenmore

Kenmore 116.31100 Bedienungsanleitung

Kenmore

Kenmore 116.23101C Bedienungsanleitung

Kenmore

Kenmore 116.32712 Bedienungsanleitung

Kenmore

Kenmore CSV Max DS4090 Bedienungsanleitung

Kenmore

Kenmore 116.31200 Bedienungsanleitung

Kenmore

Kenmore Sears 175.8690090 Hom? cleaning system Bedienungsanleitung

Kenmore

Kenmore 116.32735 Bedienungsanleitung

Kenmore

Kenmore 116.34725 Bedienungsanleitung

Kenmore

Kenmore 116.20812 Bedienungsanleitung

Kenmore

Kenmore 216.31702 Bedienungsanleitung

Kenmore

Kenmore 214.34000 Bedienungsanleitung

Kenmore

Kenmore Elite SSV Quick Clean DS6025 Bedienungsanleitung

Beliebte Staubsauger Handbücher anderer Marken

Bissell

Bissell LittleGreen Proheat 1425 Series Bedienungsanleitung

Panasonic

Panasonic MC-YL637S147-AE Bedienungsanleitung

NEFF

NEFF N17XH10 0 Series Bedienungsanleitung

LG A9 Series Bedienungsanleitung

Oreck

Oreck Cordless Captura BK51700 Series Bedienungsanleitung

Kogan

Kogan KAVACROBVWA Bedienungsanleitung

Kränzle

Kränzle VENTOS 50 ID Benutzerhandbuch

EVVO

EVVO Ai35 Bedienungsanleitung

DeWalt

DeWalt DWH200D Bedienungsanleitung

Pontec

Pontec Pondomatic Vacuum Cleaner Bedienungsanleitung

Cleanmaxx

Cleanmaxx PC-P007E Bedienungsanleitung

Exido

Exido 240-114 Bedienungsanleitung

RIDGID

RIDGID WD1685AU0 Bedienungsanleitung

Ezviz

Ezviz RE4P Bedienungsanleitung

STG global

STG global TANVAC HDV3000 Bedienungsanleitung

Shark

Shark ROTATOR PRO COMPLETE NV550 Series Bedienungsanleitung

Factory

Factory M3340 Bedienungsanleitung

Shop-Vac

Shop-Vac VN92 SERIES Bedienungsanleitung
