KERN KIB-A12 Bedienungsanleitung

KERN & Sohn GmbH

Ziegelei 1

D-72336 Balingen

E-Mail: info@kern-sohn.com

Phone: +49-[0]7433- 9933-0

Fax: +49-[0]7433-9933-149

Internet: www.kern-sohn.com

Installation Instructions

Verification plug

KERN KIB-A12

Version 1.0

2019-02

KIB-A12-IA-e-1910

2 KIB-A12-IA-e-1910

KERN KIB-A12

Version 1.0 2019-02

Installation instructions for the verification plug

Contents

1Installation....................................................................................................... 3

1.1 Connect verification plug............................................................................................................. 3

1.2 Seal the verification plug: .......................................................................................................... 10

1.3 Complete the installation........................................................................................................... 10

1.4 Error report Err5......................................................................................................................... 10

2How to connect the platform ....................................................................... 11

KIB-A12-IA-e-1910 3

1 Installation

•Connect the verification plug to the KIB-TM display device as follows and then

adjust the weighing system. Once it has been successfully adjusted, the

display device is linked to the verification plug.

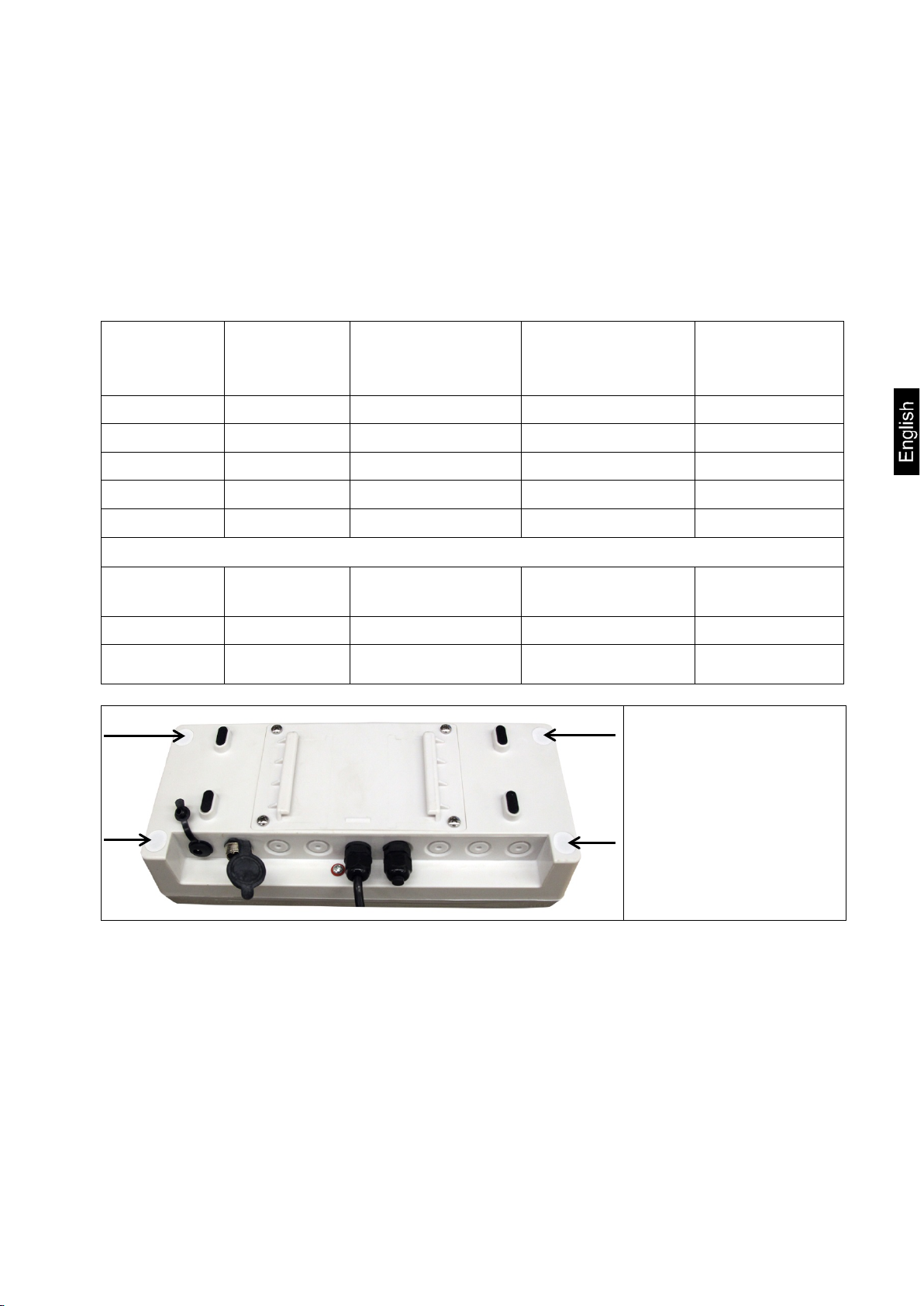

1.1 Connect verification plug

Connect the chip in the verification plug to CN7 (5 Pin) in the display device.

KIB-TM

Main circuit

board

Line colour Connect female Connect male Load cell

E+ / Sen+ Red 1 1 EXC+

S+ Green 3 3 SIG+

GND

Shield

GND

S- White 4 4 SIG-

E- / Sen- Black 2 2 EXC-

Identchip

main board

Line colour Connect female Connect male

IC GND Yellow 7 7: Identchip GND

IC signal Brown 6 6: Identchip signal

Open housing

4 KIB-A12-IA-e-1910

Remove the CN8/power

plug.

Undo all cables

Remove ferrite core

KIB-A12-IA-e-1910 5

Pull cable through

Reinsert sealing ring

Attach both parts (see

fig.) to the verification

plug cable

6 KIB-A12-IA-e-1910

Pull cable through and

put on the cover cap

Remove screws as

shown in the diagram

KIB-A12-IA-e-1910 7

Slide the shrink tubing

over the cable of the

load cell so that it can be

sealed later.

Then solder the cable as

shown in the wiring

diagram (see chap. 1.1).

Insert the board as

shown in the diagram

and secure with the 4

screws.

8 KIB-A12-IA-e-1910

Reinsert the ferrite core

Connect the cable as

shown in the connection

plan

Connect the remaining

cables to the board

KIB-A12-IA-e-1910 9

Reconnect CN8

externally

Close K1 jumper,

K1 activates the

verification plug.

The verification plug

does not function

without K1.

10 KIB-A12-IA-e-1910

1.2 Seal the verification plug:

(Fig. Verification plug sealed)

Always seal the verification plug with a self-destructive seal.

Pull the shrink tubing over the connecting cables of the load cell or junction

box and seal with a self-destructive seal.

1.3 Complete the installation

After the verification plug has been installed

•Check software version

•Adjust the scale, K1 jumper must be set.

After adjustment, the scale must be switched off without fail and then

switched back on again.

The verification plug is finally configured correctly.

1.4 Error report Err5

Err 5 is shown if:

•The verification plug is not connected correctly

•The verification plug is defective

•The wrong verification plug has been connected
