Keysight Technologies DP001 A Series Bedienungsanleitung

DP0010A/11A/12A/13A

Differential Active Probes

User’s Guide

Ihr Ansprechpartner /

Your Partner:

dataTec AG

E-Mail: [email protected]

>>> www.datatec.eu

Premium Plus Distribution Partner

Notices

No part of this manual may be reproduced in

any form or by any means (including elec-

tronic storage and retrieval or translation

into a foreign language) without prior agree-

ment and written consent from Keysight

Technologies, Inc. as governed by United

States and international copyright laws.

Manual Part Number

DP0010-97000

Edition

Second Edition, August 2022

Published by:

Keysight Technologies, Inc.

1900 Garden of the Gods Road

Colorado Springs, CO 80907 USA

Warranty

The material contained in this docu-

ment is provided “as is,” and is subject

to being changed, without notice, in

future editions. Further, to the maxi-

mum extent permitted by applicable

law, Keysight disclaims all warranties,

either express or implied, with regard

to this manual and any information

contained herein, including but not

limited to the implied warranties of

merchantability and fitness for a par-

ticular purpose. Keysight shall not be

liable for errors or for incidental or

consequential damages in connection

with the furnishing, use, or perfor-

mance of this document or of any infor-

mation contained herein. Should

Keysight and the user have a separate

written agreement with warranty terms

covering the material in this document

that conflict with these terms, the war-

ranty terms in the separate agreement

shall control.

Technology Licenses

The hardware and/or software described in

this document are furnished under a license

and may be used or copied only in accor-

dance with the terms of such license.

U.S. Government Rights

The Software is "commercial computer soft-

ware," as defined by Federal Acquisition

Regulation ("FAR") 2.101. Pursuant to FAR

12.212 and 27.405-3 and Department of

Defense FAR Supplement ("DFARS")

227.7202, the U.S. government acquires

commercial computer software under the

same terms by which the software is cus-

tomarily provided to the public. Accordingly,

Keysight provides the Software to U.S. gov-

ernment customers under its standard com-

mercial license, which is embodied in its

End User License Agreement (EULA), a copy

of which can be found at

http://www.keysight.com/find/sweula. The

license set forth in the EULA represents the

exclusive authority by which the U.S. gov-

ernment may use, modify, distribute, or dis-

close the Software. The EULA and the

license set forth therein, does not require or

permit, among other things, that Keysight:

(1) Furnish technical information related to

commercial computer software or commer-

cial computer software documentation that

is not customarily provided to the public; or

(2) Relinquish to, or otherwise provide, the

government rights in excess of these rights

customarily provided to the public to use,

modify, reproduce, release, perform, dis-

play, or disclose commercial computer soft-

ware or commercial computer software

documentation. No additional government

requirements beyond those set forth in the

EULA shall apply, except to the extent that

those terms, rights, or licenses are explicitly

required from all providers of commercial

computer software pursuant to the FAR and

the DFARS and are set forth specifically in

writing elsewhere in the EULA. Keysight

shall be under no obligation to update,

revise or otherwise modify the Software.

With respect to any technical data as

defined by FAR 2.101, pursuant to FAR

12.211 and 27.404.2 and DFARS 227.7102,

the U.S. government acquires no greater

than Limited Rights as defined in FAR 27.401

or DFAR 227.7103-5 (c), as applicable in any

technical data. 52.227-14 (June 1987) or

DFAR 252.227-7015 (b)(2) (November

1995), as applicable in any technical data.

Safety Notices

CAUTION

A CAUTION notice denotes a hazard.

It calls attention to an operating

procedure, practice, or the like that,

if not correctly performed or

adhered to, could result in damage

to the product or loss of important

data. Do not proceed beyond a CAU-

TION notice until the indicated con-

ditions are fully understood and

met.

WARNING

A WARNING notice denotes a haz-

ard. It calls attention to an operat-

ing procedure, practice, or the like

that, if not correctly performed or

adhered to, could result in personal

injury or death. Do not proceed

beyond a WARNING notice until the

indicated conditions are fully

understood and met.

Contents

1Overview

Introduction 6

Key Features 6

Compatibility with Keysight Oscilloscopes 8

Standard Accessories 9

Orderable Accessories 11

Replacement Accessory Kit (DP0021A-001) 11

Ordering Individual Accessories 11

Optional Accessories 12

Deskew and Performance Verification Fixture Kit (DP0020A) 12

2 Characteristics and Specifications

Electrical Specifications and Characteristics 14

Environmental Characteristics 16

Mechanical Characteristics 17

Accessories Dimensions 17

3 Setting up and Using DP0010A/12A/13A Probes

Connecting the Probe to an Oscilloscope 22

Using Channel Identification Rings 22

Configuring Probe Settings on the Oscilloscope Software GUI 23

Configuring Offset Behavior 23

Calibrating your Probe 25

Making DUT Connections using Probe Accessories 29

DUT Connectivity Options 29

Probing Ungrounded Devices 32

Probing Setup for Single-Ended Measurements 32

4 Safety and Regulatory Information

Safety Checks and Warnings 34

Instrument Markings and Symbols 36

Cleaning the Probe 38

5 Performance Plots

Measured Versus Modeled Input Impedance 40

Voltage Derating Curve 41

4 DP0010A/11A/12A/13A Differential Active Probes User’s Guide

Common Mode Rejection Ratio over Frequency 42

Frequency Response 43

Low Attenuation Frequency Response (without probing accessories) 43

High Attenuation Frequency Response (without probing accessories) 44

Frequency Response (with Adjustable Probing Browser Accessory) 45

6 Performance Verification

Before you Start 48

Recommended Test Interval 48

To Verify Bandwidth 49

Required Test Equipment 49

Procedure 49

To Verify Input Resistance 55

Required Test Equipment 55

Procedure 55

Performance Test Record 58

7 Returning the Probe for Repair/Service

Contacting Keysight Technologies for Technical Assistance 60

Index

DP0010A/11A/12A/13A Differential Active Probes

User’s Guide

1Overview

Introduction 6

Key Features 6

Compatibility with Keysight Oscilloscopes 8

Standard Accessories 9

Orderable Accessories 11

6 DP0010A/11A/12A/13A Differential Active Probes User’s Guide

1Overview

Introduction

The DP0010A/11A/12A/13A probes are mid-voltage differential active probes that

you can use with a Keysight oscilloscope having 50 Ωinput impedance. The probe

comes with the AutoProbe I interface to connect to the oscilloscope. This interface

provides the probe power, offset, and auto-configuration of probe type and

attenuation setting on connection.

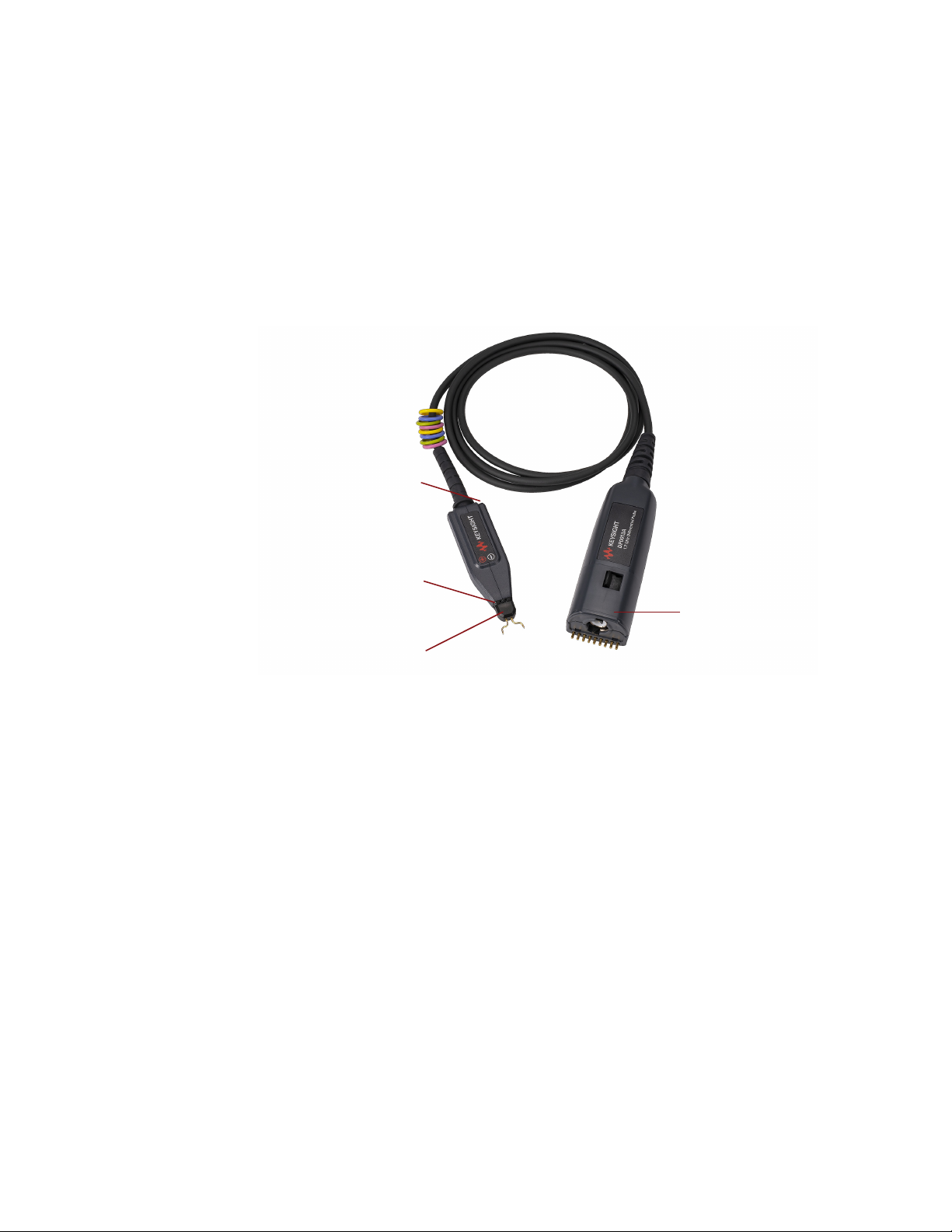

Figure 1 DP0013A probe (shown connected to one of its standard accessories)

Key Features

•Supports Differential and Single-ended Measurements: You can use these probes to

measure differential as well as single-ended signals. See page 32 to know

more.

•Auto Attenuation Ranges: These probes support two auto attenuation ranges

(~17:1 and ~85:1). The probe’s attenuation is automatically set to the value

necessary to make the dynamic range of the probe greater than or equal to the

level required to measure the input signal. The input range is automatically

configured depending on the vertical scale of the oscilloscope. For

volts/division setting <=2 V/div, the attenuation range of ~17:1 is applicable

and for volts/division setting >2 V/div, the attenuation range of ~85:1 is

applicable. Based on these ranges, the attenuation for the probe is set when

the probe is calibrated. You can view the attenuation setting for the probe in the

Infiniium/InfiniiVision software GUI.

Output Connector

(with AutoProbe I

Interface)

Adjustable Probing Browser

(one of the accessories

supplied with the probe)

Probe Tip

(sockets can fit 0.025 inch

header pins with 0.100 inch

pitch)

Ground Connection

Overview 1

DP0010A/11A/12A/13A Differential Active Probes User’s Guide 7

•DUT Connectivity Options: You can connect the probe tip either directly to DUT

header pins or use the supplied/optional accessories as per your probing

scenario.

These probes support a variety of accessories to suit various DUT connection

scenarios and to make the connection to compact target devices possible. See

page 9 for standard accessories that are shipped with these probes. Additional

accessories are also available for these probes that you can order separately

(see page 11 for optional accessories).

•Easy Deskew and Performance Verification: You can easily deskew/calibrate and

verify performance of these probes using the DP0020A Deskew and

Performance Verification kit. This PV fixture comes with header pins

preinstalled on it. You can simply connect the probe tip either directly to these

header pins or use one of the probe accessories. See page 26 to know more.

CAUTION

Before using these probes, refer to “Safety and Regulatory

Information" on page 33.

8 DP0010A/11A/12A/13A Differential Active Probes User’s Guide

1Overview

Compatibility with Keysight Oscilloscopes

Is your oscilloscope software up-to-date?

Keysight periodically releases software updates to support your probe, fix known defects, and

incorporate product enhancements. To download the latest firmware, go to www.Keysight.com and

search for your oscilloscope’s model number. Click the “Drivers, Firmware & Software” tab under the

Technical Support link.

Compatible Oscilloscopes Adapter(s) Required

Required Software

Version

Infiniium Oscilloscopes

EXR-Series None Infiniium 11.25 or higher

MXR-Series None Infiniium 11.25 or higher

S-Series None Infiniium 6.71 or higher

V-Series N5442A adapter Infiniium 6.71 or higher

Z-Series N5442A adapter Infiniium 6.71 or higher

UXR-Series (3.5 mm models) N5442A adapter Infiniium 11.25 or higher

UXR-Series (1 and 1.85 mm

models)

N5442A + N2852A adapters Infiniium 11.25 or higher

InfiniiVision Oscilloscopes

3000T X-Series None InfiniiVision 7.50 or higher

4000 X-Series

6000 X-Series

Overview 1

DP0010A/11A/12A/13A Differential Active Probes User’s Guide 9

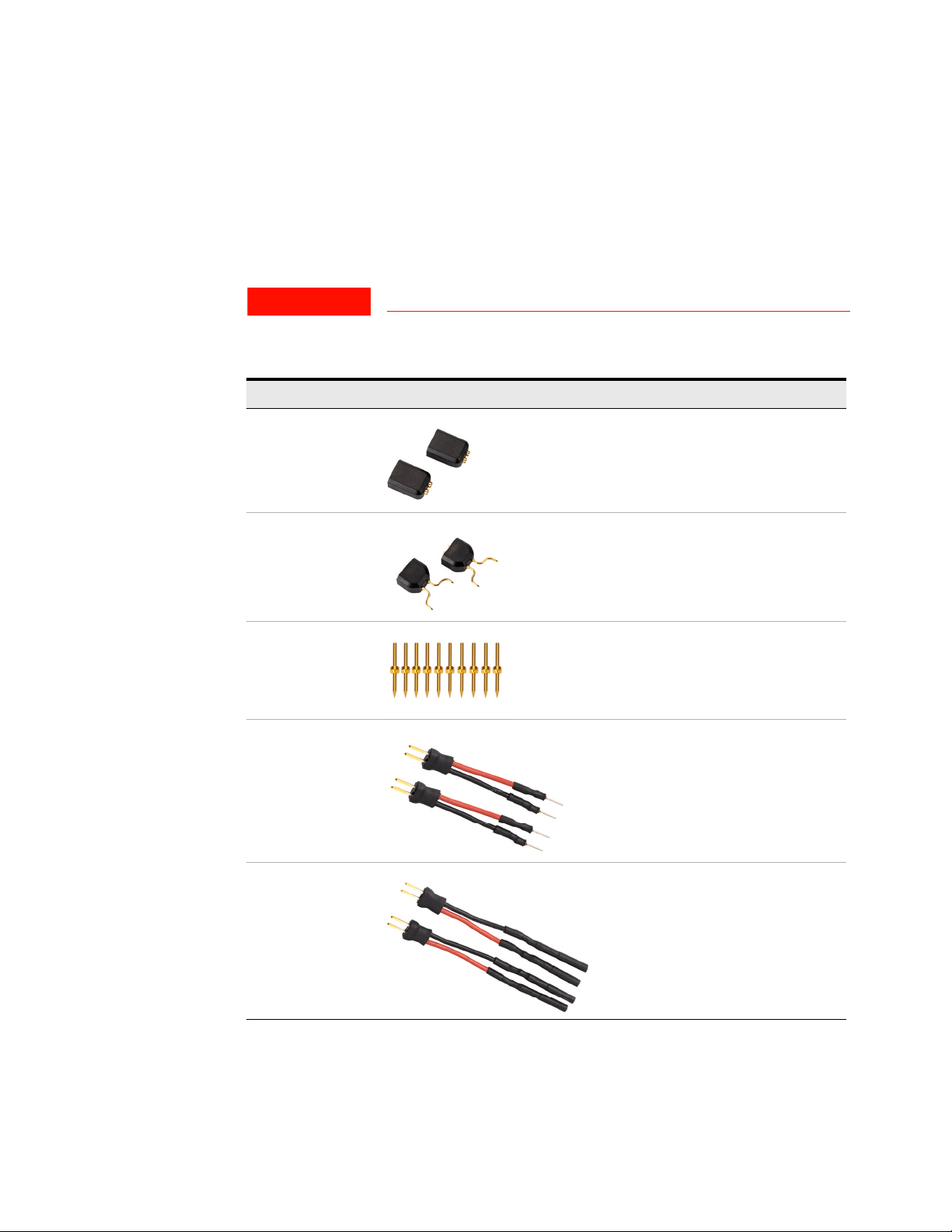

Standard Accessories

The accessories shown below ship standard with these probes. You can use these

accessories interchangeably across DP0010A/11A/12A/13A probes.

WARNING

Use only Keysight approved accessories with these probes.

Standard Accessory Use

Probe Tip Saver

(2 pieces)

Use on the probe tip to avoid

damaging the tip from

repeated attach / detach

when probing directly using

the probe tip.

Adjustable Probing

Browser

(2 pieces)

Adjustable tip to support

different circuit geometries.

Max. tip span: 8.6 mm

Straight Pin

(set of 10 pins)

Insert the pins into the probe

tip.

Solder-in Y-lead Tip

(2 pieces)

Solder-in tip is intended to be

soldered directly to your test

device.

Solder the tip end to the

circuit board /device and then

connect the snap-on end to

the probe.

Socketed Y-lead Tip

(2 pieces)

The tip with two sockets that

can attach to:

- 0.8 mm round pins

- 0.64 mm square pins

10 DP0010A/11A/12A/13A Differential Active Probes User’s Guide

1Overview

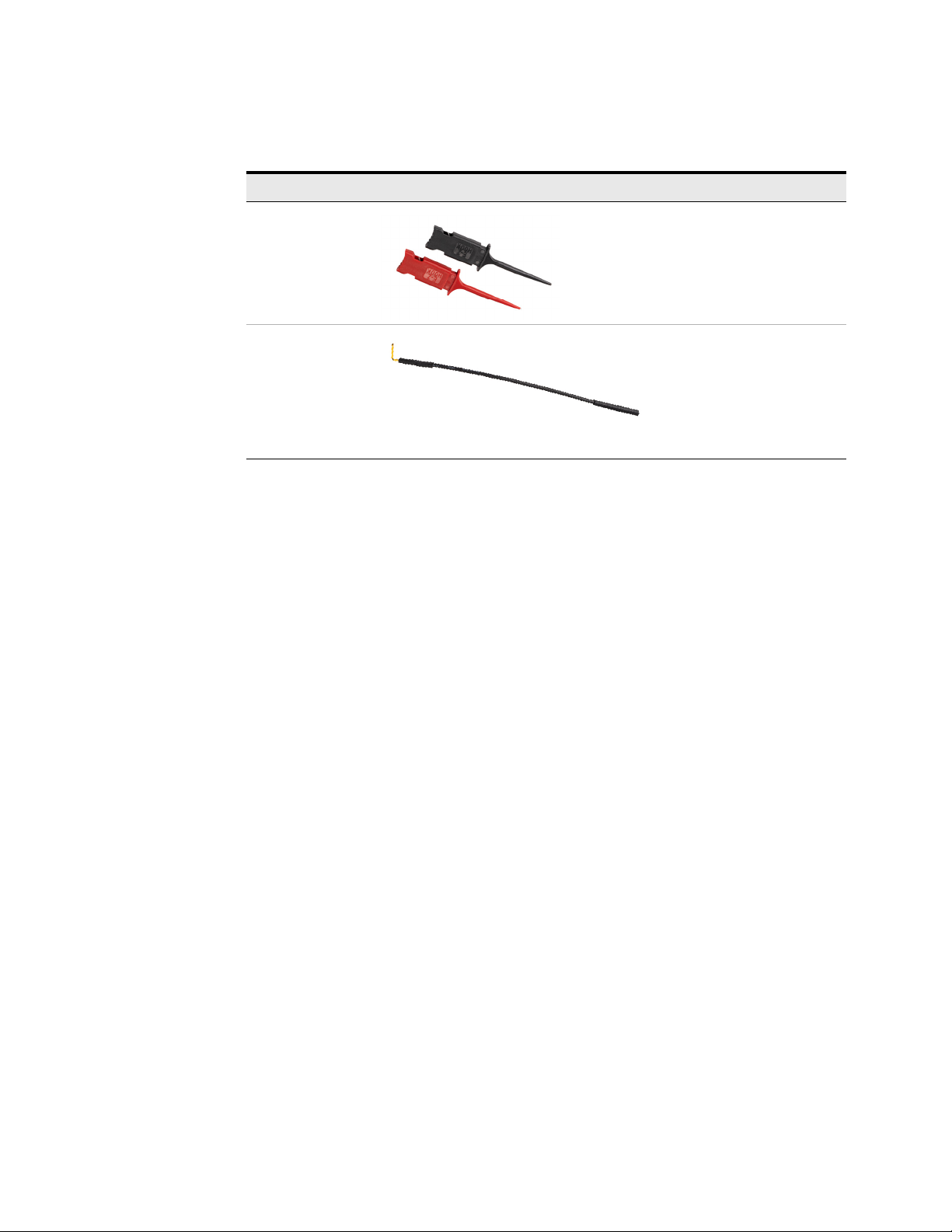

Micro Circuit Hook

Test Clips

(2 pieces)

To probe miniature IC and

components. Attach these

clips to the two sockets of the

socketed Y-lead tip.

Ground Lead

(1 piece)

90osocketed lead to connect

the DUT ground to the probe

ground. This is needed if the

DUT is not grounded to the

oscilloscope via the AC mains

ground (see page 32 ).

Standard Accessory Use

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Keysight Technologies Prüfgeräte Handbücher

Keysight Technologies

Keysight Technologies U3042AE12 Handbuch

Keysight Technologies

Keysight Technologies U1610/20A Bedienungsanleitung

Keysight Technologies

Keysight Technologies U3020AD01 Handbuch

Keysight Technologies

Keysight Technologies 11644A Series Handbuch

Keysight Technologies

Keysight Technologies RF PA/FEM Benutzerhandbuch

Keysight Technologies

Keysight Technologies PD1500A Kurzanleitung

Keysight Technologies

Keysight Technologies M8000 Series Bedienungsanleitung

Keysight Technologies

Keysight Technologies E5092A Bedienungsanleitung

Keysight Technologies

Keysight Technologies X Series Installations- und Betriebshandbuch

Keysight Technologies

Keysight Technologies 85033E Fehlerbehebungshandbuch

Keysight Technologies

Keysight Technologies P9241A Benutzerhandbuch

Keysight Technologies

Keysight Technologies Infiniium V Series Bedienungsanleitung

Keysight Technologies

Keysight Technologies Z5623A Option H01 Bedienungsanleitung

Keysight Technologies

Keysight Technologies 16454A Bedienungsanleitung

Keysight Technologies

Keysight Technologies U1818A Service-Handbuch

Keysight Technologies

Keysight Technologies U9361C Bedienungsanleitung

Keysight Technologies

Keysight Technologies N5991 Bedienungsanleitung

Keysight Technologies

Keysight Technologies InfiniiVision 2000 X Series Bedienungsanleitung

Keysight Technologies

Keysight Technologies U3020AD01 Handbuch

Keysight Technologies

Keysight Technologies PNA-X N524xB Bedienungsanleitung

Keysight Technologies

Keysight Technologies U3022BH10 Handbuch

Keysight Technologies

Keysight Technologies 85055A Handbuch

Keysight Technologies

Keysight Technologies N108 A-Series Bedienungsanleitung

Keysight Technologies

Keysight Technologies N5222-60124 Installations- und Betriebshandbuch

Beliebte Prüfgeräte Handbücher anderer Marken

SMART

SMART KANAAD SBT XTREME 3G Series Bedienungsanleitung

Agilent Technologies

Agilent Technologies BERT Serial Bedienungsanleitung

Agilent Technologies

Agilent Technologies N3280A Bedienungsanleitung

Vernier

Vernier Go Direct Voltage Bedienungsanleitung

Lifeloc

Lifeloc R.A.D.A.R. Bedienungsanleitung

Fluke

Fluke T5-600 Bedienungs- und Montageanleitung

Mercury

Mercury TSL01 Bedienungsanleitung

MAHA

MAHA MBT Series Bedienungsanleitung

Fuji Electric

Fuji Electric P-61 Bedienungsanleitung

ETC

ETC SealerAtor Bedienungsanleitung

Skyfine

Skyfine ETHYWAY V2 Bedienungsanleitung

Appion

Appion G5 Twin Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics 8159-0112A Bedienungsanleitung

BW Technologies

BW Technologies MicroDock II Bedienungsanleitung

Sun Nuclear

Sun Nuclear 1027 Bedienungsanleitung

Biomark

Biomark HPR LITE READER Bedienungsanleitung

Hioki

Hioki 3169-20 Bedienungsanleitung

Ashcroft

Ashcroft ATE-100 Bedienungsanleitung
