Kimo CT 110 Bedienungsanleitung
Tachometer
CT 110
DESCRIPTION OF THE DEVICE
OK key
Backlight key
Select key
On/Off/Esc key
Hold/min/max key
PERFORM A MEASUREMENT
➢Turn on the device by pressing on «On/Off/Esc».
The device displays its name «CT110».
➢Put the probe to the required location.
The device displays the measured velocity.
FREEZE THE MEASUREMENT
During a measurement:
➢Press on «Hold/min/max» to freeze the measurement.
«Hold» displays on screen and the measurements are frozen.
➢Press on «On/Off/Esc» to e it the hold function.
The device returns to the measurements display.
If the type of selected probe is the contact probe, put the contact tip on the probe
DISPLAY THE MINIMUM AND THE MAXIMUM
Once the measurement are frozen:
➢Press again on «Hold/min/max».
●The device displays the maximum value of velocity measured since the last questioning at the top of the screen and the
minimum value of velocity measured since the last questioning at the bottom of the screen.
➢Press again on «On/Off/Esc» to return to the measurement display.

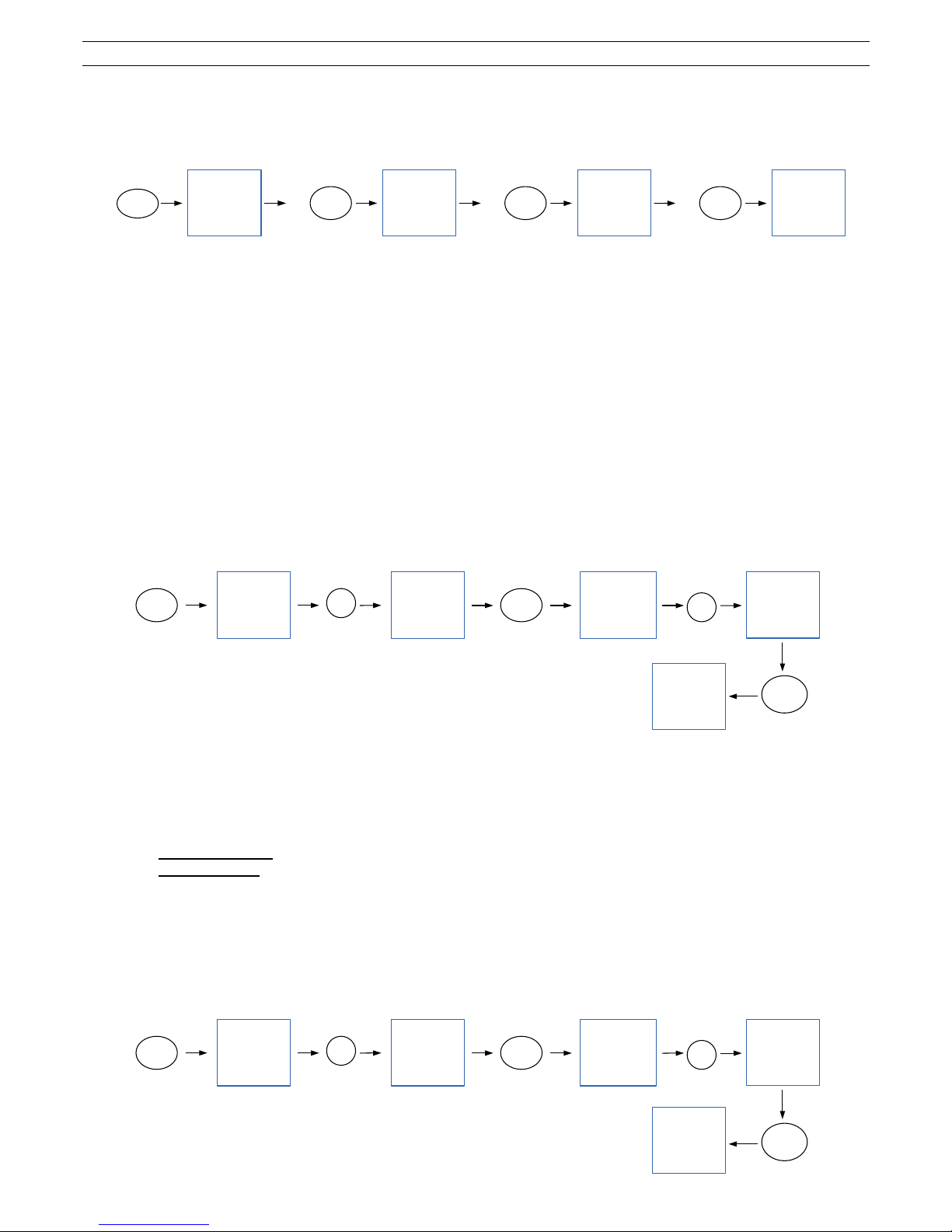

ADJUST THE DEVICE
Select the measuring unit!
The device is on and displays the measurement.
➢Press on «Select» until «UNIT » blinks on screen.
➢Press on «OK», the unit currently used blinks on screen.
●For the contact probe: press on «Select» until the required unit appears: tr/min, rpm, m/min, in/min, ft/min or m/s.
●For the optic probe: press on «Select» until the required unit appears: tr/min or rpm.
➢Press on «OK » to validate the unit selection.
«UNIT» blin s on screen.
➢Press on «On/Off/Esc» to return to the measurement display.
●Device drop-down menu
2x
SEL
UNIT
tr/min
OK
UNIT
SEL
°C
UNIT
SEL
tr/min /RPM...
OK
0
RPM
SelectSelect
SEL
UNIT
RPM
On/Off/
Esc
Select the probe type
It is possible to select the probe type: optic probe or contact probe.
➢Press on «Select ».
«PROBE» blin s on screen.
➢Press on «OK».
The probe type currently used blin s on the screen.
➢Press on «Select» to select «OPTIC» for the optic probe or «CONT» for the contact probe.
➢Press on « OK » to validate.
«PROBE» blin s on screen.
➢Press on «On/Off/Esc » to return to the measurement display.
2x Select
SEL
UNIT
rpm
SEL
AUTO
OFF
OFF
SEL
BEEP
ON
3x Select 4x Select
Select
1x
SEL
PROBE
CONT
1x
SEL
PROBE
CONT
OK
PROBE
SEL
CONT
OK
Select
UNIT
SEL
CONT/OPTIC
Select
SEL
PROBE
OPTIC
On/Off/
Esc
0
RPM
➢Remove the front part at the back of the device.
➢Change the old batteries by AAA LR03 1.5.V batteries.
➢Replace the front part.
CHANGE THE ATTERIES
The device is on and displays the measurements.
➢Press on « Backlight!»: to activate the device blacklight.
➢To deactivate it press again on «Backlight».
ACTIVATE THE ACKLIGHT
Activate or deactivate the keys beep
The device is on and displays the measurement.
➢Press on «Select» until « BEEP » blinks on screen.
➢Press on «OK».
«OFF» or «ON» blin s on screen.
➢Press on «Select» to activate the keys beep «ON» or deactivate the keys beep «OFF».
➢Press on «OK» to validate.
«BEEP» blin s on screen.
➢Press on «On/Off/Esc» to return to the measurement display.
4x Select
SEL
BEEP
ON
OK
On/Off/
Esc
BEEP
SEL
ON
BEEP
SEL
OFF / ON
SEL
BEEP
OFF
Select OK
0
RPM
3x Select
SEL
AUTO
OFF
OFF
OK
AUTO
OFF
OFF
Select
AUTO
OFF
15 / 30mn...
OK
SEL
AUTO
OFF
30mn
On/Off/
Esc
0
RPM
Adjust the auto shut-off!
The device is on and displays the measurement.
➢Press on «Select» until «AUTO OFF» blinks on screen.
➢Press on «OK».
The time before device auto shut-off blin s at the bottom of the screen.
➢Press on «Select» to select the time before device auto shut-off: 15, 30, 45, 60, 75, 90, 105, 120 or OFF.
➢Press on «OK » to validate.
➢Press on «On/Off/Esc» to return to the measurement display.
Once returned to KIMO, required waste collection will be assured in the respect of the environment in accordance to 2002/96/CE guidelines relating to WEEE
