Koblenz U-40 Bedienungsanleitung

UPRIGHT VACUUM

CLEANER

MODELS:

U-40

KOBLENZ ELECTRICA S. A. DE C. V.

E-mail: [email protected]m

JUANARY-2010

LP-U40-201001

SERVICIO

SERVICE MANUAL

PARTS LIST

INDEX

I.- FINAL TEST FOR PRODUCT SAFETY 3

II.- REPLACEMENT PROCEDURES 3

III.- TROUBLE SHOOTING CHART 5

IV.- UPRIGHT VACUUM CLEANER EXTERNAL PARTS 6

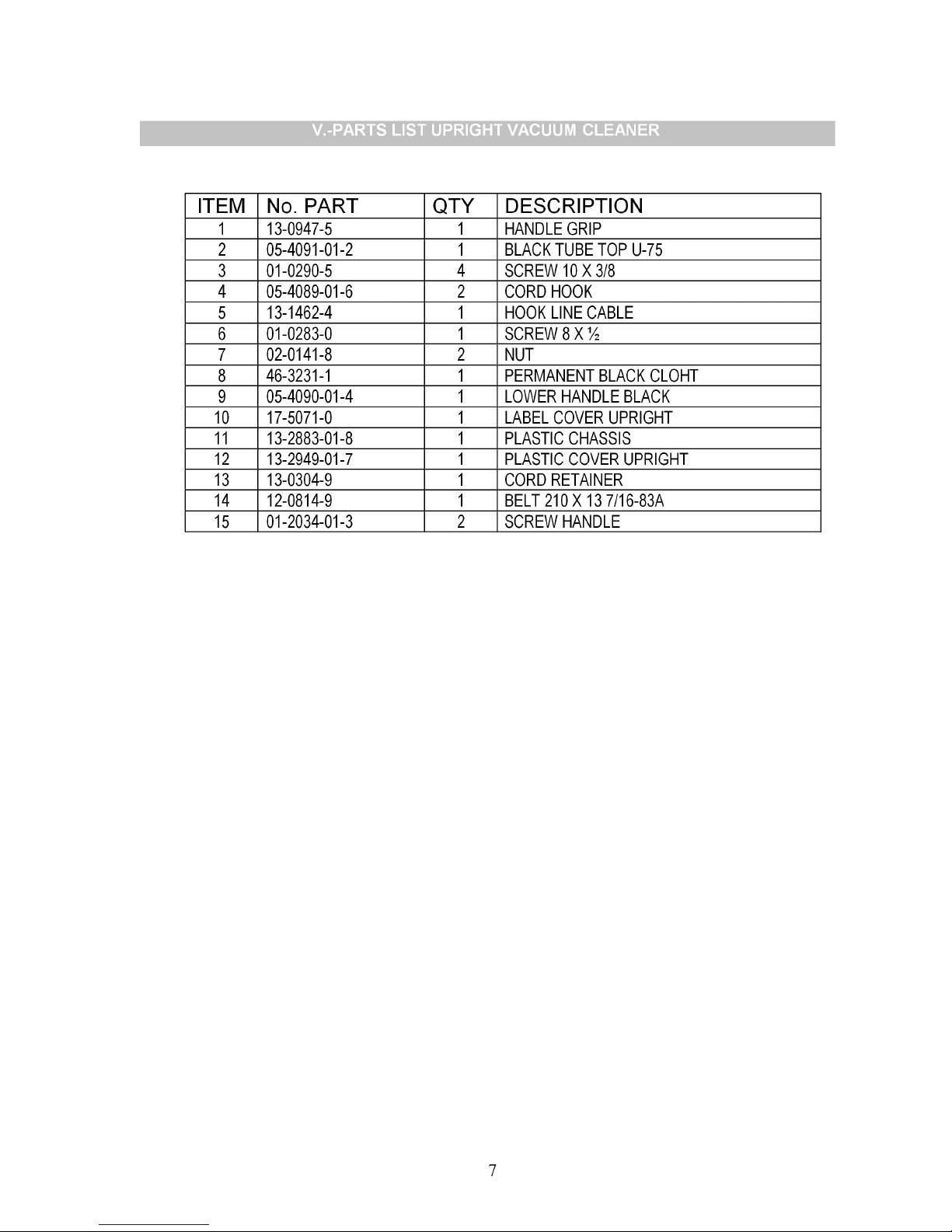

V.- PARTS LIST UPRIGHT VACUUM CLEANER 7

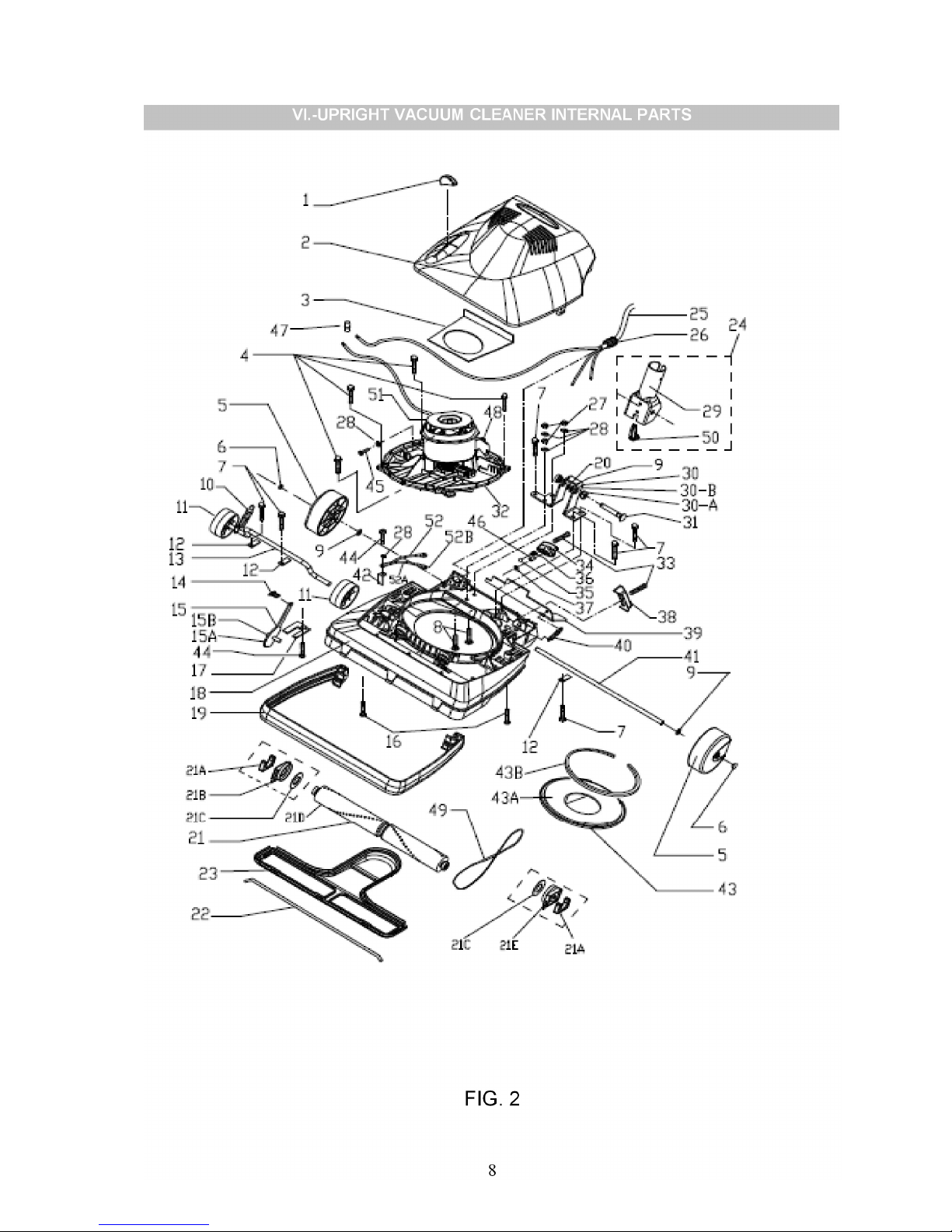

VI.- UPRIGHT VACUUM CLEANER INTERNAL PARTS 8

VII.- PARTS LIST UPRIGTH VACUUM CLEANER 9

VIII.- WIRING DIAGRAM 11

I.-FINAL TEST FOR PRODUCT SAFETY

After repairs the product should be tested on its electrical function and electric strength as follows.

1.-ELECTRIC TEST

1. Set hi-pot test meter at 1500 Volts

2. Place the handles tube to “ON” position

3. Touch one probe of tester to one blade of power cord plug and touch other probe to handle tube,

there should be no breakdown.

2.-OPERATING TEST

Run the machine with the height adjustment knob on high and check:

1. There should be no unusual noise or vibration.

2. The carbon brushes spark should be small and uniform.

3. The current should not exceed 9.0 Amps. and 7.0 Amps

II. REPLACEMENT PROCEDURES

1.-TO REMOVE BAG (8), FIG. 1

1.1.-Release spring, from handle, slide off coupling unit.

2.-TO REMOVE HANDLE TUBE (2, 9) FIG.1 y FIG.2

2.1.-Disengage line cord from hook (5) pulling cord outward from retainer bottom

2.2.-Remove screws and nuts (15 and 7) on handle socket (24) and pull tube out.

3.-TO REPLACE BELT (25), FIG.2

3.1.-To avoid damage on the cover place the upright upward wheels in a soft surface.

3.2.-Remove retaining bar (22) by pressing down on right side (Longest), remove brush rollers cover (23)

and assembly turbine cover (43).

3.3.-Stretch and twist belt over motor pulley to pull it out. (if not broken)

3.4.-Remove complete brush roller (21) with bearing supports (21B and 21E) pulling it out near the bear-

ings.

3.5.- Place new belt on roller, replace roller on chassis making sure the mark "top" on bearings support

faces towards the brush roller cover and reassemble.

4.-TO REPLACE BRUSH ROLL ( 21 ) OR BEARING SUPPORTS FIG. 2.

4.1.-Follow steps 3.1 to 3.4.

4.2.-Remove bearing support (21-B), pulling away from them brush roller (old or new).

4.3.-Place bearing supports on new brush roll, place belt over roll and replace to on chassis following steps

3.5.

5.-TO REPLACE REAR WHEELS (5), FIG.2

5.1.-Remove cover (step 7)

5.2.-Pull security (6) from axle (41) and axle assembly take out.

5.3.-The wheels new replace on the axle.

5.4.-Replace Cover

6.-TO REPLACE FRONT WHEELS (14-I), FIG. 3, 4

6.1.-Remove cover (step 7)

6.2.-Remove screws (7) from axle supports (13) and axle assembly take out.

6.3.-Remove axle with wheels

6.4.-The wheels new replace on the axle.

6.5.-Axle assembly replace on chassis.

6.6.-Replace Cover

7.-TO REMOVE THE COVER (2), FIG. 1 AND FIG.2

7.1.-Remove the bag (8) (Fig. 1)

7.2.-Depress handle release pedal (39) and put on horizontal position the handle tube

7.3.-Remove the screw (14) and adjustment knob (1) (Fig.2)

7.4.-To avoid damage on the cover place the upright upward wheels in a soft surface, remove the insur-

ance

8.-TO REPLACE MOTOR (51), FIG 2.

8.1.-Remove belts follow steps 3.1 to 3.3.

8.2.-Remove cover (step 7).

8.3.-Remove four screws (4) holding the motor and disconnect it.

8.4.-Replace the motor (51)

9.-TO REPLACE HEIGHT ADJUSTMENT CAM (I5), FIG.2

9.1.-Depress handle release pedal (39) and put on horizontal position the handle tube..

9.2.-Remove the screw (14) and the adjustment knob (1)

9.3.-Remove the spring and screw (44), to remove the retain cam plate.

10.-TO REPLACE HANDLE RELEASE PEDAL (39) FIG. 2

10.1.-Remove cover (step 7)

10.2.-Remove spring (40) from chassis

10.3.-Pull pedal towards spring side and remove

11.-TO REPLACE YOKE ASSEMBLY (24), FIG.2

11.1.-Remove cover (step 7)

11.2.-Remove handle release pedal (step 10)

11.3.-Remove the bolt yoke (31), along with the security locks (20)

12.-TO REPLACE THE CABLE ASSEMBLY (25), FIG. 2

12.1.-Remove cover (step 7)

12.2.-Remove Heyco strain relief (26) from chassis with Heyco

12.3.-Reassemble with the Hey co pliers making sure to locate the strain relief as it was before.

13.-TO REPLACE THE ON - OFF SWITCH (48), FIG. 2

13.1.-Remove cover (step 7)

13.2.-Disconnect the electrical terminal from the switch.

13.3.-Press the side tabs on the switch and pull it out.

13.4.-Press the new switch on the opening until the tabs snaps and reconnects the terminal.

14.-TO REPLACE THE SWITCH ACTUATOR (50), FIG.2

14.1.-Remove cover (step 7)

14.2.-Of the actuator assembly remove the yoke (24).

14.3.-Replace the new actuator and assembly.

15.-MOTOR SERVICING,

The only possible motor repairs are: Replace carbon brushes, replace armature, replace field.

Never try to repair the field or armature, if defective, replace with a new one.

WHEN ORDERING, DO NOT FORGET TO SPECIFY:

PART NUMBER

DESCRIPTION

MODEL NUMBER

NOTE: Drawing numbers are for identification purposes only.

III.-TROUBLE SHOOTING CHART.

PROBLEM POSSIBLE CAUSE SOLUTION

A) Motor does not

work

1.- Not firmly plugged in. 1.- Check attachment plug.

2.- Bad ON-OFF switch. 2.- Replace switch.

3.- Line cord open 3.- Replace cord.

4.- Motor open 4.- Check motor and wiring.

5.- Fan blockage by material 5.- Remove obstruction

B) Motor works but

cleaner does not

aspire

1.- Belt broken. 1.- Replace belt.

2.- Blockage air system. 2.- Remove obstruction.

3.- Fan broken. 3.- Replace fan.

4.- Worn brush roller. 4.- Replace brush roller.

5.- Motor slow. 5.- Check carbon brushes.

6.- Bag full. 6.- Empty bag (or change paper bag).

C) Motor works er-

ratically

1.- Worn carbon brushes. 1.- Replace brushes.

2.- Detective armature. 2.- Check spark, replace

3.- Bad electrical connection. 3.- Check wiring.

4.- Detective On-Off switch. 4.- Replace switch.

D) Brush roll vi-

brates.

1.- Ball bearing worn out.. 1.- Replace

2.- Ball bearing holder damaged 2.- Replace ball bearing holder.

E) Head light does

not run on

1.- Bad connections. 1.- Check wiring.

2.- Light bulb burned out. 2.- Replace bulb.

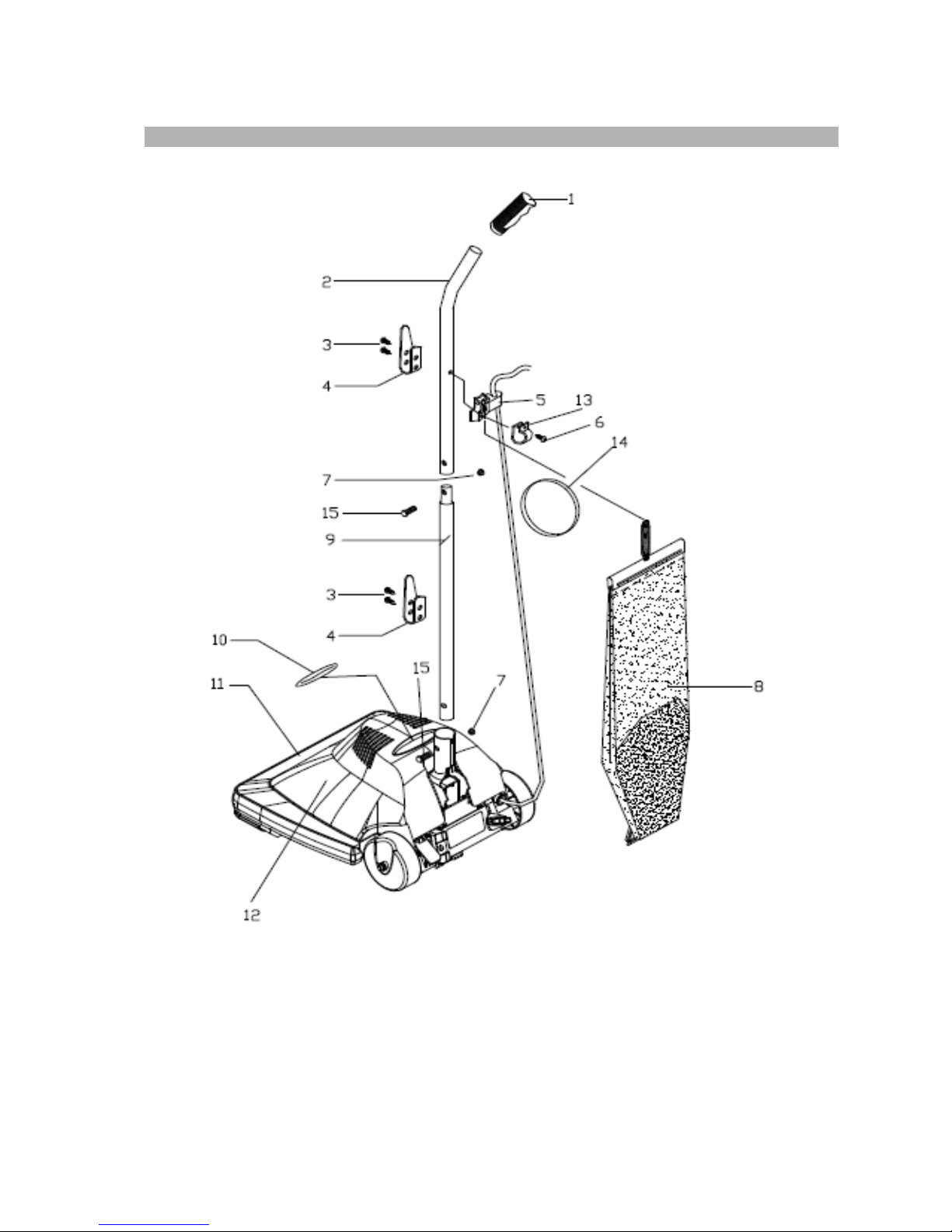

IV.-UPRIGHT VACUUM CLEANER EXTERNAL PARTS

FIG. 1

VII.-PARTS LIST UPRIGHT VACUUM CLEANER

ITEM No PART QTY DESCRIPTION

1 13-3147-9 1

KNOB CAM

2 13-2949-01-7 1

PLASTIC COVER UPRIGHT U-40

3 12-0936-0 1

BAFFLE

4 01-15006 4

SCREW B 10-16X3/4

5 13-3144-6 2

REAR WHEEL

6 04-0671-0 2

BLIND SECURITY TYPE HAT

7 01-1499-1 6

SCREW HEX No 10-16X5/8

8 01-0664-1 2

SCREW 10X5/8

9 04-0589-4 3

FLAT WASHER 5/16x1/2

10 24-0308-7 1

FRONT AXLE SPRING

11 13-3143-8 2

FRONT WHEEL

12 05-4489-0 3

RETEN PLATE SHAFT

13 25-1349-02-3 1

FRONT AXLE GALVANIZED

14 01-1651-7 1

SCREW TYPE BT No 6

15 46-3206-3 1

CAM ASSEMBLY

15-A 05-4722-4 1

CAM UPRIGHT

15-B 25-1345-5 1

BOLT FOR CAM

16 01-0093-3 2

SCREW No 6 X 5/8 TYPE BC/PHILLIPS

17 05-4721-6 1

RETEN CAMPLATE

18 13-2883-01-8 1

PLASTIC CHASSI U-40

19 12-0952-7 1

UPRIGHT FOR PLASTIC MOLDING

20 04-0469-9 1

SECURITY PADLOCK PO-25

21 46-2375-7 1

BRUSH ROLL ASSEMBLY

21-A 12-0522-8 1

PACKING FOR CARRIER BEARING

21-B 13-1801-3 1

CARRIER BEARING LEFT

21-C 37-0130-7 2

FELT FOR CARRIER BEARING

21-D 45-0299-3 1

ROLLER ASSEMBLY SOWS

21-E 13-1252-9 1

CARRIER BEARING 11/16

22 25-0997-4 1

RETEN ROD ROLLER COVER

23 46-3207-1 1

ROLLER ASSEMBLY COVER TILT

24 46-3433-3 1

SWITCH-ACTUATOR YOKE ASSEMBLY

25 28-1644-01-3 1

CABLE ASSEMBLY LINE U-40

26 12-0953-5 1

GROMET HEYCO 1232

27 02-0041-0 3

NUT HEX. No 10-24

28 04-0271-9 5

STAR WASHER No 10X204

29 05-4734-02-5 1

CHROME YOKE

30 46-3260-0 1

SUPPORT YOKE BUSHING ASSEMBLY

30-A 13-3148-7 2

YOKE BUSHING

30-B 05-4725-7 1

SUPPORT YOKE

31 25-1346-3 1

PIN FOR YOKE

32 12-0495-01-5 1

PACKING SEAL MOTOR BASE

33 01-0285-5 2

SCREW DE 8x3/4

34 13-2126-4 1

KNOB FOR EXCHANGE COUPLINGS

35 26-0001-3 1

FORK BULLETS LOCA

36 24-0014-1 1

KNOB SPRING FOR SWEEPER

37 04-0026-7 1

38 13-2127-2 1

COUPLINGS RETEN BAG

39 05-4724-02-6 1

PEDAL HANDLE GALVANIZED

40 24-0316-0 1

PEDAL SPRING HANDLE UPRIGHT

FLAT WASHER (02-0101)

41 25-1322-4 1

REAR WHEEL AXLE

42 05-4993-1 1

ANGLE FOR SOIL

43 46-3208-9 2

TURBINE COVER WITH SEAL ASSEMBLY

43-A 13-3145-3 1

TURBINE COVER

43-B 12-0834-7 1

TURBINE SEAL COVER GASKET

44 01-0270-7 2

45 01-1683-0 1

46 05-0997-6 1

MOTOR SPACER

47 10-0137-9 1

STAPLE INSULATED CONNECTOR

48 11-0159-1 1

49 12-0814-01-7 1

BELT 210 X 13 7 / 16 83 A

50 13-3273-3 1

ACTUATOR SWITCH

51 46-3383-0 1

52 28-1664-3 1

CABLE ASSEMBLY GROUND

52-A 09-1319-4 2

CABLE GREEN EARTH

52-B 30-0197-1 3

CONNECTION TERMINAL A

ITEM No PART QTY DESCRIPTION

SCREW 6X3

SCREW TYPE T 8-32

ROCKER SWICTH

MOTOR UPRIGTH 5A
