Scanner 3000/4000 Series

User’s

Maintenance

Guide

A-61159

A-61159 May 2002 5-1

5 Maintenance

Expected Life

of Customer-

Replaceable

Wear Parts

•Kodak Digital Science Feed Module 150 (150-sheet automatic

paper feeder): 600,000 - 1,000,000 document pages

•Kodak Digital Science Feed Module 250 (250-sheet automatic

paper feeder): 600,000 - 1,000,000 document pages

•Kodak Digital Science Separator Roller: 300,000 - 600,000

document pages

•Kodak Digital Science White Imaging Lamp: up to 500 hours

•Kodak Digital Science Red, Green, and Blue Imaging Elements:

up to 300 hours

NOTES:The composition of the roller materials was engineered to

provide the ultimate in feeding reliability across the broadest

range of document types, sizes, and thicknesses. Expected

life figures are offered as guidelines for operations that follow

the recommended scanner cleaning procedures in this chapter

and that scan document types within the recommended

paper types (refer to “Preparing Documents for Scanning” in

Chapter 1, General Information).

Your experience may vary. Certain paper types (such as

carbonless paper), failure to clean regularly, and/or use

of non-recommended cleaning solvents can shorten roller life.

The inside of the scanner and certain replacement parts

shown in this chapter may appear different from the ones you

have. However, the actions described in the procedures are

the same.

To order additional cleaning supplies or replacement parts,

refer to Appendix B, Supplies.

5-2 A-61159 May 2002

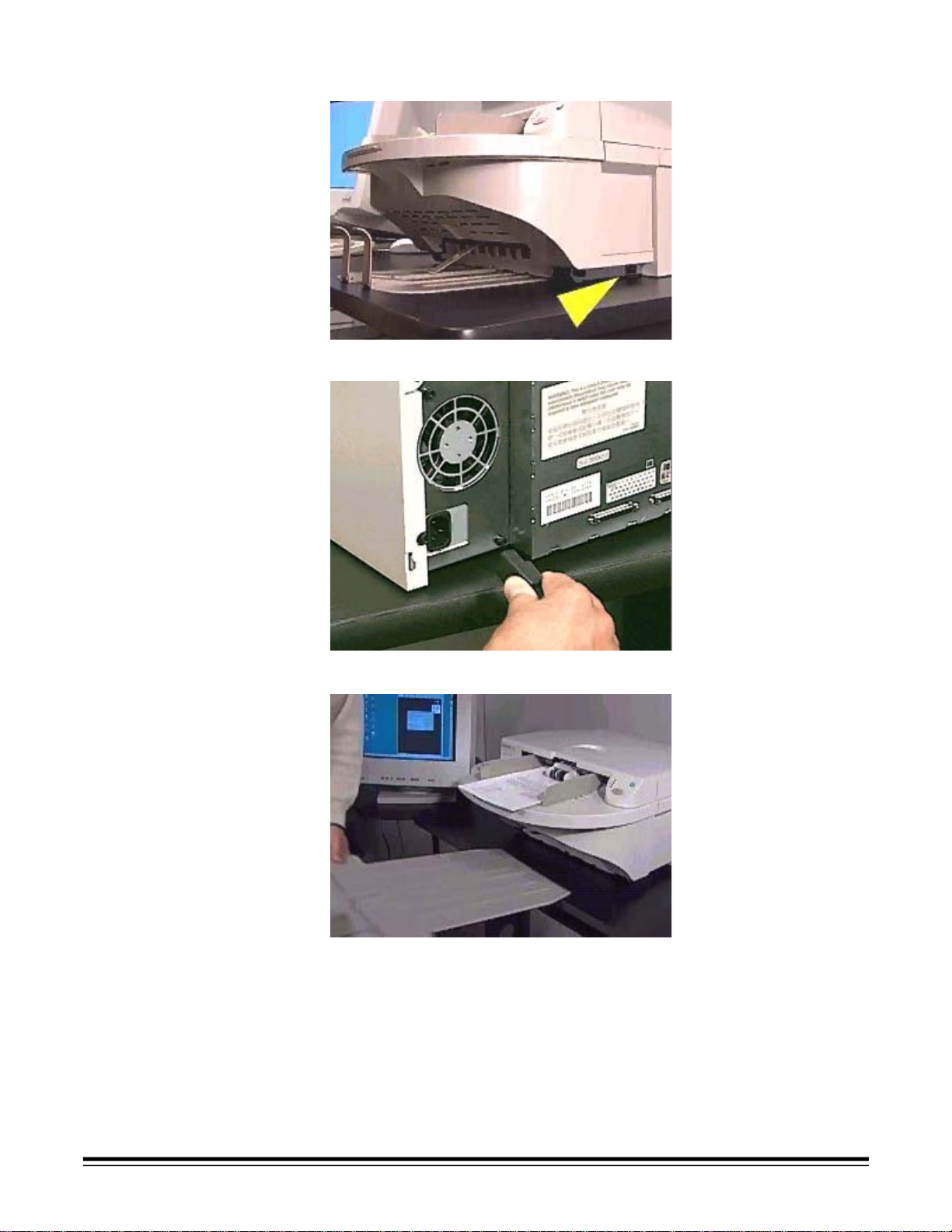

Lowering the Pod 1. Power down the scanner.

2. Disconnect the power cord.

3. Remove the output tray.

A-61159 May 2002 5-3

4. Remove any documents from the feeder area.

5. Move the scanner forward to the front edge of the work surface.

6. Grasp the pod with one hand.

7. Pull the release latch with the other hand.

8. Gently lower the pod.

NOTE: The pod does not have to be lowered completely in order to

clear a document jam (refer to “Clearing Document Jams” in

Chapter 7, Troubleshooting).

Closing the Pod • Close the pod by lifting the front of the pod until it snaps into place.

5-4 A-61159 May 2002

Feed Module

Cleaning the

Feed Module For best scanner performance, clean the feed module rollers at least

once per week using the recommended Cleaning Pad (CAT No. 853-

5981). Use of any other cleaning materials could damage your scanner.

NOTE: Clean the rollers daily if you are scanning carbonless paper

or if you are using the document printer (Scanner 3520DP

or Color Scanner 4500DP only).

1. Follow all of the steps in “Lowering the Pod” in this chapter.

NOTE: You do not have to lower the pod completely to remove the

feed module.

2. Remove the feed module by pushing it to the right and lifting it out.

3. Wipe the rollers with a cleaning pad until all residue is removed.

4. Inspect the rollers.

If the rollers show signs of wear or damage, replace them.

5. Replace the feed module by aligning the pins and fitting it

into position.

6. Close the pod firmly.

A-61159 May 2002 5-5

Replacing the

Feed Module

Roller Tires

1. Follow all of the steps in “Lowering the Pod” in this chapter.

2. Remove the feed module by pushing it to the right and lifting it out.

3. Place the feed module on a flat surface with the side tabs up.

4. Press the locking tabs (one on each side) and pull the upper

housing up and away from the rollers.

5. Remove one core assembly.

6. Replace each tire by sliding the tire off the core.

5-6 A-61159 May 2002

7. Install each new tire by gently stretching it over the core.

IMPORTANT: Disregard the arrow on the side of the tire. It makes no

difference in which direction the arrows point.

Do not overstretch the tire; it may tear.

Make sure that the tire is centered on the core and is

lying flat on the core.

8. Replace the core assembly in the feed module (align the gears).

9. Repeat Steps 5 - 8 for the other core assembly.

A-61159 May 2002 5-7

10.Align the rear tabs on the lower housing with the rear tabs on the

upper housing.

11.Press the upper and lower housings together until they snap

into place.

12.Replace the feed module by aligning the pins and fitting it

into position.

13.Close the scanner pod.

5-8 A-61159 May 2002

Separator Rollers

Cleaning the

Separator Roller For best scanner performance, clean the separator roller at least once

per week using the recommended Cleaning Pad (CAT No. 853-5981).

Use of any other cleaning materials could damage your scanner.

NOTE: Clean the rollers daily if you are scanning carbonless paper

or if you are using the document printer (Scanner 3520DP

or Color Scanner 4500DP only).

1. Follow all of the steps in “Lowering the Pod” in this chapter.

2. Open the separator roller access cover.

3. Remove the separator roller by pushing it to the right and lifting

it out.

A-61159 May 2002 5-9

4. Wipe the separator roller with a cleaning pad until all residue has

been removed.

5. Inspect the roller.

If the roller show signs of wear or damage, replace it.

6. Replace the separator roller by aligning the pins and fitting it

into position.

7. Close the access cover.

8. Close the pod firmly.

Replacing the

Separator Roller Tires 1. Follow all of the steps in “Lowering the Pod” in this chapter.

2. Open the separator roller access cover.

3. Remove the separator roller by pushing it to the right and lifting

it out.

4. Replace each tire by sliding the tire off the core.
