Kodak i1220 Scanner Installation and Configuration Guide Version: 4/3/2012

Page | 1

SCEIS Imaging: Kodak i1220 Scanner

Installation and Configuration Guide

If your scanner is already installed, go to the CONFIGURATION section on page 3.

Configuration will set the scanner to ignore blank pages.

INSTALLATION

TWAIN Driver Installation

1. Install the Kodak twain driver from the installation disk or download the most current driver version from:

http://graphics.kodak.com/docimaging/US/en/Products/Document_Scanners/Desktop/i1220_Scanner/Support/

Drivers_And_Downloads/i1200_Plus_Series_Scanner_Drivers/index.htm

The serial number of the scanner is required for the driver download. The serial number is located on the bottom of

the scanner.

Enable Citrix Access to the Scanner

2. Log in to Citrix (sceisgateway.sc.gov) and log in to either SAP or OnBase, it does not matter which one.

3. Right-click on the Citrix Connection icon in the system tray, located near the time in the lower right corner of the

screen. Left-click on ‘Open Connection Center’.

Click ‘Scanner Security’

Kodak i1220 Scanner Installation and Configuration Guide Version: 4/3/2012

Page | 2

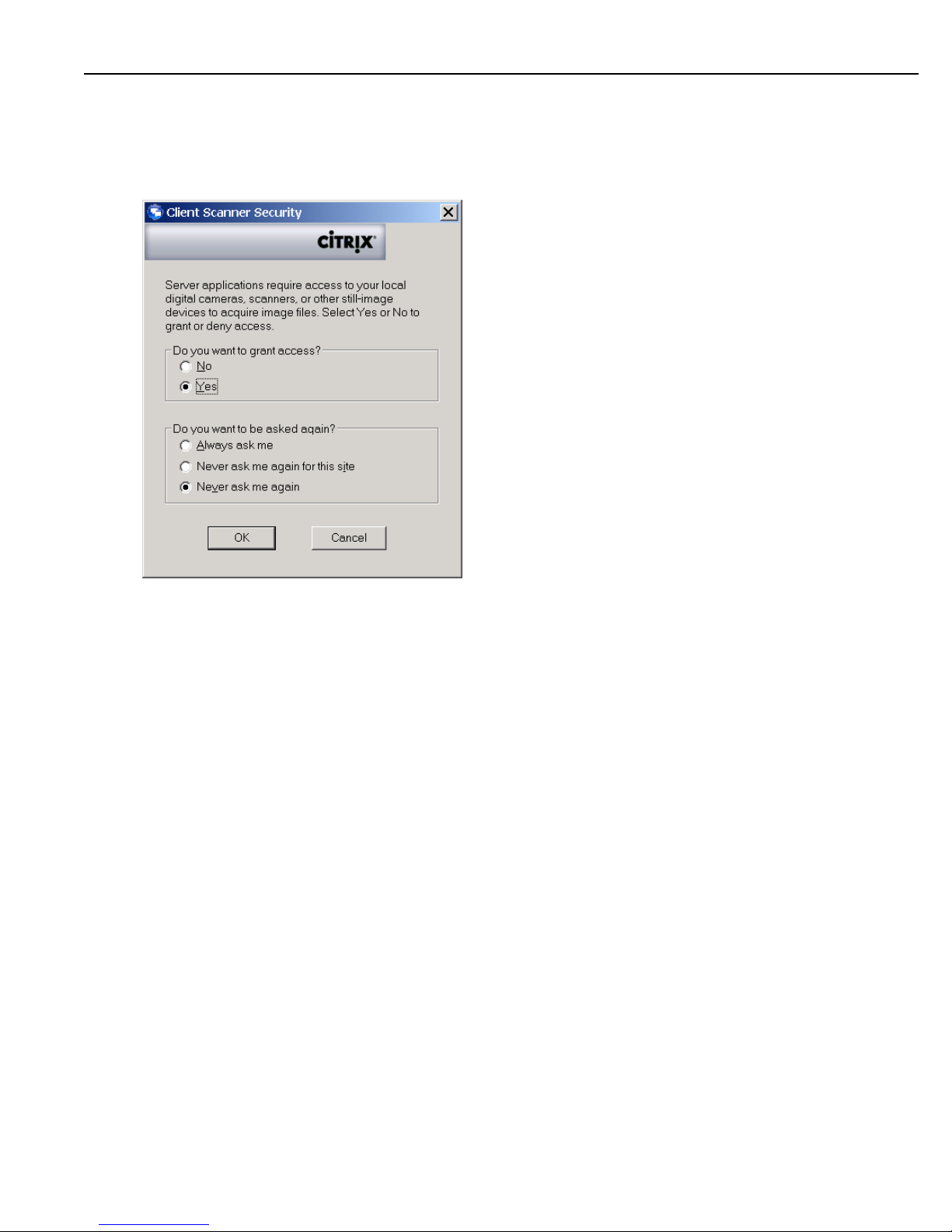

Click ‘Yes’ and ‘Never Ask Me Again’ then ‘OK’

Click ‘OK’ to close the Citrix Connection Center

Kodak i1220 Scanner Installation and Configuration Guide Version: 4/3/2012

Page | 3

CONFIGURATION

On your Windows main screen…

Go to Start >> Programs >> Kodak >> Document Imaging >> Scan Validation Tool

Select ‘TWAIN’

Click ‘OK’

Wait while the connection to the scanner is made.

Kodak i1220 Scanner Installation and Configuration Guide Version: 4/3/2012

Page | 4

Select the ‘Setup’icon

Select ‘Default’ or ‘SCEIS Default’ if it is listed

Select ‘Two Sided’

Click ‘Settings’

Kodak i1220 Scanner Installation and Configuration Guide Version: 4/3/2012

Page | 5

Select each tab and make the settings identical to the screenshots

GENERAL TAB

Kodak i1220 Scanner Installation and Configuration Guide Version: 4/3/2012

Page | 6

In the ‘Side’ field on the General tab the word ‘Both’ should be grayed out.

If it says ‘Front’ or ‘Back’ instead of ‘Both’ click the ‘Advanced Image Setup’ icon

Select ‘Two Sided’

Uncheck ‘Different settings per side’

Click ‘Done’

Kodak i1220 Scanner Installation and Configuration Guide Version: 4/3/2012

Page | 7

SIZE TAB

Kodak i1220 Scanner Installation and Configuration Guide Version: 4/3/2012

Page | 8

ADJUSTMENTS TAB

Kodak i1220 Scanner Installation and Configuration Guide Version: 4/3/2012

Page | 9

ENHANCEMENTS TAB

Important

Kodak i1220 Scanner Installation and Configuration Guide Version: 4/3/2012

Page | 10

When you are done with all of the Image tabs (General / Size / Adjustments / Enhancements)…

Click the ‘Device’ button at the bottom of the screen.

DEVICE SCREENS

Select each tab and make the settings identical to the screenshots

GENERAL TAB
