KROHNE OPTISONIC 6300 Bedienungsanleitung
Ultrasonic Clamp-on Flowmeter
OPTISONIC 6300 Quick Start
OPTISONIC 6300
7.30959.22.002
General safety notes
You can find additional information on the CD-ROM provided, in the
manual, the data sheet, special manuals and certificates.
Installation, mounting, commissioning, and maintenance can be
performed only by trained personnel.
Responsibility for suitability and intended use of this instrument rests
solely with the user.
The supplier accepts no liability for inappropriate use by the customer.
Improper installation and operation may lead to loss of warranty.
Moreover, the "general terms and conditions" on the back of the bill
apply, which form the basis for the sales contract.
If you have to send the device back to the manufacturer or supplier, fill
out the form contained on the CD-ROM and enclose it with the device.
Unless this form is completely filled out, it will unfortunately not be
possible for KROHNE to perform repair or inspection.
Respect general and local electrical safety requirements.
OPTISONIC 6300
www.krohne.com 3
Scope of delivery
1Signal converter, wall version or field version
2Quick Start
3CD-ROM (including Handbook, Quick Start, Technical Datasheet, Support database, movie)
4Factory calibration report
5Sensor OPTISONIC 6000 plus cover
6Metal strap
7Mineral coupling grease
8Signal cable plus connector cap
UFC300
0% 50 100
X3
m
h
3
OPTISONIC6000
Manufactured:2006
Tm:-40 ... +120C
Ta=-40... +70C
IP66/67 accordingto EN 60529
S/N:A06xxxxx
Calibrationnr.:xxxxxxxxx
Altometer,Dordrecht
NL- 3313 LC
1
2
5
6
7
8
43
OPTISONIC6000
Manufactured:2006
Tm:-40 ... +120C
Ta=-40... +70C
IP66/67 accordingto EN 60529
S/N:A06xxxxx
Calibrationnr.:xxxxxxxxx
Altometer,Dordrecht
NL- 3313 LC
OPTISONIC 6300
7.30959.22.004
Additionally for large version:
12nd sensor OPTISONIC 6000 plus cover
290 degree screw driver
34 fixing units
4positioning tool
52 metal straps
6signal cable plus connector cap
7cable box plus signal cable
OPTISONIC6000
Manufactured:2006
Tm:-40 ... +120C
Ta=-40... +70C
IP66/67 accordingto EN 60529
S/N:A06xxxxx
Calibrationnr.:xxxxxxxxx
Altometer,Dordrecht
NL- 3313 LC
OPTISONIC6000
Manufactured:2006
Tm:-40 ... +120C
Ta=-40... +70C
IP66/67 according to EN 60529
S/N:A06xxxxx
Calibrationnr.: xxxxxxxxx
Altometer,Dordrecht
NL- 3313 LC
12
67
3
45
OPTISONIC 6300
www.krohne.com 5

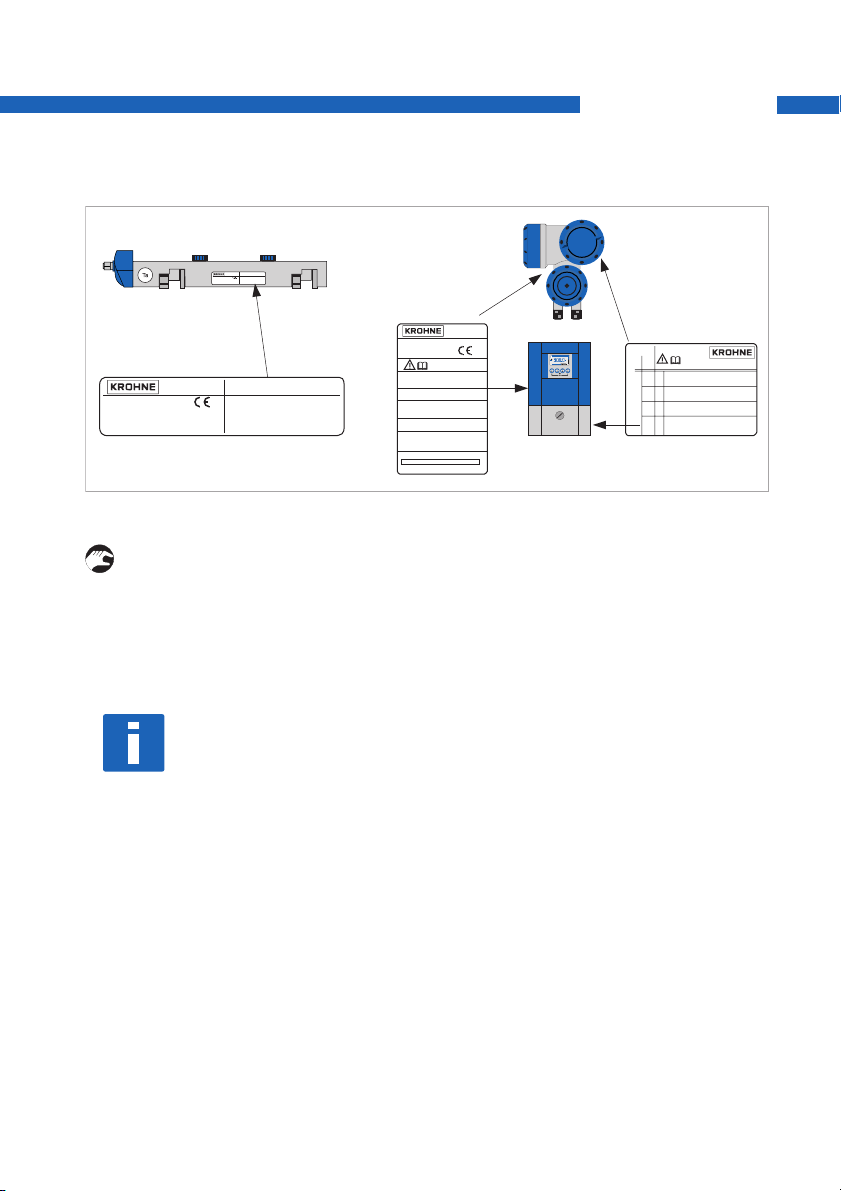

Visual check
•Visual check at rail 1and flow converter 2(IO sticker is inside the
converter housing).
NOTE!
Rail is marked Ta in most cases. Only for dual path / dual pipe
versions you receive a second rail marked Tb.
If you ordered a large version, you receive two rails, both marked
with Ta!
2
1
(FE)
PE
POWERINPUT / OUTPUT
L(L+)
N(L-)
A = Active
CG 34 xxxxxx S/N: A06 xxxxx
P = Passive
NC = Not connected
P
P
P
P
PULSE OUT / STATUS OUT
Imax = 100 mA@f<= 10 Hz;
= 20 mA@f<=12 kHz
Vo = 1.5 V @ 10 mA; Umax = 32 VDC
A
STATUS OUT
STATUS OUT / CONTROL IN
Imax = 100 mA; Vmax = 32 VDC
Imax = 100 mA
Vmax = 32 VDCVon > 19 VDC, Voff < 2.5 VDC;
CURRENT OUT ( HART )
Active
Passive
( Terminals A & A+);
( Terminals A & A- );
RLmax = 1 kohm
Vmax = 32 VDC
D -
C
D
C -
B -
B
A +
A -
A
UFC300
0% 50 100
X3
m
h
3
Manufactured: 2006
S/N Ta:
S/N Tc:
S/N Tb:
Altometer, Dordrecht
NL - 3313 LC
UFC300
www.krohne.com
100-230 V AC
A06 xxxxx
A06 xxxxx
A06 xxxxx
50-60 Hz 22 VA
OPTISONIC 6000 yyy
Manufactured: 2006
Tm: -40 ... +120C
Ta= -40 ... +70C
IP66/67 according to EN 60529
S/N: A06 xxxxx
Calibration nr.: xxxxxxxxx
Altometer, Dordrecht
NL - 3313 LC
OPTISONIC6000
Manufactured:2006
Tm:-40 ... +120C
Ta=-40... +70C
IP66/67 according to EN 60529
S/N:A06 xxxxx
Calibrationnr.: xxxxxxxxx
Altometer,Dordrecht
NL- 3313 LC
OPTISONIC 6300
7.30959.22.006

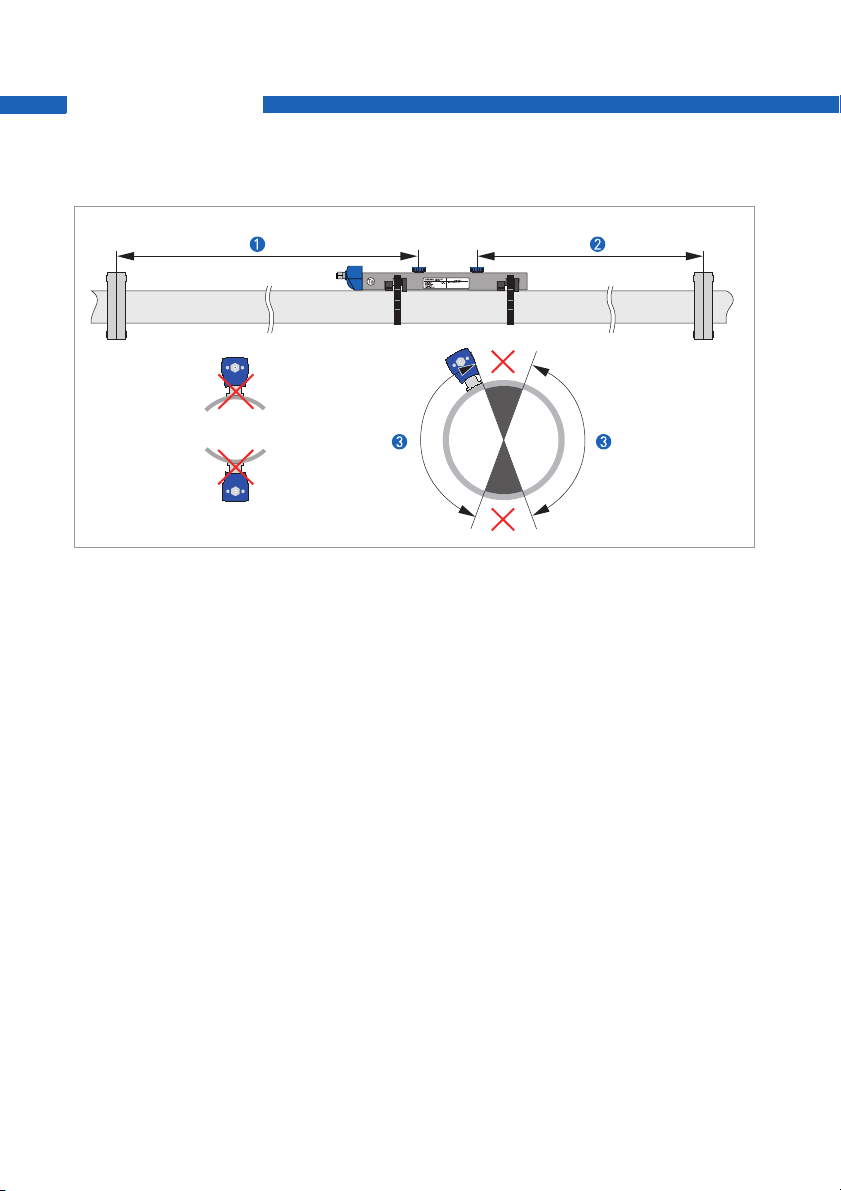

Inlet, outlet and recommended mounting area
1Min. 10 DN
2Min. 5 DN
3OK, 120°
OPTISONIC 6300
www.krohne.com 7
General mechanical installation

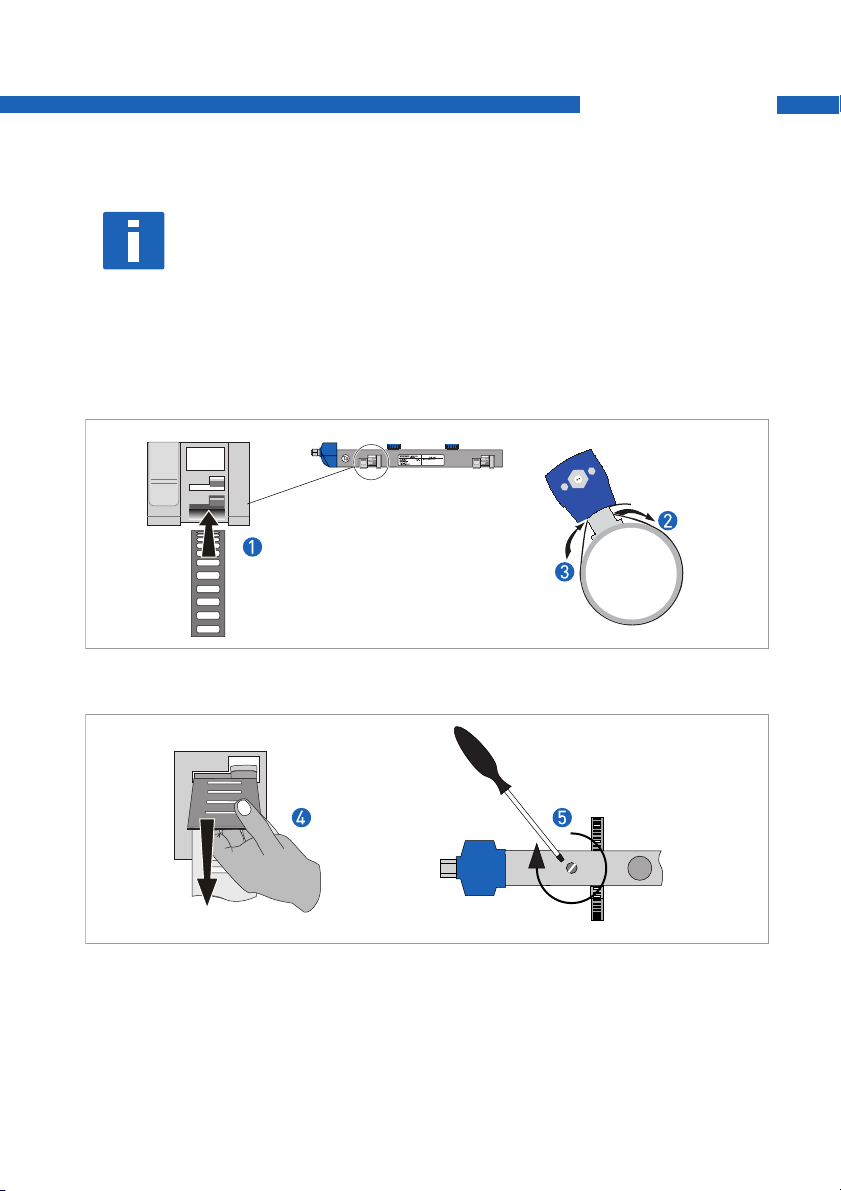

Installation of the rails with the metal straps
Installation of the rails with the metal strapsInstallation of the rails with the metal straps
Installation of the rails with the metal straps
NOTE!
This chapter explains the basic handlings that are used
throughout this Quick Start. Do not execute them at first reading!
OPTISONIC 6300
7.30959.22.008
•7: Repeat steps 1...6at the other side of the rail.

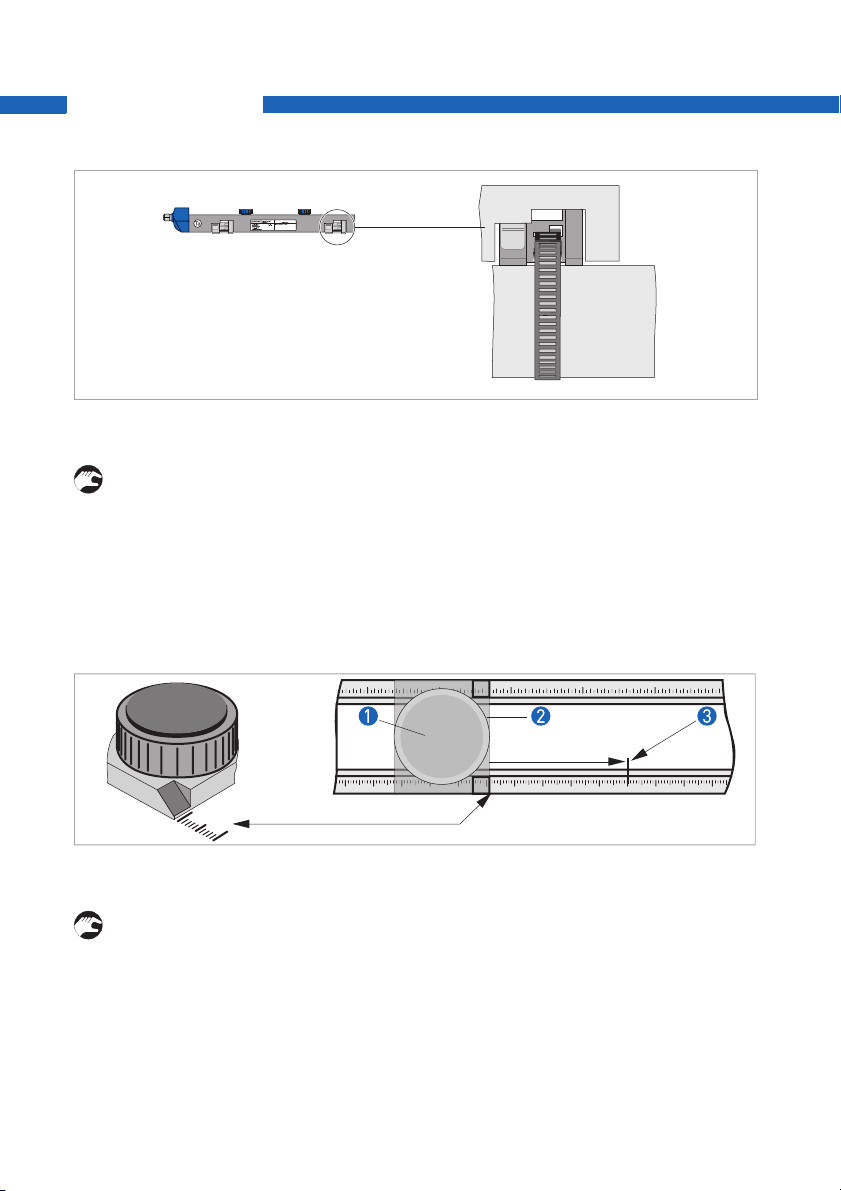

Change the position of the transducer
Change the position of the transducerChange the position of the transducer
Change the position of the transducer
•Unlock the floating transducer 2by turning the locking knob 1counter
clockwise.
•Slide the transducer 2to the advised mounting distance 3(menu X9.4).
6
OPTISONIC 6300
www.krohne.com 9
•Lock the transducer by turning the locking knob 1clockwise.
Greasing the transducer surfaces
Greasing the transducer surfacesGreasing the transducer surfaces
Greasing the transducer surfaces
OPTISONIC 6300
7.30959.22.0010
Mounting the cover
Mounting the coverMounting the cover
Mounting the cover
