Dear KYMCO Motorcycle Users:
Before the delivery of each new motorcycle, the fuel in carburetor is
drained off to ensure the excellent performance and safety of the
motorcycle. Therefore, when first starting a new motorcycle, it is
normal to take 20～30 seconds. The quality of each KYMCO
motorcycle is guaranteed.
Dear Users:
We greatly appreciate your patronage of KYMCO ZX 50
This User‘s Manual describes the correct operating methods, inspection and
maintenance procedures for the KYMCO ZX 50 in details in order to prolong
the service life of motorcycle and provide you with a comfortable riding.
Please note that the information and illustrations included in this manual may be
different from the motorcycle in case specifications are changed.
To enable you to have a safe and comfortable riding, we recommend you to read
this manual carefully and wish you a happy riding.
Note: 1. The information and specifications stated in this manual are for reference only
and subject to change without notice.
2. When starting the engine, the battery must be installed to facilitate starting
and increase the engine performance.
TABLE OF CONTENTS
1. PRECAUTIONS FORA SAFE RIDING................................................................. 1
2. ASSEMBLY PARTS................................................................................................... 3
3. OPERATION INSTRUCTIONS............................................................................... 5
4. PRE-RIDE INSPECTION....................................................................................... 10
5. ENGINE STARTING METHODS ......................................................................... 18
6. NORMAL RIDING METHOD............................................................................... 21
7. PRECAUTIONS FOR RIDING............................................................................. 23
8. HOW TO STOP RIDING........................................................................................ 26
9. EASY MAINTENANCE.......................................................................................... 28
10. IMPORTANT NOTICES ........................................................................................ 35
-1-
1. PRECAUTIONS FOR A SAFE RIDING

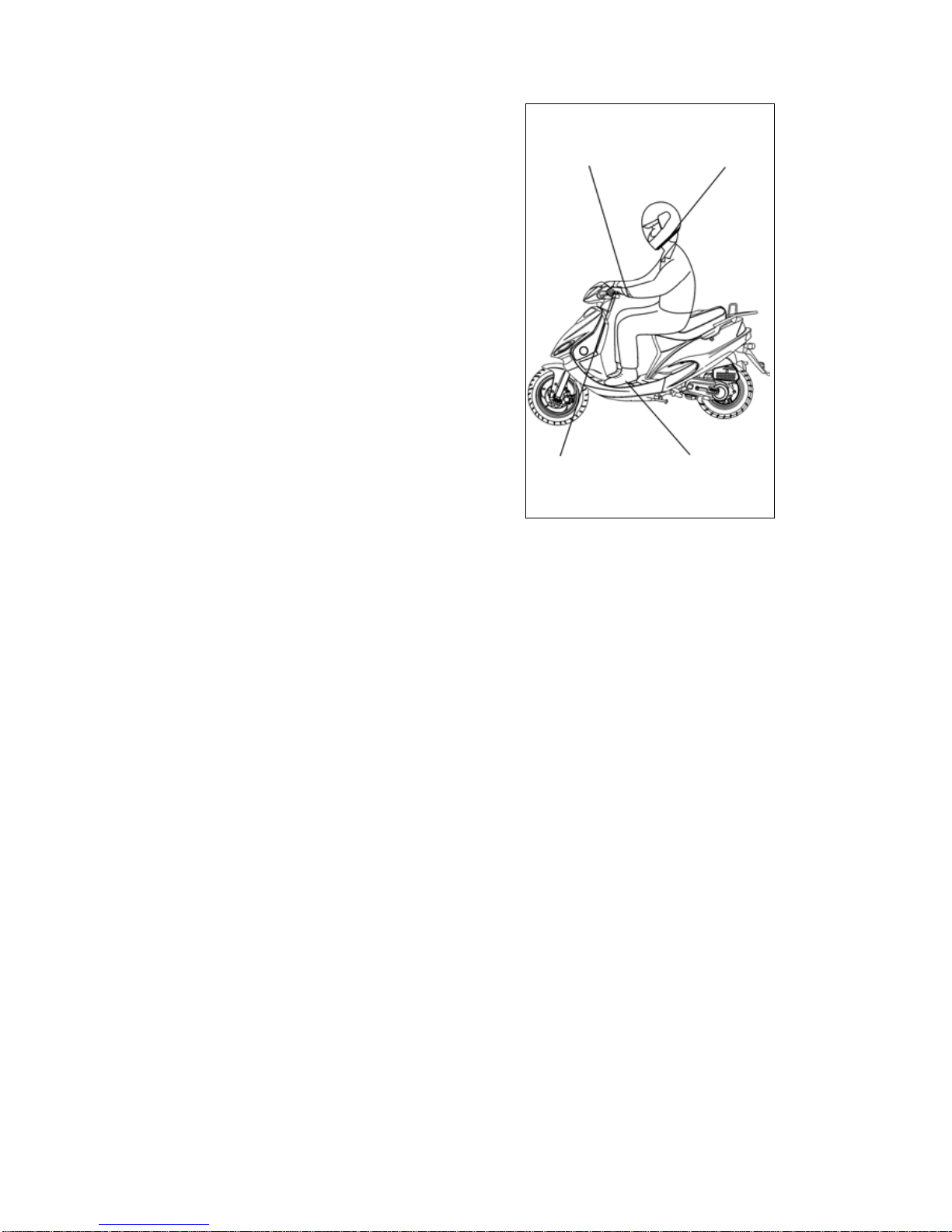

(1) CLOTHES
yTo relax and wear comfortable clothes are the
main points for a safe riding.
yTo observe traffic laws, keep a cool mind, relax
and be careful will provide you a safe riding.
cWear helmet and fasten it tightly.
dHave the clothes well-arranged. Fasten shirt
cuffs and keep them from hooking the brake
lever.
eWear low-heeled shoes for a safe riding.
fWhen riding, use both hands to grasp the
handlebar. It is very dangerous to hold the
handlebar with one hand.
nCAUTION:
yA motorcycle rider should not wear loose or too
long clothes to avoid danger.
yDuring riding or 10 minutes after the motorcycle
is stopped, do not touch the exhaust muffler to
avoid scalding.
yWhen parking the motorcycle, keep it away from
dry lawn or inflammables to avoid danger.
c
d
fe
-2-
(2) RIDING METHOD
yThe safety of two-wheel vehicles is influenced by
sitting position. The rider should sit on the central
part of the seat cushion. If the rider sits on the
rear part of the seat, the load of front wheel will
decrease. As a result, the handlebar will swing
and cause danger to the rider.
yWhen making a turn, it will be easier for the rider
to steer the motorcycle by leaning the body inward
slightly. The motorcycle will lose its balance if the
rider fails to keep his body leaning inward.
yWhen riding on a damaged or macadam road.
Slow down the speed and hold the handlebar
tightly.

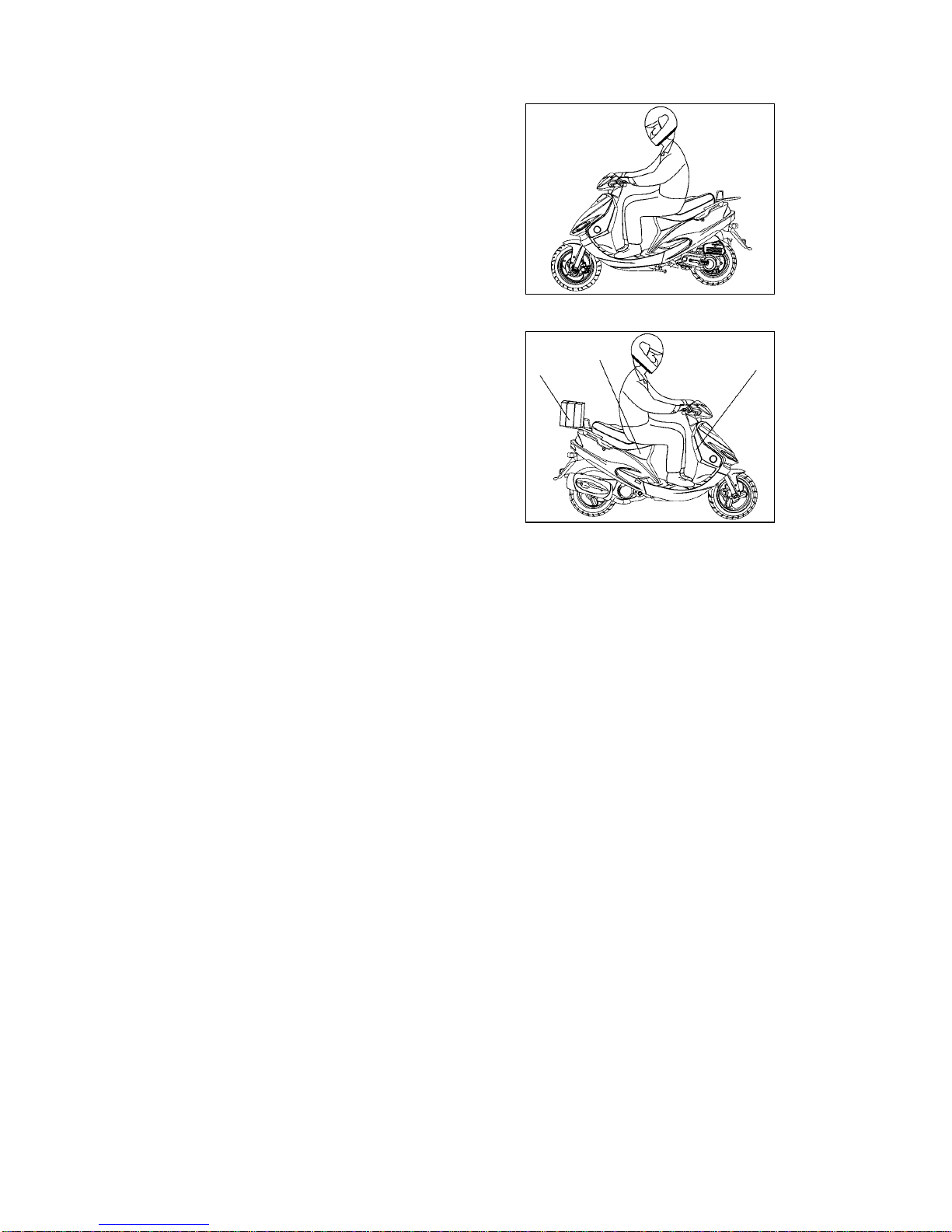

(3) CARRYING GOODS
yKeep a good sitting posture to operate the
motorcycle properly.
yThe feel of the handlebar will be different when
carrying goods on the motorcycle. Overloading
may cause the handlebar to swing. Avoid riding
with overload.
cMax. loading capacity of the met-in box is 10kg.
dMax. loading capacity of the front tool box is
1.5kg.
eMax. loading capacity of the rear carrier is 5kg.
cd
e
-3-

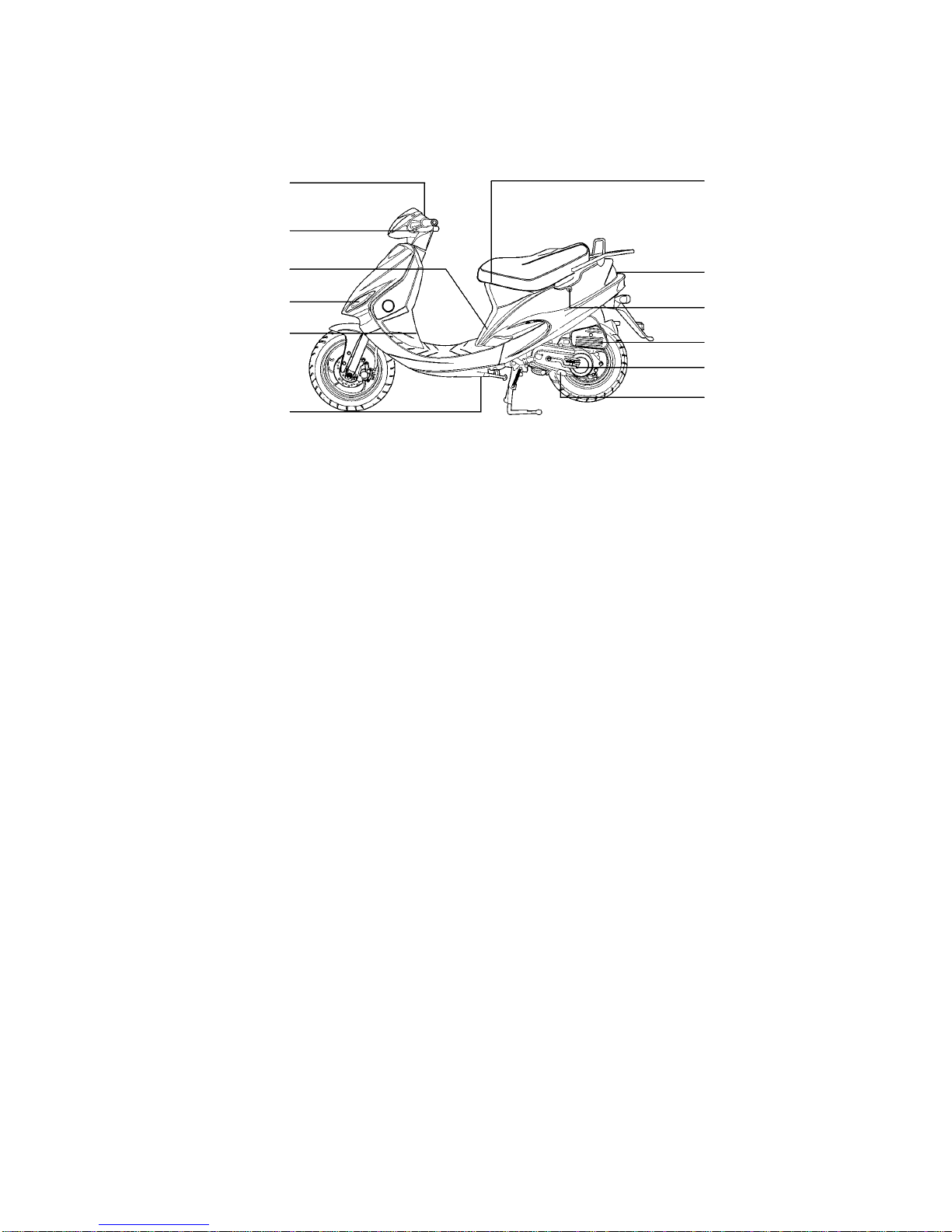

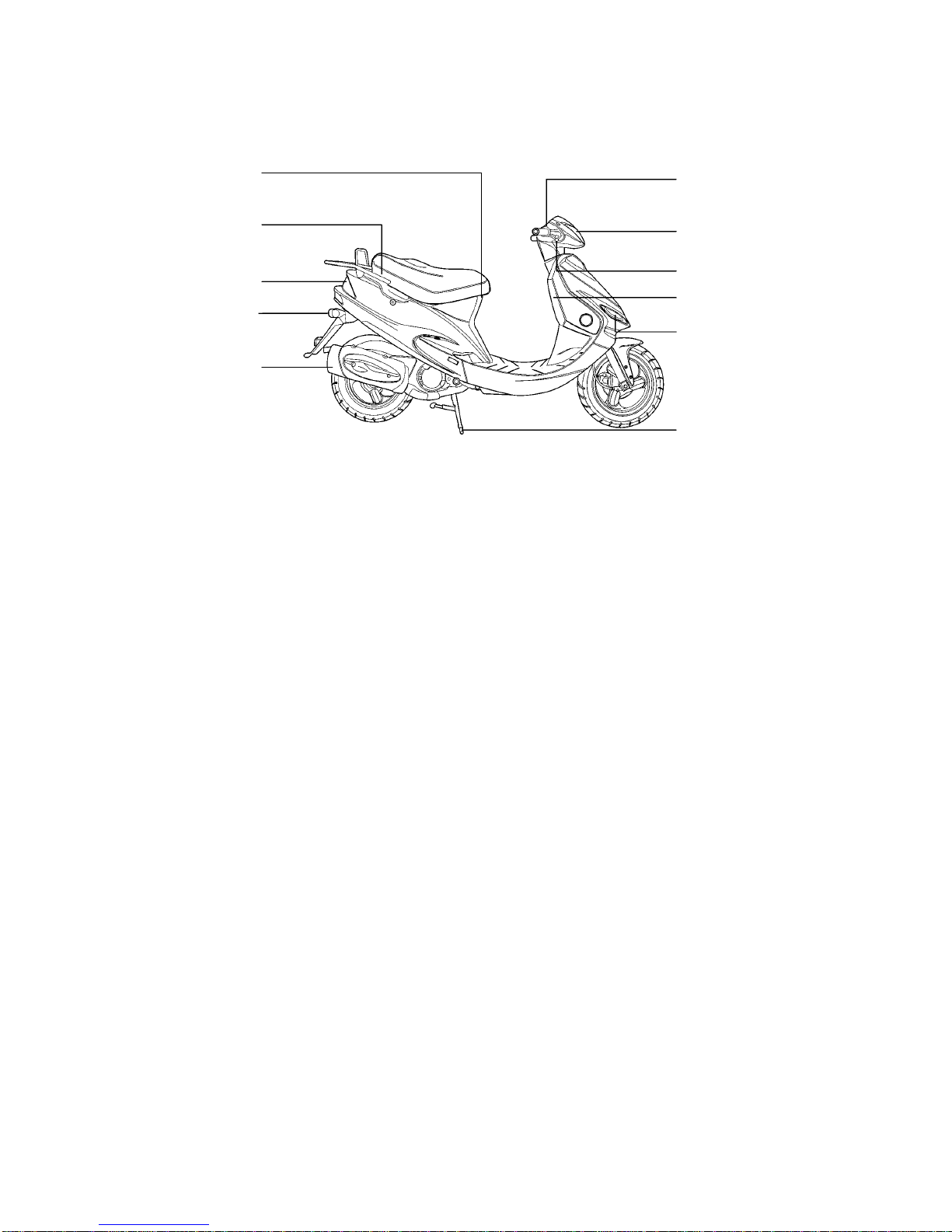

2. ASSEMBLY PARTS
Engine
Serial No.
Helmet Buckle
Seat Lock
Taillight
/
Stoplight
Air Cleane
r
Kick Leve
r
Battery
L. Front Turn
Signal Light
Rear Brake Leve
r
Passing Signal
Switch
Turn Signal Switch
Headlight Dimmer
Switch
Frame Serial No.
VIN (Vehicle
Identification No.)
-4-
Starter Button
Met-in Box
Fuel Fille
r
Exhaus
t
Muffler
Main Stand
Front Tool Box
Taillight
/
Stoplight
Headligh
t
Front Brake Leve
r
Headlight Switch
R. Front Turn
Signal Light
R. Rear Turn
Signal Light
-5-
3. OPERATION INSTRUCTIONS

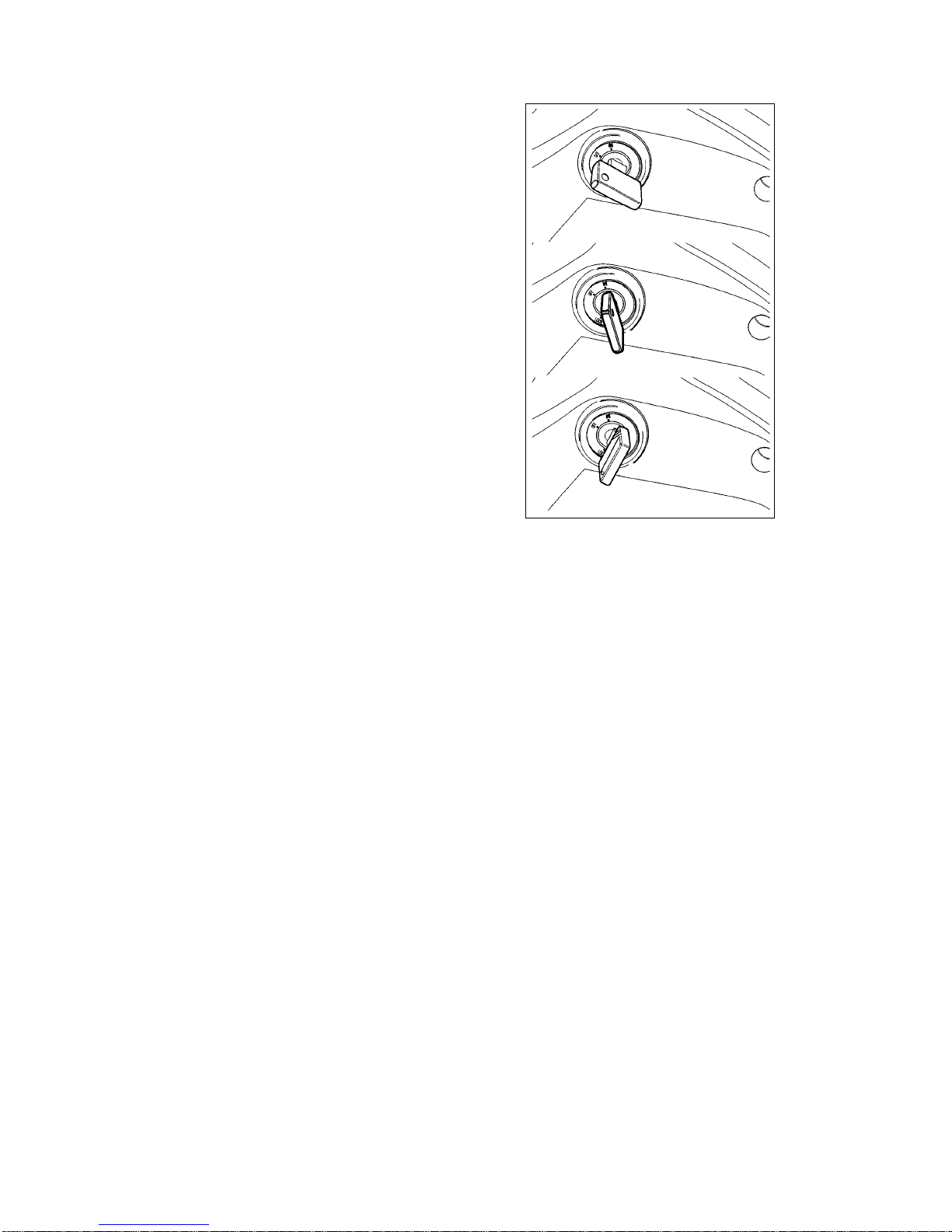

(1) IGNITION SWITCH/STEERING
HANDLEBAR LOCK
cOFF :At this position, power is cut off and the
engine stops. The key can be taken out.
dON :At this position, power is connected to
start the engine. The key cannot be
taken out.
eLOCK :At this position, the steering handlebar
is locked. The key can be taken out
《Locking Method》
Turn the steering handlebar left to the full and then
press to turn the ignition switch key to “LOCK”
position and the handlebar is locked.
《Unlocking Method》
Turn the key to “OFF” and the lock is released
automatically.
nCAUTION:
yAfter locking, turn the handlebar gently to make
sure that it is locked.
yDo not turn the ignition switch to “LOCK”
during riding, or the handlebar will be out of
control and cause accidents.
yDon‘t park your motorcycle at a place to hinder
the traffic.
c
d
e
-6-
(2) STARTER BUTTON
yTo start the engine, first turn on the ignition
switch and then press the starter button. At this
time, be sure to fully apply the front or rear brake
lever (pedal) in order to connect the power.
nCAUTION:
yDuring engine running, do not push the starter
button to avoid engine damage.
yTurn the headlight switch and turn signal switch
“OFF” before using the starter button.
yRelease the starter button immediately after the
engine is started.

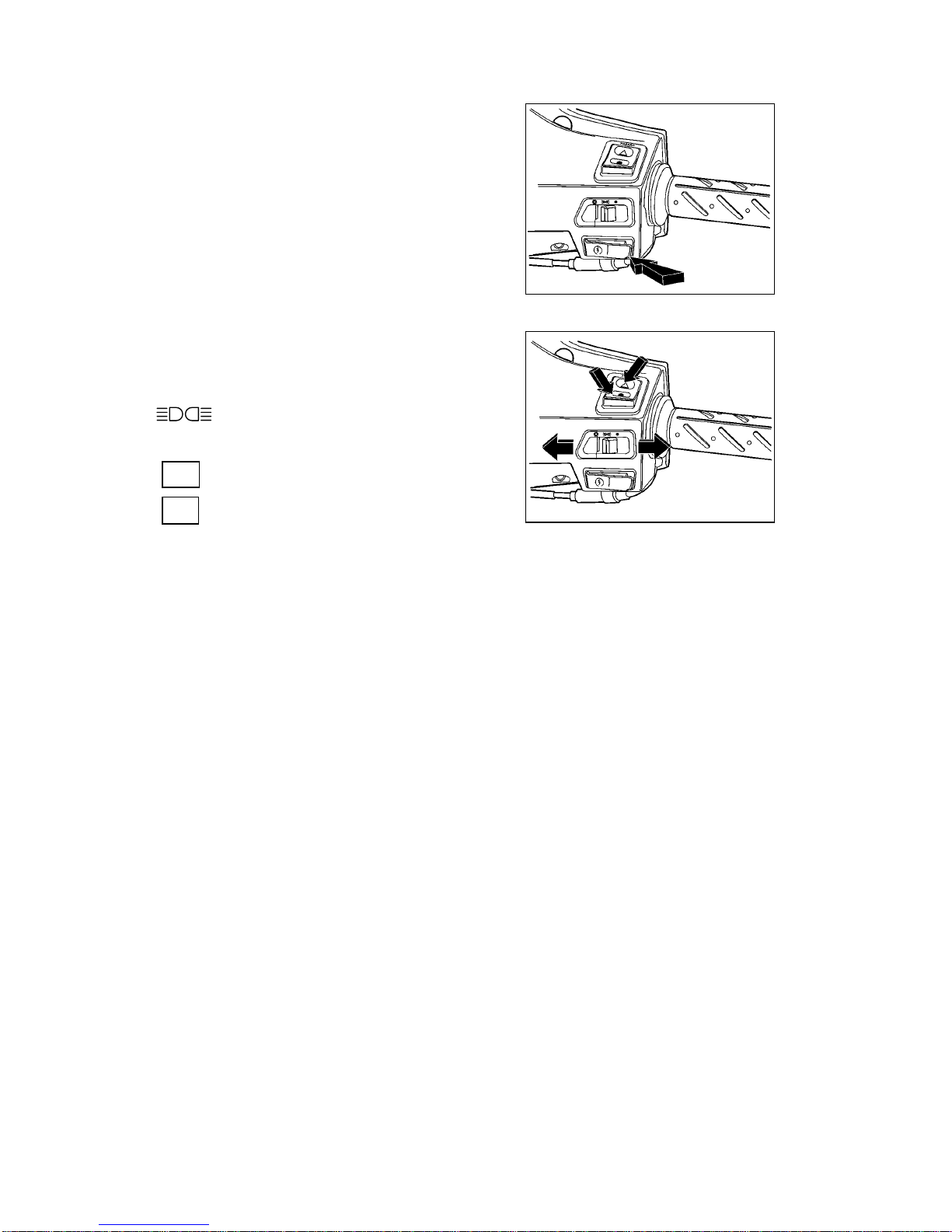

(3) HEADLIGHT SWITCH/ HAZARD SWITCH
zAt this position, the position light,
headlight, instrument lights and taillight go
out together.
At this position, the position light, instrument
lights and taillight light together.
At this position, the position light, headlight,
instrument lights and taillight light together.
At this position, the front and rear right and
left turn signal lights wink together.
At this position, the front and rear right and
left turn signal lights go out together.
▲
●
-7-

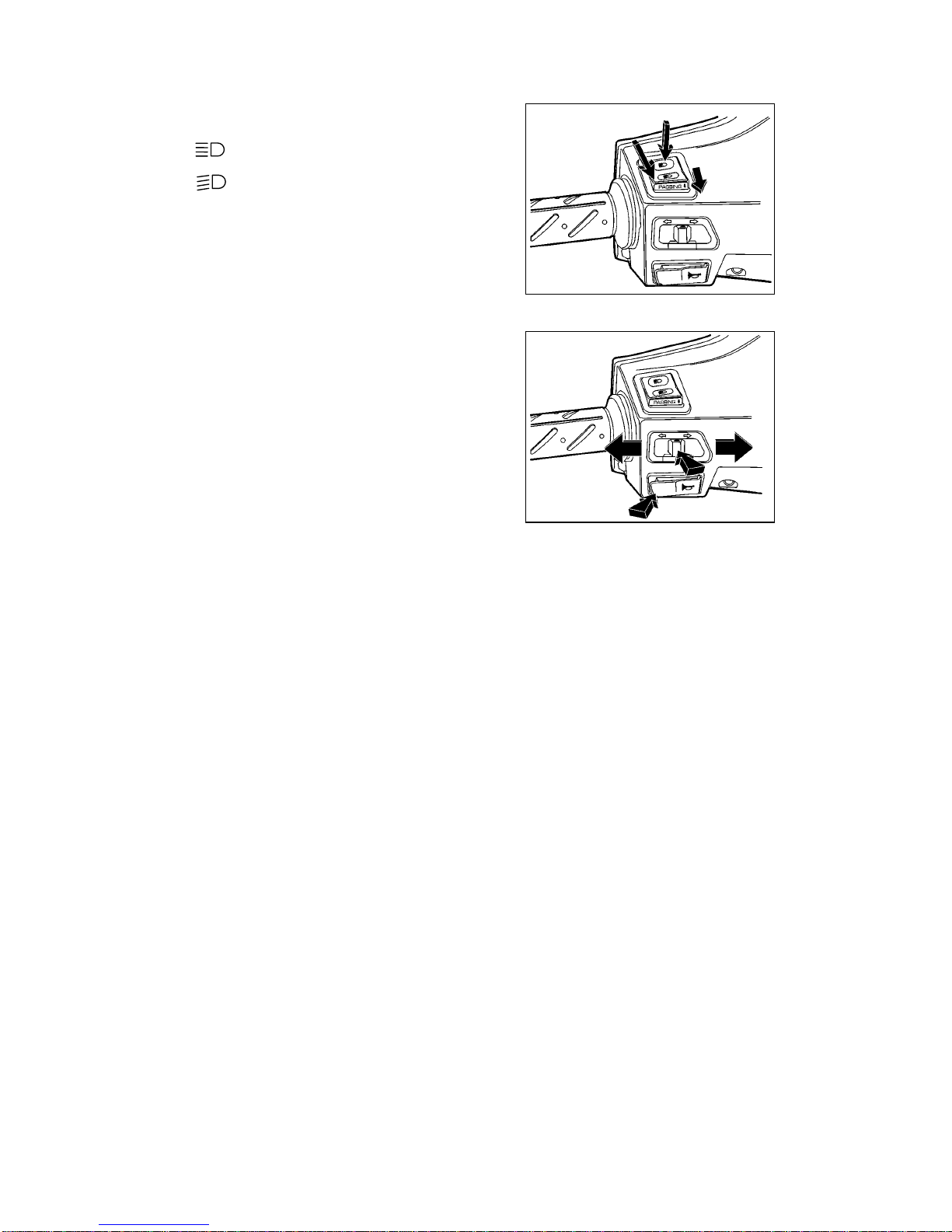

(4) HEADLIGHT DIMMER SWITCH/
PASSING SIGNAL SWITCH
cSwitch to this position for using high
beam.
dWhen riding in downtown area or there is
a car coming from the opposite direction,
use low beam to avoid affecting the
visibility of coming cars.
ePASSING When passing, continuously press and
release the dimmer switch at the
PASSING position and the headlight
will wink to warn the coming cars.
(5) HORN BUTTON/TURN SIGNALSWITCH
yWhen the ignition switch is turned “ON”, press
the horn button and the horn will sound. cÖFor
turning to the right dÕFor turning to the left
ePush the turn signal switch button to release it.
fHorn Button
yThe horn and turn signal switch do not work
when the ignition switch is “OFF”.
nCAUTION:
yThe turn signal light will not release
automatically. Be sure to reset it after use;
otherwise it may affect the traffic safety.
c
de
f
c
d
e
