EXP-EMG-EXT-LE6-3L

Explosion Proof Bug Eye Emergency LED

Exit Fixture Instruction Manual

Congratulations on the purchase of your new Explosion Proof Bug

Eye Emergency LED Exit Fixture. Please read these instructions

carefully to familiarize yourself with the safe operation and

maintenance of your new emergency fixture. Following these

instructions will insure many years of safe and dependable service.

Table of Contents

Installation & Operation 2

I.I

Installation 2

II. Trouble-Shooting & Maintenance 3

II.I

Trouble Shooting 3

II.II

Maintenance

III.

Safety Warnings & Ratings 4

III.I

Warnings

III.II

Ratings 4

**Please visit our website for all warranty/return related questions.

II Operation

Return to Table of Contents

I. Installation & Operation

NOTE: The EXP-EMG-EXT-LE6-3L is designed to be surface mounted to flat surfaces such

as walls.

Installation

Mounting for this fixture is achieved via

mounting tabs located on the back side

of the light.

The EXP-EMG-2L-LE6 explosion proof

emergency self-testing LED fixture is NOT

a factory sealed fixture. Operators will bring

their own rigid conduit to a junction box and

complete their connects. Cap off any hubs

that are not in use.

Both battery legs must be connected

together. This prevents the battery from

draining during storage and transit. DO

NOT CONNECT HIGH VOLTAGE TO

BATTERYLEGS.

II.

Operation

ApplyAC power to the light. The LED

indicator will turn RED.

See wires labeled for connections.

Use appropriate methods for wiring

within hazardous areas following all

appropriate NEC codes. Consult an

electrician if unsure.

In the event of power loss, the fixture

will illuminate all lights automatically.

Once power is restored, the lights

will turn off and the batteries will

charge.

Mounting Tabs

Return to Table of Contents

II. Trouble-Shooting and Maintenance

CAUTION: Always turn AC power to the equipment OFF before servicing. Servicing should be

performed only by a qualified service technician.

Trouble-Shooting

Problem:Emergencylightsdonot operate.

If the charge indicator light is OFF, check

that the circuit breaker for AC supply is ON.

If the charge indicator light is OFF, check

that they battery is properly connected. If the

problem persists, replace the battery.

Problem: Emergency lights are dim.

The battery might not be fully charged.Allow

battery to recharge for 24 hours and then

retest. If the lights are still dim, replace the

battery.

II.

Maintenance

1. Battery: The battery supplied in the fixture

requires no maintenance. However, it should

be tested periodically and replaced when it

no longer operates the connected fixtures

for the duration of a 30-second or 90-minute

test.

2. Other: Clean lenses and replace lamps as

and when required.

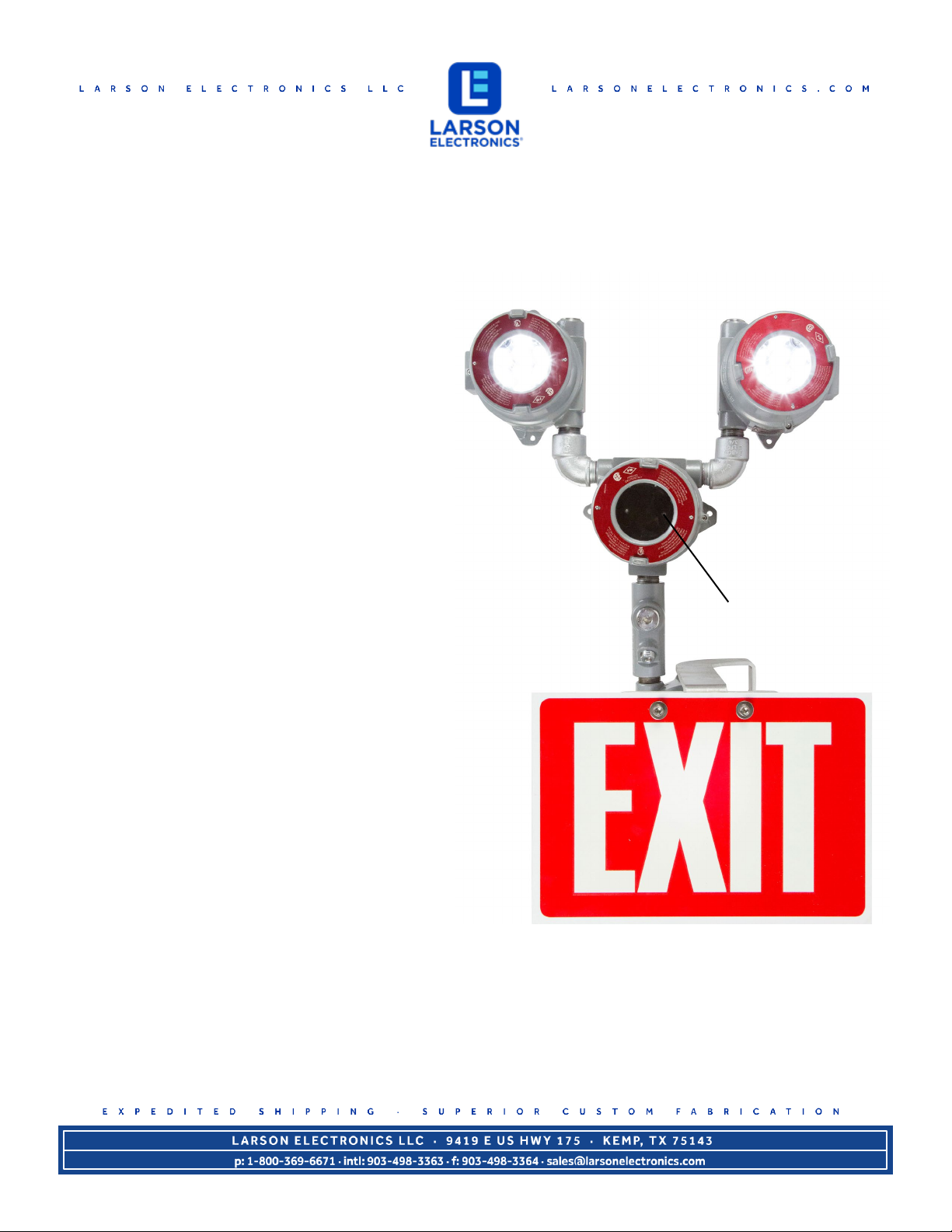

Charger/Battery

Fault LED

Return to Table of Contents

II I. Safety Warnings and Ratings

Warnings

WARNING: Risk of electric shock -never

connect to, disconnect from or service while

equipment is energized.

WARNING: Risk of fire -Lamps are hot.

Keep combustible material away from the

hot parts. Observe lamp manufacturer’s

warnings, recommendations and restrictions

on lamp operation and maintenance. Make

sure lamps are correctly installed.

The battery in this emergency fixture may

not be fully charged. After electricity is

connected, let the battery charge for at least

24 hours.

Consult local building code for approved

wiring and installation.

Disconnect AC power before servicing and

installation.

DO NOT use this electrical equipment for

anything other than its intended use.

The use of accessory equipment is not

recommended by the manufacturer and will

void product listing and warranty and may

cause unsafe conditions.

Any service on this equipment should be

performed by qualified personnel only.

Cap unused wires with enclosed wire nuts or

other approved method.

Make sure wire terminations are secure and

leads are properly tucked in appropriate wire

channels.

II.

Ratings/Approvals

Class I, Divisions 1 & 2 GroupsA, B, C, D

Class I, Zones 1 & 2 Groups IIB + H2

Class II, Divisions 1 & 2 Groups E, F, G

Class III, Divisions 1 & 2

90 Minute Emergency Runtime

24 Hour Battery Recharge Time

Self-Testing Unit

Horizontal and Vertical Adjustable
