LEDB-4-IR

Larson Electronics, LLC Phone: Fax: (903) 498-3364 www.larsonelectronics.com

1of 3

Infared LED Beacon

Permanent Mount - 50,000 Life Hours - 12-32VDC - Deutsch 2 Pin

Connector

Instruction Manual

(877) 348-9680

Thank you for your purchase of the Larson Electronics LEDB-4-IR.

WARNING:

READ CAREFULLY BEFORE INSTALLING FIXTURE. RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE.

CRITICAL SAFETY INSTRUCTIONS:

•INSTALLATION SHOULD ONLY BECONDUCTED BY A QUALIFIED ELECTRICIAN IN ACCORDANCE WITH NEC AND ANY

RELEVANT LOCAL BUILDING CODES.

•RISK OFFIRE OR ELECTRIC SHOCK. FIXTURE INSTALLATION REQUIRES KNOWLEDGE OF FIXTURE'S ELECTRICAL

SYSTEMS. IFNOTQUALIFIED, CONTACT A QUALIFIED ELECTRICIAN.

•BE CERTAIN ELECTRICAL POWER IS OFF BEFORE AND DURING INSTALLATION AND MAINTENANCE.

•MAKE SURE THE SUPPLY VOLTAGE IS THE SAME AS THE FIXTURE'S RATED VOLTAGE.

•TO PREVENT WIRING DAMAGE OR ABRASION, DO NOT EXPOSE WIRING TO EDGES OF SHEET METAL OR SHARP

OBJECTS. SUITABLE FOR DAMP LOCATIONS.

IMPORTANT

READ CAREFULLY BEFORE INSTALLING THIS FIXTURE. SAVE THESE INSTRUCTIONS FOR FUTURE

REFERENCE. THE LEDB-4-IR MUST BE WIRED IN ACCORDANCE WITH NATIONAL ELECTRICAL CODE AND ALL

APPLICABLE LOCAL CODES. PROPER GROUNDING IS REQUIRED FOR SAFETY.

WE STRONGLY ENCOURAGE ONLY A LICENSED ELECTRICIAN INSTALL, OPERATE AND MAINTAIN THIS

PRODUCT. IF YOU ARE NOT QUALIFIED OR UNFAMILIAR WITH ANY ASPECT OF THIS INSTRUCTION SHEET,

CONSULT AN ELECTRICIAN. THERE ARE NO SERVICEABLE PARTS INSIDE.

WARNING: MAKE SURE POWER IS TURNED OFF BEFORE STARTING THE

INSTALLATION OR PERFORMING ANY MAINTENANCE.

RISK OF FIRE/ELECTRIC SHOCK –DISCONNECT POWER AT BREAKER BEFORE INSTALLING OR SERVICING.

RISK OF PERSONAL INJURY –FIXTURE MAY BECOME UNSTABLE OR DAMAGED IF NOT INSTALLED PROPERLY.

RISK OF BURN –ALLOW FIXTURE TO COOL BEFORE SERVICING.

WARNING:

USER SHOULD BE TRAINED IN THE PROPER USE AND MAINTENANCE OF THIS DEVICE. THIS LINE

CORD IS INTENDED TO ALLOW OPERATORS TO EXTEND POWER TO EQUIPMENT WHEN STATIONARY OUTLETS ARE NOT

READILY AVAILABLE.

IMPROPER USE OF THIS CORD, PLUG, AND RECEPTACLE CAN LEAD TO SERIOUS INJURIES OR DEATH TO

PERSONNEL.

PERIODIC INSPECTION OF THE CORD IS NECESSARY.

THE CORD MUST BE ROUTINELY CHECKED FOR CUTS, BREAKS, OR ANY SEVERE ABRASIONS, AND IF ANY ARE FOUND,

THE CORD MUST BE REPLACED BEFORE RESUMING USE.

Infrared Warning

INFRARED LIGHT MAY CAUSE DAMAGE TO EYES IN VERY INTENSE CONCENTRATIONS.

RISK OFEYE DAMAGE AT SHORT DISTANCES. TURN LIGHT SOURCE OFF BEFORE SERVICING.

LEDB-4-IR

Larson Electronics, LLC Phone: Fax: (903) 498-3364 www.larsonelectronics.com

2of 3

Prevent Electrical Shock: Carefully Read All Warnings and Instructions First. Check that the

unit has not been damaged during transport.

WARNING: Consult a qualified electrical professional/electrician to install this device in accordance with

appropriate local and NEC codes and regulations.

WARNING: Do not connect line voltage wires to low voltage terminals!

WARNING: Device is suitable for installation in wet locations; GFCI protection recommended.

WARNING: Although fixture is waterproof, it is NOT designed or intended to be submerged.

WARNING: Do not allow line voltage wires to become submerged!

WARNING: Edges may be sharp, handle with care.

WARNING: If unsure about any part of these instructions, consult a qualified electrical professional.

•All outdoor installations and indoor installations near a wet location require the use of a GFCI device for safety,

according to the National Electrical Code® (NEC).

•If dropped or damaged, the unit may no longer be waterproof and should be replaced.

•To avoid hazards to children, account for all parts and destroy packing materials.

(877) 348-9680

The LEDB-4-IR from Larson Electronics is a Permanent Mount Infrared LED Beacon that works on 12-32 volts DC. This

LED Beacon offers a choice of colors and is designed to provide a high power signal with a full 360 degrees of visibility.

WIRING

We strongly encourage a licensed electrician install this product,in all locations especially in outdoor areas

where weatherproofing may be required. Universal voltage driver permits operation at 12-32V DC.

Low Voltage DC

Connect power to power supply outputting low voltage between 12-32Volts DC. This variable voltage allows greater

versatility without affecting light output. Ensure deutsch connectors are properly connected (If applicable)

1. Mount the beacon in your desired location. The unit mounts via 3 screw holes located on the base and

includes a gasket for secure placement.

2. Attach power cord via deutsch 2-pin connector.

3. Connect power cord to power source outputting correct voltage, 12-32V DC.

4. The LED beacon will illuminate once power is supplied. If not, double check all connections.

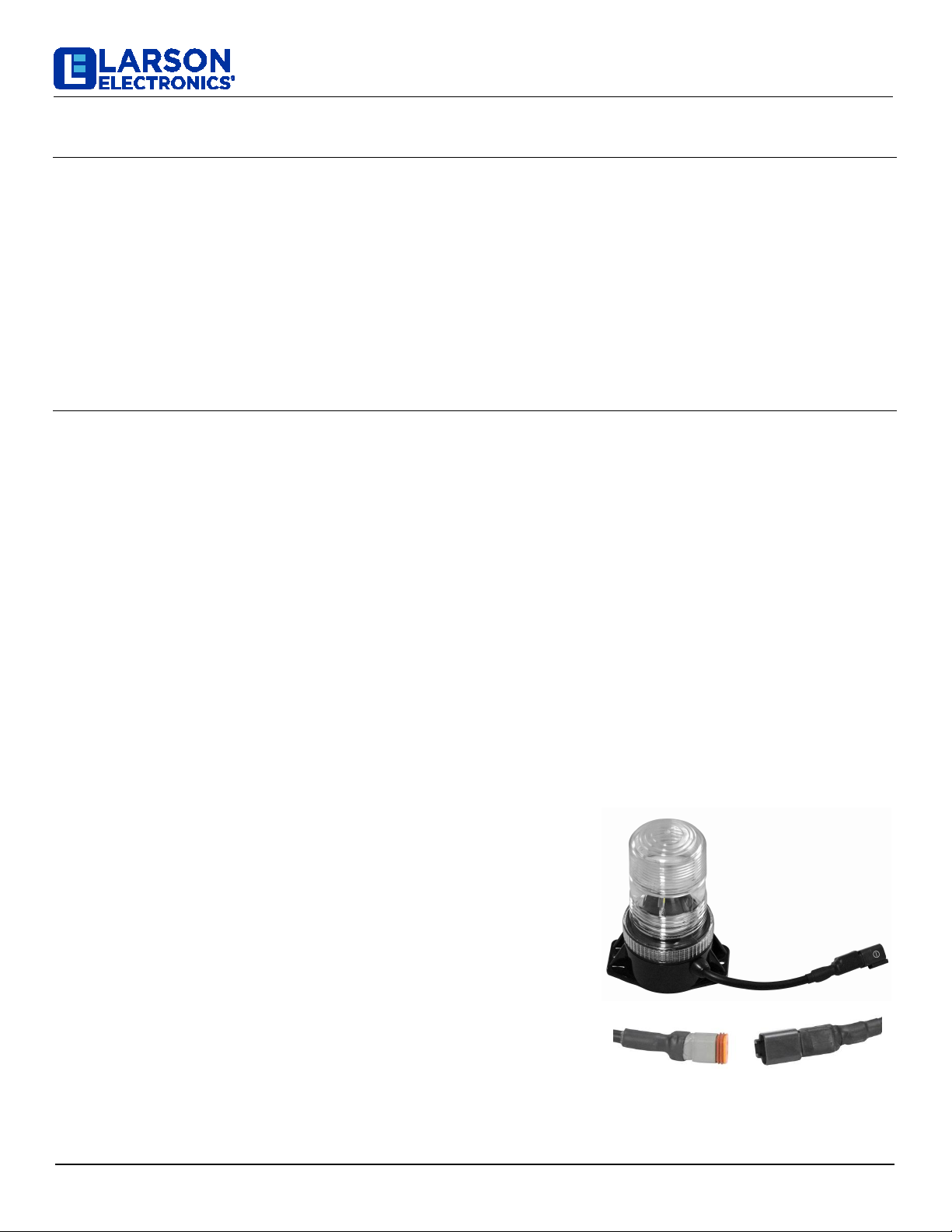

DEUTSCH CONNECTORS

Installation

DETACHABLE CORDS

•Power cordis attached via a weatherproof 2-pinDeutsch connector.

•The cords are detachable by depressing the tab on the top of the

connectors. Thisenables the operator to leave the cordconnected to

the power source and remove to store the light.

•Cords canbe ordered from our website. We offer16 foot coilcords

with a cigarette plug (C-16-CC-CP),21 foot cords with ring terminals

(C-21- RT), 16 foot cords with battery clamps (C-16-BC), 16 foot

straight cords with cigarette plugs (C-16 CP), and 16’cords with

flying leads. Power transformers (DCP-11-DP) can be purchased

through our website to run this LED light from household wall outlets.

LEDB-4-IR

Larson Electronics, LLC Phone: Fax: (903) 498-3364 www.larsonelectronics.com

3 of 3

(877) 348-9680

MAINTENANCE

There are no serviceable parts inside the fixture. However, it is good practice to routinely clean and check the

fixture for proper function.

•Disconnect power running to the lamp and be sure the fixture is cool to the touch.

•Use a non-abrasive glass cleaning solution to clean the lens.

Note: It is not necessary to open the fixture and clean or touch the LED’s.

USE AND CARE

Unauthorized modification may impair the function and/or safety of this device and could affect the life of the equipment.

Always check for damaged or worn out parts before using the device. Store it in a secure place out of the reach of

children when not in use.Inspect for good working condition prior to storage and before re-use.

REPLACEMENT PARTS

The LEDB-4-IR is designed to provide years of reliable performance. Should the need for replacement parts arise,

please contact Larson Electronics.

THESE INSTRUCTIONS MAY NOT COVER ALL DETAILS OR VARIATIONS OF THIS PRODUCT FOR YOUR EQUIPMENT OR INSTALLATION REQUIREMENTS.

SHOULD FURTHER INFORMATION NOT COVERED BY THESE INSTRUCTIONS BE REQUIRED, PLEASE CONTACT LARSON ELECTRONICS BY EMAIL AT

SAL[email protected] OR BY PHONE AT 1-877-348-9680 FOR FURTHER ASSISTANCE.

PLEASE VISIT LARSONELECTRONICS.COM FOR WARRANTY AND RETURN INFORMATION.
