LEGRAND Neat PIR II Bedienungsanleitung

NE41 19003-00 v1.2

User manual

Användarmanual

Benutzerhandbuch

Manual de usuario

PIR II

2 PIR II User manual - NE41 19003-00 v1.2

Document number: NE41 19003-00 v1.2

Revision date: 2019-11-12

NEAT Electronics AB

Varuvägen 2

SE-246 42 Löddeköpinge

Sweden

Phone: +46 (046) 707065

Fax: +46 (046) 707087

www.neat-group.com

infosweden@neat-group.com

Declaration of Conformity

Hereby NEAT Group declares that the radio

equipment PIR II is in compliance with

Directive 2014/53/EU. The full text of the EU

declaration of conformity is available at the

following internet address:

www.neat-group.com/downloads/docu-

mentation

Information in this user manual is subject to change without notice.

NEAT Electronics AB reserves the right to change or improve their products and to make

changes to the content without obligation to notify any person or organization of such changes

or improvements.

NEAT Electronics AB is not responsible for any loss of data, income or any consequential

damage whatsoever caused.

For more information, details and descriptions, visit our web site:

www.neat-group.com

English

3PIR II User manual - NE41 19003-00 v1.2

1 Important

1.1 Safety notes

• Read instructions prior to use.

• Always test the system per instructions prior to use.

• The product may not be suitable for all persons.

• Check device regularly and replace when necessary.

• The PIR II is not intended as a life supporting device.

1.2 Use

• Use only original parts.

• Do not expose to direct sunlight.

• Keep away from dust, moist and dirt.

• Do not drop, knock, twist or shake the device.

• Do not warm up the device or use it near re.

• The PIR II may not be painted.

• For repairs, contact a NEAT dealer.

1.3 Cleaning

• Clean the device with a so cloth, dampened slightly

with mild soapy water.

• Do not clean the device with harsh chemicals, solvents

or other corrosive substances.

1.4 Recycling

• Dispose of properly. The worn out product must be retur-

ned to a recycling facility for proper disposal or returned

to NEAT.

4 PIR II User manual - NE41 19003-00 v1.2

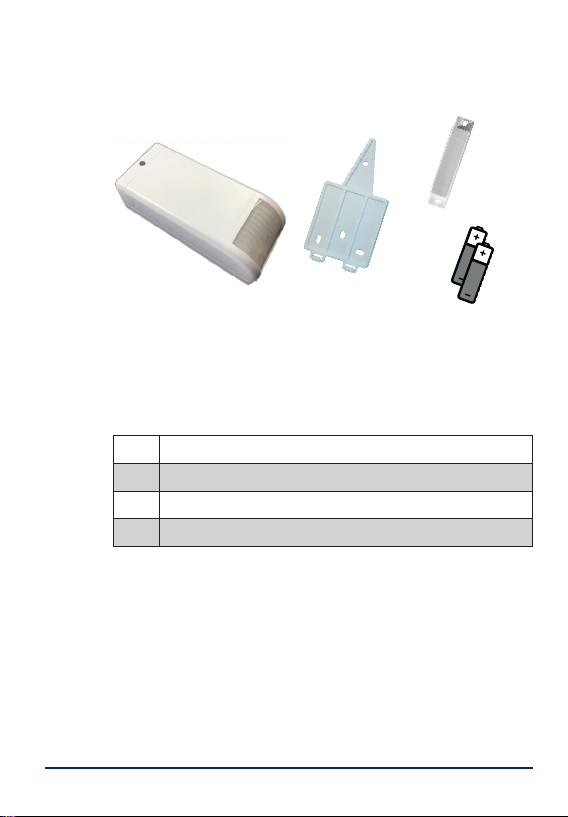

2 Kit content

# Denomination

1 PIR II unit

2 Mounting bracket

3 Door magnet

4 AA (LR6) battery x 2

The list below shows the parts included in the pack-

age. If any part is missing or is defect, please contact

your reseller or distributor.

① ②

③

④

5PIR II User manual - NE41 19003-00 v1.2

3 Intended use

The PIR II infrared motion sensor monitors move-

ments. A movement results in an alarm being sent to

the care personnel.

The motion sensor may also be used to send an

inactivity alarm when it has not detected any motion

during a programmable period of time.

The PIR II can also be used as a door alarm with

out-passage detection (Intelligent Door Alarm).

PIR II is compatible with all radio-equipped

NEAT products.

4 Hardware overview

4.1 Cover

Picture 1. PIR II cover.

# Type/Function

1 Operation LED (D2)

2 IR detector (under lens)

3 Detection LED (D1) (under lens)

Table 1. PIR II cover denominations.

6 PIR II User manual - NE41 19003-00 v1.2

4.2 PCB

Open the cover by sliding the top cover downwards

from the Operation LED.

+ -

Picture 2. PIR II PCB overview.

# Type/Function

1 On button (S6)

2 Operation LED (D2)

3 O button (S5)

4 Function switch (S1)

5 DIP switches 1-8 (for conguration) (S4)

6 REED switch (magnetic switch) (S3)

7 REED switch (magnetic switch) (S2)

8 Battery holders (LR06, 1.5VDC) x 2

9 Detection LED (D1)

10 PIR sensor (D6)

Table 2. PIR II PCB items denominations.

7PIR II User manual - NE41 19003-00 v1.2

4.2.1 On/O buttons

The On/O buttons are located on the top of the unit.

ON OFF

Picture 3. PIR II ON/OFF buttons.

The batteries must be removed in order to completely

turn o the unit.

4.2.2 REED switches

The REED switches (S2 and S3) are magnetic swit-

ches that make it possible to use the PIR II as a DOOR

alarm together with the accompanying door magnet,

see „6 IDA (Intelligent Door Alarm)“.

There are two small lines on each side of the PIR II

cover to indicate where the REED switches are loca-

ted.

Picture 4. Side view of PIR II.

4.2.3 Function switch

The function switch (S1) is used for pairing with other

radio units, e.g. a NOVO. See „7 Pairing“.

8 PIR II User manual - NE41 19003-00 v1.2

4.2.4 DIP Switches

The DIP switches are used for basic unit conguraton

out-of-the-box.

More advanced conguration is possible with a pro-

grammer soware and this is further elaborated in

the PIR II Technical Handbook - NE41 19005-02.

For an overview of the DIP-switch functions, see „13

DIP switch settings“.

4.2.5 LEDs

Operation LED (D2)

The operation LED (D2) indicates when alarms are

sent, e.g. a user alarm. Technical alarms (e.g. Battery

low or Radio Test Alarms) are not indicated by the

operation LED (D2).

The operation LED also visually indicates when the

unit starts up and is in Walk Test mode.

Detection LED (D1)

The Detection LED (D1) indicates if the PIR sensor has

detected any movement.

9PIR II User manual - NE41 19003-00 v1.2

4.3 IR detector sensor

4.3.1 Vertical detection area

1 m 2 m 3 m 4 m 5 m 6 m 7 m

2 m

Picture 5. Approximate detection area mounted on a wall.

Typically the PIR II is mounted on a wall and at a

height of approx 2 meters. The detection range is

then approx 4 meters out.

The unit can also be placed on a horizontal surface,

e.g on the floor beside or under a bed.

1 m 2 m 3 m 4 m

1 m

2 m

3 m

Picture 6. Approximate detection area when placed horizon-

tally.

10 PIR II User manual - NE41 19003-00 v1.2

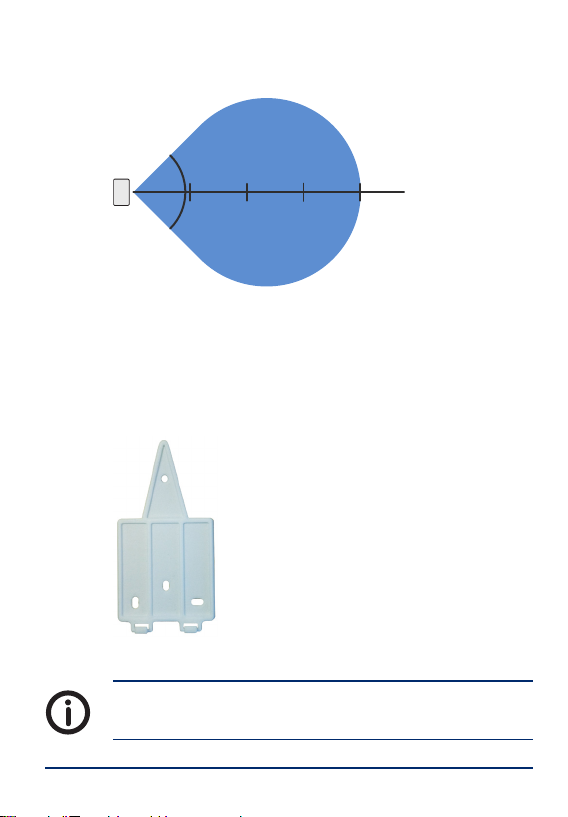

4.3.2 Horizontal detection area

1 m 2 m 3 m 4 m

5 m 6 m 7 m

- 45°

+45°

Picture 7. Approximate horizontal detection area.

4.4 Mounting bracket

The mounting bracket is normally used when PIR II

is used as a Door alarm to place the unit on a door

blade, see „6 IDA (Intelligent Door Alarm)“.

Picture 8. Mounting bracket.

The screws must be 3.5- 3.7 mm wide and at least 30

mm long and the head must not exceed 2 mm in height.
