Leica DISTODXT Bedienungsanleitung

Leica DISTO

™

DXT

The original laser distance meter

1Symbols used in this manual

Leica DISTO™ DXT 776113

FIN

SLO

ROK

RUS

EST

User Manual

English

Congratulations on the purchase of your

Leica DISTO™ DXT.

The safety instructions and the user

manual should be read through

carefully before you use the

product for the first time. The

person responsible for the product must ensure that

all users understand these directions and adhere to

them.

Symbols used in this manual

The symbols used have the following meaning:

WARNING

Indicates a potentially hazardous situation or

an unintended use which, if not avoided, could result

in death or serious injury.

CAUTION:

Indicates a potentially hazardous situation or

an unintended use which, if not avoided, may result

in minor injury and/or in appreciable material, finan-

cial and environmental damage.

)Important paragraphs which must be adhered

to in practice, as they enable the product to be used

in a technically correct and efficient manner.

Intended Use

Permitted uses

• Measuring distances

• Computing functions, e.g. areas and volumes

Adverse uses

• Using the instrument without instructions

• Using outside the stated limits

• Deactivation of safety systems and removal of

explanatory and hazard labels

• Opening of the equipment by using tools (screw-

drivers etc.)

• Carrying out modification or conversion of the

product

• Use of accessories from other manufacturers

without the express approval of Leica Geosys-

tems.

• Deliberate or irresponsible behaviour on scaf-

folding, when using ladders, when measuring

near machines which are running, or near parts of

machines or installations which are unprotected

• Aiming directly into the sun

• Deliberate dazzling of third parties; even in the

dark

• Inadequate safeguards at the surveying site (e.g

when measuring on roads, construction sites,

etc.)

Intended Use Leica DISTO™ DXT 776113

FIN

SLO

ROK

RUS

EST

Limits of use

)Also see section "Technical data".

The Leica DISTO™ is designed for use in areas perma-

nently habitable by humans, do not use the product

in explosive hazardous areas or in aggressive environ-

ments.

Responsibilities

Responsibilities of the manufacturer of the orig-

inal equipment Leica Geosystems AG, CH-9435

Heerbrugg (for short Leica Geosystems):

Leica Geosystems is responsible for supplying the

product, including the User Manual and original

accessories, in a completely safe condition.

(Additional language versions can be found at:

www.disto.com)

Responsibilities of the manufacturer of non-

Leica accessories:

The manufacturers of non-Leica accessories for the

Leica DISTO™ are responsible for developing, imple-

menting and communicating safety concepts for their

products. They are also responsible for the effective-

ness of these safety concepts in combination with

the Leica Geosystems equipment.

Responsibilities of the person in charge of the

instrument:

WARNING

The person responsible for the instrument

must ensure that the equipment is used in accord-

ance with the instructions. This person is also

accountable for the deployment of personnel and for

their training and for the safety of the equipment

when in use.The person in charge of the product has

the following duties:

• To understand the safety instructions on the

product and the instructions in the user manual.

• To be familiar with local safety regulations

relating to accident prevention.

• To inform Leica Geosystems immediately if the

equipment becomes unsafe.

3Overview

Leica DISTO™ DXT 776113

FIN

SLO

ROK

RUS

EST

Overview

Keyboard

1ON/DIST (ON/MEASURING) - key

2PLUS [+] - key

3MINUS [-] - key

4AREA/VOLUME - key

5PYTHAGORAS - key

6REFERENCE - key

7HISTORICAL MEMORY/UNITS - key

8CLEAR/OFF - key

Display

1Laser"ON"

2 Reference (front/rear/end piece/tripod)

3min/maxdisplay

4 Battery status

5Area/volume

6 Info symbol

7Pythagoras

8 Historical memory

9 Intermediate line 3

10 Intermediate line 2

11 Intermediate line 1

12 Main line

13 Detailed display

14 Ceiling area

15 Wall area

16 Circumference

43 567 8

Start up Leica DISTO™ DXT 776113

FIN

SLO

ROK

RUS

EST

Start up

Inserting / Replacing Batteries

1 Fold out the end-piece.

2 Open the locking mechanism with a coin or

screwdriver and lift the battery compartment

cover.

3 Insert batteries, observing correct polarity.

4 Close the battery compartment.

• Replace the batteries when the symbol flashes

permanently in the display.

)Only use alkaline batteries.

)If the instrument will not be used for a long

time, remove the batteries as a protection against

corrosion.

)To ensure the instrument remains watertight,

you should avoid getting dirt on the battery compart-

ment seals.

Operation

Measuring Conditions

Range

Range is limited to 70 m.

At night or dusk and if the target is in shadow the

measuring range without target plate is increased.

Use a target plate to increase the measurement

range during daylight, or if the target has poor reflec-

tion properties!

Target Surfaces

CAUTION:

Measuring errors can occur when measuring

toward colourless liquids (e.g. water) or dust free

glass, Styrofoam or similar semi-permeable surfaces.

Aiming at high gloss surfaces may deflect the laser-

beam and lead to measurement errors.

Hazards of Use

CAUTION:

Watch out for erroneous distance measure-

ments if the instrument is defective or if it has been

dropped or has been misused or modified.

Precautions:

Carry out periodic test measurements.

Particularly after the instrument has been subject to

5Operation

Leica DISTO™ DXT 776113

FIN

SLO

ROK

RUS

EST

abnormal use, and before, during and after important

measurements.

Make sure the Leica DISTO™ optic is kept clean and

that there is no mechanical damage to the bumpers.

CAUTION:

In using the instrument for distance measure-

ments or for positioning moving objects (e.g. cranes,

building equipment, platforms, etc.) unforeseen

events may cause erroneous measurements.

Precautions:

Only use this product as a measuring sensor, not as

a control device. Your system must be configured and

operated in such a way, that in case of an erroneous

measurement, malfunction of the device or power

failure due to installed safety measures (e.g. safety

limit switch), it is assured that no damage will occur.

Switching on/off

1x briefly: the instrument and the laser are

switched on.

The display shows the battery symbol until

the next button is pressed.

Pressing this button for longer switches the

instrument off.

The instrument switches off automatically after

three minutes of inactivity.

Setting the unit

Press long until the desired unit is displayed.

Possible units:

CLEAR-Key

1x briefly: the last action is cancelled.

Distance Area Volume

1. 0.000 m 0.000 m² 0.000 m³

2. 0'0'' 1/80.000 m² 0.000 m³

3. 0 in 1/80.000 m² 0.000 m³

4. 0'0'' 1/16 0.00 ft² 0.0 ft³

5. 0 in 1/16 0.00 ft² 0.0 ft³

6. 0.00 ft 0.00 ft² 0.0 ft³

Operation Leica DISTO™ DXT 776113

FIN

SLO

ROK

RUS

EST

Reference Setting

Default reference setting is from the rear of the

instrument.

The instrument can be set for the following measure-

ments:

• To measure from an edge, fold out the posi-

tioning bracket until it snaps in for the first time.

• To measure out of a corner, fold out the stop

bracket until it snaps in, push the stop bracket

with a little force to the right side; the stop

bracket can now be completely unfolded.

)The device automatically recognises the

measurement position and adjusts the following

measurement.

1x briefly: the next measurement is taken from

the front edge. After one measurement, the

reference returns automatically to the default

setting (rear reference).

2x briefly: the measurement is taken from the

rear reference (default setting).

1x long: The measurements are taken continu-

ously from the front edge. A brief press on the

key cancels the continuous measurement

setting again.

7Measuring

Leica DISTO™ DXT 776113

FIN

SLO

ROK

RUS

EST

Measuring

Single Distance Measurement

1x briefly: the laser is activated.

1x briefly: a distance measurement is taken.

The result is displayed immediately.

Continuous measurement

Distances can be staked out with this function

1x long: a "beep" is sounded. A continuous

measurement is started.

1x briefly: the continuous measurement is

stopped.

The last measured value is displayed in the summary

line.

Minimum-/Maximum-Measuring

This function enables determining the minimum or

maximum distance from a specific measuring point,

e.g. the determination of room diagonals (maximum

value) or horizontal distance (minimum value).

Switching on continuous measurement (see above).

The corresponding maximum and minimum values are

displayed.

Functions

Addition / Subtraction

Distance Measurement.

1x briefly: the next measurement is added to

the previous one.

1x briefly: the next measurement is subtracted

from the previous one.

Repeat this procedure for as many times as required.

The result is displayed in the summary row, the previ-

ously measured value is displayed in intermediate line

2, the value to be added in intermediate line 1.

1x briefly: the last step is cancelled.

Area function

1x briefly: The symbol is displayed.

1x briefly: takes first distance measurement

(e.g. length)

1x briefly: takes second distance measurement

(e.g. width)

The result of the area measurement is displayed in

the summary row, the individually measured values

are displayed in intermediate lines 1 and 2.

A long press on the key displays the perimeter

Functions Leica DISTO™ DXT 776113

FIN

SLO

ROK

RUS

EST

Adding and subtracting areas

Calling up the area function and measuring areas.

Press or .

1x briefly: takes first distance measurement

(e.g. length)

1x briefly: takes second distance measurement

(e.g. width)

The result of the second area measurement, "+" flashes.

1x briefly: confirms the addition; the added area

results are displayed in the summary row.

Volume function

2x briefly: the symbol is displayed.

1x briefly: takes first distance measurement

(e.g. length)

1x briefly: takes second distance measurement

(e.g. width)

The result of the area measurement from the values

already measured is displayed in the summary row.

1x briefly: takes the third distance measure-

ment (e.g. height). The value is displayed in

intermediate line 1.

The calculated volume appears in the summary line,

the last three measured values appear in interme-

diate lines 1, 2, 3.

Press the button for longer to display additional

room information such as circumference ,

ceiling/floor area , surface area of the walls .

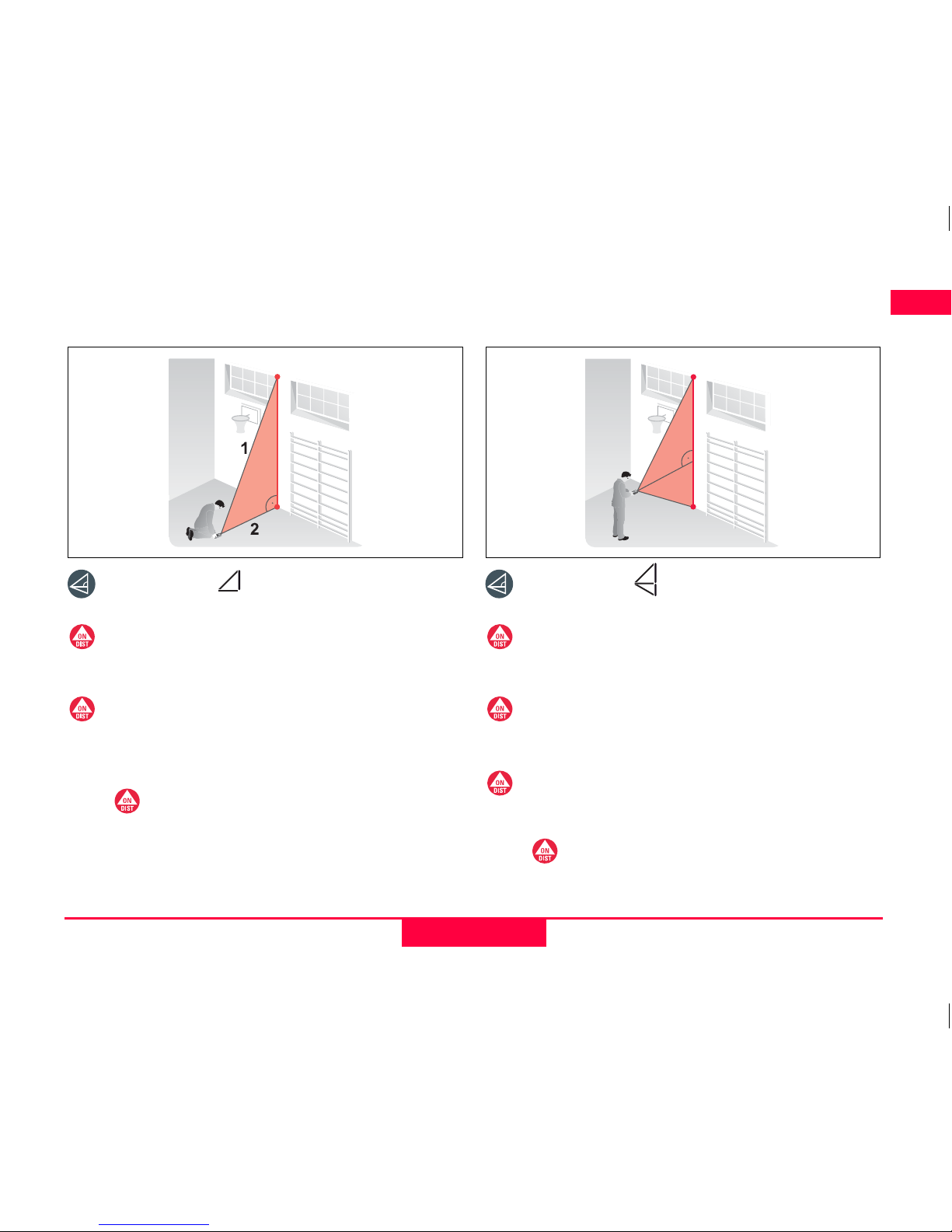

Indirect Measurement

The instrument can measure distances with the

Pythagoras method. This procedure facilitates in

measuring distances that are difficult to access.

)Adhere to the prescribed sequence of meas-

urements:

• All target points must be vertical or horizontal on

the surface of the wall.

• The best results are achieved when the intrument

is rotated around a fixed point (e.g. the stop

bracket is fully extended and the instrument is

placed against a wall).

• To take the measurement, the minimum/

maximum function can be called up. The minimum

value is used for measurements that must be at

right-angles to the target; the maximum distance

is used for all other measurements.

)Make sure that the first measurement and the

distance to be measured are at right angles. Use the

minimum/maximum function.

9Functions

Leica DISTO™ DXT 776113

FIN

SLO

ROK

RUS

EST

Indirect measurement - determining a

distance using 2 auxilliary measurements

1x briefly: the symbol is displayed.

The distance to be measured flashes in the symbol.

1x briefly: takes a measurement of the distance

The second distance to be measured flashes in the

symbol

1x briefly: takes a measurement of the hori-

zontal distance

The result of the function is displayed in the summary

row.

If the button is pressed for along time while

measuring a distance, maximum or minimum contin-

uous measuring is activated.

Indirect measurement - determining a

distance using 3 auxilliary measurements

2x briefly: the symbol is displayed.

The distance to be measured flashes in the symbol.

1x briefly: takes a distance measuement

The second distance to be measured flashes in the

symbol

1x briefly: takes a horizontal measurement.

The third distance to be measured flashes in the

symbol

1x briefly: takes a measurement of the distance

The result of the function is displayed in the summary

row.

If the button is pressed for along time while

measuring a distance, maximum or minimum contin-

uous measuring is activated.

Inhaltsverzeichnis

Andere Leica Laser-Nivelliergerät Handbücher

Leica

Leica Rugby 880 Bedienungsanleitung

Leica

Leica Sprinter 150 Bedienungsanleitung

Leica

Leica TPS1200 series Bedienungsanleitung

Leica

Leica Sprinter 50 Bedienungsanleitung

Leica

Leica Rugby 410 Bedienungsanleitung

Leica

Leica Rugby 810 Bedienungsanleitung

Leica

Leica DNA 10 Bedienungsanleitung

Leica

Leica Rugby 670 Bedienungsanleitung

Leica

Leica Rugby 400 DG Bedienungsanleitung

Leica

Leica CS20 Bedienungsanleitung

Leica

Leica Lino L2 Bedienungsanleitung

Leica

Leica Lino ML90 Bedienungsanleitung

Leica

Leica DISTO D210 Bedienungsanleitung

Leica

Leica Rod Eye Basic Bedienungsanleitung

Leica

Leica iCON robot 60 Bedienungsanleitung

Leica

Leica Lino L4P1 Bedienungsanleitung

Leica

Leica Rugby 880 Bedienungsanleitung

Leica

Leica LINO L2Gs-1 Bedienungsanleitung

Leica

Leica Rugby 820 Bedienungsanleitung

Leica

Leica Rugby 100 Bedienungsanleitung

Leica

Leica Rugby 610 Bedienungsanleitung

Leica

Leica Rugby 620 Bedienungsanleitung

Leica

Leica Sprinter 150 Bedienungsanleitung

Leica

Leica Rugby 320 SG Bedienungsanleitung

Beliebte Laser-Nivelliergerät Handbücher anderer Marken

Nedo

Nedo ET-5 Bedienungsanleitung

geo-FENNEL

geo-FENNEL Maxi-Liner FL 65 HP Bedienungsanleitung

LaserLiner

LaserLiner X2-Laser Bedienungsanleitung

Spectra

Spectra LL300N Bedienungsanleitung

geo-FENNEL

geo-FENNEL Selection PRO FLG 40-PowerCross GREEN SP Bedienungsanleitung

Nedo

Nedo Crossliner 4 Bedienungsanleitung

Lasertec

Lasertec FX360G Bedienungsanleitung

Flex

Flex ALC 8 Bedienungsanleitung

Black & Decker

Black & Decker LZR5 Bedienungsanleitung

Johnson

Johnson 40-6692 Bedienungsanleitung

Cocraft

Cocraft HL 20-SG Bedienungsanleitung

Zircon

Zircon iLine Bedienungsanleitung

HWH

HWH 310 SERIES Bedienungsanleitung

LaserLiner

LaserLiner SuperCross-Laser SCL 2 Bedienungsanleitung

LaserLiner

LaserLiner ActiveFinder XP Bedienungsanleitung

DeWalt

DeWalt DW082 Bedienungsanleitung

imex

imex EL20 Bedienungsanleitung

Fixturlaser

Fixturlaser NXA D I-0912 Bedienungsanleitung
