Contents

1. Application 3

1.1 Intended use 3

1.2 Improper use 3

2. Technical data 3

3. Transport 4

4. Your UNIDRIVE 500 5

4.1 Type plate and identiﬁcation 5

4.2 Scope of delivery 5

4.3 Overview of device parts 6

5. Settings on the UNIDRIVE 500 7

5.1 Adjusting the Welding Nozzle 7

5.2 Retooling for dierent welding widths 8

6. Commissioning your UNIDRIVE 500 9

6.1 Work environment and safety 9

6.2 Operating readiness 10

6.3 Positioning the device 10

6.4 Starting the device 11

6.5 Welding sequence 12

6.6 Switching o the device / Maintenance 12

7. Quick Guide UNIDRIVE 500 13

7.1 Switching on/Starting 13

7.2 Switching o 13

8. Operating unit UNIDRIVE 500 13

8.1 Function keys 13

8.2 Display 14

8.3 Display symbols of the status display (Display 20) 15

8.4 Display symbols for the welding speed (Display 21) 15

8.5 Display symbols for the welding temperature (Display 22) 15

8.6 Display symbols for the air volume (Display 23) 15

8.7 Status LED display 15

9. Settings and functions of the UNIDRIVE 500 software 16

9.1 Setting the parameter units 16

9.2 Setting the welding parameters 16

9.3 Cool down mode 17

9.4 Monitoring welding parameters during runtime 17

9.5 Switch drive direction 17

10. Warning and error messages UNIDRIVE 500 18

11. FAQ, causes and measures UNIDRIVE 500 19

12. Declaration of Conformity 20

UNIDRIVE 500

100 V UNIDRIVE 500

100 - 120 V UNIDRIVE 500

220 – 240 V

V~ 100 120 230

Hz 50 / 60 50 / 60 50 / 60

W1500 1800 2200

°C

°F 100 – 580

220 – 1076

%45 – 100

m/min

ft/min 0,7 - 4,5

2.3 – 14.8

LpA (dB) 70 (K = 3 dB)

m/s²

ft/s² < 2.5 (K = 1.5)

< 8.2 (K = 4.9)

lbs 4.5

9.9

b c

a) mm / inch 297 / 11.7

b) mm / inch 173 / 6.8

c) mm / inch 275 / 10.8

UNIDRIVE 500

Industrial hot-air tool

We recommend that you always keep the operating instructions with the device.

Congratulations on your purchase of the UNIDRIVE 500.

You have chosen a ﬁrst-class semi-automatic hot-air welder.

It was developed and produced in accordance with the latest state-of-the-art technology in the plastics-proces-

sing industry.

It has also been manufactured using high-quality materials.

For further information on the UNIDRIVE 500, visit www.leister.com

The UNIDRIVE 500 is intended for professional use on ﬂat and sloping roofs, certain geosynthetic applications,

and the swimming pool market.

Welding processes and types of materials

• Overlap welding of thermoplastic/elastomer membranes (such as TPO/FPO, PVC, ECB, modiﬁed EPDM, EVA,

PIB, PMI, PO, PP)

• Overlap welding for base seams

• Close-edge welding on roof and cross-seam parapets and eaves up to 60 mm

• Welding on roof parapets and eaves

• Welding widths: 15, 30 and 40 mm

• Swimming pool models

• Waterstops for below-grade concrete applications

• Circumferential welds

Any other use of the UNIDRIVE 500 or any use beyond the type of use described is deemed improper use.

We reserve the right to make technical changes at any time without prior notice.

1. Application

1.1 Intended use

1.2 Improper use

2. Technical data

Comply with applicable national statutes regarding the carrying or lifting of loads.

The weight of your UNIDRIVE 500 including the transport box is 7.5 kg (4.5 kg without trans-

port box).

Transport the semi-automatic hot air welder only with the transport box included with the

delivery (see scope of delivery 5 [4.2]) and carry the transport box by the handle provided.

The hot-air blowers (6) MUST be allowed to cool down prior to transport.

Never store ﬂammable materials (such as plastic, wood, or paper) in the trans-

port box.

Never use the carrying handle (4) on the device or on the transport box for

transporting with a crane.

To manually raise the semi-automatic hot air welder, use the carrying handle

(4).

3. Transport

Example:

The model and serial number are indicated on your device's type plate (12).

Please enter this information in your operating instructions and always reference it when addressing queries

to our representatives or authorized Leister Service Centers.

Model:..............................................................................................................................................................

Serial no.:.........................................................................................................................................................

Standard equipment in the case:

• 1 x UNIDRIVE 500 drive

• 1 x wire brush

• 1 x hexagon wrench key, size 3

• 1 x quick guide

• 1 x safety instructions

4. Your UNIDRIVE 500

4.1 Type plate and identification

4.2 Scope of delivery

4 5

10 9

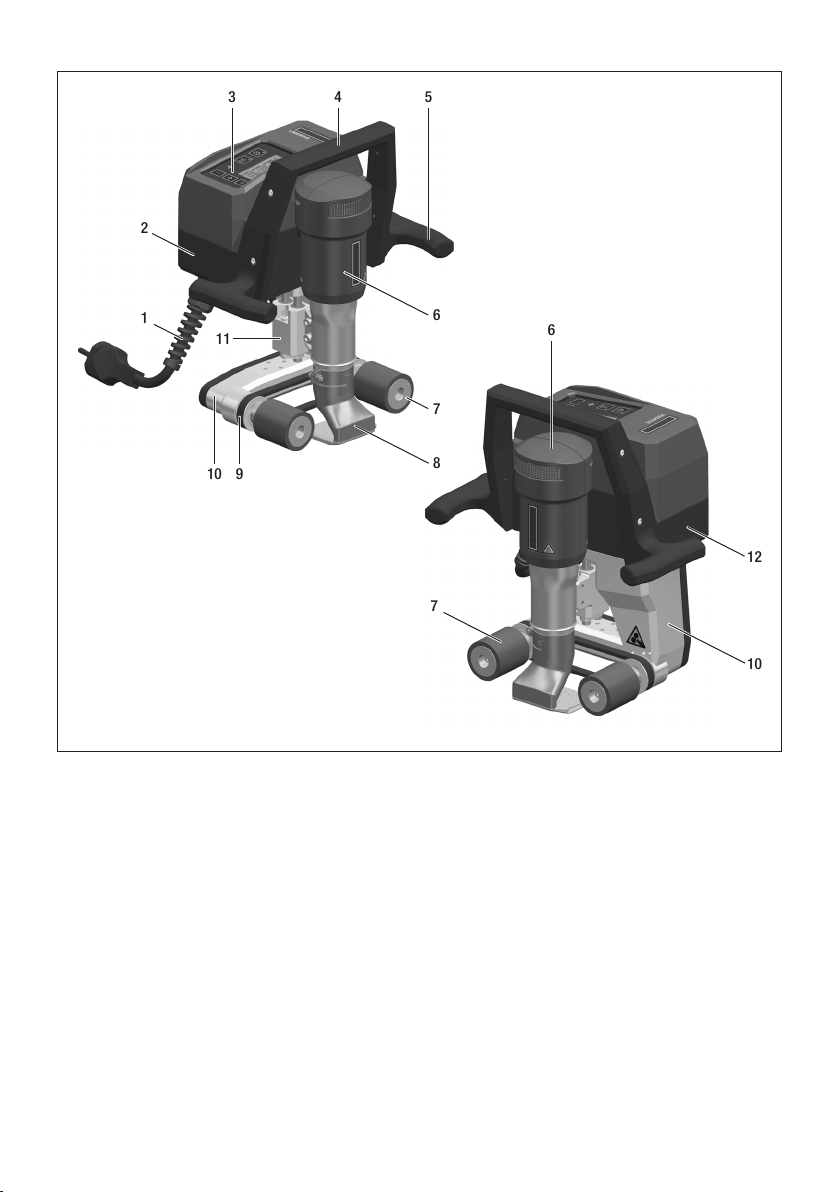

4.3 Overview of device parts

1. Power cord

2. Housing

3. Operating unit

4. Carrying handle, top

5. Handle, side

6. Hot-air blower

7. Drive/pressure roller

8. Welding nozzle 15-40 mm

9. Drive and pressure belt

10. Undercarriage

11. Height adjustment

12. Type plate with model designation and series marking

Set welding direction and angle

The direction of the arrow on the welding nozzle (8) deﬁnes the welding direction.

Align the welding nozzle (8) parallel to the drive/pressure roller (7).

Set distance A(2 hexagon socket screws)

A = 1 – 2 mm

Hexagon socket screw

2 hexagon socket screw

5. Settings on the UNIDRIVE 500

5.1 Adjusting the Welding Nozzle

5.2 Retooling for different welding widths

To retool to a dierent welding width, proceed in accordance with the sequence described below.

Allow the device to cool down in Cool Down mode.

Before beginning with dismantling work, make sure that the power cord (1) is disconnected from the

mains.

1. Release the cheese head screws M5 × 30 on the two drive/pressure rollers (7) (screw length varies depending

on roller type).

2. Remove the drive/pressure rollers (7).

3. Mount the new drive/pressure rollers (7).

4. Retighten the new M5 cheese head screws.

5. Release the hexagon socket screw.

6. Remove the welding nozzle (8) that is currently mounted.

7. Insert the desired welding nozzle (8).

8. Adjust the welding nozzle (8) (see Adjust welding nozzles 7 [5.1]).

9. Retighten the hexagon socket screw.

Step 1: Safety precautions

Step 2: Adjusting the roller width (analogous to the 15, 30, or 40 mm welding nozzle)

Step 3: Changing the welding nozzle (15, 30 or 40 mm)

Cheese head screw M5

Hexagon socket screw

6. Commissioning your UNIDRIVE 500

6.1 Work environment and safety

The semi-automatic hot-air welder must only be used in the open or in a well-ventilated area.

In addition, comply with national statutory requirements regarding occupational safety (securing

personnel or devices).

Use the device only on a ﬁreproof surface.

Read the material safety data sheet of the manufacturer of the material and follow that company's

instructions. Be careful not to burn the material during the welding process.

Never use the semi-automatic hot-air welder in explosive or readily inﬂammable surroundings and

maintain sucient distance from combustible materials or explosive gases at all times.

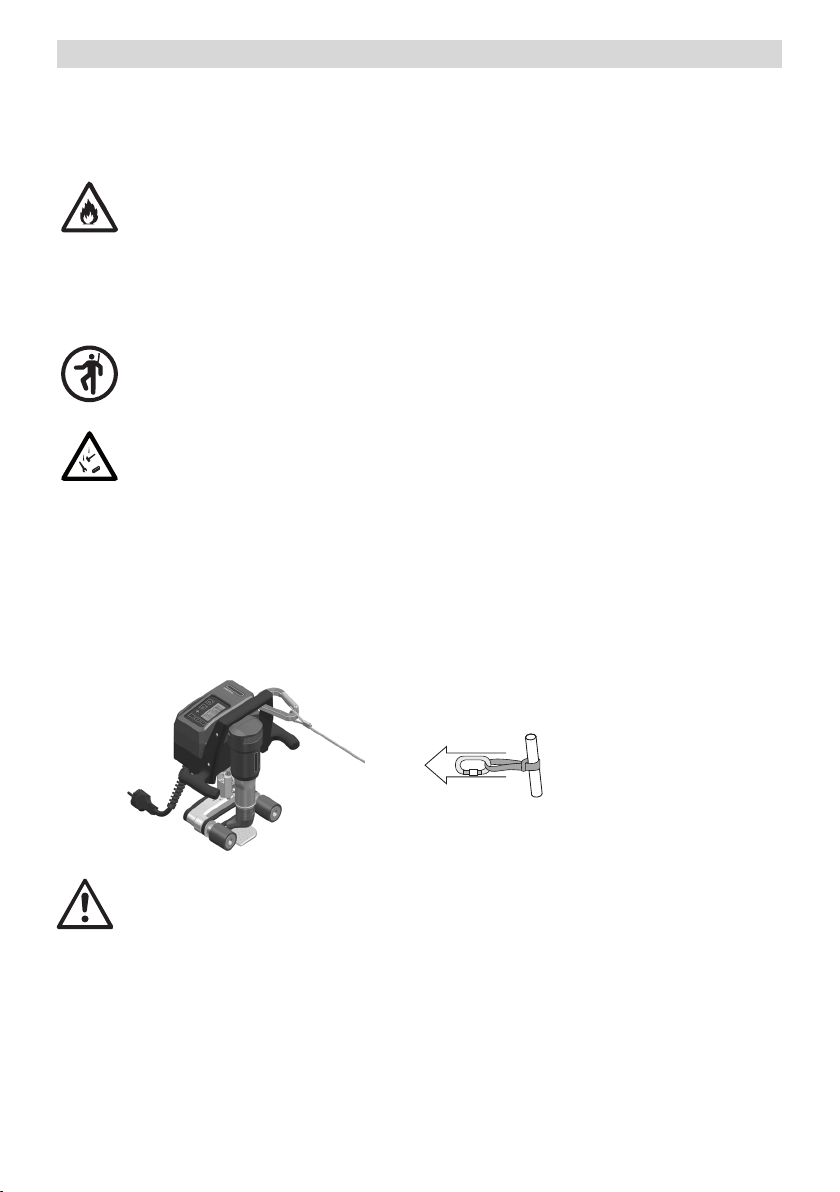

Anti-fall protection when working on areas where there is a danger of falling.

When welding on roof parapet (parapet, eaves), the semi-automatic hot-air welder must be

secured to an anchor point using the carrying handle (4) and a safety line (e.g. rail or rope

safety systems) as protection against falling.

With respect to the safety chain, care must be taken to ensure that all of the safety elements (carabiner

hooks, ropes) have a minimum load-carrying capacity of 7 kN in every anticipatable direction. For the

suspension of the machine, it is mandatory to use clasp carabiners (Twist-Lock or screw types). All sa-

fety chain connections must be installed and checked in accordance with manufacturer speciﬁcations.

Before each use and after any unusual occurrences, the carrying handle (4) that is used for fastening

the safety rope must be inspected by an individual with expertise in this area. The carrying handle (4)

is not permitted to exhibit any cracks, corrosion, notches or other material faults.

Caution: Secure the semi-automatic hot air welder with the carrying handle (4)only!

Caution: The semi-automatic hot-air welder must never be fastened to single anchoring points which

allow ropes to sag. The connection equipment must always be set to the shortest length possible in

order to eliminate the chance of falling over the edge of the parapet.

Step 1: Safety precautions

Check the basic setting of the welding nozzle (8).

• Check whether the material to be welded is clean between the overlap and on the upper and lower sides.

• Then check whether the welding nozzle (8), the drive/pressure roller (7), and the pressure belt (9) are

clean.

• If necessary, position the optionally available welding plate (see Scope of delivery 5 [4.2]).

Caution: The device may fall or drop in an uncontrolled manner due to gravity. The securing point is not designed

to withstand the shock-like stress of an abrupt fall.

Contact the manufacturer without hesitation if uncertainties arise during installation or operation.

Power cord and extension cable

• The nominal voltage speciﬁed on the device (see Technical data 3 [2]) must match the mains voltage.

• The power cord (1) must be able to move freely and must not hinder the user or third parties during work

(danger of tripping).

• The extension cable must be authorized for outdoor use and be marked accordingly. Take into account the

necessary minimum cross-section/gauge for extension cables, as required.

Generators for power supply

When using generators as a power supply, please ensure that the generators are grounded and equipped with

residual-current circuit breakers.

When selecting the nominal output of the generators, the formula «1.5 – 2 × nominal output of the semi-automa-

tic hot-air welder» applies.

Welding plate (available as an option)

6.2 Operating readiness

6.3 Positioning the device
