Leister Hot-Jet S Bedienungsanleitung

LEISTER Hot-Jet S

Hot Air Welding Tool

Please read operating instructions carefully

before use and keep for further reference.

•Soldering and de-soldering of SMD thru-hole components.

•Welding of thermoplastic materials and also single-ply flexible plastics and

modified bitumen in the form of boards, tubes, profiles, lining membranes,

coated materials, films, foams, tiles, and sheets. The following procedures

are possible: overlap welding, welding with rod, with tape and fusion

welding by heat.

•Shrinking of heat-shrink sleeves, films, tapes, solder sleeves and moulded

parts.

•Activating/dissolving of solvent free adhesives and fusion adhesives.

•Drying of water-damp surfaces.

OPERATING INSTRUCTIONS

APPLICATION

LEISTER Process Technologies, Riedstrasse, CH-6060 Sarnen/Switzerland

Tel. +41- 41 662 74 74 Fax +41- 41 662 74 16

www.leister.com [email protected]

Voltage V~

Power consumption W

Temperature °C

Air flow l/min.

Air pressure mbar

Noise level dB (A)

Weight g

Size mm

100, 120, 230, for 50/60 Hz

460, 460, 460

20 – 600, steplessly controlled

20 – 80, steplessly adjustable

max. 16

375 without cable, 580 with 3m cable

235 x 70, handle Ø 40

Mains voltage

cannot be

switched over

TECHNICAL DATA Electrical safety: double insulated

This tool is CCA certificated (CENELEC Certification Agreement).

Danger to life when opening the tool, as live compo-

nents and connections ar exposed. Unplug the tool

before opening it.

Incorrect use of hot air blowers can cause fire and

explosion hazard, especially near combustible materials

and explosive gases.

The tool must be operated with supervision. Warmth

can reach combustible materials, which are out of sight.

For personal protection on building sites we strongly

recommend the tool be connected to a GFCI (Ground

Fault Circuit Interrupter) or a RCCB (Residual Current

Circuit Breaker) .

The voltage rating stated on the tool must correspond to

the line/mains voltage.

Do not touch the element housing and nozzle when

they are hot as they can cause burns. Let the tool cool

down. Do not point hot air flow in the direction of

people or animals.

Protect tool from damp and wet.

120

230

WARNING

CAUTION

APPROVAL MARKS

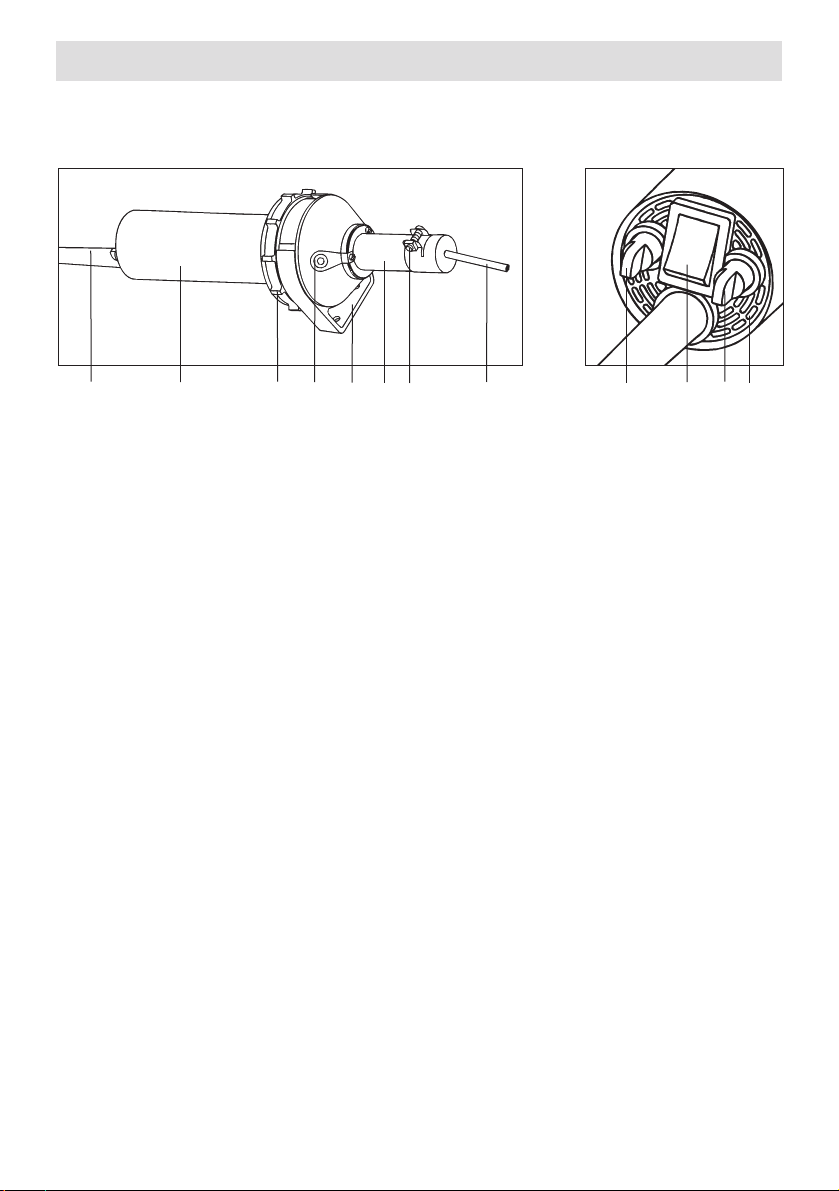

Description of tool

Operating condition

• As required, push-fit appropriate nozzle (9).

•Connect tool to the mains.

• The air flow is steplessly adjustable by use of the black potentiometer (4).

•The hot air temperature is steplessly adjustable by use of the red potentiometer (3).

•If required, earth the tool via the ESD-lead connection.

•Switch on (2) and allow to warm up for about 5 min.

Operation

•The Leister Company, as well as the Service Centres, offer free training courses in

all areas of application (see page 1).

Change of nozzles

• Before changing nozzles, allow the tool to cool down, or use only combination

pliers.

•Do not touch hot nozzle (9) and make sure to put it only on a heat resistant sur-

face, because of the fire hazard.

•The nozzles are easily pushed onto the tapered element housing (8) and are then

secured by fastening the screw on the clamp (10).

•Only Leister nozzles should be used.

USAGE LEISTER Hot-Jet S

1. Cable to mains

2. On/off switch

3. Potentiometer for

temperature adjustment

4. Potentiometer for

air flow adjustment

5. Air filter

6. Handle

7. Rubber stand

8. Element housing

9. Nozzle

10. Clamp with screw

to push-fit nozzle

11. ESD-lead connection

12. Tool stand (wich can

be rotated and fixed).

685

711 12 234

BA HOT-JET S/ 06.2001/GB

•The welding tool's airfilter (5) should be cleaned with a brush if nescessary.

•A wire brush should be used for cleaning the welding nozzle (9).

•Use only LEISTER accessories.

•The carbon brushes of the motor have to be checked by your Service Centre

after about 700 hours running time.

•Repairs should only be carried out by authorised LEISTER Service Centres.

They guarantee a specialised and reliable Repair Service within 24 hours using

original spare parts lists.

•Guarantee and liability are in accordance with the guarantee certificate as

well as with the currently valid general business and sales conditions.

•LEISTER Process Technologies rejects any guarantee claims for tools which are

not in their original condition. The tools must never be altered or changed.

Technical data and specifications are subject to change without prior notice.

Your authorised Service Centre is:

GUARANTEE AND LIABILITY

SERVICE AND REPAIRS

ACCESSORIES

MAINTENANCE

LEISTER Process Technologies, Riedstrasse, CH-6060 Sarnen/Switzerland

Tel. +41- 41 662 74 74 Fax + 41- 41 662 74 16

www.leister.com [email protected]
